Каталог запасных частей к технике: LiuGong CLG-842. 15E1016 000 HYDRAULIC SYSTEM

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 45E0739 005 DECAL SET 45E0739 005 DECAL SET 45E1004 004 NAMEPLATE GP 00E0663 004 ENGINE SYSTEM 00E0998 002 ENGINE SYSTEM 40C0175 003 QSB MUFFLER 23C0202 000 THROTTLE CONTROL SYST 23C0281 000 THROTTLE CONTROL SYSTEM 00E0785 010 COOLING SYSTEM 00E0785 010 COOLING SYSTEM 00E0785 010 COOLING SYSTEM 31C0114 002 ELBOW 24C0368 002 PIN 00E0670 003 FUEL TANK AS 16C0004 000 BREATHER CAP 12D0369 000 STRAINER 01E0013 005 FRONT AXLE AS 01E0207 004 FRONT AXLE AS 45C0005 002 CLAMP AS 41C0029 007 FRONT AXLE BEVEL GEAR 34C0002 000 CARRIER AS 24D0006 000 SPINDLE 41C0329 003 BEVEL GEAR AS 41C0114 000 CARRIER AS 41C0182 001 FRONT HUB CARRIER 31C0038 000 CONNECTOR 01E0014 013 REAR AXLE AS 01E0208 006 REAR AXLE AS 41C0574 002 REAR AXLE BEVEL GEAR 41C0197 000 CARRIER AS 34C1773 000 DIFF HOUSING 41C0183 001 REAR HUB CARRIER 41C0330 003 AXLE BEVEL GEAR AS 01E0010 000 TYRE&RIM AS 41C0021 000 RIM AS 01E0092 003 TYRE&RIM AS 41C0127 003 RIM AS 01E0255 000 TYRE & RIM AS 01E0011 000 FRONT AXLE LINES 10D0284 000 OIL PIPE 10D0283 000 OIL PIPE 01E0012 000 REAR AXLE LINES 10D0286 000 OIL PIPE 10D0285 000 OIL PIPE 01E0130 001 AXLE PIPE 03E0064 000 DRIVE SHAFT SYSTEM 41C0177 001 FRONT DRIVE SHAFT & BRG AS 51C0126 000 FRONT DRIVE SHAFT GP 51C0124 001 MIDDLE DRIVE SHAFT 51C0125 000 REAR DRIVE SHAFT 05E0195 002 GEARBOX & TORQUE CONVERTER AS 05E0004 002 GEARBOX & TORQUE CONVERTER AS 4644 130 263 00 ENGINE CONNECT 4644 152 037 01 COUPING KR+K2 4644 153 509 00 COUPING K3+K4 4644 153 030 01 COUPING K3+K4 4644 103 107 00 OUTPUT 4644 103 467 00 OUTPUT 4644 109 040 01 PARKING BRAKE 4644 109 040 02 PARKING BRAKE 4644 109 438 00 PARKING BRAKE 4644 154 080 00 POWER TAKE-OFF 4644 154 476 00 POWER TAKE-OFF 4166 034 070 00 TORQUE CONVERTER 4644 155 420 00 POWER TAKE-OFF 4644 155 031 00 POWER TAKE-OFF 4644 106 325 00 GEARSHIFT SYSTEM 4644 159 347 00 GEARSHIFT 4644 138 015 00 FILTER 4644 137 022 00 EMCY.STEER.PUMP 4644 120 213 00 PRESS.REGULATOR 4644 125 016 10 IND.TRANSMITTER 4644 125 479 00 IND.TRANSMITTER 4644 131 077 00 FILLER NECK 4644 102 134 00 INPUT 4644 121 023 00 OILPIPE 4644 131 419 00 FILLER NECK 4642 199 076 00 LOOSE PARTS 4644 101 249 00 GEARBOX HOUSING 4644 101 491 00 GEARBOX HOUSING 4644 108 232 00 LAYSHAFT 4644 151 034 01 COUPING KV+K1 4644 151 034 02 COUPING KV+K1 4644 152 037 02 COUPING KR+K2 15E0681 003 HYDRAULIC SYSTEM 15E0681 003 HYDRAULIC SYSTEM 15E1003 000 HYDRAULIC SYSTEM 15E1003 000 HYDRAULIC SYSTEM 15E1016 000 HYDRAULIC SYSTEM 15E1016 000 HYDRAULIC SYSTEM 15E1032 000 HYDRAULIC SYSTEM 15E1032 000 HYDRAULIC SYSTEM 00C1474 004 STEERING LINES 00C1474 004 STEERING LINES 00C2282 001 STEERING LINES 00C2282 001 STEERING LINES 12C2354 001 FLOW AMPLIFYING VALVE AS 10E0017 001 STEERING CYLINDER AS 00C1456 003 BOOM CYLINDER LINES 00C2039 000 BOOM CYLINDER LINES 12C2343 000 CONTROL VALVE AS 11E0036 002 BOOM CYLINDER AS 10C1231 001 BUCKET TILTING CYLINDER 00C2205 000 TILTING CYLINDER LINES 00C2323 000 TILTING CYLINDER LINES 00C1463 001 PILOT CONTROL SYSTEM 00C2291 001 PILOT CONTROL LINES 00C2328 001 MULTIPURPOSE LINES 00C2331 001 PILOT LINES 12C2345 000 COMBINATION VALVE 12C2544 000 COMBINATION VALVE 12C0037 004 COMBINATION VALVE 12C0400 000 CHECK VALVE 12C2322 001 PILOT VALVE MOUNTING AS 12C3196 001 PILOT VALVE MOUNTING AS 00C1473 001 STEERING CONTROL LINES 00C2284 001 STEERING CONTROL LINES 44C0841 002 STEERING COLUMN AS 44C0005 000 METERING PUMP 44C0023 000 STEERING SHAFT 00C2206 000 COOLER LINES 00C2293 000 COOLER LINES 31C0095 002 CONNECTOR 00C1459 001 PUMP OIL SUCTION LINES 11C1353 000 PUMP AS 21C0451 001 HYDRAULIC OIL TANK 21C0590 001 HYDRAULIC OIL TANK 12C1008 001 CHECK VALVE 00C1467 003 CONTROL VALVE LINES 00C1467 003 CONTROL VALVE LINES 00C2326 000 CONTROL VALVE LINES 00C1868 002 QUICK COUPLER CYL.LINES 10C0913 001 QUICK COUPLER CYLINDER 12C0826 002 DIVERTER VALVE MOUNTING 12C0685 010 DIVERTER VALVE 32E1147 001 POSITIONER AND KICKOUT SYSTEM 32E1619 000 POSITIONER AND KICKOUT SYSTEM 20E0324 003 SERVICE BRAKE SYSTEM 20E0324 003 SERVICE BRAKE SYSTEM 20E0441 000 SERVICE BRAKE SYSTEM 20E0441 000 SERVICE BRAKE SYSTEM 20E0426 002 BRAKE SYSTEM 31C0032 000 CONNECTOR 13C0003 000 AIR RESERVOIR 13C0367 000 AIR DRYER AS 32C0024 000 TEE 33C0003 000 CONNECTOR 44C0320 002 HIGH PRESSURE FILTER MOUNTING 13C0013 003 BRAKE CYLINDER AS 13C0189 002 BRAKE CYLINDER 45C0386 000 BRAKE VALVE AS 45C0550 000 BRAKE VALVE AS 30C0275 002 CONNECTOR 45C0387 000 VALVE BLOCK AS 45C0551 000 VALVE BLOCK AS 45C0219 000 BRAKE VALVE AS 21E0078 000 PARKING BRAKE SYSTEM 24C0032 000 LINKAGE SHAFT 13C0056 002 AIR CHAMBER AS 13C0057 001 AIR CHAMBER AS 30E0638 003 FRONT FRAME AS 30E0870 000 FRONT FRAME AS 30E0637 002 REAR FRAME AS 30E0860 000 REAR FRAME AS 30E0009 000 STEERING FRAME LOCK 30E0017 004 ARTICULATED HITCH AS 32E0699 001 WORK IMPLEMENT SYSTEM 32E1485 002 EQUIPMENT 32E1546 001 WORK IMPLEMENT SYSTEM 32E0487 004 QUICK COUPLER 32E0399 000 (2.3m3) BUCKET AS 32E0377 001 (3.0m3) BUCKET AS 32E1535 000 BUCKET 32E0508 000 (2.7m3) BUCKET AS 32E1488 001 BUCKET 32E0206 000 (2.5m3) BUCKET AS 32E0721 001 BUCKET AS 43C0601 002 (2.3m3) BUCKET AS 32E0301 000 (1.8m3) BUCKET AS 43C0603 001 (1.52m) FORK 32E1519 000 WASHER 25E0054 001 CENTRALIZED LUBRICATION SYSTEM 25E0054 001 CENTRALIZED LUBRICATION SYSTEM 25E0054 001 CENTRALIZED LUBRICATION SYSTEM 25E0042 000 GREASE LINES 45E0990 001 COUNTERWEIGHT 45E1370 000 COUNTERWEIGHT 41E0446 007 CAB AS 41E0446 007 CAB AS 47C1290 002 DOOR-LH 47C1291 002 DOOR-RH 47C0194 002 HAND REST 34C1806 002 DECORATION AS 47C0239 000 FIRE EXTINGUISHER 47C1941 000 CONTROL BOX AS 41E0428 001 PLATE AS 41E0159 000 CAB GUARD AS 41E0157 000 REARVIEW MIRROR AS 43E0313 000 FRONT FENDER-LH 43E0314 000 FRONT FENDER-RH 22C0320 001 PARKING INSTALLATION 43E0315 003 FENDER-LH 43E0316 003 FENDER-RH 43E0378 001 REAR FENDER-LH 43E0379 000 REAR FENDER-RH 43E0294 000 LADDER 43E0295 001 LADDER 44E0346 004 ENGINE HOOD AS 44E0346 004 ENGINE HOOD AS 46E0057 001 SEAT AS 23E0303 004 AIR CONDITIONING SYSTEM 23E0303 004 AIR CONDITIONING SYSTEM 46C4462 003 A/C GP-CAB 46C5490 001 EVAPORATOR AS 46C3591 001 FILTER 46C2967 000 COMPRESSOR BRACKET AS 46C2543 000 CONDENSER 22E1050 003 ELECTRICAL SYSTEM 22E1365 000 ELECTRICAL SYSTEM 46C4021 003 PLATFORM AS 46C2935 001 HOOD LIFT SYSTEM 46C3665 000 LIFT CONTROL BOX 46C4506 002 FRONT FRAME WIRING 46C4430 002 CAB WIRING 46C6671 000 CAB WIRING 46C4553 000 CONTROL BOX 46C6674 000 CONTROL BOX 46C6183 000 RELAY AS 46C3483 000 DOME LIGHT WIRING 46C0709 002 SHIFT CONTROL WIRING 46C4041 000 WIPER SYSTEM 46C5961 000 LIGHTGROUP 46C2830 000 REAR FLOODLIGHT-RH 46C2831 001 REAR FLOODLIGHT-LH 46C4295 000 FRONT FLOODLIGHT AS-RH 46C4296 000 FRONT FLOODLIGHT AS-LH 32B0333 001 LICENCE LIGHT 46C3355 003 REAR FRAME WIRING 46C3355 002 REAR FRAME WIRING 46C6673 000 REAR FRAME WIRING 46C6673 000 REAR FRAME WIRING 46C2954 000 CONTROL CASE AS 46C6725 000 CONTROL BOX AS 46C2934 001 BATTERY WIRING AS 46C1843 002 SOUND SYSTEM 46C1841 003 RADIO/CASSETTE PLAYER 50E0523 000 HYDRAULIC SCHEMATIC 50E0834 000 HYDRAULIC SCHEMATIC 50E0846 000 HYDRAULIC SCHEMATIC 50E0652 002 ELECTRICAL SCHEMATIC 50E0912 001 ELECTRICAL SCHEMATIC

1

2

3

4

5

8

9

11

12

13

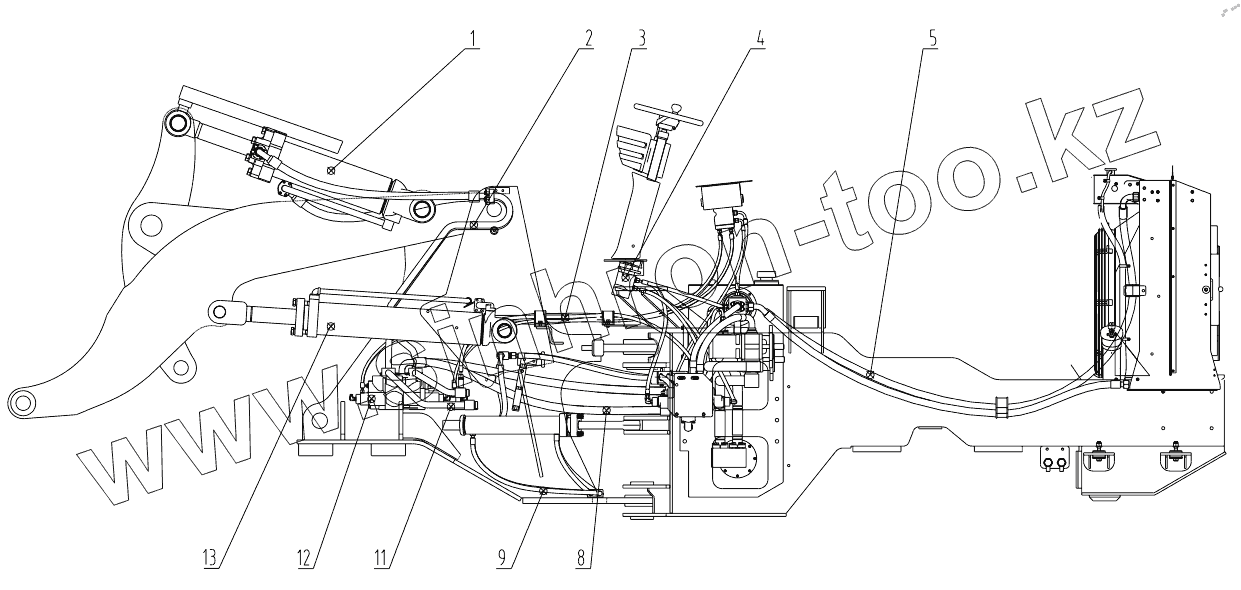

Позиция на иллюстрации	Заводской номер детали		Название детали
1	10C1231		BUCKET TILTING CYLINDER
2	00C2205		TILTING CYLINDER LINES
3	00C2291		PILOT CONTROL LINES
4	00C2284		STEERING CONTROL LINES
5	00C2293		COOLER LINES
6	11C1353		PUMP AS
7	21C0590		HYDRAULIC OIL TANK
8	00C1467		CONTROL VALVE LINES
9	00C2282		STEERING LINES
10	10E0017		STEERING CYLINDER AS
11	00C1456		BOOM CYLINDER LINES
12	12C2343		CONTROL VALVE AS
13	11E0036		BOOM CYLINDER AS

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
