13C0367 000 AIR DRYER AS

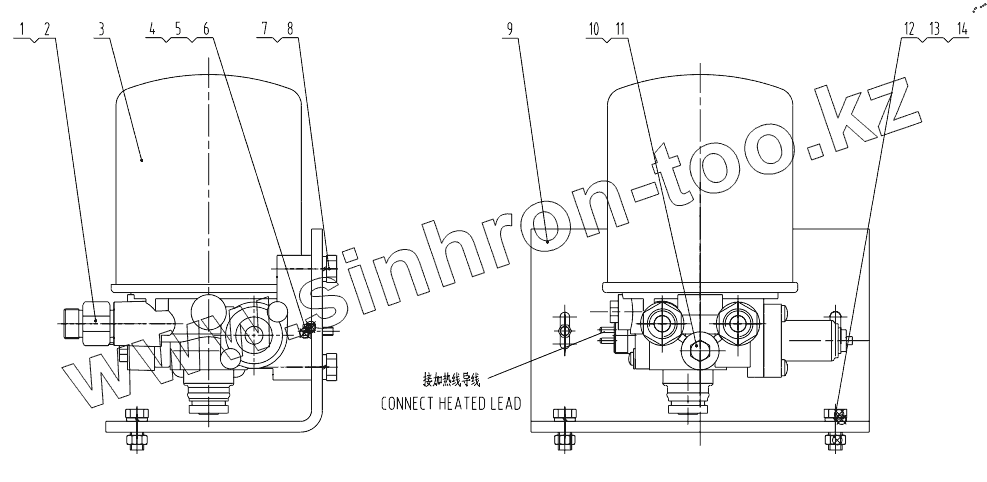

Каталог запасных частей к технике: LiuGong CLG-842. 13C0367 000 AIR DRYER AS
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CLG 425 (2010)
CLG 777A-S (2010)
CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016)
CLG-220 (2008)
CLG-225 (2008)
CLG-365A (2012)
CLG-375 (2008)
CLG-375A (2008)
CLG-385A (2008)
CLG-4165 (2015)
CLG-418 (2008)
CLG-4215 (2010)
CLG-612 (2008)
CLG-614 (2010)
CLG-618 (2010)
CLG-626R
CLG-766 (2015)
CLG-766A (2012)
CLG-816G (2012)
CLG-835
CLG-835 (2015)
CLG-835H (2015)
CLG-836 (2015)
CLG-842
CLG-842
CLG-842 (2015)
CLG-855N (2015)
CLG-856 (2015)
CLG-856H (2015)
CLG-856I
CLG-862 (2015)
CLG-877 (2015)
CLG-888 (2015)
CLG-904С (2007)
CLG-915D
CLG-915D
CLG-920D
CLG-920E (2015)
CLG-922D
CLG-922LC
CLG-922LC (2008)
CLG-925 (2015)
CLG-925D (2015)
CLG-933E (2010)
CLG-B160 (2010)
Схема
>
Не выбрано
45E0739 005 DECAL SET
45E0739 005 DECAL SET
45E1004 004 NAMEPLATE GP
00E0663 004 ENGINE SYSTEM
00E0998 002 ENGINE SYSTEM
40C0175 003 QSB MUFFLER
23C0202 000 THROTTLE CONTROL SYST
23C0281 000 THROTTLE CONTROL SYSTEM
00E0785 010 COOLING SYSTEM
00E0785 010 COOLING SYSTEM
00E0785 010 COOLING SYSTEM
31C0114 002 ELBOW
24C0368 002 PIN
00E0670 003 FUEL TANK AS
16C0004 000 BREATHER CAP
12D0369 000 STRAINER
01E0013 005 FRONT AXLE AS
01E0207 004 FRONT AXLE AS
45C0005 002 CLAMP AS
41C0029 007 FRONT AXLE BEVEL GEAR
34C0002 000 CARRIER AS
24D0006 000 SPINDLE
41C0329 003 BEVEL GEAR AS
41C0114 000 CARRIER AS
41C0182 001 FRONT HUB CARRIER
31C0038 000 CONNECTOR
01E0014 013 REAR AXLE AS
01E0208 006 REAR AXLE AS
41C0574 002 REAR AXLE BEVEL GEAR
41C0197 000 CARRIER AS
34C1773 000 DIFF HOUSING
41C0183 001 REAR HUB CARRIER
41C0330 003 AXLE BEVEL GEAR AS
01E0010 000 TYRE&RIM AS
41C0021 000 RIM AS
01E0092 003 TYRE&RIM AS
41C0127 003 RIM AS
01E0255 000 TYRE & RIM AS
01E0011 000 FRONT AXLE LINES
10D0284 000 OIL PIPE
10D0283 000 OIL PIPE
01E0012 000 REAR AXLE LINES
10D0286 000 OIL PIPE
10D0285 000 OIL PIPE
01E0130 001 AXLE PIPE
03E0064 000 DRIVE SHAFT SYSTEM
41C0177 001 FRONT DRIVE SHAFT & BRG AS
51C0126 000 FRONT DRIVE SHAFT GP
51C0124 001 MIDDLE DRIVE SHAFT
51C0125 000 REAR DRIVE SHAFT
05E0195 002 GEARBOX & TORQUE CONVERTER AS
05E0004 002 GEARBOX & TORQUE CONVERTER AS
4644 130 263 00 ENGINE CONNECT
4644 152 037 01 COUPING KR+K2
4644 153 509 00 COUPING K3+K4
4644 153 030 01 COUPING K3+K4
4644 103 107 00 OUTPUT
4644 103 467 00 OUTPUT
4644 109 040 01 PARKING BRAKE
4644 109 040 02 PARKING BRAKE
4644 109 438 00 PARKING BRAKE
4644 154 080 00 POWER TAKE-OFF
4644 154 476 00 POWER TAKE-OFF
4166 034 070 00 TORQUE CONVERTER
4644 155 420 00 POWER TAKE-OFF
4644 155 031 00 POWER TAKE-OFF
4644 106 325 00 GEARSHIFT SYSTEM
4644 159 347 00 GEARSHIFT
4644 138 015 00 FILTER
4644 137 022 00 EMCY.STEER.PUMP
4644 120 213 00 PRESS.REGULATOR
4644 125 016 10 IND.TRANSMITTER
4644 125 479 00 IND.TRANSMITTER
4644 131 077 00 FILLER NECK
4644 102 134 00 INPUT
4644 121 023 00 OILPIPE
4644 131 419 00 FILLER NECK
4642 199 076 00 LOOSE PARTS
4644 101 249 00 GEARBOX HOUSING
4644 101 491 00 GEARBOX HOUSING
4644 108 232 00 LAYSHAFT
4644 151 034 01 COUPING KV+K1
4644 151 034 02 COUPING KV+K1
4644 152 037 02 COUPING KR+K2
15E0681 003 HYDRAULIC SYSTEM
15E0681 003 HYDRAULIC SYSTEM
15E1003 000 HYDRAULIC SYSTEM
15E1003 000 HYDRAULIC SYSTEM
15E1016 000 HYDRAULIC SYSTEM
15E1016 000 HYDRAULIC SYSTEM
15E1032 000 HYDRAULIC SYSTEM
15E1032 000 HYDRAULIC SYSTEM
00C1474 004 STEERING LINES
00C1474 004 STEERING LINES
00C2282 001 STEERING LINES
00C2282 001 STEERING LINES
12C2354 001 FLOW AMPLIFYING VALVE AS
10E0017 001 STEERING CYLINDER AS
00C1456 003 BOOM CYLINDER LINES
00C2039 000 BOOM CYLINDER LINES
12C2343 000 CONTROL VALVE AS
11E0036 002 BOOM CYLINDER AS
10C1231 001 BUCKET TILTING CYLINDER
00C2205 000 TILTING CYLINDER LINES
00C2323 000 TILTING CYLINDER LINES
00C1463 001 PILOT CONTROL SYSTEM
00C2291 001 PILOT CONTROL LINES
00C2328 001 MULTIPURPOSE LINES
00C2331 001 PILOT LINES
12C2345 000 COMBINATION VALVE
12C2544 000 COMBINATION VALVE
12C0037 004 COMBINATION VALVE
12C0400 000 CHECK VALVE
12C2322 001 PILOT VALVE MOUNTING AS
12C3196 001 PILOT VALVE MOUNTING AS
00C1473 001 STEERING CONTROL LINES
00C2284 001 STEERING CONTROL LINES
44C0841 002 STEERING COLUMN AS
44C0005 000 METERING PUMP
44C0023 000 STEERING SHAFT
00C2206 000 COOLER LINES
00C2293 000 COOLER LINES
31C0095 002 CONNECTOR
00C1459 001 PUMP OIL SUCTION LINES
11C1353 000 PUMP AS
21C0451 001 HYDRAULIC OIL TANK
21C0590 001 HYDRAULIC OIL TANK
12C1008 001 CHECK VALVE
00C1467 003 CONTROL VALVE LINES
00C1467 003 CONTROL VALVE LINES
00C2326 000 CONTROL VALVE LINES
00C1868 002 QUICK COUPLER CYL.LINES
10C0913 001 QUICK COUPLER CYLINDER
12C0826 002 DIVERTER VALVE MOUNTING
12C0685 010 DIVERTER VALVE
32E1147 001 POSITIONER AND KICKOUT SYSTEM
32E1619 000 POSITIONER AND KICKOUT SYSTEM
20E0324 003 SERVICE BRAKE SYSTEM
20E0324 003 SERVICE BRAKE SYSTEM
20E0441 000 SERVICE BRAKE SYSTEM
20E0441 000 SERVICE BRAKE SYSTEM
20E0426 002 BRAKE SYSTEM
31C0032 000 CONNECTOR
13C0003 000 AIR RESERVOIR
13C0367 000 AIR DRYER AS
32C0024 000 TEE
33C0003 000 CONNECTOR
44C0320 002 HIGH PRESSURE FILTER MOUNTING
13C0013 003 BRAKE CYLINDER AS
13C0189 002 BRAKE CYLINDER
45C0386 000 BRAKE VALVE AS
45C0550 000 BRAKE VALVE AS
30C0275 002 CONNECTOR
45C0387 000 VALVE BLOCK AS
45C0551 000 VALVE BLOCK AS
45C0219 000 BRAKE VALVE AS
21E0078 000 PARKING BRAKE SYSTEM
24C0032 000 LINKAGE SHAFT
13C0056 002 AIR CHAMBER AS
13C0057 001 AIR CHAMBER AS
30E0638 003 FRONT FRAME AS
30E0870 000 FRONT FRAME AS
30E0637 002 REAR FRAME AS
30E0860 000 REAR FRAME AS
30E0009 000 STEERING FRAME LOCK
30E0017 004 ARTICULATED HITCH AS
32E0699 001 WORK IMPLEMENT SYSTEM
32E1485 002 EQUIPMENT
32E1546 001 WORK IMPLEMENT SYSTEM
32E0487 004 QUICK COUPLER
32E0399 000 (2.3m3) BUCKET AS
32E0377 001 (3.0m3) BUCKET AS
32E1535 000 BUCKET
32E0508 000 (2.7m3) BUCKET AS
32E1488 001 BUCKET
32E0206 000 (2.5m3) BUCKET AS
32E0721 001 BUCKET AS
43C0601 002 (2.3m3) BUCKET AS
32E0301 000 (1.8m3) BUCKET AS
43C0603 001 (1.52m) FORK
32E1519 000 WASHER
25E0054 001 CENTRALIZED LUBRICATION SYSTEM
25E0054 001 CENTRALIZED LUBRICATION SYSTEM
25E0054 001 CENTRALIZED LUBRICATION SYSTEM
25E0042 000 GREASE LINES
45E0990 001 COUNTERWEIGHT
45E1370 000 COUNTERWEIGHT
41E0446 007 CAB AS
41E0446 007 CAB AS
47C1290 002 DOOR-LH
47C1291 002 DOOR-RH
47C0194 002 HAND REST
34C1806 002 DECORATION AS
47C0239 000 FIRE EXTINGUISHER
47C1941 000 CONTROL BOX AS
41E0428 001 PLATE AS
41E0159 000 CAB GUARD AS
41E0157 000 REARVIEW MIRROR AS
43E0313 000 FRONT FENDER-LH
43E0314 000 FRONT FENDER-RH
22C0320 001 PARKING INSTALLATION
43E0315 003 FENDER-LH
43E0316 003 FENDER-RH
43E0378 001 REAR FENDER-LH
43E0379 000 REAR FENDER-RH
43E0294 000 LADDER
43E0295 001 LADDER
44E0346 004 ENGINE HOOD AS
44E0346 004 ENGINE HOOD AS
46E0057 001 SEAT AS
23E0303 004 AIR CONDITIONING SYSTEM
23E0303 004 AIR CONDITIONING SYSTEM
46C4462 003 A/C GP-CAB
46C5490 001 EVAPORATOR AS
46C3591 001 FILTER
46C2967 000 COMPRESSOR BRACKET AS
46C2543 000 CONDENSER
22E1050 003 ELECTRICAL SYSTEM
22E1365 000 ELECTRICAL SYSTEM
46C4021 003 PLATFORM AS
46C2935 001 HOOD LIFT SYSTEM
46C3665 000 LIFT CONTROL BOX
46C4506 002 FRONT FRAME WIRING
46C4430 002 CAB WIRING
46C6671 000 CAB WIRING
46C4553 000 CONTROL BOX
46C6674 000 CONTROL BOX
46C6183 000 RELAY AS
46C3483 000 DOME LIGHT WIRING
46C0709 002 SHIFT CONTROL WIRING
46C4041 000 WIPER SYSTEM
46C5961 000 LIGHTGROUP
46C2830 000 REAR FLOODLIGHT-RH
46C2831 001 REAR FLOODLIGHT-LH
46C4295 000 FRONT FLOODLIGHT AS-RH
46C4296 000 FRONT FLOODLIGHT AS-LH
32B0333 001 LICENCE LIGHT
46C3355 003 REAR FRAME WIRING
46C3355 002 REAR FRAME WIRING
46C6673 000 REAR FRAME WIRING
46C6673 000 REAR FRAME WIRING
46C2954 000 CONTROL CASE AS
46C6725 000 CONTROL BOX AS
46C2934 001 BATTERY WIRING AS
46C1843 002 SOUND SYSTEM
46C1841 003 RADIO/CASSETTE PLAYER
50E0523 000 HYDRAULIC SCHEMATIC
50E0834 000 HYDRAULIC SCHEMATIC
50E0846 000 HYDRAULIC SCHEMATIC
50E0652 002 ELECTRICAL SCHEMATIC
50E0912 001 ELECTRICAL SCHEMATIC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
00A0050
Штуцер
2
06B0053
WASHER
3
13C0157
AIR DRYER
4
00B0023
BOLT
5
06B0003
Шайба
6
06B0024
WASHER
7
00B0349
Болт
8
06B0008
Шайба
9
23A9181
MOUNTING PLATE
10
05A0239
PLUG
11
06B0083
WASHER
12
00B0012
BOLT
13
06B0002
Шайба
14
03B0053
NUT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
