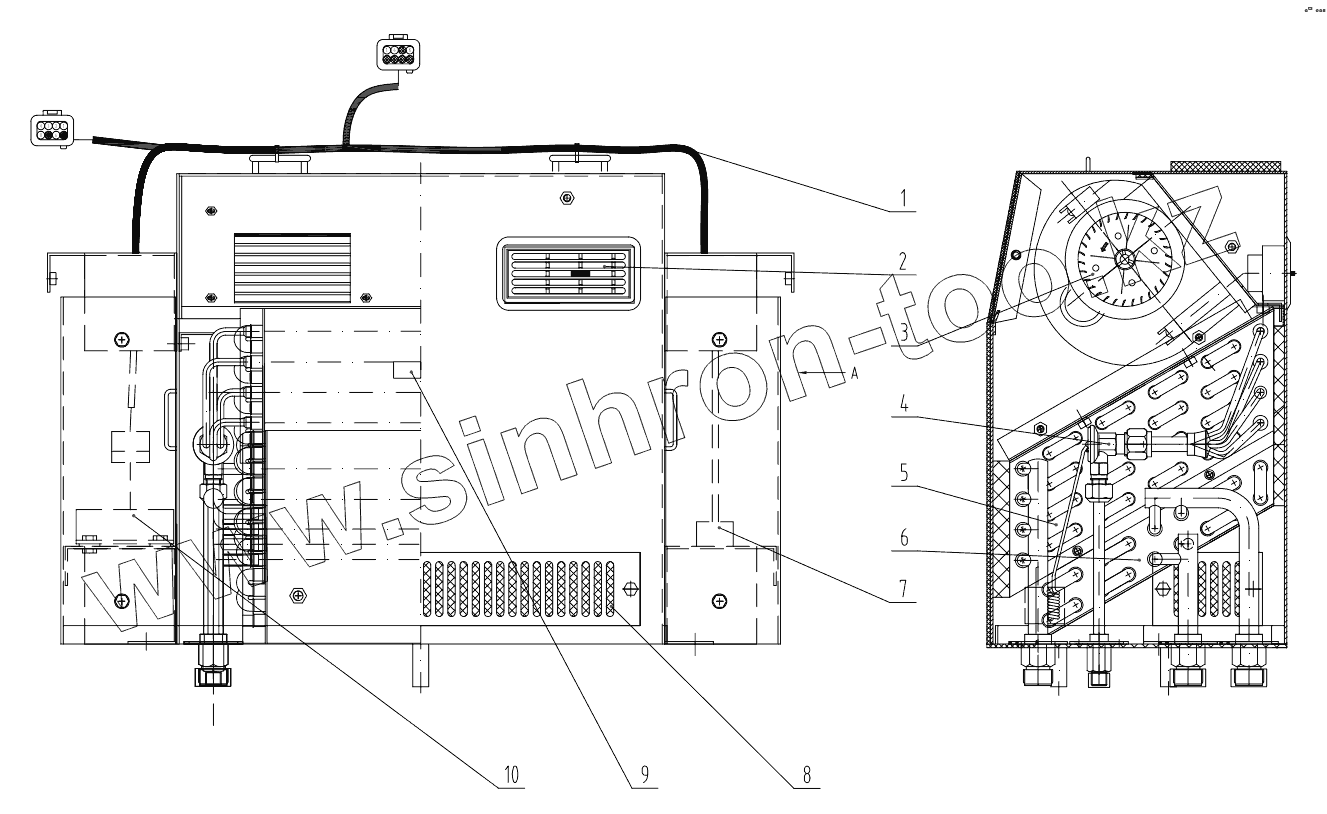

Каталог запасных частей к технике: LiuGong CLG-842. 46C5490 001 EVAPORATOR

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 00E0795 001 ENGINE SYSTEM 50C0002 000 SUPPORT 00E0801 002 COOLING SYSTEM 00E0026 002 FUEL TANK AS 16C0004 002 BREATHER CAP 12D0072 000 STRAINER 00E0034 002 THROTTLE CONTROL SYSTEM 01E0013 005 FRONT AXLE AS 45C0005 002 CLAMP AS 41C0029 009 FRONT AXLE BEVEL GEAR 34C0002 000 CARRIER AS 24D0006 000 SPINDLE 01E0014 013 REAR AXLE AS 41C0574 005 REAR AXLE BEVEL GEAR 41C0197 000 CARRIER AS 01E0010 000 TYRE & RIM AS 41C0021 000 RIM AS 01E0011 000 FRONT AXLE LINES 10D0284 000 OIL PIPE 10D0283 000 OIL PIPE 01E0012 000 REAR AXLE LINES 10D0286 000 OIL PIPE 10D0285 000 OIL PIPE 24C0201 000 SHIFT CONTROL SYSTEM 03E0008 000 DRIVE SHAFT SYSTEM 41C0042 000 FRONT DRIVE SHAFT & BRG AS 51C0039 000 MIDDLE DRIVE SHAFT 41C1179 000 REAR DRIVE SHAFT GP 41C1059 000 REAR DRIVE SHAFT 05E0230 001 GEARBOX & TORQUE CONVERTER AS 53C0544 002 OIL FILTER 42C0489 000 GEARBOX & TORQUE CONVERTER AS 12C2407 001 SHIFT CONTROL VALVE 11C0718 002 GEAR SHIFT PUMP 42C0488 002 TORQUE CONVERTER 52C0183 000 TURBINE GP 28C0093 002 SHIM GP 28C0092 002 SHIM GP 42C0787 000 TORQUE CONVERTER 52C0003 000 TURBINE GP 42C0454 005 TRANSMISSION 42C0454(A) TRANSMISSION 42C0454(B) TRANSMISSION 42C0454(C) TRANSMISSION 52C0071 001 OVERRUN CLUTCH 28C0089 003 SHIM GP 28C0102 001 WASHER 28C0103 001 WASHER 42C0094 002 REVERSE PLANET CARRIER 42C0349 001 PLANETARY CARRIER 42C0096 001 DIRECT DRIVE GP 15E0842 002 HYDRAULIC SYSTEM 15E0842 002 HYDRAULIC SYSTEM 10C1231 003 BUCKET TILTING CYLINDER 10E0017 001 STEERING CYLINDER AS 00C1843 002 BOOM CYLINDER LINES 12C2552 000 CONTROL VALVE AS 12C2553 000 CONTROL VALVE 11E0036 003 BOOM CYLINDER AS 00C1688 001 TILTING CYLINDER LINES 00C1686 000 PILOT CONTROL SYSTEM 12C2544 000 COMBINATION VALVE 12C0037 006 COMBINATION VALVE 31C0102 002 ELBOW 12C0400 000 CHECK VALVE 12C2322 001 PILOT VALVE MOUNTING AS 00C1857 001 STEERING CONTROL LINES 44C0686 001 STEERING COLUMN AS 44C0005 000 METERING PUMP 44C0023 001 STEERING SHAFT 00C2259 000 COOLER LINES 00C1852 001 PUMP OIL SUCTION LINES 21C0504 000 HYDRAULIC OIL TANK 12C1008 001 CHECK VALVE 00C2020 002 CONTROL VALVE LINES 31C0088 002 ELBOW 00C2019 001 STEERING LINES 12C2894 002 FLOW AMPLIFYING VALVE AS 32E1147 001 POSITIONER AND KICKOUT SYSTEM 20E0372 003 BRAKE SYSTEM 20E0372 003 BRAKE SYSTEM 33C0003 000 CONNECTOR 13C0373 000 AIR RESERVOIR 13C0386 003 BRAKE VALVE AS 31C0032 000 CONNECTOR 21E0075 001 PARKING BRAKE SYSTEM 13C0009 007 AIR CHAMBER 13C0008 000 BRAKE 24C0032 001 LINKAGE SHAFT 30E0686 003 FRONT FRAME AS 30E0718 000 REAR FRAME AS 27C0060 001 BATTERY BOX-RH 30E0009 000 STEERING FRAME LOCK 30E0017 004 ARTICULATED HITCH AS 32E0699 000 WORK IMPLEMENT SYSTEM 32E0399 000 BUCKET AS (2.3m3) 32E0377 001 BUCKET AS (3.0m3) 32E0508 000 BUCKET AS (2.7m3) 30E0012 001 GREASE LINES 45E0004 002 COUNTERWEIGHT GP 41E0446 008 CAB AS 41E0446(A) CAB AS 47C1290 004 DOOR-LH 47C1035 004 DOOR LOCK 47C1291 003 DOOR-RH 47C1037 004 DOOR LOCK 47C0239 001 FIRE EXTINGUISHER 41E0446(B) CAB AS 47C0194 003 HAND REST 34C1806 004 DECORATION AS 47C1941 002 CONTROL BOX AS 41E0424 000 PLATE AS 41E0157 000 REARVIEW MIRROR AS 41E0159 000 CAB GUARD AS 43E0335 000 FRONT FENDER 43E0336 001 REAR FENDER 43E0337 001 REAR FENDER-RH 43E0347 001 LADDER 43E0348 000 LADDER 44E0012 004 ENGINE HOOD AS 44E0012 004 ENGINE HOOD AS 46E0040 002 SEAT AS 23E0340 003 AIR CONDITIONING SYSTEM 23E0340 003 AIR CONDITIONING SYSTEM 46C2004 001 COMPRESSOR BRACKET AS 46C4973 005 A/C GP-CAB AS 46C3591 001 FILTER 46C5490 001 EVAPORATOR 46C2543 000 CONDENSER 22E1189 000 ELECTRICAL SYSTEM 46C4649 000 LIGHT GROUP 46C4295 001 FRONT FLOODLIGHT-RH 46C4296 001 FRONT FLOODLIGHT-LH 46C4506 002 FRONT FRAME WIRING 46C5337 000 REAR FRAME WIRING 46C5337 000 REAR FRAME WIRING 46C5405 002 CAB WIRING 46C5265 001 CONTROL SYSTEM 46C6199 001 CONTROL BOX 46C6183 002 RELAY AS 46C4041 000 WIPER SYSTEM 46C3483 000 DOME LIGHT WIRING 46C3693 007 PLATFORM AS 46C3692 002 PLATFORM AS 46C4832 001 BATTERY WIRING 46C0992 001 DISCONNECT SWITCH AS 34B0297 002 DISCONNECT SWITCH 46C1843 002 SOUND SYSTEM 46C1841 003 RADIO/CASSETTE PLAYER 50E0523 000 HYDRAULIC SCHEMATIC 50E0660 000 ELECTRICAL SCHEMATIC 45E0739 006 DECAL GROUP 45E1224 002 NAMEPLATE GP

1

2

3

4

5

6

7

8

9

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	46C5552		A/c harness
2	86A0127		Решетка вентиляционная в сборе
3	46C4702		Blower unit
4	46C2265		Expansion valve
5	46C5553		Evaporator core
6	46C5554		Evaporator core
7	46C2266		Relay
8	46C5555		Strainer
9	46C4694		Temp sensor
10	46C2264		Thermostat

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
