Каталог запасных частей к технике: LiuGong CLG-835H. 49C2325_001_00 A/C PANEL

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 00Y1123_000_00 ENGINE SYSTEM 23C0659_000_00 THROTTLE CONTROL SYSTEM 60C0803_000_00 ENGINE MOUNTING 00Y1125_000_00 COOLING SYSTEM 60C0804_000_00 RADIATOR MOUNTING 20C2034_000_00 RADIATOR GP 20C2035_000_00 WATER RADIATOR 20C2035P01_000_00 WATER RADIATOR 20C2035P02_000_00 WATER RADIATOR 20C2036_000_00 OIL COOLER 20C2037_000_00 TRANSMISSION OIL COOLER 60C0875_000_00 COOLER LINES 40C9827_000_00 FUEL TANK AS 16C0091_000_00 TANK COVER AS 10Y0204_000_00 STEERING HYDRAULIC SYSTEM 00C4754_000_00 STEERING CYLINDER LINES 00C5707_000_00 STEERING LINES 12C5267_000_00 PRIORITY VALVE AS 12C0638_000_00 PRIORITY VALVE 12C5332_000_00 METERING PUMP 12C4647_000_00 METERING PUMP 12C6141_000_00 METERING PUMP 00C6073_000_00 STEERING LINES 12C6480_000_00 PRIORITY VALVE AS 10C2734_000_00 STEERING CYLINDER 10C4197_000_00 STEERING CYLINDER 11Y1184_000_00 WORK HYDRAULIC SYSTEM 00C4529_000_00 COOLER LINES 00C6072_000_00 CONTROL VALVE & LINES 00C4006_000_00 BOOM CYLINDER LINES 00C4007_001_00 TILTING CYLINDER LINES 00C6071_000_00 CONTROL VALVE LINES 12C4615_001_00 CONTROL VALVE AS 12C4795_000_00 CONTROL VALVE 10C2757_000_00 BUCKET TILTING CYLINDER 10C2780_000_00 BOOM CYLINDER 21C1115_000_00 TANK 15C0564_000_00 AIR FILTER 24C2746_000_00 CONTROL LEVER AS 23C0586_000_00 CONTROL LEVER 54C0718_000_00 FLEXIBLE SHAFT 44C2295_000_00 PUMP AS 11Y1197_000_00 WORK HYDRAULIC SYSTEM 00C6295_000_00 PILOT LINES 12C4713_000_00 PILOT VALVE MOUNTING AS 12C4682_000_00 PILOT VALVE 12C6666_000_00 PILOT OIL SUPPLY VALVE AS 12C5771_000_00 PILOT OIL SUPPLY VALVE 53C1353_000_00 SECONDARY FILTER AS 00C6341_000_00 CONTROL VALVE & LINES 00C6340_000_00 CONTROL VALVE LINES 12C6042_001_00 CONTROL VALVE AS 01Y0448_000_00 FRONT AXLE AS 00C3587_000_00 FRONT AXLE BRAKE LINES 01C0090_000_00 OIL PIPE 01C0091_000_00 OIL PIPE 01Y0446_000_00 FRONT AXLE AS 24D0426T0_000_00 SPINDLE WELDMENT 41C2198X1T0_000_00 FRONT AXLE BEVEL GEAR 41C2191_000_00 DIFFERENTIAL 34C5358_000_00 DIFF HOUSING GP 51C0090X1T0_000_00 CARRIER AS 45C0004X1T0_000_00 CLAMP AS 45C0474X1T0_000_00 CLAMP AS 01Y0449_000_00 REAR AXLE AS 00C5426_000_00 REAR AXLE BRAKE LINES 01Y0445_000_00 REAR AXLE AS 41C2714X1T0_000_00 REAR AXLE BEVEL GEAR 03Y0131_000_00 SUPPORT & DRIVE SHAFT SYSTEM 51C0073_002_00 FRONT DRIVE SHAFT AS 05Y0345_000_00 GEARBOX & TORQUE CONVERTER AS 00C4433_000_00 COOLER LINES 00C6277_000_00 FILTER LINES AS 53C1191_000_00 OIL FILTER 53C0549_000_00 OIL FILTER 24Y0038_000_00 SHIFT CONTROL SYSTEM 24Y0019_000_00 SHIFT CONTROL SYSTEM 42C1820_000_00 GEARBOX & TORQUE CONVERTER MOUNTING 34C5916_000_00 FILLER TUBE AS 42C1822_000_00 GEARBOX & TORQUE CONVERTER AS 42C1276_000_00 TORQUE CONVERTER 42C1275_001_00 CONVERTER HOUSING GP 52C0092_006_00 TURBINE GP 38C0594_001_00 TURBO COVER 42C0127_004_00 II TURBINE 42C1286_000_00 TRANSMISSION 42C1286_000_01 TRANSMISSION 42C1286_000_02 TRANSMISSION 12C5772_000_00 SHIFT CONTROL VALVE 13C0008_000_00 BRAKE 13C0008X0_001_00 BRAKE 37C0002_004_00 DRIVE DISK 42C0011_001_00 1ST SPEED CLUTCH PISTON AS 42C0012_001_00 PISTON AS 42C0013_001_00 REVERSE PISTON AS 42C0094_002_00 REVERSE PLANET CARRIER 42C0094X1_000_00 REVERSE PLANET CARRIER 42C0349_000_00 PLANETARY CARRIER 42C1111_000_00 DIRECT DRIVE GP 42C0009_000_00 DIRECT DRIVE PISTON AS 52C0005_001_00 CARRIER AS 52C0071_001_00 OVERRUN CLUTCH 42C1847_000_00 GEARBOX 42C1847_000_01 GEARBOX 42C1847_000_02 GEARBOX 26Y0039_000_00 TYRE & RIM AS 41C1817_000_00 RIM AS 20Y0406_000_00 SERVICE BRAKE SYSTEM 00C6044_000_00 ASSISTOR & LINES 13C0560_001_00 ASSISTOR 13C0514_003_00 ASSISTOR 13C0590X0_000_00 ASSISTOR 00C6045_000_00 ASSISTOR & LINES 13C0908_001_00 BRAKE VALVE AS 13C0004_001_00 NULL 13C0004P01_000_00 NULL 13C0004P02_000_00 NULL 13C0770_000_00 BRAKE VALVE 13C0957_000_00 BRAKE VALVE AS 13C1102_000_00 ASSISTOR 00C6052_000_00 AIR COMPRESSOR LINES 13C0796_001_00 AIR RESERVOIR 13C0874_001_00 COMBINATION VALVE 21Y0066_000_00 PARKING BRAKE SYSTEM 45C0710_001_00 HAND BRAKE 46C4324_000_00 SWITCH 45C0839_000_00 НAND BRAKE 08Y0080_001_00 FRONT FRAME AS 30D1834_000_00 FRONT FRAME 08Y0562_000_00 REAR FRAME AS 24C2709_000_00 TRACTION PIN 27C1004_001_00 COUNTERWEIGHT 27C1005_000_00 COUNTERWEIGHT 30D2763_000_00 REAR FRAME 25Y0050_000_00 GREASE LINES 00C4837_001_00 FRONT FRAME LUBE LINES 00C4838_000_00 FRONT FRAME LUBE LINES 01C1194_001_00 GREASE LINES 32E1517_000_00 WASHER 32Y0375_000_00 WORK IMPLEMENT LIMIT SYSTEM 32Y0797_001_00 WORK IMPLEMENT SYSTEM 24C2181_000_00 BUCKET LEVER 24C2182_000_00 LINKAGE 24C2739_000_00 BOOM 38Y0061_001_00 BUCKET 22D1217_000_00 BUCKET 43C4781_000_00 ARTICULATED HITCH 41Y0575_000_00 CAB AS 41Y0269_002_00 PROTECTIVE COVER 47C2319_000_00 REARVIEW MIRROR-LH 47C2320_000_00 REARVIEW MIRROR-RH 47C3533_000_00 STEERING COLUMN AS 34C5864_000_00 STEERING WHEEL 47C3366_000_00 HOUSING 47C3316_000_00 HOUSING 47C3314_000_00 HOUSING 47C3534_000_00 STEERING COLUMN 34C5472_000_00 CONDUCTING RING 47C3811_000_00 CAB 47C3208_000_00 CAB (WITH DECORATION) 34C6717_000_00 DECORATION AS 34C5370_000_00 DECORATION 34C6173_001_00 PLATFORM 34C6362_000_00 PLATFORM 34C6177_000_00 DECORATION 34C6178_000_00 DECORATION 34C6414_000_00 DECORATION 34C6584_001_00 DECORATION 34C6175_001_00 DECORATION 34C6727_000_00 DOME DECORATION AS 34C6723_000_00 DOME DECORATION AS 47C2531_002_00 COVER 47C3211_000_00 CAB GP 24C2122_001_00 MAST AS 34C5345_000_00 SEAL 34C5348_000_00 SEAL 47C2556_001_00 LATCH AS 47C2753_000_00 GLASS 47C2754_000_00 GLASS 47C2976_001_00 GLASS 47C3011_001_00 DOOR LOCK 47C3146_001_00 LOCK 47C2946_000_00 LOCK 47C3147_000_00 LOCK 47C3448_001_00 LOCK 47C3449_000_00 LOCK 47C3450_000_00 LOCK 47C3513_000_00 GLASS 47C3514_000_00 GLASS 47C3889_000_00 DOOR LOCK 34C7722_000_00 HANDLE 47C3810_000_00 CAB 47C3012_000_00 DOOR-LH 47C3013_000_00 DOOR-RH 47C3833_000_00 CAB (WITH DECORATION) 34C7625_000_00 DECORATION AS 34C7626_000_00 DOME DECORATION AS 34C7627_000_00 DOME DECORATION AS 47C3484_000_00 CAB GP 34C6927_000_00 SEAL 47C3337_000_00 WINDOW GP 47C3331_000_00 WINDOW GP 41Y0582_000_00 CAB AS 47C3836_000_00 CAB 46Y0024_001_00 SEAT AS 47C2957_000_00 SEAT 47C3592_000_00 SEAT 46Y0035_000_00 SEAT AS 47C3590_000_00 SEAT 47C2874_001_00 CONSOLE AS-RH 47C2873_000_00 HANDRAIL GP-RH 43Y0200_000_00 FENDER & LADDER AS 48C4615_000_00 LADDER 44Y0457_001_00 ENGINE HOOD AS 34C7525_000_00 LOCK 34C7695_000_00 LOCK 48C4580_000_00 TORSION SPRING 48C4581_000_00 TORSION SPRING 48C4609_001_00 COVER 34C4910_001_00 GUIDE ROLLER 48C4747_000_00 COVER 48C4748_000_00 COVER 48C4673_000_00 BRACKET 49C5448_000_00 FRONT FRAME WIRING 70C1165_000_00 HARNESS 49C2012_001_00 WORK LIGHT WIRING 08C9291_000_00 WORK LIGHT HARNESS 49C5541_000_00 INSTRUMENT AS 32B0066_000_00 DOME LIGHT 34B0118_000_00 START SWITCH 46C6183_002_00 RELAY AS 70C0511_000_00 STEERING HARNESS 70C1237_000_00 CAB HARNESS 70C1290_000_00 HARNESS 49C1887_000_00 BATTERY WIRING 49C5543_000_00 REAR FRAME WIRING 70C1236_000_00 HARNESS 49C2516_000_00 WIPER SYSTEM 37B1735_000_00 WASHER RESERVOIR 49C2016_001_00 WIPER GP 49C5449_000_00 FRONT FRAME WIRING AS 70C1166_000_00 HARNESS 70C1293_000_00 HARNESS 49C5501_000_00 BACKUP ALARM WIRING 49C5665_000_00 SOUND SYSTEM 70C1358_000_00 HARNESS 23Y0471_000_00 AIR CONDITIONING SYSTEM 06C0196_000_00 HOSE 49C3090_001_00 AIR DUCT AS 08C9532_000_00 HARNESS 49C2150_001_00 EVAPORATOR MOUNTING 49C2017_001_00 FILTER 49C2151_000_00 EVAPORATOR AS 49C2325_001_00 A/C PANEL 49C4141_000_00 COMPRESSOR BRACKET AS 49C4143_000_00 HOSE GP 49C4245_000_00 WATER HOSE 49C5638_000_00 CONDENSER & RECEIVER AS 49C2479_000_00 REFRIGERANT RECEIVER MOUNTING

1

2

3

4

5

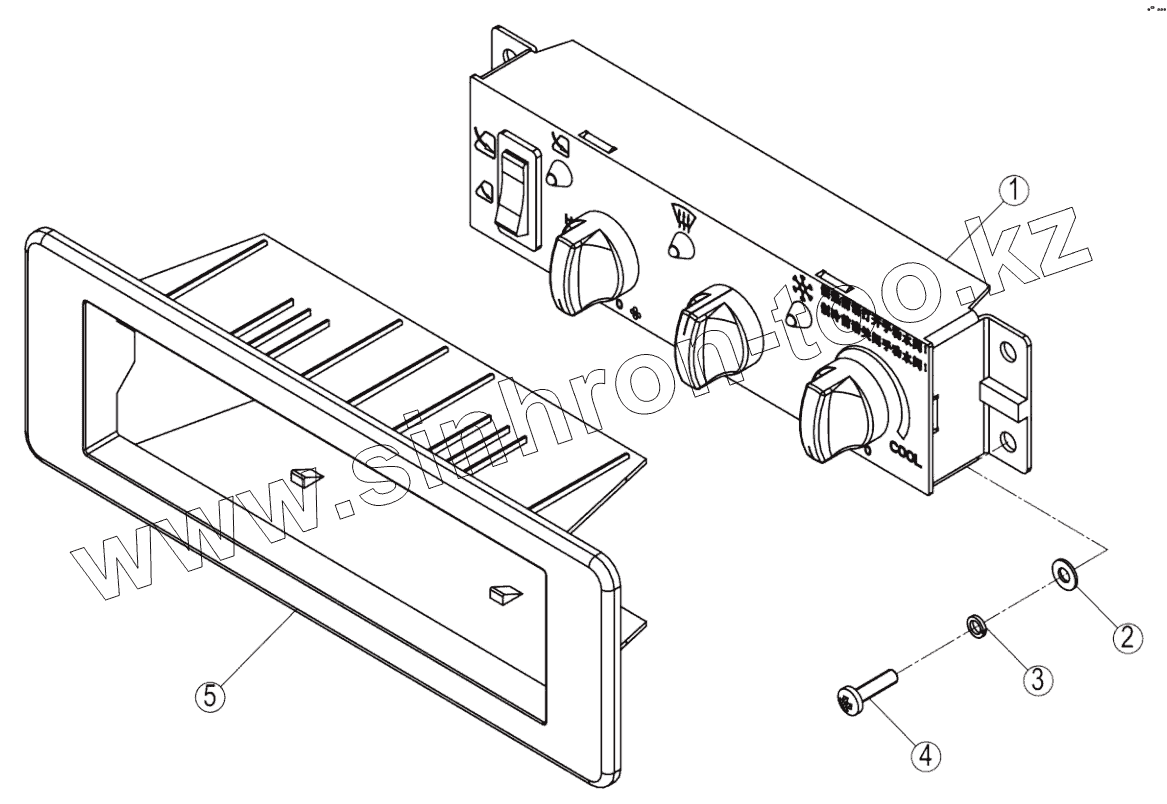

Позиция на иллюстрации	Заводской номер детали		Название детали
1	49C2301		A/c panel
2	06B0097		Шайба
3	06B0022		Шайба
4	04B0099		Винт
5	86A2456		Cover

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
