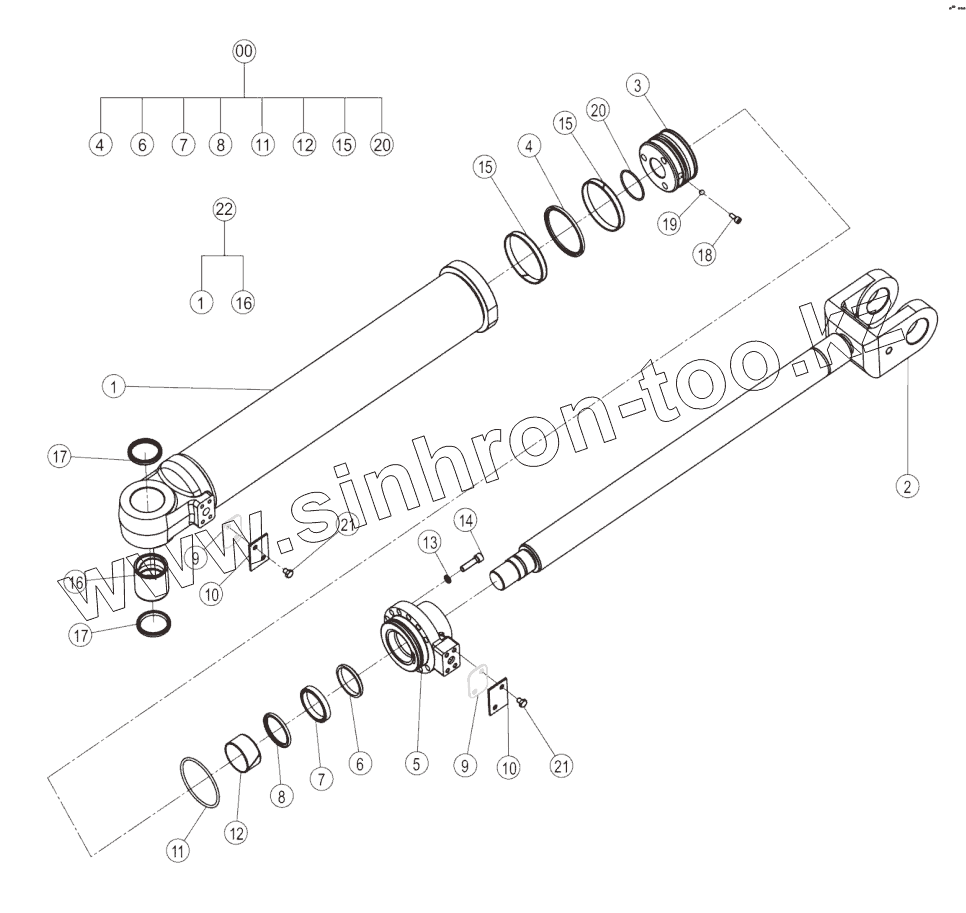

10C2780_000_00 BOOM CYLINDER
Каталог запасных частей к технике: LiuGong CLG-835H. 10C2780_000_00 BOOM CYLINDER
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CLG 425 (2010)
CLG 777A-S (2010)
CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016)
CLG-220 (2008)
CLG-225 (2008)
CLG-365A (2012)
CLG-375 (2008)
CLG-375A (2008)
CLG-385A (2008)
CLG-4165 (2015)
CLG-418 (2008)
CLG-4215 (2010)
CLG-612 (2008)
CLG-614 (2010)
CLG-618 (2010)
CLG-626R
CLG-766 (2015)
CLG-766A (2012)
CLG-816G (2012)
CLG-835
CLG-835 (2015)
CLG-835H (2015)
CLG-836 (2015)
CLG-842
CLG-842
CLG-842 (2015)
CLG-855N (2015)
CLG-856 (2015)
CLG-856H (2015)
CLG-856I
CLG-862 (2015)
CLG-877 (2015)
CLG-888 (2015)
CLG-904С (2007)
CLG-915D
CLG-915D
CLG-920D
CLG-920E (2015)
CLG-922D
CLG-922LC
CLG-922LC (2008)
CLG-925 (2015)
CLG-925D (2015)
CLG-933E (2010)
CLG-B160 (2010)
Схема
>
Не выбрано
00Y1123_000_00 ENGINE SYSTEM
23C0659_000_00 THROTTLE CONTROL SYSTEM
60C0803_000_00 ENGINE MOUNTING
00Y1125_000_00 COOLING SYSTEM
60C0804_000_00 RADIATOR MOUNTING
20C2034_000_00 RADIATOR GP
20C2035_000_00 WATER RADIATOR
20C2035P01_000_00 WATER RADIATOR
20C2035P02_000_00 WATER RADIATOR
20C2036_000_00 OIL COOLER
20C2037_000_00 TRANSMISSION OIL COOLER
60C0875_000_00 COOLER LINES
40C9827_000_00 FUEL TANK AS
16C0091_000_00 TANK COVER AS
10Y0204_000_00 STEERING HYDRAULIC SYSTEM
00C4754_000_00 STEERING CYLINDER LINES
00C5707_000_00 STEERING LINES
12C5267_000_00 PRIORITY VALVE AS
12C0638_000_00 PRIORITY VALVE
12C5332_000_00 METERING PUMP
12C4647_000_00 METERING PUMP
12C6141_000_00 METERING PUMP
00C6073_000_00 STEERING LINES
12C6480_000_00 PRIORITY VALVE AS
10C2734_000_00 STEERING CYLINDER
10C4197_000_00 STEERING CYLINDER
11Y1184_000_00 WORK HYDRAULIC SYSTEM
00C4529_000_00 COOLER LINES
00C6072_000_00 CONTROL VALVE & LINES
00C4006_000_00 BOOM CYLINDER LINES
00C4007_001_00 TILTING CYLINDER LINES
00C6071_000_00 CONTROL VALVE LINES
12C4615_001_00 CONTROL VALVE AS
12C4795_000_00 CONTROL VALVE
10C2757_000_00 BUCKET TILTING CYLINDER
10C2780_000_00 BOOM CYLINDER
21C1115_000_00 TANK
15C0564_000_00 AIR FILTER
24C2746_000_00 CONTROL LEVER AS
23C0586_000_00 CONTROL LEVER
54C0718_000_00 FLEXIBLE SHAFT
44C2295_000_00 PUMP AS
11Y1197_000_00 WORK HYDRAULIC SYSTEM
00C6295_000_00 PILOT LINES
12C4713_000_00 PILOT VALVE MOUNTING AS
12C4682_000_00 PILOT VALVE
12C6666_000_00 PILOT OIL SUPPLY VALVE AS
12C5771_000_00 PILOT OIL SUPPLY VALVE
53C1353_000_00 SECONDARY FILTER AS
00C6341_000_00 CONTROL VALVE & LINES
00C6340_000_00 CONTROL VALVE LINES
12C6042_001_00 CONTROL VALVE AS
01Y0448_000_00 FRONT AXLE AS
00C3587_000_00 FRONT AXLE BRAKE LINES
01C0090_000_00 OIL PIPE
01C0091_000_00 OIL PIPE
01Y0446_000_00 FRONT AXLE AS
24D0426T0_000_00 SPINDLE WELDMENT
41C2198X1T0_000_00 FRONT AXLE BEVEL GEAR
41C2191_000_00 DIFFERENTIAL
34C5358_000_00 DIFF HOUSING GP
51C0090X1T0_000_00 CARRIER AS
45C0004X1T0_000_00 CLAMP AS
45C0474X1T0_000_00 CLAMP AS
01Y0449_000_00 REAR AXLE AS
00C5426_000_00 REAR AXLE BRAKE LINES
01Y0445_000_00 REAR AXLE AS
41C2714X1T0_000_00 REAR AXLE BEVEL GEAR
03Y0131_000_00 SUPPORT & DRIVE SHAFT SYSTEM
51C0073_002_00 FRONT DRIVE SHAFT AS
05Y0345_000_00 GEARBOX & TORQUE CONVERTER AS
00C4433_000_00 COOLER LINES
00C6277_000_00 FILTER LINES AS
53C1191_000_00 OIL FILTER
53C0549_000_00 OIL FILTER
24Y0038_000_00 SHIFT CONTROL SYSTEM
24Y0019_000_00 SHIFT CONTROL SYSTEM
42C1820_000_00 GEARBOX & TORQUE CONVERTER MOUNTING
34C5916_000_00 FILLER TUBE AS
42C1822_000_00 GEARBOX & TORQUE CONVERTER AS
42C1276_000_00 TORQUE CONVERTER
42C1275_001_00 CONVERTER HOUSING GP
52C0092_006_00 TURBINE GP
38C0594_001_00 TURBO COVER
42C0127_004_00 II TURBINE
42C1286_000_00 TRANSMISSION
42C1286_000_01 TRANSMISSION
42C1286_000_02 TRANSMISSION
12C5772_000_00 SHIFT CONTROL VALVE
13C0008_000_00 BRAKE
13C0008X0_001_00 BRAKE
37C0002_004_00 DRIVE DISK
42C0011_001_00 1ST SPEED CLUTCH PISTON AS
42C0012_001_00 PISTON AS
42C0013_001_00 REVERSE PISTON AS
42C0094_002_00 REVERSE PLANET CARRIER
42C0094X1_000_00 REVERSE PLANET CARRIER
42C0349_000_00 PLANETARY CARRIER
42C1111_000_00 DIRECT DRIVE GP
42C0009_000_00 DIRECT DRIVE PISTON AS
52C0005_001_00 CARRIER AS
52C0071_001_00 OVERRUN CLUTCH
42C1847_000_00 GEARBOX
42C1847_000_01 GEARBOX
42C1847_000_02 GEARBOX
26Y0039_000_00 TYRE & RIM AS
41C1817_000_00 RIM AS
20Y0406_000_00 SERVICE BRAKE SYSTEM
00C6044_000_00 ASSISTOR & LINES
13C0560_001_00 ASSISTOR
13C0514_003_00 ASSISTOR
13C0590X0_000_00 ASSISTOR
00C6045_000_00 ASSISTOR & LINES
13C0908_001_00 BRAKE VALVE AS
13C0004_001_00 NULL
13C0004P01_000_00 NULL
13C0004P02_000_00 NULL
13C0770_000_00 BRAKE VALVE
13C0957_000_00 BRAKE VALVE AS
13C1102_000_00 ASSISTOR
00C6052_000_00 AIR COMPRESSOR LINES
13C0796_001_00 AIR RESERVOIR
13C0874_001_00 COMBINATION VALVE
21Y0066_000_00 PARKING BRAKE SYSTEM
45C0710_001_00 HAND BRAKE
46C4324_000_00 SWITCH
45C0839_000_00 НAND BRAKE
08Y0080_001_00 FRONT FRAME AS
30D1834_000_00 FRONT FRAME
08Y0562_000_00 REAR FRAME AS
24C2709_000_00 TRACTION PIN
27C1004_001_00 COUNTERWEIGHT
27C1005_000_00 COUNTERWEIGHT
30D2763_000_00 REAR FRAME
25Y0050_000_00 GREASE LINES
00C4837_001_00 FRONT FRAME LUBE LINES
00C4838_000_00 FRONT FRAME LUBE LINES
01C1194_001_00 GREASE LINES
32E1517_000_00 WASHER
32Y0375_000_00 WORK IMPLEMENT LIMIT SYSTEM
32Y0797_001_00 WORK IMPLEMENT SYSTEM
24C2181_000_00 BUCKET LEVER
24C2182_000_00 LINKAGE
24C2739_000_00 BOOM
38Y0061_001_00 BUCKET
22D1217_000_00 BUCKET
43C4781_000_00 ARTICULATED HITCH
41Y0575_000_00 CAB AS
41Y0269_002_00 PROTECTIVE COVER
47C2319_000_00 REARVIEW MIRROR-LH
47C2320_000_00 REARVIEW MIRROR-RH
47C3533_000_00 STEERING COLUMN AS
34C5864_000_00 STEERING WHEEL
47C3366_000_00 HOUSING
47C3316_000_00 HOUSING
47C3314_000_00 HOUSING
47C3534_000_00 STEERING COLUMN
34C5472_000_00 CONDUCTING RING
47C3811_000_00 CAB
47C3208_000_00 CAB (WITH DECORATION)
34C6717_000_00 DECORATION AS
34C5370_000_00 DECORATION
34C6173_001_00 PLATFORM
34C6362_000_00 PLATFORM
34C6177_000_00 DECORATION
34C6178_000_00 DECORATION
34C6414_000_00 DECORATION
34C6584_001_00 DECORATION
34C6175_001_00 DECORATION
34C6727_000_00 DOME DECORATION AS
34C6723_000_00 DOME DECORATION AS
47C2531_002_00 COVER
47C3211_000_00 CAB GP
24C2122_001_00 MAST AS
34C5345_000_00 SEAL
34C5348_000_00 SEAL
47C2556_001_00 LATCH AS
47C2753_000_00 GLASS
47C2754_000_00 GLASS
47C2976_001_00 GLASS
47C3011_001_00 DOOR LOCK
47C3146_001_00 LOCK
47C2946_000_00 LOCK
47C3147_000_00 LOCK
47C3448_001_00 LOCK
47C3449_000_00 LOCK
47C3450_000_00 LOCK
47C3513_000_00 GLASS
47C3514_000_00 GLASS
47C3889_000_00 DOOR LOCK
34C7722_000_00 HANDLE
47C3810_000_00 CAB
47C3012_000_00 DOOR-LH
47C3013_000_00 DOOR-RH
47C3833_000_00 CAB (WITH DECORATION)
34C7625_000_00 DECORATION AS
34C7626_000_00 DOME DECORATION AS
34C7627_000_00 DOME DECORATION AS
47C3484_000_00 CAB GP
34C6927_000_00 SEAL
47C3337_000_00 WINDOW GP
47C3331_000_00 WINDOW GP
41Y0582_000_00 CAB AS
47C3836_000_00 CAB
46Y0024_001_00 SEAT AS
47C2957_000_00 SEAT
47C3592_000_00 SEAT
46Y0035_000_00 SEAT AS
47C3590_000_00 SEAT
47C2874_001_00 CONSOLE AS-RH
47C2873_000_00 HANDRAIL GP-RH
43Y0200_000_00 FENDER & LADDER AS
48C4615_000_00 LADDER
44Y0457_001_00 ENGINE HOOD AS
34C7525_000_00 LOCK
34C7695_000_00 LOCK
48C4580_000_00 TORSION SPRING
48C4581_000_00 TORSION SPRING
48C4609_001_00 COVER
34C4910_001_00 GUIDE ROLLER
48C4747_000_00 COVER
48C4748_000_00 COVER
48C4673_000_00 BRACKET
49C5448_000_00 FRONT FRAME WIRING
70C1165_000_00 HARNESS
49C2012_001_00 WORK LIGHT WIRING
08C9291_000_00 WORK LIGHT HARNESS
49C5541_000_00 INSTRUMENT AS
32B0066_000_00 DOME LIGHT
34B0118_000_00 START SWITCH
46C6183_002_00 RELAY AS
70C0511_000_00 STEERING HARNESS
70C1237_000_00 CAB HARNESS
70C1290_000_00 HARNESS
49C1887_000_00 BATTERY WIRING
49C5543_000_00 REAR FRAME WIRING
70C1236_000_00 HARNESS
49C2516_000_00 WIPER SYSTEM
37B1735_000_00 WASHER RESERVOIR
49C2016_001_00 WIPER GP
49C5449_000_00 FRONT FRAME WIRING AS
70C1166_000_00 HARNESS
70C1293_000_00 HARNESS
49C5501_000_00 BACKUP ALARM WIRING
49C5665_000_00 SOUND SYSTEM
70C1358_000_00 HARNESS
23Y0471_000_00 AIR CONDITIONING SYSTEM
06C0196_000_00 HOSE
49C3090_001_00 AIR DUCT AS
08C9532_000_00 HARNESS
49C2150_001_00 EVAPORATOR MOUNTING
49C2017_001_00 FILTER
49C2151_000_00 EVAPORATOR AS
49C2325_001_00 A/C PANEL
49C4141_000_00 COMPRESSOR BRACKET AS
49C4143_000_00 HOSE GP
49C4245_000_00 WATER HOSE
49C5638_000_00 CONDENSER & RECEIVER AS
49C2479_000_00 REFRIGERANT RECEIVER MOUNTING
SP151741
1
1
2
3
4
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
14
15
15
15
16
16
17
17
18
19
20
20
21
21
22
Позиция на иллюстрации
Заводской номер детали
Название детали
SP151741
SP151741
Boom cylinder repair kit
1
13D1381
Cylinder body
2
14D0550
Piston rod
3
50A0833
Piston
4
34C0032
Seal ring
5
53A2191
Cylinder head
6
13B1239
Dust ring
7
13B1240
Y-seal
8
34C0030
Seal
9
Shum
Shim
10
11A0003
Крышка
11
12B0107
O-RING
12
80A1353
Support ring
13
06B0008
Шайба
14
04B0266
SCREW
15
80A1354
Support ring
16
55A0404
Bushing
17
35C0013
Прокладка
18
04B0078
Болт
19
Steelball
Steel ball
20
12B0032
O-RING
21
00B0301
Болт
22
13D1381X1
Cylinder body
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
