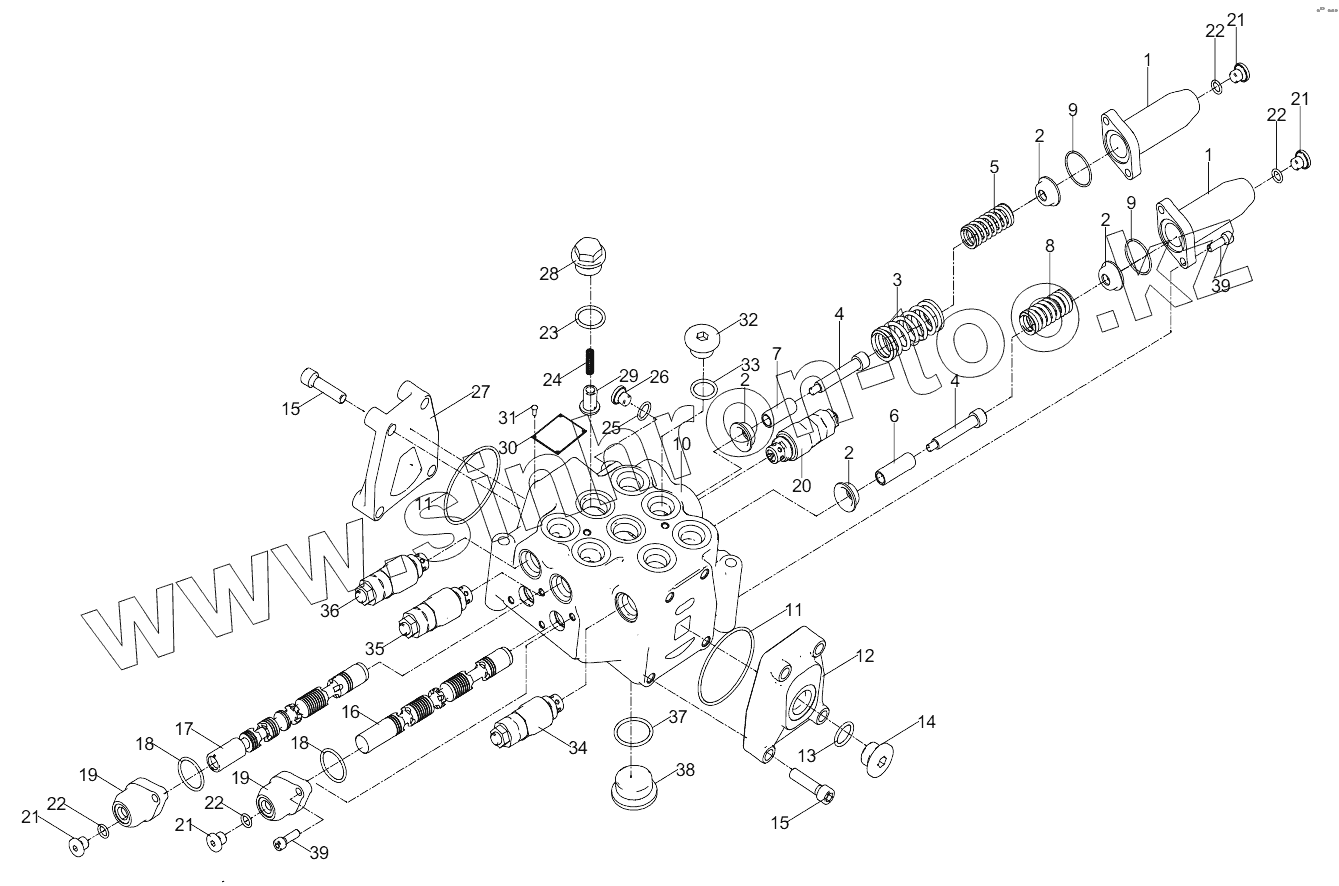

Каталог запасных частей к технике: LiuGong CLG-835. 12C1611 003 CONTROL VALVE
1
1
2
2
2
2
3
4
4
5
6
7
8
9
9
10
11
11
12
13
14
15
15
16
17
18
18
19
19
20
21
21
21
21
22
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 70A0346 | COVER | |
| 2 | 53A0870 | SPRING HOLDER | |
| 3 | 75A0448 | SPRING | |
| 4 | 64A0491 | HEX SCREW | |
| 5 | 75A0449 | SPRING | |
| 6 | 55A2445 | SLEEVE | |
| 7 | 55A2444 | SLEEVE | |
| 8 | 75A0447 | SPRING | |
| 9 | 12B1209 | O-RING | |
| 10 | 78A0277 | VALVE BODY | |
| 11 | 12B1206 | O-RING | |
| 12 | 70A0348 | COVER | |
| 13 | 12B1208 | O-ring | |
| 14 | 05A0581 | Plug | |
| 15 | 04B0120 | SCREW | |
| 16 | 65A0320 | CONTROL VALVE ROD | |
| 17 | 65A0321 | CONTROL VALVE ROD | |
| 18 | 12B1205 | O-RING | |
| 19 | 70A0347 | COVER | |
| 20 | 12C1615 | SAFETY VALVE | |
| 21 | 05A0586 | PLUG | |
| 22 | 12B0199 | O-RING | |
| 23 | 12B1203 | O-ring | |
| 24 | 75A0450 | SPRING | |
| 25 | 12B1207 | O-ring | |
| 26 | 05A0582 | PLUG | |
| 27 | 70A0349 | COVER | |
| 28 | 05A0584 | PLUG | |
| 29 | 65A0324 | CHECK VALVE | |
| 30 | 74A4124 | NAMEPLATE | |
| 31 | 09B0002 | Заклёпка | |
| 32 | 05A0587 | PLUG | |
| 33 | 12B0355 | Кольцо круглого сечения | |
| 34 | 12C1616 | SAFETY VALVE | |
| 35 | 12C1614 | SAFETY VALVE | |
| 36 | 12C1613 | SAFETY VALVE | |
| 37 | 12B0250 | O-RING | |
| 38 | 05A0585 | PLUG | |
| 39 | 04B0049 | Болт |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
