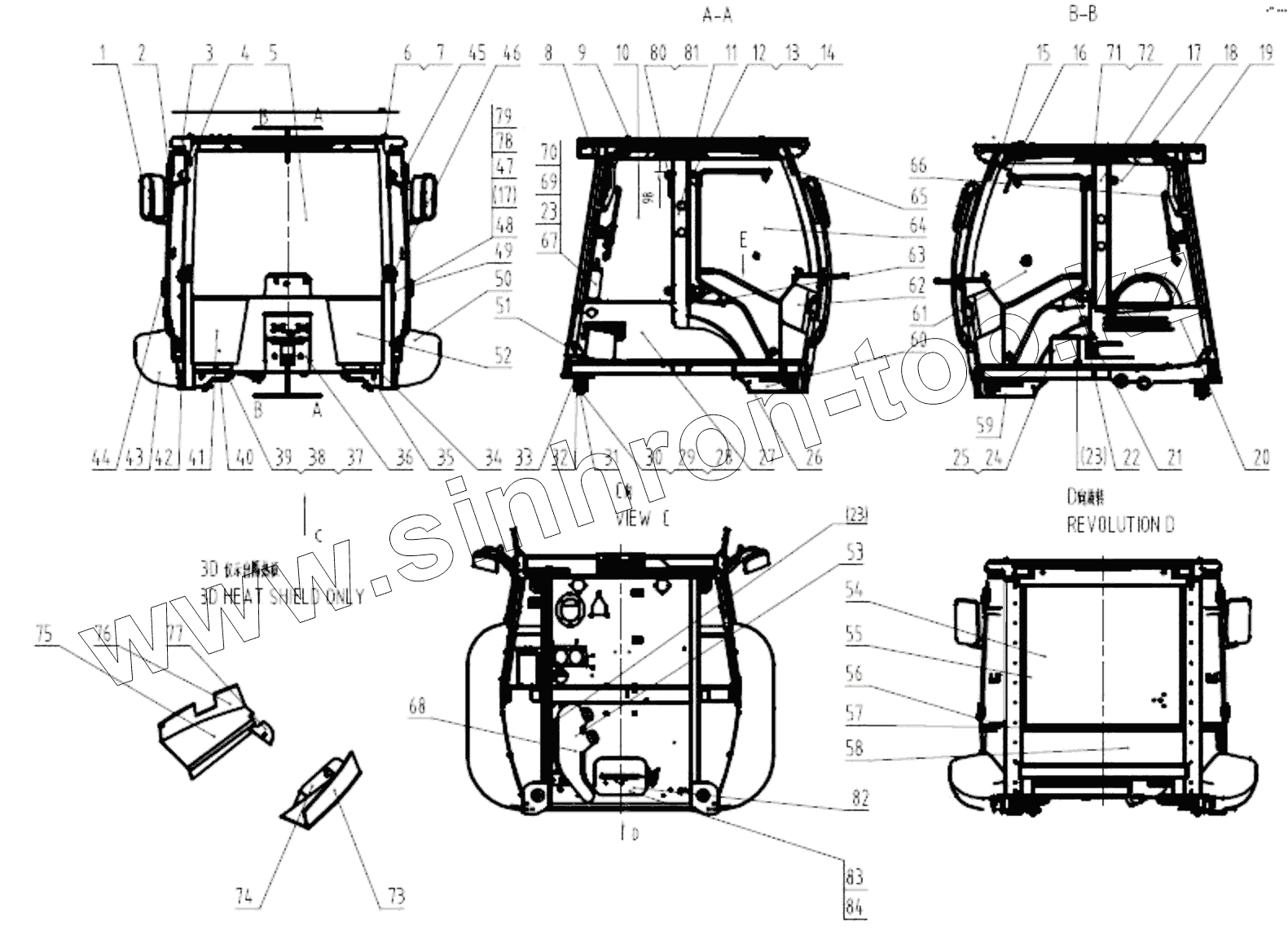

Каталог запасных частей к технике: LiuGong CLG 777A-S. 41Y0117 001 CAB AS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 22C0732 | Door hinge | |
| 2 | 47C0110 | Зеркало заднего вида | |
| 3 | 46D0816 | Cover | |
| 4 | 23D3142 | Cab | |
| 5 | 87A0859 | Windsheild | |
| 6 | 06B0087 | Шайба | |
| 7 | 00B0352 | Болт | |
| 8 | 84A0822 | Block | |
| 9 | 85A2996 | Dome decoration as | |
| 10 | 47C1510 | Window | |
| 11 | 37C0895 | Air duct | |
| 12 | 06B0347 | WASHER | |
| 13 | 00B0341 | BOLT | |
| 14 | 06B0030 | WASHER | |
| 15 | 04B0055 | SCREW | |
| 16 | 47C1640 | Rearview mirror | |
| 17 | 37C0894 | Air duct | |
| 18 | 47C1509 | Window | |
| 19 | 34C1958 | Air spring | |
| 20 | 86A1464 | Cover-rh | |
| 21 | 35C0626 | Knob | |
| 22 | 27C0585 | Fuse box | |
| 23 | 02B0147 | BOLT | |
| 24 | 00B0036 | Болт | |
| 25 | 06B0352 | WASHER | |
| 26 | 03B0021 | NUT | |
| 27 | 86A1274 | Side hood | |
| 28 | 01B0119 | BOLT | |
| 29 | 06B0351 | WASHER | |
| 30 | 03B0095 | Гайка | |
| 31 | 14A8870 | Washer | |
| 32 | 34K0037 | Фланец резиновый | |
| 33 | 14A8869 | Washer | |
| 34 | 42B0005 | Герметик | |
| 35 | 99A0134 | Plate | |
| 36 | 85A2808 | Heat shield | |
| 37 | 06B0348 | WASHER | |
| 38 | 00B0007 | Болт | |
| 39 | 06B0005 | WASHER | |
| 40 | 99A0133 | Plate | |
| 41 | 87A0802 | Glass | |
| 42 | 00D5772 | Light bracket | |
| 43 | 20A9775 | Fender | |
| 44 | 22C0708 | Door hinge | |
| 45 | 24C0854 | Door hinge | |
| 46 | 00D6104 | Light bracket | |
| 47 | 20A8117 | Lock buckle | |
| 48 | 66A0415 | Roller pin | |
| 49 | 22C0707 | Door hinge | |
| 50 | 20A9774 | Fender | |
| 51 | 86A0476 | Air duct | |
| 52 | 87A0801 | Glass | |
| 53 | 86A1279 | Air duct | |
| 54 | 47C1511 | Window | |
| 55 | 84A1715 | Seal | |
| 56 | 07V0078 | Snap ring | |
| 57 | 85A3868 | Seal | |
| 58 | 87A0790 | Glass | |
| 59 | 21A7894 | Plate | |
| 60 | 23D3143 | Plate | |
| 61 | 47C1649 | Door-rh | |
| 62 | 37C1210 | Dashboard | |
| 63 | 24C1147 | Air spring | |
| 64 | 47C1648 | Door-lh | |
| 65 | 47C1287 | Visor | |
| 66 | 60A1042 | Pin | |
| 67 | 27C0605 | Fire extinguisher | |
| 68 | 85A2745 | Sponge | |
| 69 | 06B0062 | WASHER | |
| 70 | 06B0346 | WASHER | |
| 71 | 04B0711 | Screw | |
| 72 | 86A0336 | Hook | |
| 73 | 85A3838 | Heat shield | |
| 74 | 85A3839 | Heat shield | |
| 75 | 85A3840 | Heat shield | |
| 76 | 85A3841 | Heat shield | |
| 77 | 85A3842 | Heat shield | |
| 78 | 03B0058 | Гайка | |
| 79 | 06B0001 | WASHER | |
| 80 | 88A0284 | Молоток | |
| 81 | 04B0110 | Винт | |
| 82 | 90A0989 | Mounting plate | |
| 83 | 91A1799 | Cover | |
| 84 | 01B0418 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
