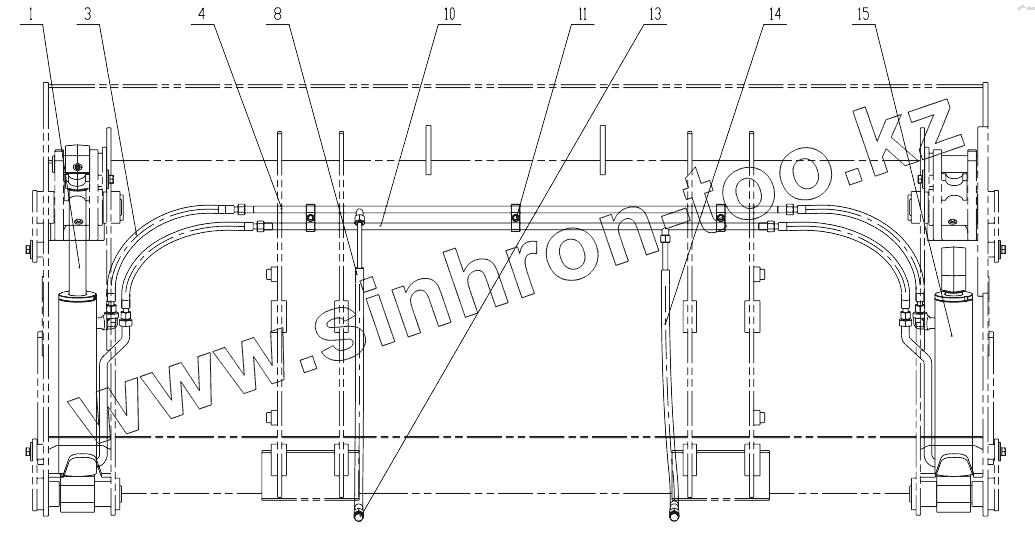

Каталог запасных частей к технике: LiuGong CLG 777A-S. 15E0752 004 HYDRAULIC SYSTEM

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 00Y0281 001 ENGINE SYSTEM 20C1887 000 RADIATOR GP 23C0275 006 THROTTLE CONTROL SYSTEM 21C0825 000 FUEL TANK 01Y0125 001 TYRE AND RIM AS 01Y0128 000 FRONT AXLE AS 05Y0120 001 GEARBOX & TORQUE CONVERTER AS 03Y0033 000 FRONT DRIVE SHAFT 03Y0034 000 REAR DRIVE SHAFT 34C3922 000 STEERING COLUMN 22C0718 002 BRACKET 01Y0129 000 REAR AXLE AS 12Y0116 001 LOADER HYDRAULIC SYSTEM 12C4403 000 CONTROL LEVER AS 12C4400 001 VALVE GP 10C2343 002 TILTING CYLINDER-LH 10C2642 001 BOOM CYLINDER 10C2344 001 BUCKET TILTING CYLINDER 10C2641 001 BOOM CYLINDER 15Y0320 002 SUCTION HYDRAULIC SYSTEM 21C0826 001 HYDRAULIC OIL TANK 12C4397 000 VALVE BLOCK AS 10Y0056 001 STEERING HYDRAULIC SYSTEM 12C2505 002 PRIORITY VALVE AS 12C4255 001 STEERING VALVE AS 12Y0117 001 EXCAVATOR HYDRAULIC SYSTEM 12C4306 000 VALVE BODY GP 10C2117 001 BUCKET CYLINDER 10C1402 003 CYLINDER 10C1398 003 BOOM CYLINDER 12C4420 000 VALVE GP 10C1403 003 CYLINDER 10C1397 004 ARM CYLINDER 10C2346 000 BUCKET CYLINDER 10C2347 000 BOOM CYLINDER AS 20Y0144 000 SERVICE BRAKE SYSTEM 24C1009 004 STEP 21Y0053 000 PARKING BRAKE SYSTEM 12Y0125 001 PILOT CONTROL SYSTEM 12C4308 000 CONTROL LEVER AS 12C4309 001 CONTROL LEVER AS 12C4307 000 CONTROL LEVER AS 12C4310 000 SWITCHING VALVE AS 12C4311 001 PILOT OIL SUPPLY VALVE AS 32Y0266 000 LOADER EQUIPMENT 24C0836 001 SUPPORT 08Y0192 001 FRAME SYSTEM 54C0313 002 PIN GP 32E1202 011 BACKHOE EQUIPMENT 43C2300 007 ARM 45Y0030 000 COUNTERWEIGHT GP 27C0702 000 COUNTERWEIGHT 27C0743 000 COUNTERWEIGHT 27C0744 000 COUNTERWEIGHT 27C0745 000 COUNTERWEIGHT 49E0201 013 ATTACHMENT 43C2004 005 MULTIPURPOSE 15E0752 004 HYDRAULIC SYSTEM 43C4251 001 HYDRAULIC HAMMER 43C2925 002 BUCKET (0.2cu.m./width 610mm) 43C3238 000 AUGER 34C2325 000 DECAL GROUP 34C2326 000 DECAL GROUP 34C2327 000 DECAL GROUP 43C3239 000 AUGER 43C2967 003 MULTIPURPOSE 43C2992 002 BUCKET (0.12cu.m./width 406mm) 43C2996 002 BUCKET (0.36cu.m./width 914mm) 43C3354 002 BUCKET (0.15cu.m./with teeth) 43C3355 002 BUCKET (0.25cu.m./with teeth) 43C4011 001 MULTIPURPOSE (1.0cu.m.bucket (6 in 1)/removable teeth) 43C2378 002 BUCKET 43C4217 001 MULTIPURPOSE (1.0cu.m.bucket (6 in 1)/with blade) 43C4094 000 QUICK COUPLER 43C2554 000 PICK-UP BROOM 24C1150 001 SWING MECHANISM 22C0957 000 MOUNTING BRACKET 22C0960 000 OUTRIGGER 24C1149 000 ROLLER GP 15E0937 000 HYDRAULIC SYSTEM 11C1250 000 MOTOR MOUNTING 43C4436 000 BUCKET (0.26cu.m./width 710mm) 43C4439 000 BUCKET (0.32cu.m./width 810mm) 38Y0089 000 BUCKET (20 inch front tyre) 43C4911 000 BUCKET (0.29cu.m.) 43C2192 001 HYDRAULIC CRUSHER 43C2191 001 COMPACTOR AS 43C2238 002 BUCKET (1.0cu.m.) 22D0660 003 BUCKET (1.0cu.m.) 43C1616 001 BUCKET (1.0cu.m./ordinary bucket with removable teeth) 43C2376 003 MULTIPURPOSE (1.0cu.m./removable teeth) 43C2377 004 MULTIPURPOSE (1.0cu.m./removable blade) 46E0066 001 SEAT AS 41Y0117 001 CAB AS 22C0732 001 DOOR HINGE 47C1510 003 WINDOW 47C1509 003 WINDOW 47C1511 000 WINDOW 47C1649 004 DOOR-RH 47C1648 002 DOOR-LH 44Y0049 003 ENGINE HOOD AS 23E0321 012 AIR CONDITIONING SYSTEM 46C9800 000 COMPRESSOR MOUNTING 46C6625 003 REFRIGERANT RECEIVER AS 22Y0338 002 ELECTRICAL SYSTEM 46C9207 000 WORK LIGHT WIRING AS 46C5410 004 WIPER MOTOR&LINKAGE 46C9441 001 CAB WIRING AS 46C9442 001 STEERING WIRING 46C9427 001 CONTROL BOX 46C6284 006 INSTRUMENT PANEL AS 46C9912 000 FRAME WIRING AS 34C2606 001 WASHER GP 46C5053 001 REAR COMBINATION LIGHT 46C5056 001 REAR COMBINATION LIGHT 46C6000 002 TRANSMISSION WIRING 49C1451 000 DEFROSTER WIRING AS

1

3

4

8

10

11

13

14

15

Позиция на иллюстрации	Заводской номер детали		Название детали
1	10C2338		Cylinder
3	06C6903		Hose as
4	10D6372		Tube as
8	06C7381		Hose as
10	10D6373		Tube as
11	09C1585		Clamp
13	05A0487		Plug
14	06C7382		Hose as
15	10C2339		Cylinder

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
