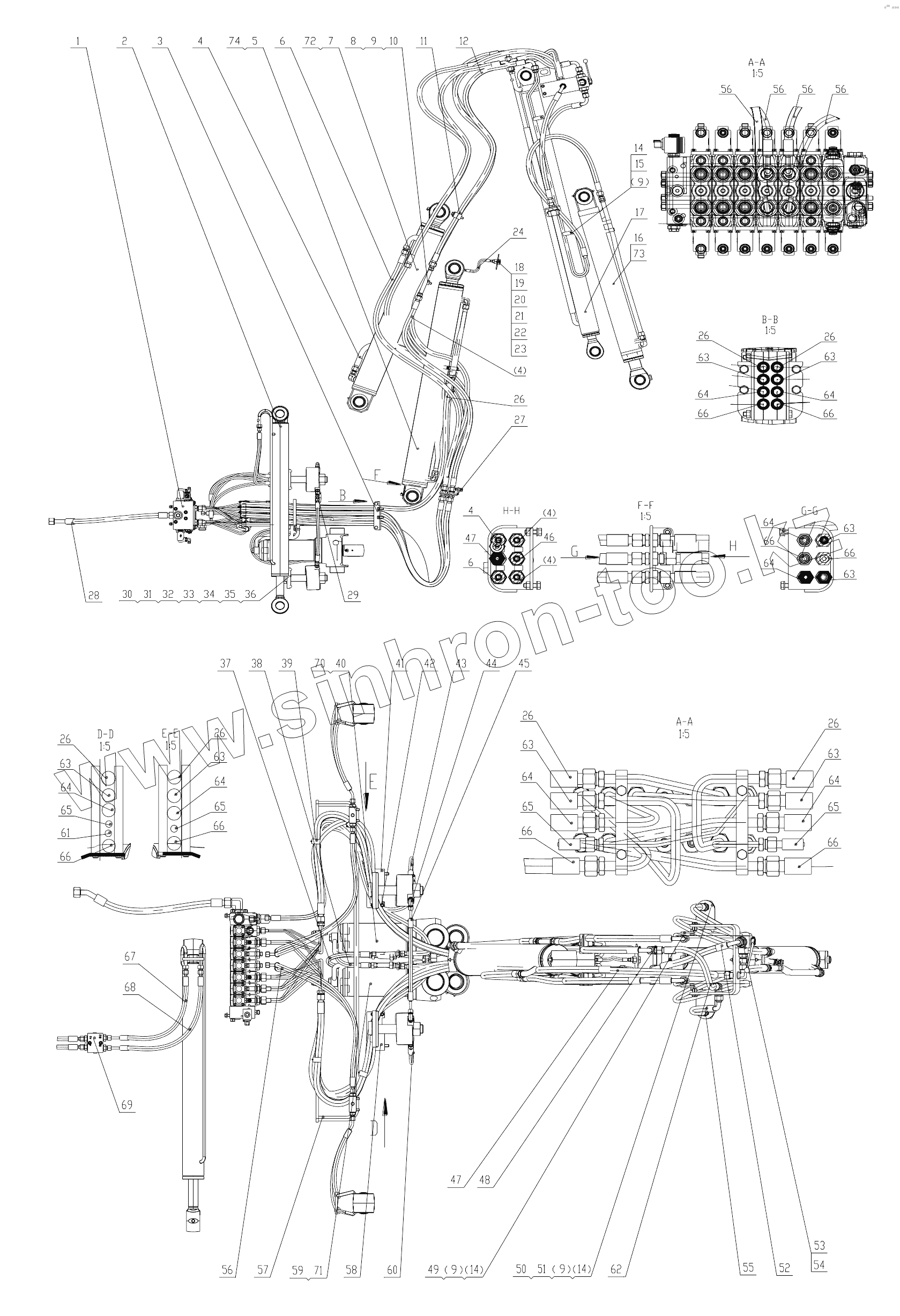

Каталог запасных частей к технике: LiuGong CLG 777A-S. 12Y0117 001 EXCAVATOR HYDRAULIC SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
4
4
4
5
6
6
7
8
9
9
9
9
10
11
12
14
14
14
15
16
17
18
19
20
21
22
23
24
26
26
26
26
26
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
48
49
50
51
52
53
54
55
56
56
56
56
56
57
58
59
60
61
62
63
63
63
63
63
63
63
63
64
64
64
64
64
64
64
64
65
65
65
65
66
66
66
66
66
66
66
66
67
68
69
70
71
72
73
74
Позиция на иллюстрации Заводской номер детали Название детали
1 12C4306 Valve body gp
2 10C2337 Outrigger cylinder
3 09C1191 Clamp
4 06C6977 Hose as
5 10C1398 Boom cylinder
6 06C6978 Hose as
7 10C1397 Arm cylinder
8 10D5931 Tube as
9 06B0347 WASHER
10 00B0012 BOLT
11 09C1578 Clamp
12 06C9059 Hose as
14 00B0005 BOLT
15 06C9146 Hose as
16 10C2117 Bucket cylinder
17 10C2352 Telescoping cylinder
18 11A6288 Plate
19 06B0346 WASHER
20 00B0010 BOLT
21 00A4934 Fitting
22 03B0095 Гайка
23 10B0014 Ниппель
24 05C3601 Hose as
26 06C7406 Hose as
27 09C1193 Clamp
28 06C7609 Hose as
29 32C0099 Tee
30 72A1586 Slider
31 62A0531 Bolt
32 10C1503 Cylinder
33 10A6845 Stop plate
34 03B0309 NUT
35 30C0223 Connector
36 44C0152 Plug
37 05C3844 Hose as
38 05C3845 Hose as
39 09C1058 Clamp
40 10C1402 Cylinder
41 00D6159 Bracket
42 34A1174 Steel sleeve
43 05C4513 Hose as
44 31C0308 Connector
45 05C5134 Hose as
46 06C9060 Hose as
47 66C3262 Hose as
48 32C0082 Tee
49 06C9126 Hose as
50 44C1737 Bracket
51 05A1042 Plug
52 66C3261 Hose as
53 12C4420 Valve gp
54 01B0401 Болт
55 66C3259 Hose as
56 05C5271 Hose as
57 10D7078 Tube as
58 00D6160 Bracket
59 10C1403 Cylinder
60 05C4512 Hose as
61 05C3854 Hose as
62 66C3260 Hose as
63 06C6984 Hose as
64 06C6985 Hose as
65 06C7387 Hose as
66 66C3263 Hose as
67 05C5269 Hose as
68 05C5270 Hose as
69 12C3645 Hydraulic lock
70 10C2329 Swing cylinder
71 10C2330 Swing cylinder
72 10C2333 Arm cylinder
73 10C2346 Bucket cylinder
74 10C2347 Boom cylinder as
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
