Каталог запасных частей к технике: LiuGong CLG-766A. 47C1514 BASIC WINDOW

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 00E0703 004 ENGINE SYSTEM 20C1127 000 RADIATOR GP 23C0257 004 THROTTLE CONTROL SYSTEM 40C2251 001 DIESEL ENGINE 21C0470 002 FUEL TANK 00E0719 003 ENGINE SYSTEM 20C1014 000 COOLING SYSTEM 23C0275 003 THROTTLE CONTROL SYSTEM 40C2459 000 DIPSTICK 01E0103 004 RIM 01E0096 005 FRONT AXLE AS 41C0241 001 FRONT AXLE AS 41C0241 FRONT AXLE HOUSING 41C0241 STEERING UNIT 41C0241 BEVEL GEAR SET 41C0241 DIFFERENTIAL 41C0241 DOUBLE U-JOINT 41C0241 WHEEL HUB 41C0241 FINAL REDUCTION 01E0285 FRONT AXLE 41C0246 STEERING FRONT AXLE 41C0246 FRONT AXLE HOUSING 41C0246 STEERING UNIT 41C0246 WHEEL HUB 05E0209 007 GEARBOX & TORQUE CONVERTER AS 00C1609 001 LINE GP 00C1610 001 OIL INLET LINES 16C0062 000 COVER AS 23C0215 002 SHIFT CONTROL LEVER 42C0296 001 TRANSMISSION 42C0296 OIL PUMP 42C0296 SOLENOID VALVE 42C0296 KIT SUMMARY 42C0296 OIL FILTERS 42C0296 TRANSMISSION HOUSING 42C0296 INPUT SHAFTS 42C0296 REVERSE AND PRIMARY SHAFTS 42C0296 SECONDARY SHAFT 42C0296 4WD SHAFT 42C0296 SPEED CONTROL 42C0296 CONTROL VALVE 05E0215 GEARBOX & TORQUE CONVERTER AS 03M0007 003 FRONT DRIVE SHAFT AS 03M0008 002 DRIVE SHAFT AS 47C1415 000 STEERING COLUMN 22C0718 000 BRACKET 24C0860 000 STEERING SHAFT 01E0104 004 RIM 01E0097 004 REAR AXLE AS 41C0137 001 REAR AXLE AS 41C0137 AXLE HOUSING 41C0137 BEVEL GEAR SET 41C0137 DIFFERENTIAL 41C0137 DIFFERENTIAL LOCKING 41C0137 BRAKES 41C0137 BRAKES CONTROL 41C0137 WHEEL HUB 41C0137 FINAL REDUCTION 01E0288 TIRE & RIM AR 01E0261 TIRE & RIM AR 01E0301 TYRE & RIM AS 01E0278 TIRE & RIM AR 05E0231 GEARBOX & TORQUE CONVERTER AS 30C0275 002 CONNECTOR 00C1860 000 FILLER TUBE 16C0068 000 COVER AS 03E0113 000 FRONT DRIVE SHAFT GP 15E0830 AUX HYDRAULIC SYSTEM 11E0751 LOADER HYDRAULIC SYSTEM 31C0084 ELBOW 09C0996 CLAMP 24C1054 CONTROL LEVER AS 24C1060 CONTROL LEVER AS 09C1045 CLAMP 09C0954 CLAMP 09C0960 CLAMP 09C0995 CLAMP 15E0832 SUCTION HYDRAULIC SYSTEM 21C0501 HYDRAULIC OIL TANK 12C2643 VALVE BLOCK AS 32C0585 TEE 31C0505 ADJUSTING CONNECTOR 31C0113 CONNECTOR 15E0831 SUCTION HYDRAULIC SYSTEM 10E0206 STEERING HYDRAULIC SYSTEM 12C2505 PRIORITY VALVE AS 15E0823 AUX HYDRAULIC SYSTEM 31C0083 ELBOW 31C0488 CONNECTOR 15E0829 AUX & NBSP, HYDRAULIC SYSTEM 12C2644 VALVE GP 12C1976 TEE VALVE 30C1617 CONNECTOR 12C2638 CONTROL VALVE AS 31C0478 CONNECTOR 31C0095 CONNECTOR 23C0282 STEP 24C0972 PEDAL AS 11E0747 EXCAVATOR HYDRAULIC SYSTEM 11E0747 EXCAVATOR HYDRAULIC SYSTEM 11E0747 EXCAVATOR HYDRAULIC SYSTEM 09C0956 CLAMP 44C1004 EXCAVATOR CONTROL SYSTEM 34K0036 UNIVERSAL JOINT 09C0957 CLAMP 12C2535 HYDRAULIC LOCK 30C1581 CONNECTOR 09C0342 CLAMP 09C0955 CLAMP 10C0143 STABILIZER CYLINDER 09C1000 CLAMP 20E0369 SERVICE BRAKE SYSTEM 13C0384 ASSISTOR 32K0007 CONNECTOR 20E0368 SERVICE BRAKE SYSTEM 21E0079 PARKING BRAKE SYSTEM 32E1071 LOADER EQUIPMENT 32E1071 LOADER EQUIPMENT 24C0836 SUPPORT 30E0689 FRAME SYSTEM 30E0689 FRAME SYSTEM 00K0031 FRONT AXLE GREASE LINES 00K0032 GREASE TUBE 27C0432 PIN GP 27C0419 PIN GP 54C0321 WIRE ROPE 32E1069 BACKHOE EQUIPMENT 32E1069 BACKHOE EQUIPMENT 49E0201 ATTACHMENT 43C2004 003 MULTIPURPOSE 15E0752 HYDRAULIC SYSTEM 09K0017 CLAMP 49E0229 HYDRAULIC HAMMER 43C2925 BUCKET 43C2967 MULTIPURPOSE 34C0693 SPRING 43C2992 BUCKET 43C2996 BUCKET 43C2378 BUCKET 43C2192 HYDRAULIC CRUSHER 43C2191 COMPACTOR AS 12C1380 RELIEF VALVE 12C1379 RELIEF VALVE 43C2238 BUCKET 22D0660 BUCKET 43C1616 BUCKET 43C2376 MULTIPURPOSE 43C2377 MULTIPURPOSE 22C0927 SUPPORT 22C0937 SUPPORT 22C0733 SUPPORT 30E0878 FRAME SYSTEM 30E0878 FRAME SYSTEM 32E1202 BACKHOE EQUIPMENT (telescopic bucket rod) 32E1202 BACKHOE EQUIPMENT (telescopic bucket rod) 43C2300 ARM 44E0396 ENGINE HOOD AS 48C1419 COVER 44E0397 ENGINE HOOD AS 46E0065 SEAT AS 46E0066 SEAT AS 41E0448 CAB AS 47C1510 WINDOW 22C0732 DOOR HINGE 47C1509 WINDOW 34K0037 SHOCK ABSORBER 22C0708 DOOR HINGE 24C0854 DOOR HINGE 22C0707 DOOR HINGE 47C1511 WINDOW 47C1514 BASIC WINDOW 47C1649 DOOR-RH 47C1648 DOOR-LH 23E0321 AIR CONDITIONING SYSTEM 23E0321 AIR CONDITIONING SYSTEM 46C5146 COMPRESSOR MOUNTING 46C6625 REFRIGERANT RECEIVER AS 00C1697 AIR DUCT AS 46C3591 FILTER 23E0318 AIR CONDITIONING SYSTEM 23E0318 AIR CONDITIONING SYSTEM 46C5054 COMPRESSOR MOUNTING 22E1197 ELECTRICAL SYSTEM 46C5424 FRAME WIRING AS 46C5414 CAB WIRING AS 46C5415 SWITCH AS 46C6284 INSTRUMENT PANEL AS 46C6315 STEERING WIRING 46C5411 WIPER MOTOR & LINKAGE 46C5412 WORK LIGHT WIRING AS 46C5410 WIPER MOTOR & LINKAGE 22E1199 ELECTRICAL SYSTEM 46C5425 FRAME WIRING AS 22E1276 ELECTRICAL SYSTEM 46C5921 FRAME WIRING AS 46C5922 CAB WIRING AS 46C5920 INSTRUMENT WIRING 46C5998 REAR WIRING 46C5999 REAR WIRING 46C5056 REAR COMBINATION LIGHT 46C5053 REAR COMBINATION LIGHT 46C1991 WASHER AS 50E0659 ELECTRICAL SCHEMATIC

1

2

3

4

5

6

7

8

9

10

11

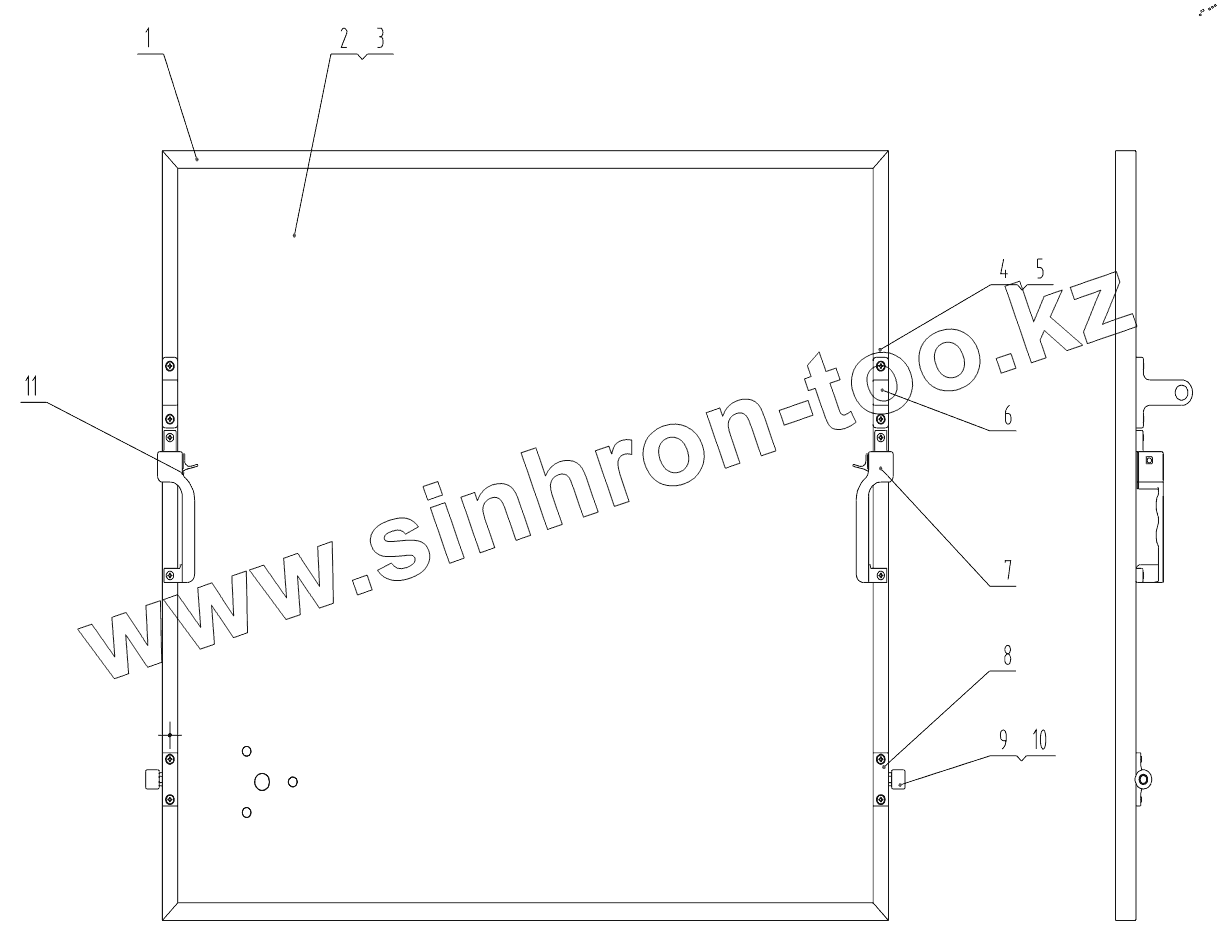

Позиция на иллюстрации	Заводской номер детали		Название детали
1	23D1821		WINDOW FRAME
2	87A0794		GLASS
3	42B0005		Герметик
4	06B0346		WASHER
5	04B0294		SCREW
6	17A3881		BRACKET
7	34C1038		HANDLE
8	16A3808		ROLLER BRACKET
9	61A0791		ROLLER SHAFT
10	47A0080		ROLLER
11	34C1037		HANDLE
