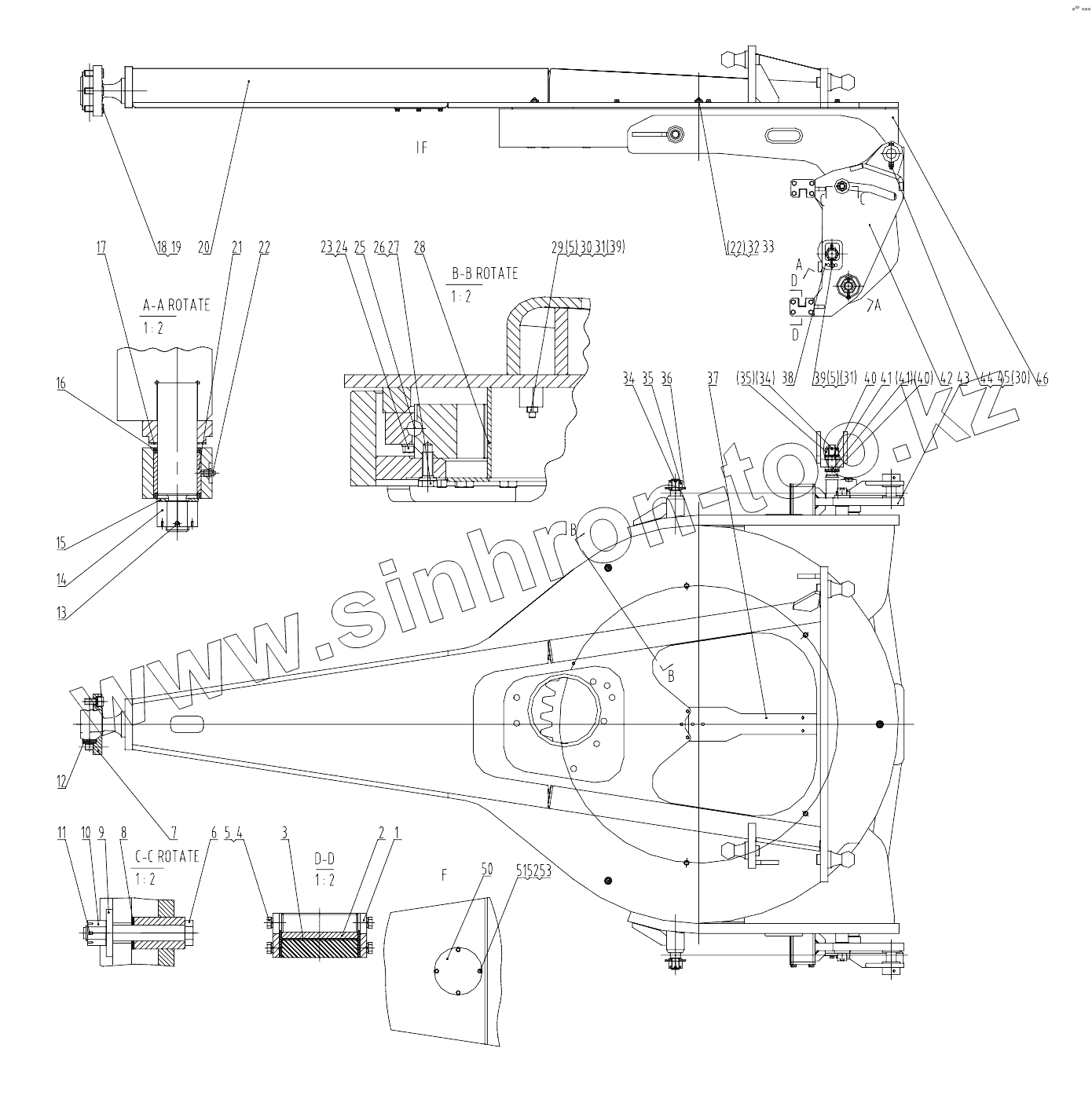

Каталог запасных частей к технике: LiuGong CLG 425. 43C2119 006 EQUIPMENT-SKEL
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
30
31
31
32
33
34
34
35
35
36
37
38
39
39
40
40
41
41
42
43
44
45
46
50
51
52
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 22A5931 | Plate | |
| 2 | 27A2493 | Bushing | |
| 3 | 34C0744 | Shim | |
| 4 | 00B0012 | BOLT | |
| 5 | 06B0002 | Шайба | |
| 6 | 02B0162 | Bolt | |
| 7 | 18A4525 | Cover | |
| 8 | 28C0067 | Shim | |
| 9 | 14A2180 | Shim | |
| 10 | 03B0519 | NUT | |
| 11 | 08B0033 | Палец | |
| 12 | 55A0938 | Outer race | |
| 13 | 08B0041 | Cotter pin | |
| 14 | 03B0647 | Nut | |
| 15 | 11A2115 | Washer | |
| 16 | 35C0013 | Прокладка | |
| 17 | 34C0318 | Shim | |
| 18 | 04B0470 | Screw | |
| 19 | 06B0052 | Шайба | |
| 20 | 00D6516 | Traction frame | |
| 21 | 55A0936 | Bushing | |
| 22 | 10B0014 | Ниппель | |
| 23 | 01B0325 | BOLT | |
| 24 | 06B0221 | Шайба | |
| 25 | 21B0163 | Swing bearing | |
| 26 | 00B0159 | Болт | |
| 27 | 06B0223 | Шайба | |
| 28 | 48C1324 | Dust cover | |
| 29 | 00B0018 | Болт | |
| 30 | 03B0053 | NUT | |
| 31 | 06B0001 | WASHER | |
| 32 | 00A4218 | Connector | |
| 33 | 81A0119 | Pad | |
| 34 | 08B0032 | Шплинт | |
| 35 | 03B0739 | Nut | |
| 36 | 55A0943 | Washer | |
| 37 | 21A3168 | Plate | |
| 38 | 15A2243 | Plate | |
| 39 | 00B0002 | Болт | |
| 40 | 06B0254 | WASHER | |
| 41 | 06B0253 | WASHER | |
| 42 | 21D0239 | Support | |
| 43 | 21D0240 | Support | |
| 44 | 60A0979 | Pin | |
| 45 | 01B0158 | BOLT | |
| 46 | 12D0352 | Swing seat | |
| 50 | 11A6155 | Cap | |
| 51 | 00B0085 | Болт | |
| 52 | 06B0006 | Шайба | |
| 53 | 06B0005 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
