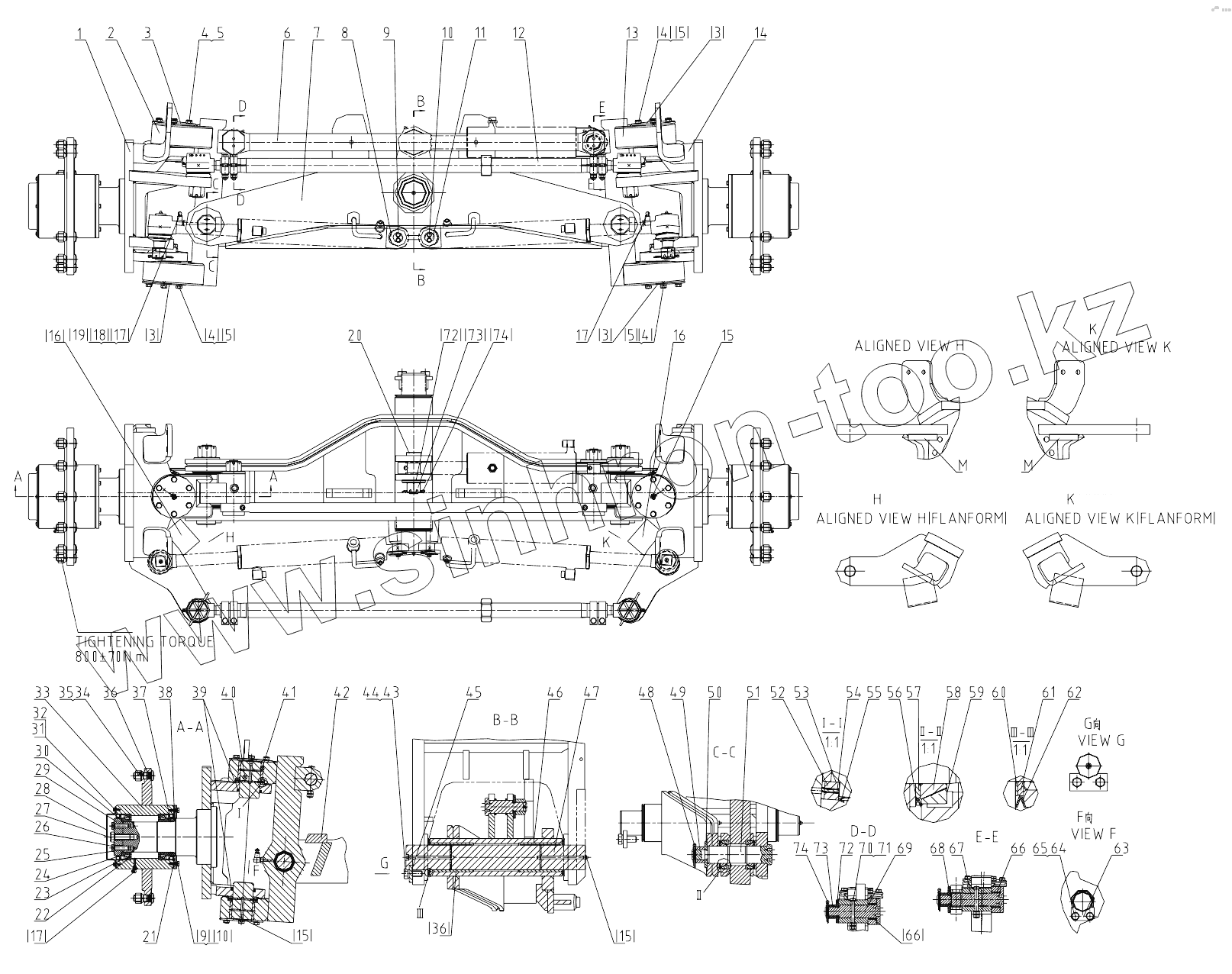

Каталог запасных частей к технике: LiuGong CLG 425. 26E0141 002 FRONT AXLE
1
2
3
3
3
3
4
4
4
4
5
5
5
5
6
7
8
9
9
10
10
11
12
13
14
15
15
15
16
16
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
66
67
68
69
70
71
72
72
73
73
74
74
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 24D0138 | Front wheel hub | |
| 2 | 24D0091 | Lean-joint | |
| 3 | 52A0323 | Cover | |
| 4 | 00B0017 | BOLT | |
| 5 | 06B0008 | Шайба | |
| 6 | 24C0405 | Linkage | |
| 7 | 24D0114 | Front axle | |
| 8 | 52A0180 | Крышка круглая | |
| 9 | 00B0085 | Болт | |
| 10 | 06B0006 | Шайба | |
| 11 | 06B0005 | WASHER | |
| 12 | 24C0861 | Linkage | |
| 13 | 24D0090 | Lean-joint | |
| 14 | 24D0139 | Front wheel hub | |
| 15 | 10B0014 | Ниппель | |
| 16 | 16A5849 | Plate | |
| 17 | 10B0018 | Маслосборник | |
| 18 | 01A1798 | Elbow | |
| 19 | 03B0035 | Гайка | |
| 20 | 60A1881 | Pin | |
| 21 | 53A1258 | Cap | |
| 22 | 23B0005 | Tap.roller brg | |
| 23 | 56A1730 | Collar | |
| 24 | 13B0848 | Seal ring | |
| 25 | 76A0492 | Lock plate | |
| 26 | 00B0103 | BOLT | |
| 27 | 01B0321 | Болт | |
| 28 | 53A1260 | Cap | |
| 29 | 53A1259 | Cap | |
| 30 | 34C1855 | Shim | |
| 31 | 00B0022 | BOLT | |
| 32 | 06B0003 | Шайба | |
| 33 | 24D0140 | Hub | |
| 34 | 06B0252 | Шайба | |
| 35 | 03B0139 | Гайка задний | |
| 36 | 01B0457 | Rim bolt | |
| 37 | 12B0288 | Кольцо круглого сечения | |
| 38 | 55A3696 | Bushing | |
| 39 | 13B0413 | Dust ring | |
| 40 | 60A1485 | Steering pin | |
| 41 | 55A2673 | Bearing | |
| 42 | 17A1622 | Block | |
| 43 | 06B0019 | Шайба | |
| 44 | 00B0234 | BOLT | |
| 45 | 14A6369 | Plate | |
| 46 | 55A2674 | Bearing | |
| 47 | 61A0754 | Shaft | |
| 48 | 08B0100 | Pin | |
| 49 | 03B0493 | NUT | |
| 50 | 56A0686 | Washer | |
| 51 | 60A1231 | Pin | |
| 52 | 26B0059 | Washer | |
| 53 | 28C0083 | Shim | |
| 54 | 26B0058 | Needle bearing | |
| 55 | 83A0564 | V-seal | |
| 56 | 83A0565 | V-seal | |
| 57 | 56A0436 | Thrust shim | |
| 58 | 25B0078 | Knuckle bearing | |
| 59 | 28C0087 | Shim | |
| 60 | 28C0099 | Shim | |
| 61 | 56A0639 | Lock washer | |
| 62 | 83A0636 | V-seal | |
| 63 | 14A6371 | Plate | |
| 64 | 00B0059 | Болт | |
| 65 | 06B0015 | Шайба | |
| 66 | 76A0378 | Ring | |
| 67 | 60A2276 | Pin | |
| 68 | 56A0684 | Washer | |
| 69 | 60A2277 | Pin | |
| 70 | 01B0160 | Болт | |
| 71 | 03B0003 | Гайка | |
| 72 | 56A0685 | Washer | |
| 73 | 03B0487 | Гайка | |
| 74 | 08B0017 | Палец |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
