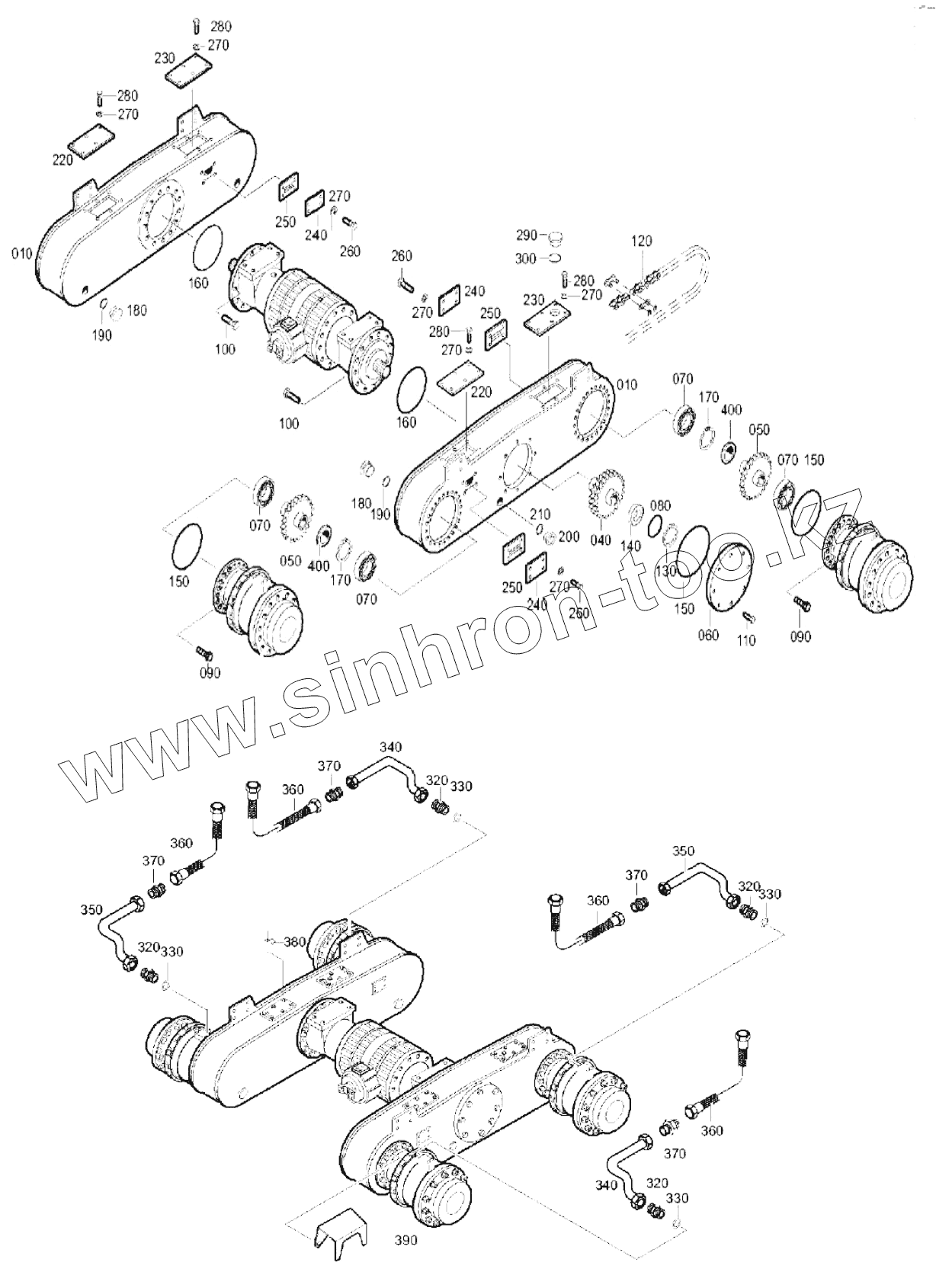

Каталог запасных частей к технике: LiuGong CLG 425. 0501 008 242 CHAIN DRIVE
10
40
50
50
60
70
70
70
70
80
90
100
100
110
120
130
140
150
150
150
160
160
170
170
180
180
190
190
200
210
220
220
230
230
240
240
240
250
250
250
260
260
260
270
270
270
270
270
270
270
280
280
280
280
290
300
320
320
320
320
330
330
330
330
340
340
350
350
360
360
360
360
370
370
370
370
380
390
400
400
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 501325253 | Housing | |
| 40 | 501325254 | Sprocket wheel | |
| 50 | 501325255 | Sprocket wheel | |
| 60 | 501325256 | Cover | |
| 70 | 501325257 | Ball bearing | |
| 80 | 501325258 | Ring | |
| 90 | 636016128 | Hexagon screw | |
| 100 | 636011491 | Hexagon screw | |
| 110 | 636016188 | Hexagon screw | |
| 120 | 501325259 | Roller chain | |
| 130 | 630531080 | Retaining ring | |
| 140 | 501325260 | Sealing ring | |
| 150 | 5838302014 | Sealing ring | |
| 160 | 501325261 | O-ring | |
| 170 | 630502027 | Retaining ring | |
| 180 | 636302007 | Screw plug | |
| 190 | 634801200 | Sealing ring | |
| 200 | 5838302017 | Oelstandanzeige | |
| 210 | 634801215 | Sealing ring | |
| 220 | 5838302006 | Cover | |
| 230 | 501325263 | Cover | |
| 240 | 5838302007 | Cover | |
| 250 | 5838302008 | Gasket | |
| 260 | 636015416 | Hexagon screw | |
| 270 | 501325264 | Washer | |
| 280 | 636015299 | 6kt.schraube | |
| 290 | 5838302019 | Filter | |
| 300 | 634801227 | Sealing ring | |
| 320 | 501325265 | Pipe union | |
| 330 | 501325266 | O-ring | |
| 340 | 501325267 | Pipe | |
| 350 | 501325268 | Pipe | |
| 360 | 501325269 | Hose pipe | |
| 370 | 501325270 | Pipe union | |
| 380 | 501325271 | Pipe clamp | |
| 390 | 501325272 | Sheet | |
| 400 | 501325273 | Spacer ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
