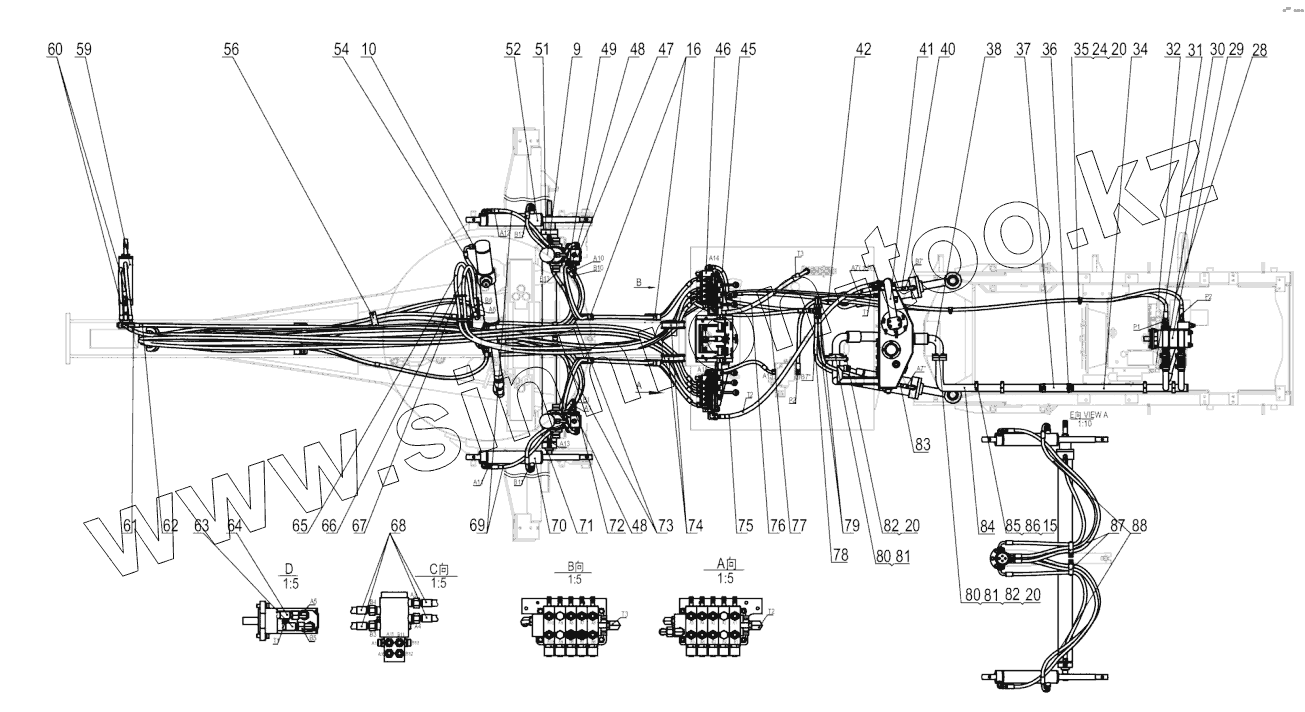

Каталог запасных частей к технике: LiuGong CLG-4215. 11Y0384-000-01 WORK HYDRAULIC SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
9
10
16
20
20
20
24
28
29
30
31
32
34
35
36
37
38
40
41
42
45
46
47
48
48
49
51
52
54
56
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
80
81
81
82
82
83
84
85
86
87
88
Позиция на иллюстрации Заводской номер детали Название детали
9 10С0695 Blade lift cylinder
10 30С0164 Connector
16 09С0203 Clamp
20 06В0008 Шайба
24 09С0126 Хомут
28 66С4861 Hose as
29 Pumpas Pump as
30 30А0221 Suction hose
31 15В0031 Clamp
32 66С4860 Hose as
34 09D3268 Tube as
35 00В0031 Болт
36 09С1313 Clamp
37 30А3961 Suction hose
38 07С6299 Hose as
40 06С7536 Hose as
41 44С0099 Pipe as
42 06С7528 Hose as
45 06С9889 Hose as
46 44С1604 Control valve as
47 44С1633 Hydraulic lock
48 06С7533 Hose as
49 06С9316 Hose as
51 10С0694 Blade sideshift cylinder
52 10С0669 Blade pitch cylinder
54 06С7535 Hose as
56 09С0795 Clamp
59 10С0663 Front wheel tilt cylinder
60 06С6762 Hose as
61 66С0158 Hose as
62 66С0157 Hose as
63 HOSEAS Hose as
64 HOSEAS Hose as
65 06С7534 Hose as
66 66С0436 Hose as
67 37В0004 Соединения блокировочного кабеля
68 66С0156 Hose as
69 66С2287 Hose as
70 10С0668 Blade pitch cylinder
71 06В0064 Washer
72 06С7532 Hose as
73 66С2286 Hose as
74 84А0341 Grommet
75 06С0971 Hose as
76 66С4858 Hose as
77 05С0469 Hose as
78 06С7530 Hose as
79 02А0281 Tee
80 04А0269 Split flange
81 12В0447 0-RING
82 00В0035 Болт
83 06С7529 Hose as
84 09D3261 Tube as
85 00В0004 Болт
86 96А1563 Clamp
87 09С1610 Clamp
88 66С2285 Hose as
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
