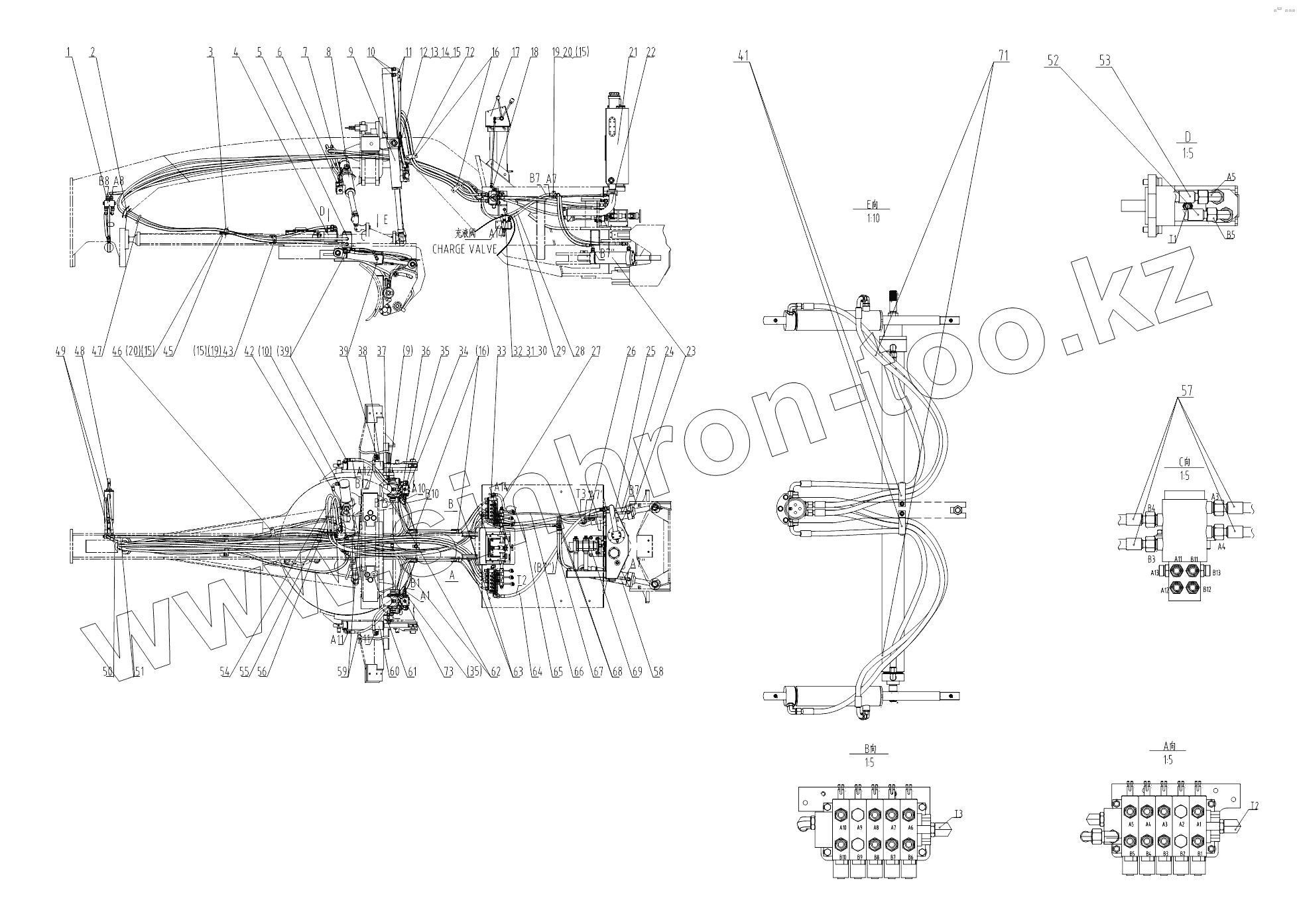

Каталог запасных частей к технике: LiuGong CLG-4215. 11Е1193-005-00 HYDRAULIC SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
15
15
15
16
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
39
41
42
43
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
71
72
73
Позиция на иллюстрации Заводской номер детали Название детали
1 12С3175 Hydraulic lock
2 09С0639 Jacket
3 09С0202 Clamp
4 11С0783 Swing motor
5 44С1599 Swivel joint
6 44С1634 Hydraulic lock
7 09С0188 Clamp
8 10С0696 Blade swing cylinder
9 10С0695 Blade lift cylinder
10 30С0164 Connector
11 06С7531 Hose as
12 09С0380 Clamp
13 00В0056 Болт
14 06В0001 Шайба
15 06В0002 Шайба стопорная
16 09С0203 Clamp
17 47С1637 Platform
18 44С1605 Control valve as
19 09С0126 Хомут
20 00В0005 Болт
21 21С0129 Hydraulic oil tank
22 00С2661 Pump oil suction lines
23 10С1066 Steering cylinder
24 06С7536 Hose as
25 44С0099 Pipe as
26 06С7528 Hose as
27 06С9889 Hose as
28 HOSEAS Hose as
29 HOSEAS Hose as
30 06В0007 Шайба
31 06В0008 Шайба
32 BoltM12x40-8.8-ZN.D Bolt
33 44С1604 Control valve as
34 44С1633 Hydraulic lock
35 06С7533 Hose as
36 06С9316 Hose as
37 10С0694 Blade sideshift cylinder
38 10С0669 Blade pitch cylinder
39 31С0145 Connector
41 09С1610 Clamp
42 06С7535 Hose as
43 03В0053 Гайка
45 46D1761 Stop plate
46 09С0795 Clamp
47 37В0010 Cable tie
48 10С0663 Front wheel tilt cylinder
49 06С6762 Hose as
50 66С0158 Hose as
51 66С0157 Hose as
52 Hoseas Hose as
53 Hoseas Hose as
54 06С7534 Hose as
55 66С0436 Hose as
56 37В0004 Соединения блокировочного кабеля
57 66С0156 Hose as
58 06С7529 Hose as
59 66С2287 Hose as
60 10С0668 Blade pitch cylinder
61 06В0064 Washer
62 66С2286 Hose as
63 84А0341 Grommet
64 06С0971 Hose as
65 07С2707 Hose as
66 05С0469 Hose as
67 06С7530 Hose as
68 02А0281 Tee
69 44С1829 Pump as
71 66С2285 Hose as
72 12С2800 Hydraulic lock
73 06С7532 Hose as
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
