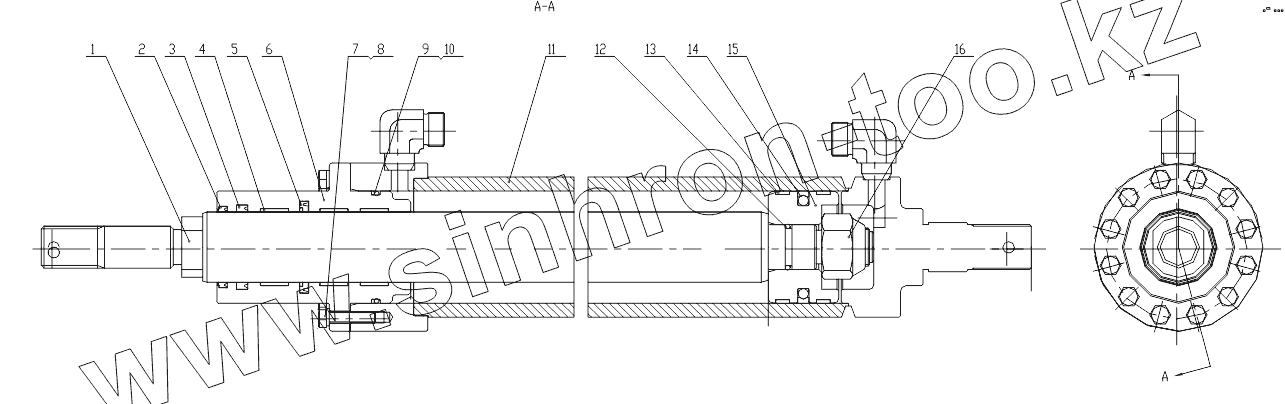

Позиция на иллюстрации
Заводской номер детали
Название детали
SP130216
SP130216
Seal kit
SP130225
SP130225
Seal kit
1
61А0800
Piston rod
2
13В0647
Dust ring
3
80А0445
Seal ring
4
80А0446
Support ring
5
80А0447
D seal
6
53А0738
Guide seelve
7
00В0569
Bolt
8
06В0006
Шайба
9
12В0117
Кольцо круглого сечения
10
07В0053
Snap ring
11
13D0759
Cylinder body
12
12В0271
O-ring
13
80А0442
Support ring
14
80А1103
Seal as
15
50А0263
Piston
16
34С0045
Locknut
17
30С0177
Plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
