04E0057_013_01 WORM BOX

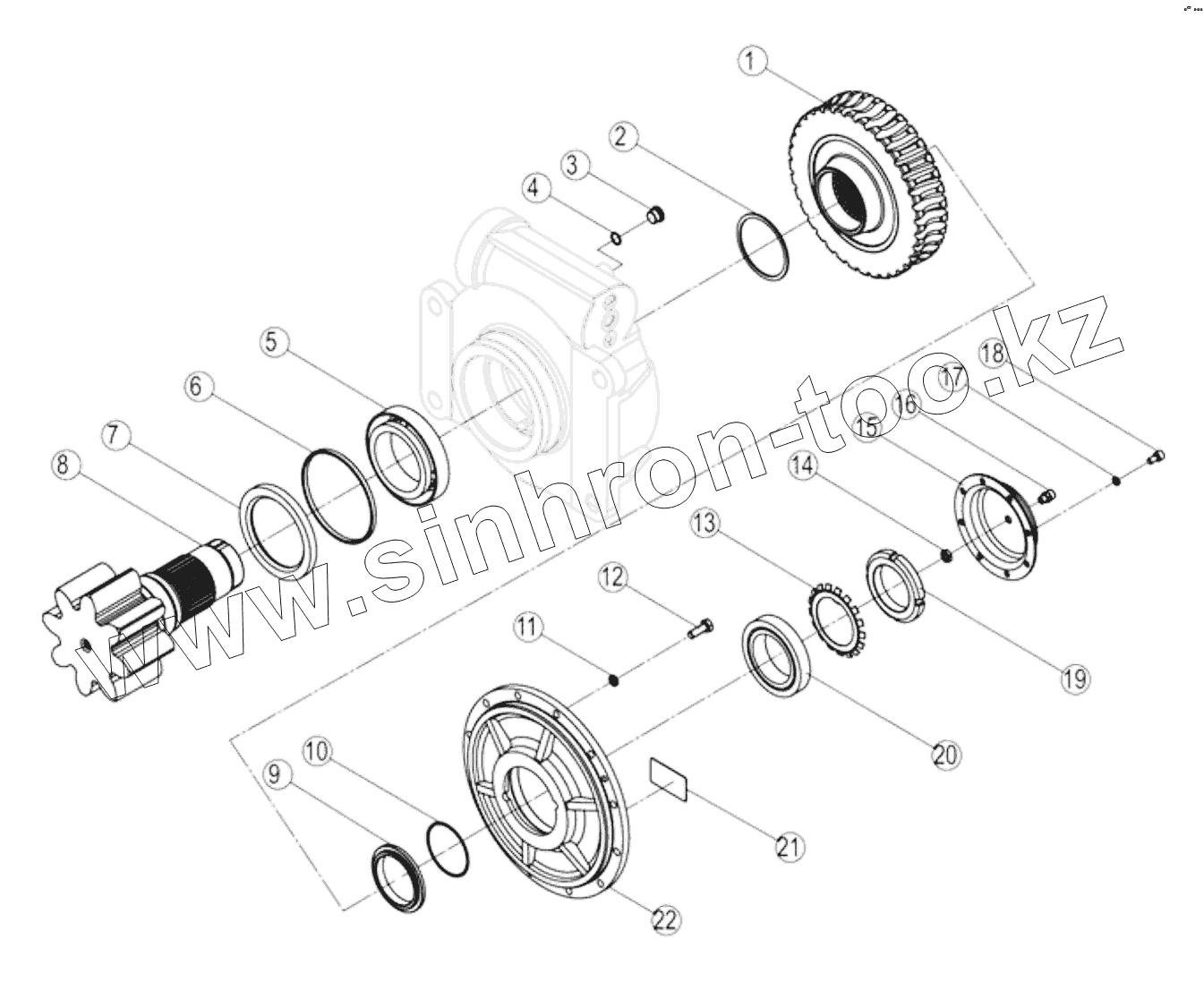

Каталог запасных частей к технике: LiuGong CLG-4165. 04E0057_013_01 WORM BOX
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CLG 425 (2010)
CLG 777A-S (2010)
CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016)
CLG-220 (2008)
CLG-225 (2008)
CLG-365A (2012)
CLG-375 (2008)
CLG-375A (2008)
CLG-385A (2008)
CLG-4165 (2015)
CLG-418 (2008)
CLG-4215 (2010)
CLG-612 (2008)
CLG-614 (2010)
CLG-618 (2010)
CLG-626R
CLG-766 (2015)
CLG-766A (2012)
CLG-816G (2012)
CLG-835
CLG-835 (2015)
CLG-835H (2015)
CLG-836 (2015)
CLG-842
CLG-842
CLG-842 (2015)
CLG-855N (2015)
CLG-856 (2015)
CLG-856H (2015)
CLG-856I
CLG-862 (2015)
CLG-877 (2015)
CLG-888 (2015)
CLG-904С (2007)
CLG-915D
CLG-915D
CLG-920D
CLG-920E (2015)
CLG-922D
CLG-922LC
CLG-922LC (2008)
CLG-925 (2015)
CLG-925D (2015)
CLG-933E (2010)
CLG-B160 (2010)
Схема
>
Не выбрано
00Y0047_000_00 FUEL TANK AS
16C0004_001_00 BREATHER CAP
16C0091_000_00 TANK COVER AS
00Y0050_002_00 COOLING SYSTEM
00Y0055_001_00 INTAKE AND EXHAUST SYSTEM
00Y0094_000_01 ENGINE SYSTEM
50C0053_000_00 FUEL PRE-FILTER
00Y0603_000_00 INTAKE AND EXHAUST SYSTEM
00Y0805_000_00 ENGINE MOUNTING
00Y0806_000_00 COOLING SYSTEM
00C5187_000_00 DOZER LINES
10C0721_007_00 DOZER CYLINDER
12C1556_000_00 HYDRAULIC LOCK
00C5188_000_00 RIPPER LINES
10C0693_005_00 RIPPER CYLINDER
00C5189_000_00 SCARIFIER LINES
10C2577_000_00 SCARIFIER CYLINDER
12C3946_000_00 HYDRAULIC LOCK
00C5569_000_00 RIPPER LINES
10Y0021_000_00 STEERING HYDRAULIC SYSTEM
10C1681_000_00 FRONT WHEEL STEERING CYLINDER
10C0681_006_00 FRONT STEERING CYLINDER
24C0373_000_00 BALL JOINT AS
12C2174_000_00 PRIORITY VALVE AS
44C0158_001_00 STEERING COLUMN AS
11Y0092_000_02 HYDRAULIC SYSTEM
00C3237_000_00 PUMP OIL SUCTION LINES
10C0663_004_00 FRONT WHEEL TILT CYLINDER
10C0668_005_00 BLADE PITCH CYLINDER
10C0669_005_00 BLADE PITCH CYLINDER
10C0694_004_00 BLADE SIDESHIFT CYLINDER
10C0695_007_00 BLADE LIFT CYLINDER
10C0696_007_00 BLADE SWING CYLINDER
10C1066_003_00 STEERING CYLINDER
11C0783_000_00 SWING MOTOR
12C2800_000_00 HYDRAULIC LOCK
12C3175_001_00 HYDRAULIC LOCK
44C1599_001_00 SWIVEL JOINT
33C0028_000_00 SWIVEL JOINT
44C1633_001_00 HYDRAULIC LOCK
44C1634_001_00 HYDRAULIC LOCK
44C1773_001_00 RETURN VALVE
44C1791_000_00 CONTROL VALVE AS
44C1792_001_00 CONTROL VALVE AS
47C1637_000_00 PLATFORM
49Y0039_002_00 PLATFORM
11Y0092_003_00 HYDRAULIC SYSTEM
11Y0639_000_00 WORK HYDRAULIC SYSTEM
11Y0639_000_01 WORK HYDRAULIC SYSTEM
44C1788_000_00 PUMP AS
01E0116_006_00 REAR AXLE AS
01C0226_003_00 LINE GP
01C0228_002_00 PIPING
01C0227_003_00 LINE GP
01C0229_002_00 PIPING
01C0262_002_00 LINE GP
01C0264_001_00 PIPING
01C0263_002_00 LINE GP
01C0265_001_00 PIPING
01C1155_000_00 PIPING GP
01C1156_000_00 PIPING GP
41C0479_001_00 REAR AXLE
SP105550_000_00 BRAKE AS
SP109936_000_00 REDUCTOR AS
SP123702_000_00 MAIN REDUCER
01E0117_001_00 TYRE & RIM AS
01Y0077_002_00 FRONT AXLE
24C0144_003_00 WHEEL LEAN LINKAGE AS
24C2504_000_00 STEERING LINKAGE
24C2308_000_00 ARTICULATED HITCH
24C2309_000_00 ARTICULATED HITCH
24D0136_002_00 LEAN-JOINT
34C2172_001_00 FRONT WHEEL HUB
03Y0046_000_00 REAR DRIVE SHAFT
05Y0064_001_00 GEARBOX & TORQUE CONVERTER AS
30C1872_000_00 CONNECTOR
05Y0258_000_00 GEARBOX & TORQUE CONVERTER AS
41C2525_000_00 FILLER TUBE AS
45C0284_001_00 PARKING BRAKE
20Y0048_001_00 BRAKE SYSTEM
13C0322_000_00 BRAKE VALVE AS
13C0595_000_00 CHARGE VALVE AS
15C0106_000_00 BRAKE ACCUMULATOR MOUNTING
15C0135_002_00 SERVICE BRAKE ACCUMULATOR GP
45C0098_001_00 BRAKE VALVE AS
45C0161_002_00 BRAKE VALVE AS
20Y0177_000_00 BRAKE SYSTEM
08Y0016_001_00 FRONT FRAME AS
22C1557_000_00 SWING ARM AS
34C0317_000_00 FORK AS
08Y0038_000_00 REAR FRAME AS
08Y0440_000_00 FRONT FRAME AS
08Y0471_000_00 FRONT FRAME AS
08Y0561_000_00 REAR FRAME AS
30E0096_002_00 ARTICULATED HITCH
30Y0061_001_00 ARTICULATED HITCH
32E0149_008_00 RIPPER
32E0161_007_00 BLADE
32E1669_001_00 WORK IMPLEMENT SYSTEM
04E0057_013_00 WORM BOX
04E0057_013_01 WORM BOX
43C0977_004_00 BLADE AS
43C3489_004_00 EQUIPMENT-SKEL
43C3489_004_01 EQUIPMENT-SKEL
48C2073_000_00 DUST COVER
32Y0538_000_00 SCARIFIER
45E1554_001_00 FRONT COUNTER-WEIGHT
45Y0008_000_00 COUNTERWEIGHT
45Y0027_001_00 COUNTERWEIGHT
41Y0127_001_00 CAB
27C0662_000_00 COVER
41E0549_000_00 REARVIEW MIRROR
47C1915_000_00 DOOR-LH
47C1916_000_00 DOOR-RH
47C2351_000_00 CONTROL BOX AS
41Y0315_000_00 CAB AS
41Y0315_000_01 CAB AS
47C0425_000_00 WATER-FREE WASHER
47C2903_000_00 CONTROL BOX AS
41Y0359_000_00 CAB
41Y0359_000_01 CAB
47C3088_000_00 CONTROL BOX AS
46E0021_000_00 SEAT
43E0231_000_00 LADDER
44Y0014_000_00 ENGINE HOOD AS
48C2530_000_00 COVER
44Y0408_000_00 ENGINE HOOD AS
44Y0408_000_01 ENGINE HOOD AS
48C4359_000_00 COVER
48C0353_001_00 PLATE AS
22Y0149_000_00 ELECTRICAL SYSTEM
46C1258_000_00 SOUND WIRING
46C1257_000_00 RADIO/CASSETTE PLAYER
46C3902_000_00 WIPER SYSTEM
46C7190_000_00 WIPER SYSTEM
46C8274_000_00 REAR FRAME WIRING
46C8275_000_00 BATTERY WIRING
46C8279_001_00 LIGHT GROUP
46C8281_001_00 FRONT FRAME WIRING
46C8460_000_00 WORK LIGHT WIRING
46C8628_000_00 REAR FRAME WIRING
46C8771_002_00 CAB WIRING
46C8268_000_00 SWITCH
46C8272_000_00 COMBINATION INDICATOR
46C8772_001_00 REAR FRAME WIRING
49C2627_000_00 CAB WIRING
49C1740_000_00 GRID HEATER WIRING
49C2490_000_00 ROTATING BEACON WIRING AS
23Y0021_004_00 AIR CONDITIONING SYSTEM
06C0306_000_00 HOSE
06C0407_000_00 HOSE
46C5250_002_00 COMPRESSOR BRACKET AS
46C7246_000_00 VENT
46C7247_000_00 HEATER MOUNTING
46C7831_000_00 EVAPORATOR AS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Позиция на иллюстрации
Заводской номер детали
Название детали
1
52C0291
Worm gear
2
ADJUSTINGGASKET
Adjusting gasket
3
03B0097
Заглушка
4
12B0370
Кольцо круглого сечения
5
23B0060
Роликоподшипник конический
6
56A0733
Gasket
7
13B0886
Oil seal
8
41A0520
Gear shaft
9
55A2128
Steel sleeve
10
ADJUSTINGGASKET
Adjusting gasket
11
06B0002
Шайба
12
00B0019
Болт
13
56A4221
Lock washer
14
03B0334
NUT
15
53A2399
Cover
16
38C0293
Respirator
17
06B0006
Шайба
18
04B0263
SCREW
19
03B0923
Nut
20
23B0061
Tap.roller brg
21
74A8184
Nameplate
22
70A0326
Housing cover
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
