Каталог запасных частей к технике: LiuGong CLG-4165. 01C0227_003_00 LINE GP

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CLG 425 (2010) CLG 777A-S (2010) CLG-2040H (2045H, 2050HL, 2040H, 2045H, 2050HL) (2016) CLG-220 (2008) CLG-225 (2008) CLG-365A (2012) CLG-375 (2008) CLG-375A (2008) CLG-385A (2008) CLG-4165 (2015) CLG-418 (2008) CLG-4215 (2010) CLG-612 (2008) CLG-614 (2010) CLG-618 (2010) CLG-626R CLG-766 (2015) CLG-766A (2012) CLG-816G (2012) CLG-835 CLG-835 (2015) CLG-835H (2015) CLG-836 (2015) CLG-842 CLG-842 CLG-842 (2015) CLG-855N (2015) CLG-856 (2015) CLG-856H (2015) CLG-856I CLG-862 (2015) CLG-877 (2015) CLG-888 (2015) CLG-904С (2007) CLG-915D CLG-915D CLG-920D CLG-920E (2015) CLG-922D CLG-922LC CLG-922LC (2008) CLG-925 (2015) CLG-925D (2015) CLG-933E (2010) CLG-B160 (2010)

Схема > Не выбрано 00Y0047_000_00 FUEL TANK AS 16C0004_001_00 BREATHER CAP 16C0091_000_00 TANK COVER AS 00Y0050_002_00 COOLING SYSTEM 00Y0055_001_00 INTAKE AND EXHAUST SYSTEM 00Y0094_000_01 ENGINE SYSTEM 50C0053_000_00 FUEL PRE-FILTER 00Y0603_000_00 INTAKE AND EXHAUST SYSTEM 00Y0805_000_00 ENGINE MOUNTING 00Y0806_000_00 COOLING SYSTEM 00C5187_000_00 DOZER LINES 10C0721_007_00 DOZER CYLINDER 12C1556_000_00 HYDRAULIC LOCK 00C5188_000_00 RIPPER LINES 10C0693_005_00 RIPPER CYLINDER 00C5189_000_00 SCARIFIER LINES 10C2577_000_00 SCARIFIER CYLINDER 12C3946_000_00 HYDRAULIC LOCK 00C5569_000_00 RIPPER LINES 10Y0021_000_00 STEERING HYDRAULIC SYSTEM 10C1681_000_00 FRONT WHEEL STEERING CYLINDER 10C0681_006_00 FRONT STEERING CYLINDER 24C0373_000_00 BALL JOINT AS 12C2174_000_00 PRIORITY VALVE AS 44C0158_001_00 STEERING COLUMN AS 11Y0092_000_02 HYDRAULIC SYSTEM 00C3237_000_00 PUMP OIL SUCTION LINES 10C0663_004_00 FRONT WHEEL TILT CYLINDER 10C0668_005_00 BLADE PITCH CYLINDER 10C0669_005_00 BLADE PITCH CYLINDER 10C0694_004_00 BLADE SIDESHIFT CYLINDER 10C0695_007_00 BLADE LIFT CYLINDER 10C0696_007_00 BLADE SWING CYLINDER 10C1066_003_00 STEERING CYLINDER 11C0783_000_00 SWING MOTOR 12C2800_000_00 HYDRAULIC LOCK 12C3175_001_00 HYDRAULIC LOCK 44C1599_001_00 SWIVEL JOINT 33C0028_000_00 SWIVEL JOINT 44C1633_001_00 HYDRAULIC LOCK 44C1634_001_00 HYDRAULIC LOCK 44C1773_001_00 RETURN VALVE 44C1791_000_00 CONTROL VALVE AS 44C1792_001_00 CONTROL VALVE AS 47C1637_000_00 PLATFORM 49Y0039_002_00 PLATFORM 11Y0092_003_00 HYDRAULIC SYSTEM 11Y0639_000_00 WORK HYDRAULIC SYSTEM 11Y0639_000_01 WORK HYDRAULIC SYSTEM 44C1788_000_00 PUMP AS 01E0116_006_00 REAR AXLE AS 01C0226_003_00 LINE GP 01C0228_002_00 PIPING 01C0227_003_00 LINE GP 01C0229_002_00 PIPING 01C0262_002_00 LINE GP 01C0264_001_00 PIPING 01C0263_002_00 LINE GP 01C0265_001_00 PIPING 01C1155_000_00 PIPING GP 01C1156_000_00 PIPING GP 41C0479_001_00 REAR AXLE SP105550_000_00 BRAKE AS SP109936_000_00 REDUCTOR AS SP123702_000_00 MAIN REDUCER 01E0117_001_00 TYRE & RIM AS 01Y0077_002_00 FRONT AXLE 24C0144_003_00 WHEEL LEAN LINKAGE AS 24C2504_000_00 STEERING LINKAGE 24C2308_000_00 ARTICULATED HITCH 24C2309_000_00 ARTICULATED HITCH 24D0136_002_00 LEAN-JOINT 34C2172_001_00 FRONT WHEEL HUB 03Y0046_000_00 REAR DRIVE SHAFT 05Y0064_001_00 GEARBOX & TORQUE CONVERTER AS 30C1872_000_00 CONNECTOR 05Y0258_000_00 GEARBOX & TORQUE CONVERTER AS 41C2525_000_00 FILLER TUBE AS 45C0284_001_00 PARKING BRAKE 20Y0048_001_00 BRAKE SYSTEM 13C0322_000_00 BRAKE VALVE AS 13C0595_000_00 CHARGE VALVE AS 15C0106_000_00 BRAKE ACCUMULATOR MOUNTING 15C0135_002_00 SERVICE BRAKE ACCUMULATOR GP 45C0098_001_00 BRAKE VALVE AS 45C0161_002_00 BRAKE VALVE AS 20Y0177_000_00 BRAKE SYSTEM 08Y0016_001_00 FRONT FRAME AS 22C1557_000_00 SWING ARM AS 34C0317_000_00 FORK AS 08Y0038_000_00 REAR FRAME AS 08Y0440_000_00 FRONT FRAME AS 08Y0471_000_00 FRONT FRAME AS 08Y0561_000_00 REAR FRAME AS 30E0096_002_00 ARTICULATED HITCH 30Y0061_001_00 ARTICULATED HITCH 32E0149_008_00 RIPPER 32E0161_007_00 BLADE 32E1669_001_00 WORK IMPLEMENT SYSTEM 04E0057_013_00 WORM BOX 04E0057_013_01 WORM BOX 43C0977_004_00 BLADE AS 43C3489_004_00 EQUIPMENT-SKEL 43C3489_004_01 EQUIPMENT-SKEL 48C2073_000_00 DUST COVER 32Y0538_000_00 SCARIFIER 45E1554_001_00 FRONT COUNTER-WEIGHT 45Y0008_000_00 COUNTERWEIGHT 45Y0027_001_00 COUNTERWEIGHT 41Y0127_001_00 CAB 27C0662_000_00 COVER 41E0549_000_00 REARVIEW MIRROR 47C1915_000_00 DOOR-LH 47C1916_000_00 DOOR-RH 47C2351_000_00 CONTROL BOX AS 41Y0315_000_00 CAB AS 41Y0315_000_01 CAB AS 47C0425_000_00 WATER-FREE WASHER 47C2903_000_00 CONTROL BOX AS 41Y0359_000_00 CAB 41Y0359_000_01 CAB 47C3088_000_00 CONTROL BOX AS 46E0021_000_00 SEAT 43E0231_000_00 LADDER 44Y0014_000_00 ENGINE HOOD AS 48C2530_000_00 COVER 44Y0408_000_00 ENGINE HOOD AS 44Y0408_000_01 ENGINE HOOD AS 48C4359_000_00 COVER 48C0353_001_00 PLATE AS 22Y0149_000_00 ELECTRICAL SYSTEM 46C1258_000_00 SOUND WIRING 46C1257_000_00 RADIO/CASSETTE PLAYER 46C3902_000_00 WIPER SYSTEM 46C7190_000_00 WIPER SYSTEM 46C8274_000_00 REAR FRAME WIRING 46C8275_000_00 BATTERY WIRING 46C8279_001_00 LIGHT GROUP 46C8281_001_00 FRONT FRAME WIRING 46C8460_000_00 WORK LIGHT WIRING 46C8628_000_00 REAR FRAME WIRING 46C8771_002_00 CAB WIRING 46C8268_000_00 SWITCH 46C8272_000_00 COMBINATION INDICATOR 46C8772_001_00 REAR FRAME WIRING 49C2627_000_00 CAB WIRING 49C1740_000_00 GRID HEATER WIRING 49C2490_000_00 ROTATING BEACON WIRING AS 23Y0021_004_00 AIR CONDITIONING SYSTEM 06C0306_000_00 HOSE 06C0407_000_00 HOSE 46C5250_002_00 COMPRESSOR BRACKET AS 46C7246_000_00 VENT 46C7247_000_00 HEATER MOUNTING 46C7831_000_00 EVAPORATOR AS

1

2

3

4

5

6

7

8

9

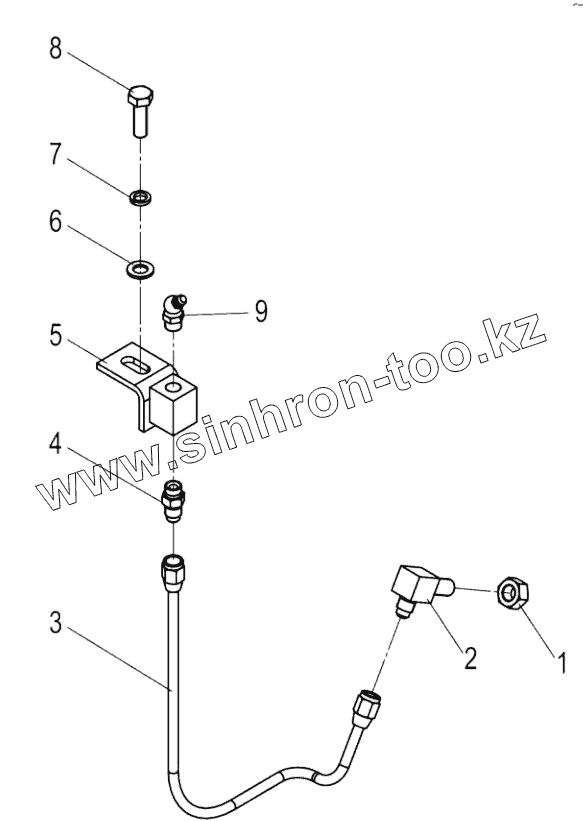

Позиция на иллюстрации	Заводской номер детали		Название детали
1	03B0035		Гайка
2	01A0231		Connector
3	01C0229		Piping
4	00A0032		Connector
5	00D3299		Bracket
6	06B0005		WASHER
7	06B0006		Шайба
8	00B0085		Болт
9	10B0051		Фиттинг

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
