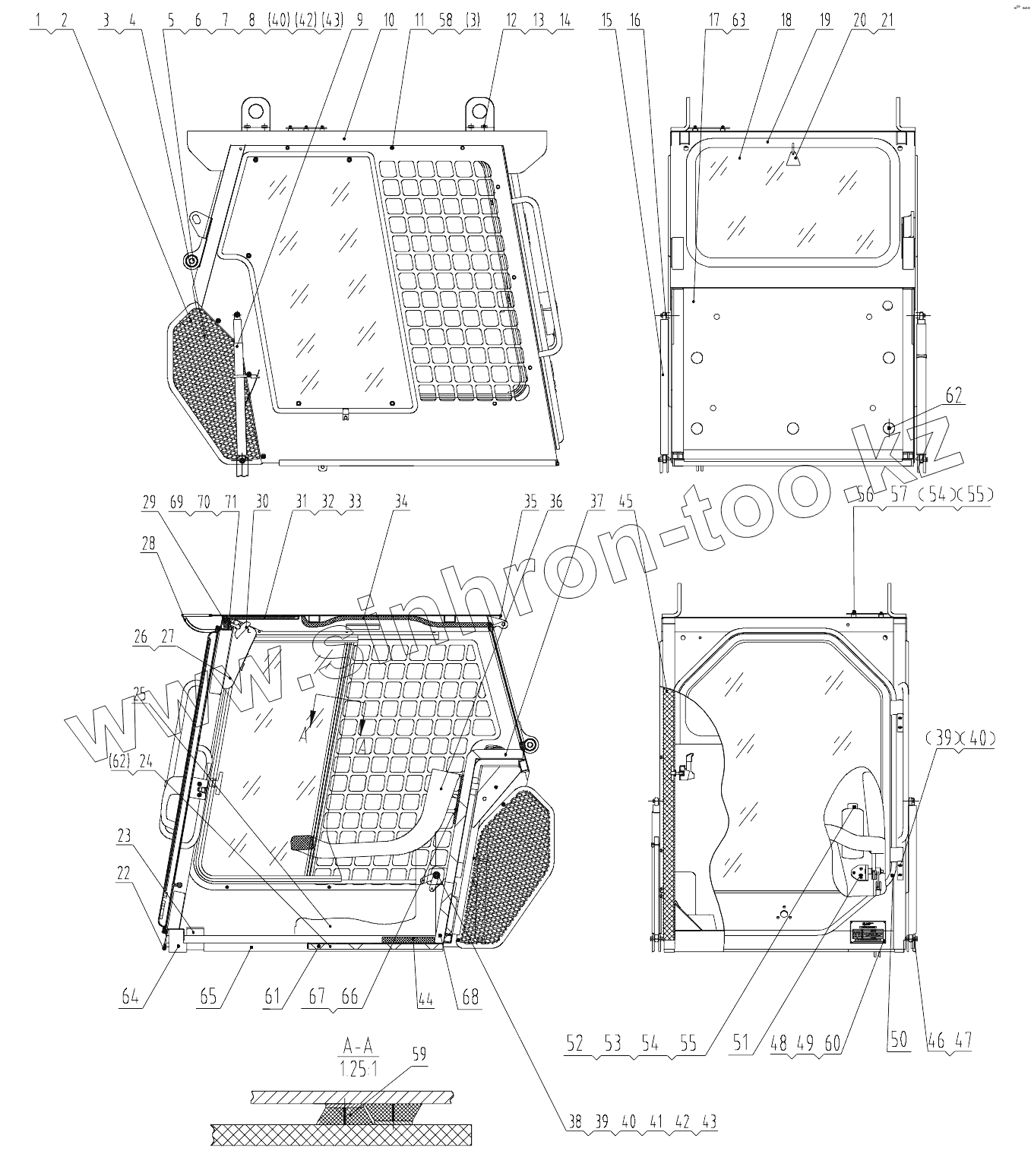

Каталог запасных частей к технике: LiuGong CLG-365A. 41E0581 004 CAB AS
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
40
40
41
42
42
43
43
44
45
46
47
48
49
50
51
52
53
54
54
55
55
56
57
58
59
60
61
62
62
63
64
65
66
67
68
69
70
71
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 46D1334 | Plate | |
| 2 | 46D1335 | Plate | |
| 3 | 02B0148 | BOLT | |
| 4 | 06B0346 | WASHER | |
| 5 | 47C0156 | CUSHION RING | |
| 6 | 60A2429 | BOLT | |
| 7 | 60A2430 | BOLT | |
| 8 | 10A6654 | WASHER | |
| 9 | 34C1569 | AIR SPRING | |
| 10 | 23D2527 | Cab | |
| 11 | 03B0591 | NUT | |
| 12 | 00B0011 | Болт | |
| 13 | 06B0007 | WASHER | |
| 14 | 06B0349 | WASHER | |
| 15 | 34C0706 | AIR SPRING | |
| 16 | 63A0058 | SPRING SHAFT | |
| 17 | 85A1859 | HEAT INSULATION PLATE | |
| 18 | 87A0552 | GLASS | |
| 19 | 84A1106 | SEAL | |
| 20 | 74A1576 | DECAL | |
| 21 | 88A0582 | RING | |
| 22 | 84A0764 | SEAL | |
| 23 | 47C1171 | CUSHION | |
| 24 | 85A4220 | Heat shield | |
| 25 | 47C1107 | SEAT AS | |
| 26 | 47C0338 | COVER-LH | |
| 27 | 47C0339 | INSTRUMENT PANEL | |
| 28 | 84A2255 | Seal | |
| 29 | 85A4344 | Decoration | |
| 30 | 47C0117 | Зеркало | |
| 31 | 87A0394 | GLASS | |
| 32 | 42B0004 | Клей | |
| 33 | 42B0005 | Герметик | |
| 34 | 85A1858 | DOME DECORATION AS | |
| 35 | 84A2254 | Seal | |
| 36 | 26C0068 | HANDRAIL | |
| 37 | 85A2646 | DECORATION | |
| 38 | 00D1740 | SUPPORT | |
| 39 | 01B0418 | BOLT | |
| 40 | 06B0348 | WASHER | |
| 41 | 00D1677 | FORK | |
| 42 | 06B0086 | WASHER | |
| 43 | 03B0021 | NUT | |
| 44 | 85A0722 | BAFFLE | |
| 45 | 85A0926 | DECORATION | |
| 46 | 08B0227 | PIN | |
| 47 | 08B0028 | PIN | |
| 48 | 74A4011 | NAMEPLATE | |
| 49 | 01B0012 | RIVET | |
| 50 | 47C1997 | Door gp | |
| 51 | 10A3994 | COVER | |
| 52 | 27C0605 | Fire extinguisher | |
| 53 | 00B0153 | BOLT | |
| 54 | 06B0361 | WASHER | |
| 55 | 06B0066 | WASHER | |
| 56 | 11A2339 | MOUNTING PLATE | |
| 57 | 04B0221 | SCREW | |
| 58 | 06B0024 | WASHER | |
| 59 | 35C0616 | SEAL | |
| 60 | 74A4012 | NAMEPLATE | |
| 61 | 85A4222 | Heat shield | |
| 62 | 86A1201 | FIXED PLATE | |
| 63 | 85A2325 | HEAT SHIELD | |
| 64 | 88A0943 | BAFFLE | |
| 65 | 88A0945 | BAFFLE | |
| 66 | 34C1996 | KIT | |
| 67 | 04B0031 | SCREW | |
| 68 | 85A3502 | Decoration | |
| 69 | 04B0198 | Болт | |
| 70 | 06B0352 | WASHER | |
| 71 | 06B0097 | Шайба |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
