Каталог запасных частей к технике: LIEBHERR PR754 LITRONIC. E-SYSTEM BASIC MACHINE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано LRS 645 (2009) PR754 LITRONIC

Схема > Не выбрано PR754-990 LITRONIC PR754-990 LITRONIC PR754-990 LITRONIC PR754-990 LITRONIC PR754-990 LITRONIC PR754-990 LITRONIC PR754-990 LITRONIC RIGID UNDERCARRIAGE RIGID UNDERCARRIAGE UNDERCARRIAGE LH. CPL. UNDERCARRIAGE LH. CPL. UNDERCARRIAGE LH. CPL. ROLLER FRAME,LEFT CPL. UNDERCARRIAGE RIGHT CPL. UNDERCARRIAGE RIGHT CPL. UNDERCARRIAGE RIGHT CPL. TRACK FRAME ASSY.CPL.RIGHT ROLLER SINGLE FLANGE D8N AXLE CPL. GUIDE WHEEL UNIT CPL GUIDE WHEEL UNIT CPL GUIDE WHEEL UNIT CPL GUIDE WHEEL D8N IDLER CPL. HYDRAULIC TENSIONNER ROLLER DOUBLE FLANGE D8N CARRYING ROLLER D8N UNDERCARRIAGE DRIVE UNDERCARRIAGE DRIVE LUBRICATION SYSTEM DRIVE SPROCKET CPL. TRAVEL DRIVE FAT 650E508 TRAVEL DRIVE FAT 650E508 TRAVEL DRIVE FAT 650E508 TRAVEL DRIVE FAT 650E508 TRAVEL DRIVE FAT 650E508 SPRING LOADED MULTI-DISC BRAKE PLANET WHEEL M=4 Z=34 PLANET WHEEL M=6,5 Z=28 FEED VALVE REVERSING VALVE CONTROL MAGNET VARIABLE DISPLACEMENT MOTOR VARIABLE DISPLACEMENT MOTOR VARIABLE DISPLACEMENT MOTOR VARIABLE DISPLACEMENT MOTOR VARIABLE DISPLACEMENT MOTOR VARIABLE DISPLACEMENT MOTOR VARIABLE DISPLACEMENT MOTOR VARIABLE DISPLACEMENT MOTOR TRACKS D8N 1-GROUS.PADS 610MM TRACK CHAIN 610mm HOIST CYLINDER BEARING FORK CPL. FORK HOIST CYLINDER BEARING BLOCK CONTROL LID BUILT-IN VALVE ARRANGEMENT BELLY PAN ENGINE PUMP ASSY MOTOR SUPPORT MOUNTING ELEMENTS FUEL FILTER/WATER SEPARATOR FUEL FIRST FILTER PR754 ARMAMENT CENTRAL ELECTRIC ARMAMENT CABIN ARMAMENT CABIN ELECTRICAL INSTALLATION ELECTRICAL INSTALLATION ENGINE AIR INSTALLATION ENGINE AIR INSTALLATION AIR FILTER OIL DRAIN PLUG M26X1,5 MOTOR/PUMP ASSY MOTOR/PUMP ASSY MOTOR/PUMP ASSY MOTOR/PUMP ASSY MOTOR/PUMP ASSY MOTOR/PUMP ASSY DRIVE UNIT AG 946 G 060 REPAIR KIT DRIVE SHAFT PUMP DISTRIBUTION GEAR SEAL KIT DRIVE UNIT STANDARD CENTAFLEX COUPLING CLUTCH ASSEMBLY VARIABLE PUMP VARIABLE PUMP DRIVING GEAR HA10V 140/L VARIABLE PUMP VARIABLE PUMP VARIABLE PUMP VARIABLE PUMP VARIABLE PUMP VARIABLE PUMP VARIABLE PUMP SCREW PLUG M8X1 SCREW PLUG PRESSURE LIMITING VALVE SCREW PLUG M33X2 REGULATION REGULATION SCREW PLUG AXIAL PISTON VAR.DISPLAC.PUMP VARIABLE PUMP FEED PRESSURE VALVE DIRECTIONAL CONTROL VALVE VARIABLE PUMP TWO-STAGE PUMP CONTROL VALVE DRIVING GEAR ANGLE FLANGE SCREWED UNION BFW 35L TUBE NOZZLE MOTOR LUBRICATION EXHAUST GAS SYSTEM EXHAUST GAS SYSTEM ENGINE COOLING SYSTEM ENGINE COOLING SYSTEM ENGINE COOLING SYSTEM COMBINATED RADIATOR COMBINATED RADIATOR VENT TUBE ASSEMBLY ADD-ON, COMPTS.F.RADIATOR ADD-ON, COMPTS.F.RADIATOR EQUALIZING RESERVOIR SIGHT GLASS M60X2 AXIAL PISTON MOTOR TUBE NOZZLE BFW 18L EQUALIZER-BAR AS EQUALIZER BAR CPL. INSTALLATION BRACKET BRACKET LEFT CPL. BRACKET RIGHT CPL. FOOTBOARD,LEFT CPL. FOOTBOARD LEFT FOOTBOARD RIGHT CPL. FOOTBOARD RIGHT TRAVEL HYDRAULIC TRAVEL HYDRAULIC TRAVEL HYDRAULIC TRAVEL HYDRAULIC TRAVEL HYDRAULIC TRAVEL HYDRAULIC TRAVEL HYDRAULIC TRAVEL HYDRAULIC TRAVEL HYDRAULIC TRAVEL HYDRAULIC ADDITIONAL CLIP ADDITIONAL CLIP PRESSURE BLOCK CPL. FILTER CPL. DIAPHRAGM ACCUMULATOR BLOC CPL. COLLECTING BLOCK MV-DISTRIBUTOR CPL. HYDRAULIC TANK INSTALLATION HYDRAULIC TANK INSTALLATION HYDRAULIC TANK INSTALLATION MOUNTING PARTS-HYDR.TANK RETURN FLOW FILTER SET SHUT OFF DEVICE PRESSURE FILTER OIL COOLER ASSEMBLY OIL COOLER ASSEMBLY OIL COOLER ASSEMBLY OIL COOLER ASSEMBLY PARTS FOR OIL COOLER HOUSING OIL COOLER CPL. COMBINED OIL COOLER FLANGE CONNECTION WFS20S 3/4 A3C FLANGE CONNECTION WFS 28L OIL COOLER HOUSING DOOR WORKING HYDRAULIC WORKING HYDRAULIC WORKING HYDRAULIC WORKING HYDRAULIC WORKING HYDRAULIC PRESSURE SUCTION VALVE ADDITIONAL CLIP CONTROL VALVE CPL. 2-FOLD CONTROL BLOCK 2-FOLD CONTROL BLOCK 2-FOLD CONTROL BLOCK VALVE SOLENOID VALVE PRESSURE SUCTION VALVE SCREW PLUG LID SERVO CONTROL UNIT PILOT CONTROL UNIT PILOT CONTROL UNIT LH-JOYSTICK RIGHT SHEET VALVE ATTACHING PARTS AXLE ADD.HYDR.INSTALLATION FRONT SEGMENT DIRECTIONAL SEAT VALVE DIRECTIONAL CONTROL VALVE DIRECTIONAL CONTROL VALVE HYDRAULIC CYLINDER LEFT TERMINAL HOLDER STRAP HOLDER HYDRAULIC CYLINDER PISTON 110MM PISTON ROD BEARING HYDRAULIC CYLINDER RIGHT FITTING KIT, REAR FITTING KIT, REAR FITTING KIT, REAR BLOC LEFT BLOCK MIDDLE BLOCK RIGHT PILOT CONTROL UNIT HAND CONTROL TRANSDUCER HYDRAULIC CYLINDER PISTON 180MM PISTON ROD BEARING 080/180 FRAME CPL. CROSS MEMBER CPL. PANELLING PANELLING PANELLING PANELLING PANELLING PANELLING PANELLING HITCH CPL. COVER LEFT COVER RIGHT DOOR LEFT, COMPL. DOOR LOCK DOOR LOCK HINGE DOOR RIGHT, COMPL. BULKHEAD ASSY PLATFORM CPL. PLATFORM CPL. PLATFORM CPL. PLATFORM CPL. BRACE PLATE ADD.PIECES OPERATOR'S PLATFORM ARM REST ADJUSTABLE LEVER LEVER ANGLE SENSOR PREMOUNTING PRE-ASSEMBLY PEDAL INCHING PEDAL BASEPLATE LIMIT STOP OPERATOR'S PLATFORM OPERATOR'S PLATFORM CLADDING OPERATOR'S PLATFORM CLADDING CASING LEFT COVER COMPL. ADD SOUND INSULATION DRVR CAB INTEGRATED INCH PEDAL OPERATOR'S CAB.WITH AIR COND. OPERATOR'S COMPARTMENT OPERATOR'S COMPARTMENT MOUNTING DRIVER'S SEAT MOUNTING DRIVER'S SEAT SEAT FRAME LEFT SEAT SUPPORT DRIVERS SEAT VIBRATING SYSTEM CAB CPL. CAB CPL. CAB CPL. CAB CPL. CAB CPL. CAB CPL. CAB CPL. CAB CPL. CAB CPL. CABIN DRIVER CAB COVERING DRIVER CAB COVERING DRIVER CAB COVERING FRONT WALL DOOR LEFT DOOR RIGHT SLIDING WINDOW LEFT GLASS PANE GUARD GRILLE REAR SCREEN PROTECTION LEFT & RIGHT LID LEVER FASTENER WASHING UNIT CONTAINER LOCKABLE TANK CAP LOCKABLE TANK CAP d=45 HOSING WINDSHIELD WIPER-DOOR LEFT WINDSHIELD WIPPER DOOR RIGHT WINDSHIELD WIPER WINDSHIELD WIPER SUNSHADE MOUNTING CONDENSER MOUNTING CONDENSER CONDENSER UNIT E-SYSTEM BASIC MACHINE E-SYSTEM BASIC MACHINE E-SYSTEM BASIC MACHINE E-SYSTEM BASIC MACHINE E-SYSTEM BASIC MACHINE E-SYSTEM BASIC MACHINE E-SYSTEM BASIC MACHINE E-SYSTEM BASIC MACHINE BATTERY MAIN SWITCH BATTERY-BOX DEGASSER LH-JOYSTICK LEFT PLUG INSERT PLUG MT2/JPT 42-POL PLUG DRC16-40SE 40-POL 13A 1500V CABLE LOOM W-KVFZ CABLE LOOM W-KVFG CABLE LOOM W-KWAG CENTRAL WIRE HARNESS W-ZKS754 CENTRAL WIRE HARNESS W-ZKS754 CENTRAL WIRE HARNESS W-ZKS754 CENTRAL WIRE HARNESS W-ZKS754 CENTRAL WIRE HARNESS W-ZKS754 CENTRAL WIRE HARNESS W-ZKS754 CENTRAL WIRE HARNESS W-ZKS754 CENTRAL WIRE HARNESS W-ZKS754 STARTER WIRING HARNESS RED W-ANLL EARTH LINE W-MASSL WIRING HARN.BATT.MAIN SWITCH W-BATH WIRING HARN.BATT.MAIN SWITCH W-BATHS CABLE LOOM W-ADAPT WIRE HARNESS INCH-PEDAL W-INCHP BUSH HOUSING DT 6-POL 13A 1500V PLUG PLUG DT 2-POL 13A 24V PLUG DT 06-12SA-CE01 12-POL 13A 150 PLUG DT 4-POL 13A 1500V PLUG DT06-08 8-POL 13A 1500V WIRE HARN.CONT.BRACK.CONTR.CABW-BD WIRE HARN.CONT.BRACK.CONTR.CABW-BD WIRE HARNESS SWITCH W-INTV BATT.CONNECTING CABLE W-BATV CABLE LOOM W-AZKV CABLE LOOM W-AZKV ELECTRIONIC COMPONENTS CONTROL UNIT BRACKET BRACKET INDICATOR MODULE DISPLAY PANEL STOCK INDICATOR TEMPERATURE INDICATOR CENTRAL ELECTRIC CPL. CENTRAL ELECTRIC CPL. HOUSING CPL. ABRASION PROT. FOR CENTRAL EL. EQUIPMENT BESTU754 EQUIPMENT BESTU754 ELECTRIC INSTALLATION ELECTRIC INSTALLATION ELECTRIC INSTALLATION FLOODLIGHT FLOODLIGHT WIRING HARNESS UNIT ELEC.SYSTEM AIR CONDIT.PLANT ARMAMENT CENTRAL ELECTRIC BRACKET ELECTRICAL INSTALLATION E-SYSTEM OPERATORS PLATFORM E-SYSTEM OPERATORS PLATFORM ENGINE THROTTLE CONTROL SOFTWARE BRACKET SEAT PLATE FILTER COVER HOSE CONNECTION AIR CONDITIONER HEATING EVAPORATOR INSTALLATION AIR CONDITIONING UNIT 24V AIR CONDITIONING UNIT 24V AIR CONDITIONING UNIT 24V AIR CONDITIONING UNIT 24V AIR CONDITIONING UNIT 24V WATER VALVE VALVE VALVE HOSE HOSE HOSE LINE AIR CONDITION HOSE LINE AIR CONDITION HOSE LINE HOSE LINE HOSE LINE DRIVERS CABIN ASSY FUEL SYSTEM FUEL TANK CPL. FUEL TANK CPL. FUEL TANK CPL. FUEL TANK CPL. LEVEL SENSOR ADDITIONAL FUEL TANK PADLOCK FUEL CONTAINER SIDE WALL LEFT SIDE WALL RIGHT LUBRICANTS LUBRICANTS FACTORY FILL TOOL EQUIPMENT TOOL WALLET, COMPLETE TOOL WALLET, COMPLETE LEVER TYPE HAND GREASE GUN OIL DRAIN HOSE BREAK VENTING ADAPTER BREAK VENTING ADAPTER SCAVENGING DUCT FAT ACCESSORIES ACCESSORIES MOTOR OIL HYDRAULIC OIL BIODEGRADABLE HYDRAULIC-OIL AXLE AND GEAR-OIL GEAR OIL GREASES COOLANT COOLANTS CONTAINING DCA FILLING MOTOR OIL FILLING PVG FILLING FAT FILLING LIFETIME FILLING HYDRAULIK UNIT FILLING COOLING SYSTEM HYDRAULIC OIL /ISO-VG 46 HYDRAULIC OIL /ISO-VG 100 HYDRAULIC OIL /ISO VG 46 ENGINE OIL /10W-40 ENGINE OIL LOW ASH/10W-40 HYDRAULIC OIL /ISO VG 68 HYDRAULIC OIL /ISO VG 15-46 GEAR OIL /75W-90 GEAR OIL /85W-140 HYDRAULIC+GEAR-OIL /5W-20 AXLE AND GEAR-OIL /85W-90 AXLE-OIL /20W-40 ANTICORROSION ANTIFREEZER SPECIAL GREASE LOW TEMPERATURE GREASE UNIVERSAL GREASE SPRAY-PASTE BIT-PASTE ANTICORROSION ANTIFREEZER ENGINE OIL LIEBHERR/5W-30 SERVICE KIT 0-2000HOURS SERVICE KIT FUEL FILTER SERVICE KIT 500BH SERVICE KIT 1000BH SERVICE KIT 1000BH SERVICE KIT 2000h SERVICE KIT 2000h SERVICE KIT 1500/2500/...BH ARRANGEMENT LABELS PR754 ARRANGEMENT LABELS PR754 CLAMP INSPECTION BOOK WARNING DESIGNATION LABEL SERVICE MATERIAL DIESEL ENGINE D946 L A6 DIESEL ENGINE D946 L A6 DIESEL ENGINE D946 L A6 DIESEL ENGINE D946 L A6 DIESEL ENGINE D946 L A6 DIESEL ENGINE D946 L A6 DIESEL ENGINE D946 L A6 DIESEL ENGINE D946 L A6 CRANKCASE CRANKCASE PISTON COOLING FINAL CONTROL VALVE CYLINDER CRANKCASE BREATHER ASSEMBLY CRANKCASE BREATHER POWER UNIT SUPPORT ATTACHMENT OIL SUMP OIL SUMP OIL LINE DIPSTICK W.TUBE LADDER-TYPE FRAME VALVE OIL FILLER INLET SHEET SHEET END COVER LOCKING PIECES CRANKSHAFT WITH GEAR D936L CRANKSHAFT BEARINGS D936-SPUTTER RK CRANKSHAFT SEAL CRANKSHAFT ADD-ON PARTS MAIN ROD PISTON CPL. d=130 PISTON CYLINDER HEAD ASSEMBLY CYLINDER HEAD COVER CYLINDER HEAD PRE-ASSY ROCKER LEVER BLOCK CYLINDER HEAD ROCKER LEVER SUPPORT ASSY ROCKER ARM PRE-ASSY SEAL KIT CYLINDER HEAD SEAL KIT CYLINDER HEAD SEAL KIT CYLINDER HEAD SEAL KIT CYLINDER HEAD CAMS SHAFT CONTROL PARTS D930 OIL COOLER PRE-ASS. D936/12 OIL COOLER ADD-ON VALVE M14X1,5 SEALING SET OIL COOLER ENGINE LUBE PUMP ASSY B=43 SUCTION PUMP WITH FASTENING LUBE OIL PUMP PREASS. SUCTION PUMP LUBE OIL FILTER INJECTION PUMP INJECTION PUMP DELIVERY PUMP SEAL KIT INJECTION PUMP INJECTION W.CLAMP RK INJECTION NOZZLE INJECTOR RK NOZZLE PRESSURE ADAPTER ASSY SEAL KIT INJECTION NOZZLE FUEL-PREFILTER ASSY FUEL FINE-FILTER ASSEMBLY FUEL FINE FILTER FUEL PREFILTER FUEL PREFILTER 10 MICRON FUEL LINE FUEL LINE AUXILIARY DRIVE - ADD-ON UNIT LEAK OIL RETURN LINE PIPELINE INSTALLATION CONNECTION PIECE CONNECTION PIECE D936 AIR SUCTION PIPE CONNECTION STUB CONNECTING LINE ADD-ON D936 / K29 HEATING FLANGE ADD-ON LOCKING PIECES STARTER 7,8KW EXHAUST PIPE AT-WATER PUMP WITH FASTENING R-MOTOR WATER PUMP, PRE-ASSEMBLED R-MOTOR THERMOSTAT HOUSING D930 COOLING WATER AIR BLEEDING HEATER CONNECTION COOLANT PIPE BEND 90° COOLANT PIPE BEND LOCKING PIECES TENSION CLAMP DEVISE AIR COND. COMPRESSOR ADD-ON HEAT PROTECTION ATL ATTACHMENT ALTERNATOR ASSY LOCKING PIECES EXHAUST PIPE TRANSPORT DEVICE ATTACHEMENT TRANSPORT DEVICE ATTACHEMENT FLYWHEEL HOUSING SAE1 ENGINE CONTROL SENSORS ENGINE CONTROL SENSORS TEMPERATURE SENSOR PRESSURE TRANSMITTER CPL. ROTATIONAL SPEED SENSOR PRESSURE TRANSMITTER M 18X1,5 ROTATIONAL SPEED SENSOR LOCKING PIECES D930/SRG/LWT LOCKING PIECES FLYWHEEL ASSEMBLY CONTROL BOX ANNEXE MOTOR CONTROL DEVICE 373KW-2000/MIN CABLE BOOM MOUNTING LOCKING PIECES LOCKING PIECES LOCKING PIECES D930/NB-ABT LOCKING PIECES D930/NB-ABT SRG LOCKING PIECES D930/NA2 SRG L SEAL KIT SEAL KIT SEAL KIT SEAL KIT SEAL KIT SEAL KIT AGGREGATE CARRIER SEAL KIT AGGREGATE CARRIER SEAL KIT AGGREGATE CARRIER SEMI-U BLADE STD 4044MM SEMI-U-BLADE BEARING BEARING BEARING ROCK GUARD FOR SEMI U BLADE PUSH ARMS W/ TILT DEVICE PUSH ARMS W/ TILT DEVICE PUSH ARMS W/ TILT DEVICE PUSH ARMS W/ TILT DEVICE PUSH FRAME LEFT CPL. PUSH FRAME LEFT PUSH FRAME RIGHT CPL. THRUST FRAME, RIGHT STRUT HYDRAULIC CYLINDER PIN SUPPORT LEFT BEHIND PUSH FRAME LEFT THRUST FRAME, RIGHT SUPPORT RIGHT BEHIND PLATE PIN REAR RIPPER, SINGLE SHANK REAR RIPPER, SINGLE SHANK REAR RIPPER, SINGLE SHANK FRAME COMPLETE RIPPER TOOTH CPL. ARMAMENT RIPPER TOOTH PIN HYDRAULIC CYLINDER HYDRAULIC CYLINDER PISTON 160MM

25

26

27

28

30

30

31

32

33

34

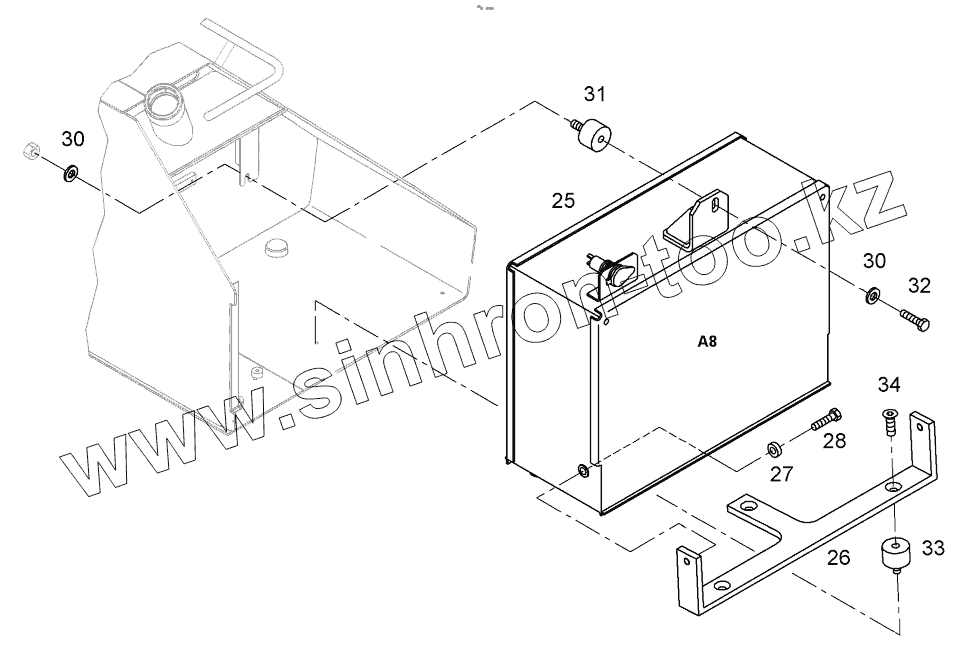

Позиция на иллюстрации	Заводской номер детали		Название детали
25	10 31 066 4		CENTRAL ELECTRIC CPL.
26	99 30 850		BRACKET
27	97 45 766		SLEEVE
28	49 00 089		HEX BOLT ISO 4017 M8x20 8.8 A2C
30	42 16 025		WASHER DIN7349 8,4 ST A3C
31	74 02 771		CIRCULAR BEARING
32	49 00 188		HEX BOLT ISO 4017 M8x16 8.8 A2C
33	91 83 574		CIRCULAR BEARING
34	40 01 205		COUNTERSUNK SCREW DIN 7991 M8x16 8.8 A2C

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
