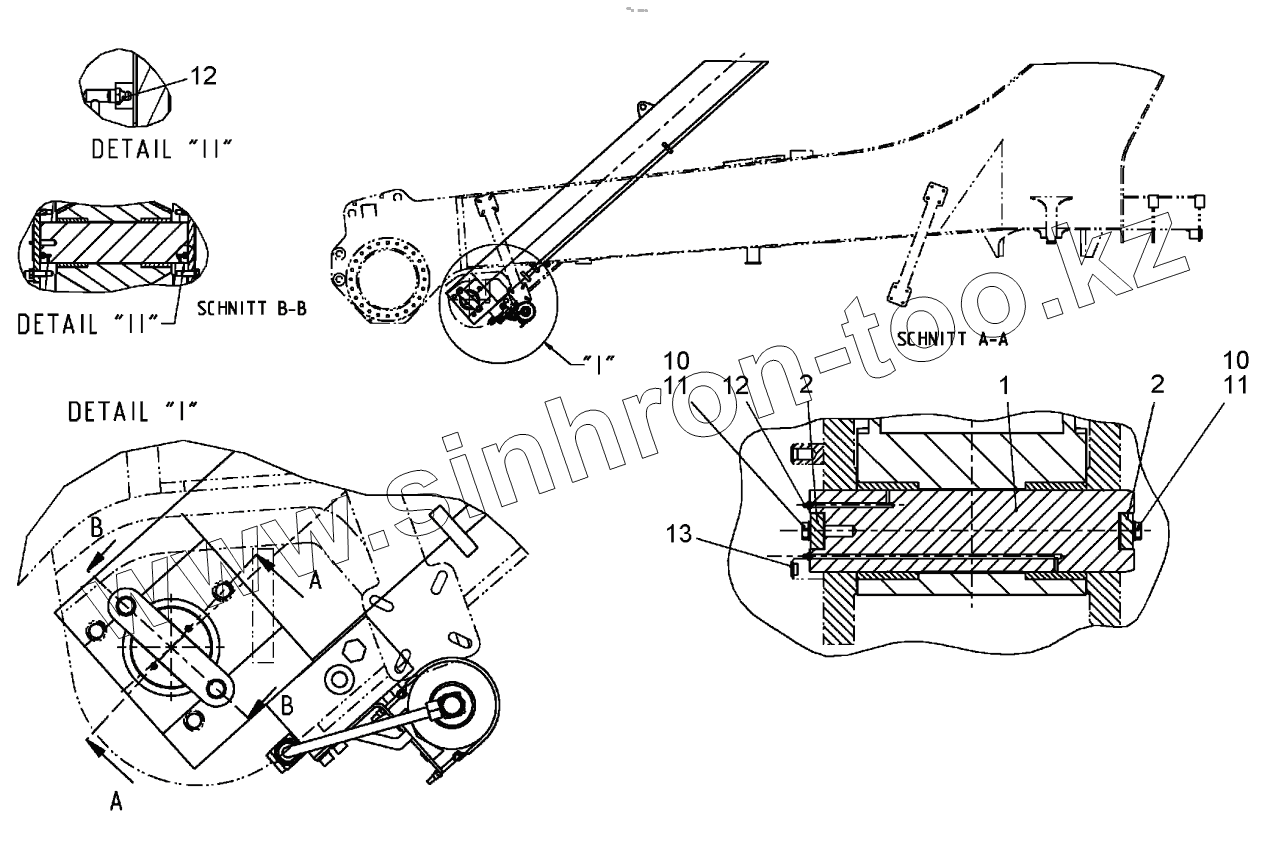

Каталог запасных частей к технике: LIEBHERR LRS 645. LUFFING CYL INSTALLATION

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано LRS 645 (2009) PR754 LITRONIC

Схема > Не выбрано LRS 645 BASE PACKAGE DRIVE WAGON PANELLING LEFT ATTACHMENT PANELLING RIGHT ATTACHMENT MUD GURAD ADD-ON CENTR.LUBRICA. DRIVE WAGON RFK REAR AXLE ADD-ON STEERING AXLE STEERING AXLE STEERING AXLE COMPONENTS EL INSTALLATION ROCKER LOCKING DEVICE INSTALL. COMPONENTS EL INSTALLATION TYRES ADD-ON TYRE CPL WHEEL DRIVE ADD-ON WHEEL DRIVE PRE-ASSEMBLY WHEEL DRIVE PRE-ASSEMBLY BRAKE COMPONENTS HYDR INSTALLATION HOSE LIST DRIVE WAGON HYDR LUFFING CYL INSTALLATION LUFFING CYL HYDR DOUBLE-ACTING CYL LUFFING CYL ANGLE SENSOR INSATLLATION COMPONENTS EL INSTALLATION VALVE BLOCK CPL EL REM. CPL PLUG CABIN CONNECTION LIGHTING VEHICLE LIGHTING VEHICLE RFK ADD-ON FLOODLIGHT ADD-ON FLOODLIGHT FLASHING TAIL AND BREAK LAMP REVERSING LIGHT LIGHT.REM.DRIVE WAGON INSTALL. LIGHTING REM ROTATING BEACON ROTATING BEACON REVERSING CAMERA RFK REVERSING CAMERA EL RFK COUNTERWEIGHT COUNTERWEIGHT ADD-ON MIRROR INSTALLATION VIDEO MONITORING RFK CABIN CPL CABIN CABIN COVER RETROFIT KIT AIR CONDITIONING UNIT RFK AIR CONDITIONING UNIT RFK AIR COND. UNIT EL INSTAL. PARTS SWITCH CABINET MOUNTING PARTS CABIN HEATING SYSTEM DRIVERS SEAT CPL ARM REST EXCHANGE RFK FOOT PEDAL RFK FOOT PEDAL EL INSTALLATION CAN MODULE CABIN HYDR HOSE LIST CABIN EL WORK FLOODLIGHT SOCKET CABIN OUTSIDE MIRROR ASSEMBLY CONTROL STAND RIGHT MONITOR LCD CPL CONTROL STAND LEFT CAN MODULE KEYBOARD X11 CONTROL HARDWARE VIDEO MONITORING EL RFK POWERPACK AGGREGATE FRAME CPL AGGREGATE FRAME CPL AGGREGATE CPL HOSE LIST MOTOR PRE-ASSEMBLY MOTOR PRE-ASSEMBLY SUCTION UNIT AIR AIR FILTER BATTERY INSTALLATION MOTOR SUPPORT EXHAUST SYSTEM FUEL SYSTEM COOLER INSTALLATION WATER COOLER INSTALLATION WATER COOLER INSTALLATION CHARGE AIR COOLER INSTALLATION HYDR OIL LINES CPL INTAKE PIPE OIL CPL RETURN PIPE CPL DIESEL TANK MOUNTING TANK INSTALLATION HYDR TANK HYDR CPL LEVEL SENSOR PUMP DRIVING GEAR REGULATOR PUMP SUPPORT SEALING SET PUMP PUMP SUPPORT PUMP PUMP SUPPORT DRIVING GEAR HYDR POWER UNIT HYDR POWER UNIT COOLER MOTOR V PUMP V PUMP V PUMP AGGREGATE EL TRIPLE V-PUMP FILTER SYSTEM SET OF NAME PLATES SET OF NAME PLATES BOOM BOOM CPL BOOM CPL COMPONENTS HYDR INSTALLATION COMPONENTS EL INSTALLATION BOOM ATTACHMENT BOOM PIVOT PIECE CPL SPREADER CAMERA RFK HOSE LIST CABLE CHAIN ADD-ON GUIDE SHOE CPL GUIDE SHOE CPL BOOM HYDR DOUBLE-ACTING CYL BOOM HEAD CPL GUIDE SHOE CPL GUIDE SHOE CPL PRESSURE FILTER PRESSURE FILTER DRIVERS SEAT WORK FLOODLIGHT SPREADER CAMERA EL RFK CAPACITOR COMPRESSOR AXIAL CAN BUS CONNECTION PLUG CONTROL SYSTEM COOLER MOTOR OIL MOTOR TERMINAL BOARD LOCKING SET SHUTDOWN VALVE CONTROL UNIT CONTROL UNIT CONTROL UNIT FILTER HOUSING PRESSURE FILTER VALVE BLOCK OIL MOTOR FUSE HOLDER FILLER + BREATHER DIESEL ENGINE CRANKCASE BREATHER OIL SUMP VALVE OIL-LEVEL GAUGE CYL HEAD CYL HEAD PRE-ASSEMBLY OIL COOLER ADD-ON OIL COOLER PRE-ASSEMBLY LUBRICANT FILTER ADD-ON INJECTION PUMP FILLISTER SOCKET HEAD SCREW FUEL PUMP WATER PUMP PRE-ASSEMBLY FUEL FINE-FILTER ASSEMBLY FUEL PREFILTER FUEL LINE FUEL LINE CONNECTING LINE ADD-ON AIR COND. COMPRESSOR ADD-ON WATER PUMP THERMOSTAT HOUSING ASSEMBLY ATL ATTACHMENT SEALS GENERATOR PRE-ASSEMBLY STARTER MOTOR REGULATION FLYWHEEL LOOM PIPELINE CYL HEAD COVER LEAK OIL RETURN LINE SPREADER SPREADER DW SLIDER TWISTLOCK KPL SPREADER ADD-ON TWISTLOCK CPL SG GEARBOX CPL CENTR.LUBRICATION SPREADER RFK FORCEMEASURING AXLE INSTAL.RFK FORCE MEASURING AXLE EL RFK CYL HYDR SPREADER ABSORBER RFK COMPONENTS HYDR INSTALLATION SPREADER ABSORBER HYDR RFK HOSE LIST PRESSURE ADMISSION VALVE PRESSURE LIMITING VALVE HYDRAULIC DRAWINGS HYDRAULIC DRAWINGS HYDRAULIC DRAWINGS HYDRAULIC DRAWINGS HYDRAULIC DRAWINGS HYDRAULIC DRAWINGS HYDRAULIC DRAWINGS HYDRAULIC DRAWINGS HYDRAULIC DRAWINGS

1

2

2

10

10

11

11

12

12

13

Позиция на иллюстрации	Заводской номер детали		Название детали
1	385196414		PIN
2	958214214		AXLE HOLDER
10	406604001		HEX BOLT
11	460022203		WASHER
12	774324203		GREASE NIPPLE
13	779026914		BLANKING PLUG
90	991644014		LUFFING CYL HYDR

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
