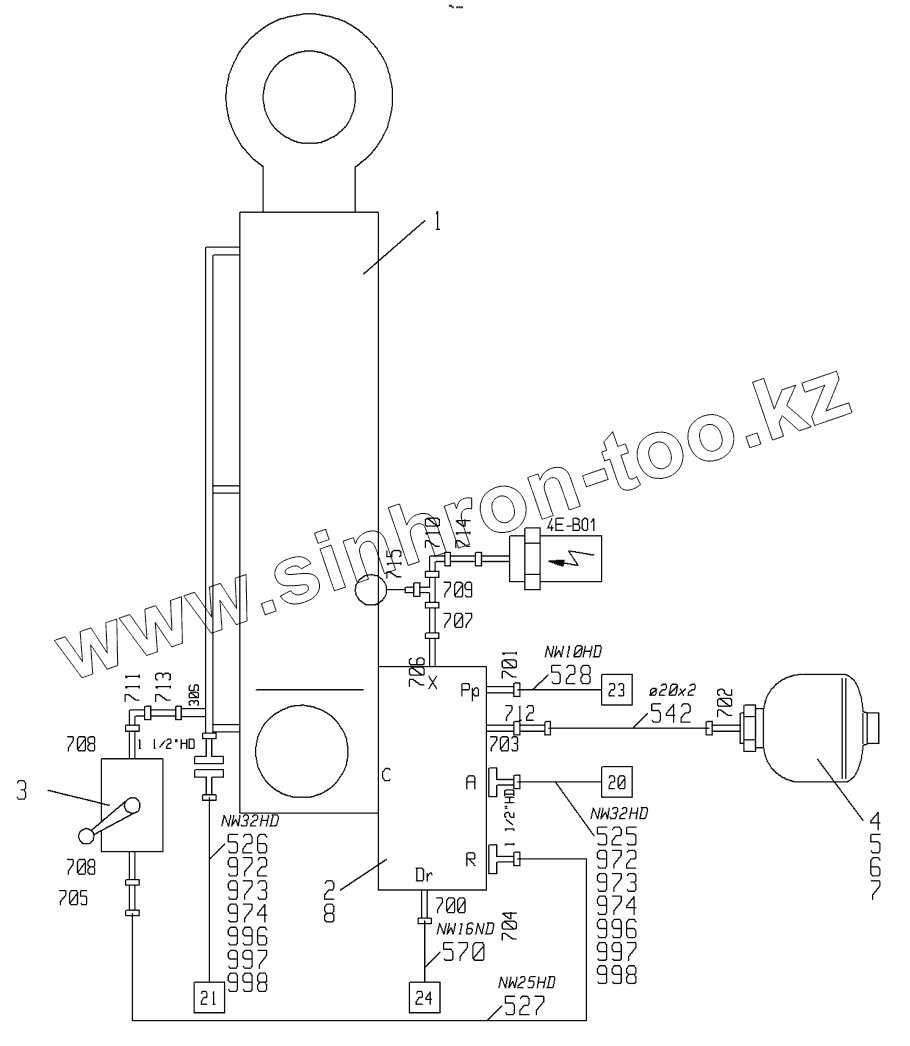

Каталог запасных частей к технике: LIEBHERR LRS 645. LUFFING CYL HYDR
1
2
3
4
5
6
7
8
700
701
702
703
704
705
706
707
708
708
709
710
711
712
713
714
715
972
972
973
973
974
974
996
996
997
997
998
998
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 592258914 | LUFFING CYL | |
| 2 | 10223219 | LOWERING BRAKE VALVE | |
| 3 | 510644114 | BALL VALVE | |
| 4 | 10098586 | DIAPHRAGM ACCUMULATOR | |
| 5 | 10098600 | TIGTENING STRAP | |
| 6 | 10098602 | SUPPORT BED | |
| 7 | 10098372 | HOLDER | |
| 8 | 404255514 | CYLINDER SCREW | |
| 700 | 247009702 | SCREW FITTING | |
| 701 | 471032608 | SCREW FITTING | |
| 702 | 473231414 | SCREW FITTING | |
| 703 | 473231514 | SCREW FITTING | |
| 704 | 474906908 | SCREW FITTING | |
| 705 | 475032914 | SCREW FITTING | |
| 706 | 247043202 | SCREW FITTING | |
| 707 | 481930414 | SCREW FITTING | |
| 708 | 481930814 | SCREW FITTING | |
| 709 | 482331314 | SCREW FITTING | |
| 710 | 482531114 | SCREW FITTING | |
| 711 | 482531714 | SCREW FITTING | |
| 712 | 485432314 | SCREW FITTING | |
| 713 | 485432714 | SCREW FITTING | |
| 714 | 485433514 | SCREW FITTING | |
| 715 | 510694514 | GAUGE CONNECTION | |
| 972 | 510586614 | FLANGE HALF | |
| 973 | 10290518 | PLAIN COMPRESSION RING | |
| 974 | 406514501 | HEX BOLT | |
| 996 | 510588214 | FLANGE HALF | |
| 997 | 10290517 | PLAIN COMPRESSION RING | |
| 998 | 4600189 | HEX BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
