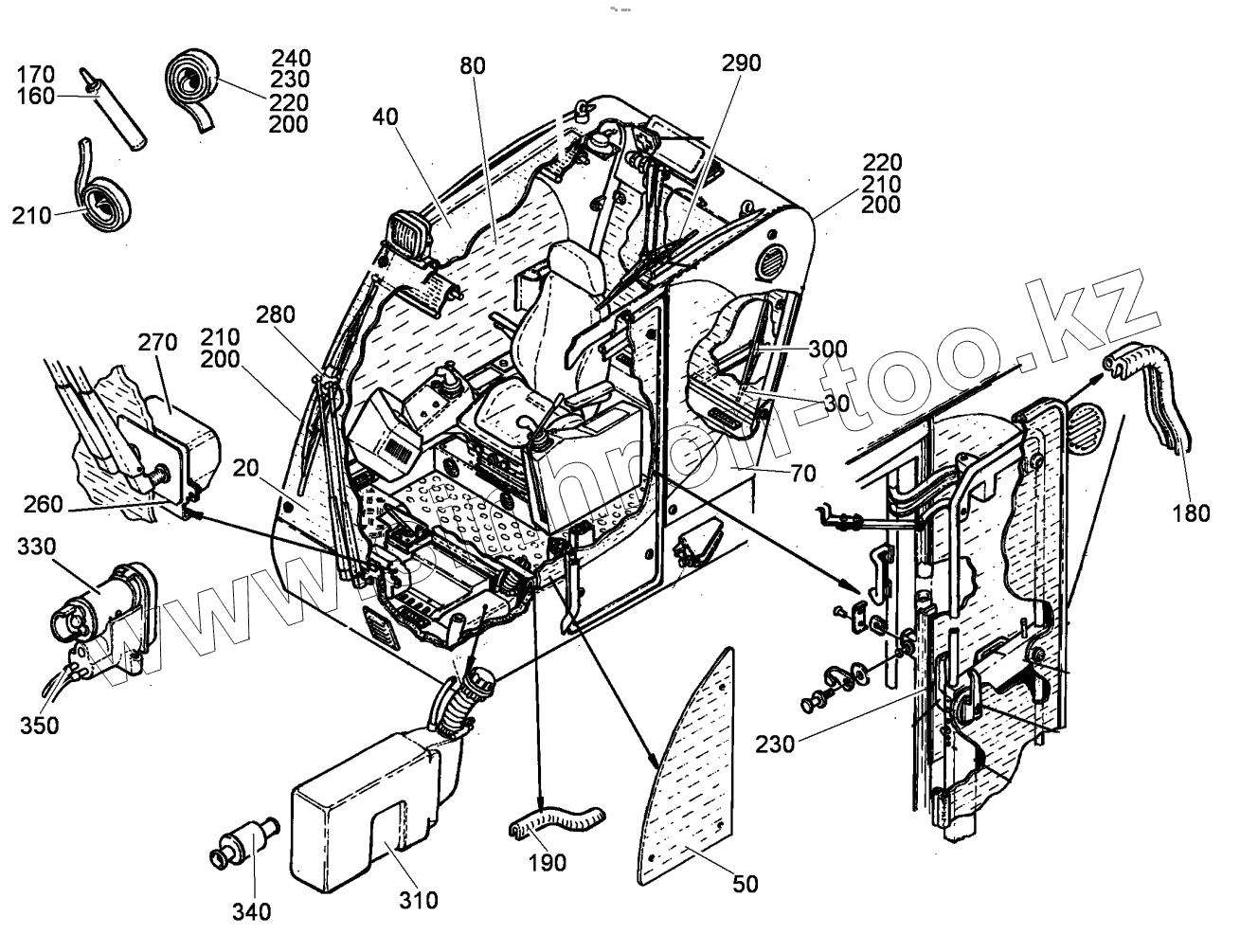

Каталог запасных частей к технике: LIEBHERR LRS 645. CABIN
20
30
40
50
70
80
160
170
180
190
200
200
200
210
210
210
220
220
220
230
240
260
270
280
290
300
310
330
340
350
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 592310414 | FLOAT GLASS | |
| 20 | 592310514 | FRONT WINDOW | |
| 30 | 592310614 | REAR WINDOW | |
| 40 | 592310714 | ROOF WINDOW | |
| 50 | 592310814 | DOOR PANE | |
| 60 | 592310914 | SIDE PANE LEFT | |
| 70 | 592311014 | SIDE PANE LEFT | |
| 80 | 592311114 | SIDE PANE RIGHT | |
| 160 | 10020252 | SEALING COMPOUND | |
| 170 | 592311214 | SEALING COMPOUND | |
| 180 | 10020248 | EDGE PROTECTION | |
| 190 | 592227214 | EDGE PROTECTION | |
| 200 | 592311314 | SEALING BAND | |
| 210 | 592311414 | SPONGE RUBBER | |
| 220 | 592311514 | SEALING BAND | |
| 230 | 592311614 | SEALING BAND | |
| 240 | 592311714 | SEALING BAND | |
| 260 | 10020255 | HOLDER | |
| 270 | 10020254 | COVER | |
| 280 | 592313714 | WIPER SYSTEM | |
| 290 | 592313814 | WIPER SYSTEM | |
| 300 | 592313914 | WIPER SYSTEM | |
| 310 | 10020269 | WATER BASIN | |
| 330 | 591712214 | PUMP | |
| 340 | 592226814 | NON-RETURN VALVE | |
| 350 | 592265614 | HOSE | |
| 360 | 790343514 | HOSE | |
| 400 | 592068314 | SWIVEL ELBOW | |
| 410 | 790471814 | NOZZLE | |
| 420 | 592227014 | CLAMP | |
| 450 | 592312214 | DOOR HANDLE OUTSIDE | |
| 460 | 592312314 | DOOR HANDLE INTERNAL | |
| 530 | 592312514 | DOOR BARRICADE | |
| 540 | 592312614 | DOOR BARRICADE | |
| 730 | 592312714 | HEATING SYSTEM | |
| 790 | 10020285 | AIR DISCHARGER | |
| 860 | 592313214 | SUNSHADE | |
| 870 | 592313314 | SUNSHADE | |
| 880 | 592313414 | EMERGENCY HAMMER | |
| 890 | 592313514 | HOLDER | |
| 930 | 592313614 | FIRE EXTINGUISHER |
