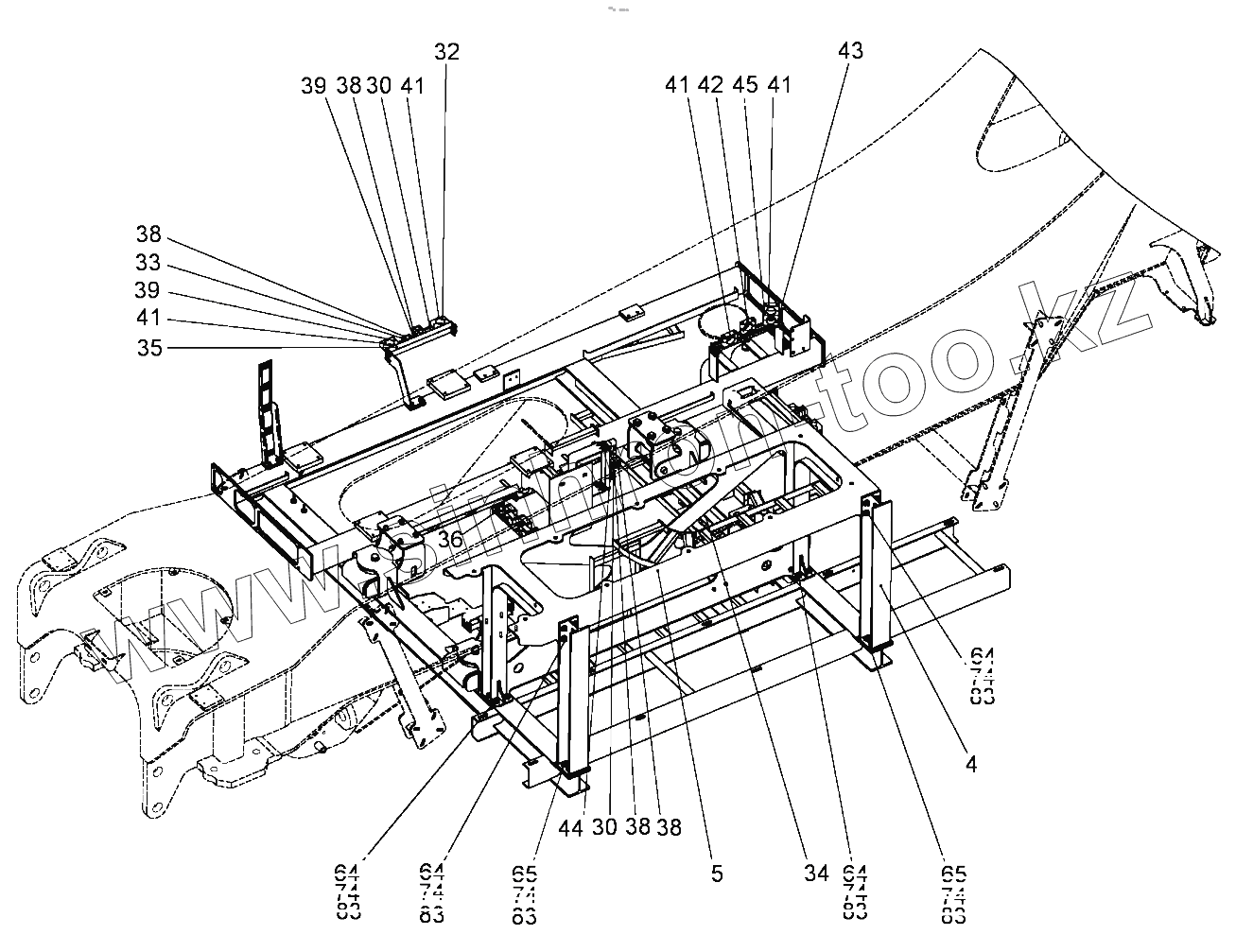

Каталог запасных частей к технике: LIEBHERR LRS 645. AGGREGATE FRAME CPL
4
5
30
30
32
33
34
35
38
38
38
38
39
39
41
41
41
41
42
43
44
45
64
64
64
64
65
65
74
74
74
74
74
74
83
83
83
83
83
83
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3 | 990625214 | FRAME ST. CONST. CPL | |
| 4 | 990506014 | CARRIER ST. CONST. | |
| 5 | 990505914 | CABIN FRAME | |
| 6 | 289041114 | BUFFER HEAD | |
| 7 | 10225265 | CONSOLE | |
| 8 | 385232614 | WP | |
| 9 | 958000314 | BUSH | |
| 11 | 958000814 | PIN | |
| 12 | 959394114 | SLEEVE | |
| 13 | 916183214 | HOSE HOLDER HYDR.ST.CONST. | |
| 14 | 916183314 | HOSE HOLDER HYDR.ST.CONST. | |
| 18 | 916183114 | HOSE HOLDER HYDR.ST.CONST. | |
| 19 | 385232914 | CABLE LADDER | |
| 20 | 967399203 | HOLDER | |
| 30 | 602007414 | PIPE CLAMP | |
| 32 | 404205008 | CYLINDER SCREW | |
| 33 | 4042106 | CYLINDER SCREW | |
| 34 | 4600091 | CYLINDER SCREW | |
| 35 | 4042107 | CYLINDER SCREW | |
| 36 | 602008414 | PIPE CLAMP | |
| 38 | 602008614 | PIPE CLAMP | |
| 39 | 602008814 | PIPE CLAMP | |
| 40 | 602009014 | PIPE CLAMP | |
| 41 | 602009814 | PIPE CLAMP | |
| 42 | 602010214 | PIPE CLAMP | |
| 43 | 602018014 | FASTENING NUT | |
| 44 | 602019014 | ASSEMBLY BOLT | |
| 45 | 602022614 | ASSEMBLY BOLT | |
| 60 | 4900111 | HEX BOLT | |
| 63 | 4900120 | HEX BOLT | |
| 64 | 4600156 | HEX BOLT | |
| 65 | 4600312 | HEX BOLT | |
| 66 | 4061065 | HEX BOLT | |
| 67 | 406203708 | HEX BOLT | |
| 68 | 4600283 | HEX BOLT | |
| 69 | 4600629 | HEX BOLT | |
| 70 | 460022703 | WASHER | |
| 71 | 421300514 | WASHER | |
| 74 | 421300314 | WASHER | |
| 75 | 421300414 | WASHER | |
| 76 | 4200020 | WASHER | |
| 77 | 460037203 | WASHER | |
| 78 | 460014603 | WASHER | |
| 79 | 421500614 | WASHER | |
| 80 | 385215914 | WASHER | |
| 81 | 4115028 | HEX NUT | |
| 83 | 411900708 | NUT | |
| 84 | 411901414 | NUT | |
| 88 | 411902514 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
