HYDRAULIC PIPING (SHOVEL TIPPING CYLINDER)

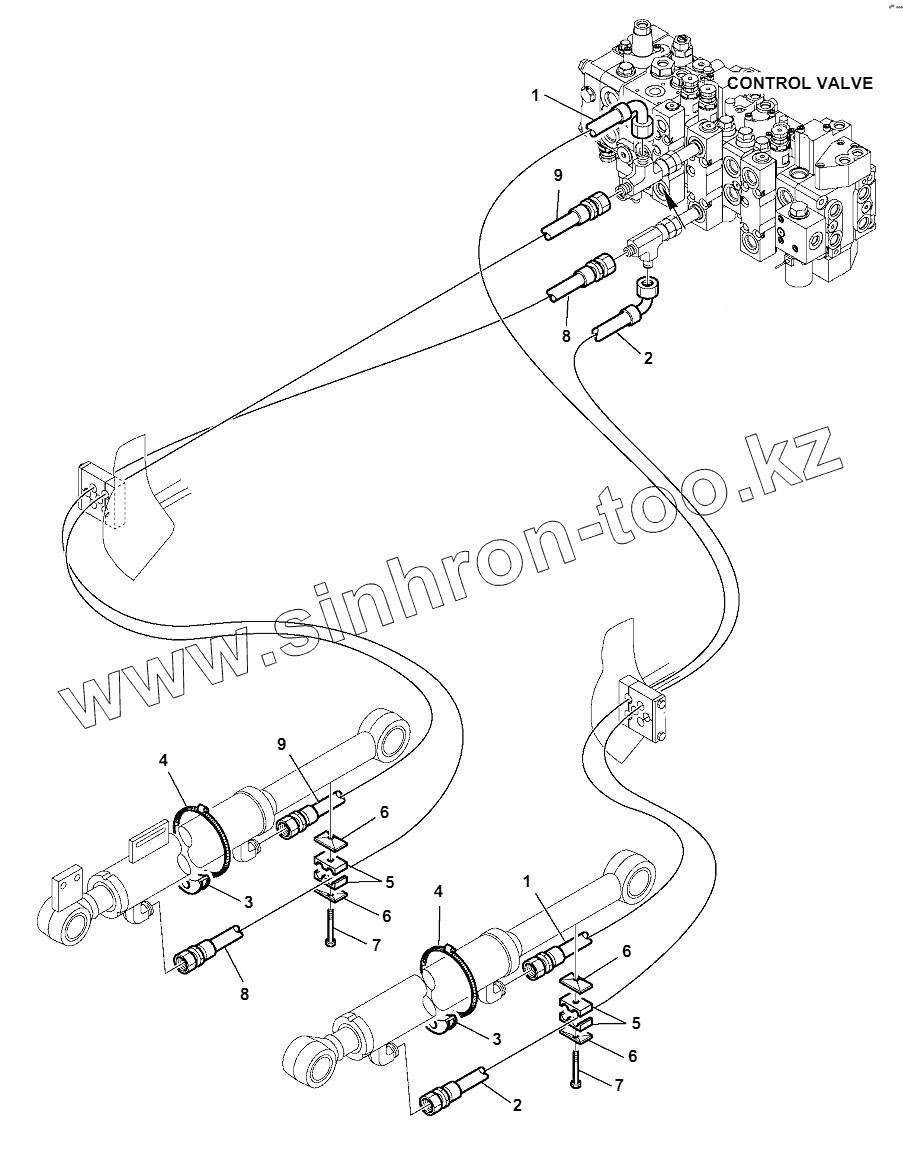

Каталог запасных частей к технике: Komatsu WB97S-5E0. HYDRAULIC PIPING (SHOVEL TIPPING CYLINDER)
