Каталог запасных частей к технике: Komatsu WB97S-5E0. BACKHOE PPC VALVE, R.H.

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано D155C-1 (2010) D155C-1 (спец.) (2010) D155C-1D (2010) D155C-1P (2010) D355C-3 (2010) D355C-3 (2010) D85A-21 (2010) D85A-21 (2010) D85A-21B (2010) D85C-21A (2010) PC200, 210(LC)-7 (2004) PC200-6 (2010) PC200-7 (2010) PC200-7-AA (2010) PC200-8MO (2010) PC200LC-7 (2010) PC200LC-8M0 (2010) PC210-6 (2010) PC210LC-6 (2010) PC220-7 (2010) PC220-8MO (2010) PC220LC-8MO (2010) PC300-7 (2010) PC300-8MO (2010) PC300LC-7 (2010) PC300LC-8MO (2010) PC35MR-3 (2010) PC400-7 (2010) PC400-7EO (2010) PC400LC-7 (2010) PC55MR-3 (2010) WB93R-5E0 (2018) WB93S-5E0 (2018) WB97S-5E0 (2018) Погрузчик SK820 (2015)

Схема > Не выбрано CYLINDER HEAD (1/2) CYLINDER HEAD (2/2) CYLINDER HEAD COVERS (1/2) CYLINDER HEAD COVERS (2/2) AIR INTAKE MANIFOLD EXHAUST MANIFOLD (1/3) EXHAUST MANIFOLD (2/3) EXHAUST MANIFOLD (3/3) CYLINDER BLOCK GEAR HOUSING FRONT COVER LUBRICATING OIL SUMP FLYWHEEL HOUSING CAMSHAFT AND DRIVING GEAR CRANKSHAFT PISTON LUBRICATING OIL PUMP LUBRICATING OIL PIPING OIL-WATER EXCHANGER FUEL LINE FUEL INJECTION LINE FUEL INJECTION NOZZLE FUEL INJECTION PUMP (1/2) FUEL INJECTION PUMP (2/2) FEED PUMP FUEL FILTER WATER SEPARATOR WATER PUMP COOLING WATER SYSTEM TEMPERATURE REGULATOR GENERATOR (1/2) GENERATOR (2/2) STARTER MOTOR (1/2) STARTER MOTOR (2/2) ENGINE (MOUNTING PARTS) ENGINE FAN AIR CLEANER AND MOUNTING AIR FILTER MUFFLER (1/2) MUFFLER (2/2) RADIATOR (1/3) RADIATOR (2/3) RADIATOR (3/3) FAN GUARD FUEL TANK FUEL LINE BATTERY (185 Ah) ELECTRICAL SYSTEM (BATTERY DISCONNECTING SWITCH) ELECTRICAL SYSTEM (ENGINE LINE) (1/2) ELECTRICAL SYSTEM (ENGINE LINE) (2/2) ELECTRICAL SYSTEM (FRAME LINE) (1/2) ELECTRICAL SYSTEM (FRAME LINE) (2/2) ELECTRICAL SYSTEM (TRANSMISSION LINE) ELECTRICAL SYSTEM (CAB) (1/5) ELECTRICAL SYSTEM (CAB) (2/5) ELECTRICAL SYSTEM (CAB) (3/5) ELECTRICAL SYSTEM (CAB) (4/5) ELECTRICAL SYSTEM (CAB) (5/5) ELECTRICAL SYSTEM (CAB EQUIPMENT) ELECTRICAL SYSTEM (FRONT LIGHT) ELECTRICAL SYSTEM (WORK LIGHT) REVERSE ALARM ELECTRICAL SYSTEM (COLD WEATHER) FRAME FRAME EQUIPMENT HOSES BACKHOE PROTECTION FRONT CARDAN SHAFT REAR CARDAN SHAFT FRONT AXLE FIXING REAR AXLE FIXING TRANSMISSION FIXING TRANSMISSION (1/9) TRANSMISSION (2/9) TRANSMISSION (3/9) TRANSMISSION (4/9) TRANSMISSION (5/9) TRANSMISSION (7/9) TRANSMISSION (8/9) TRANSMISSION (9/9) FRONT AXLE (1/7) FRONT AXLE (2/7) FRONT AXLE (3/7) FRONT AXLE (4/7) FRONT AXLE (5/7) FRONT AXLE (6/7) FRONT AXLE (7/7) REAR AXLE (1/10) REAR AXLE (2/10) REAR AXLE (3/10) REAR AXLE (4/10) REAR AXLE (5/10) REAR AXLE (6/10) REAR AXLE (7/10) REAR AXLE (8/10) REAR AXLE (9/10) REAR AXLE (10/10) WHEELS (16.9XR28 12PR ISGT) MUDGUARD, L.H. MUDGUARD, R.H. FUEL CONTROL LEVER (1/2) FUEL CONTROL LEVER (2/2) STEERING WHEEL BRAKING CONTROL PEDAL PARKING BRAKE (1/2) PARKING BRAKE (2/2) SHOVEL CONTROL LEVER (FLOAT + RETURN TO DIG) PPC VALVE, OUTRIGGER MAIN VALVE SUPPORT ENGINE HOOD (1/2) ENGINE HOOD (2/2) BATTERY HOUSING CAB FIXING CAB (1/14) CAB (2/14) CAB (3/14) CAB (4/14) CAB (5/14) CAB (6/14) CAB (7/14) CAB (8/14) CAB (9/14) CAB (10/14) CAB (11/14) CAB (12/14) CAB (13/14) CAB (14/14) WINDSCREEN WIPER SYSTEM (1/2) WINDSCREEN WIPER SYSTEM (2/2) R.H. BACHOE PPC VALVE SUPPORT L.H. BACHOE PPC VALVE SUPPORT FLOOR BOARD CAB OPERATOR'S SEAT (1/2) OPERATOR'S SEAT (2/2) HEATING SYSTEM (1/4) HEATING SYSTEM (2/4) HEATING SYSTEM (3/4) HEATING SYSTEM (4/4) HYDRAULIC OIL TANK HYDRAULIC OIL TANK FIXING HYDRAULIC PUMP FIXING HYDRAULIC PUMP (CONNECTING PARTS) HYDRAULIC PUMP (1/5) HYDRAULIC PUMP (2/5) HYDRAULIC PUMP (3/5) HYDRAULIC PUMP (4/5) HYDRAULIC PUMP (5/5) 10-SPOOL CONTROL VALVE (1/16) 10-SPOOL CONTROL VALVE (2/16) 10-SPOOL CONTROL VALVE (3/16) 10-SPOOL CONTROL VALVE (4/16) 10-SPOOL CONTROL VALVE (5/16) 10-SPOOL CONTROL VALVE (6/16) 10-SPOOL CONTROL VALVE (7/16) 10-SPOOL CONTROL VALVE (8/16) 10-SPOOL CONTROL VALVE (9/16) 10-SPOOL CONTROL VALVE (10/16) 10-SPOOL CONTROL VALVE (11/16) 10-SPOOL CONTROL VALVE (12/16) 10-SPOOL CONTROL VALVE (13/16) 10-SPOOL CONTROL VALVE (14/16) 10-SPOOL CONTROL VALVE (15/16) 10-SPOOL CONTROL VALVE (16/16) HAMMER ELEMENT BACKHOE PPC VALVE, R.H. BACKHOE PPC VALVE, L.H. SHOVEL PPC VALVE (FLOAT + RETURN TO DIG) BRAKE PUMP SERVOCONTROL FEED UNIT (WITH BUCKET 4 IN 1 AND TELESCOPIC ARM) (CONNECTING PARTS) SERVOCONTROL FEED UNIT CONTROL VALVE (1/3) CONTROL VALVE (WITH TELESCOPIC ARM) (2/3) CONTROL VALVE (3/3) CONTROL VALVE FIXING HYDRAULIC PIPING (SUCTION LINE) HYDRAULIC PIPING (DRAIN LINE) (1/2) HYDRAULIC PIPING (DRAIN LINE) (2/2) HYDRAULIC PIPING (RETURN LINE) (1/5) HYDRAULIC PIPING (RETURN LINE) (2/5) HYDRAULIC PIPING (RETURN LINE) (3/5) HYDRAULIC PIPING (RETURN LINE) (4/5) HYDRAULIC PIPING (RETURN LINE) (5/5) HYDRAULIC PIPING (SERVOCONTROL DELIVERY LINE) HYDRAULIC PIPING (SERVOCONTROL RETURN LINE) (1/3) HYDRAULIC PIPING (SERVOCONTROL RETURN LINE) (2/3) HYDRAULIC PIPING (SERVOCONTROL RETURN LINE) (3/3) HYDRAULIC PIPING (SERVOCONTROL DELIVERY AND RETURN LINE) (BACKHOE LINE) HYDRAULIC PIPING (SERVOCONTROL DELIVERY AND RETURN LINE) (SHOVEL LINE) HYDRAULIC PIPING (POWER MODE) HYDRAULIC PIPING (LOAD SENSING) (1/2) HYDRAULIC PIPING (LOAD SENSING) (2/2) HYDRAULIC PIPING (SERVOCONTROL LINE) (SHOVEL BUCKET LIFTING AND TIPPING LINE) HYDRAULIC PIPING (SERVOCONTROL DELIVERY AND RETURN LINE) (OUTRIGGERS PPC LINE) HYDRAULIC PIPING (SERVOCONTROL LINE) (OUTRIGGERS) HYDRAULIC PIPING (STEERING LINE) (1/4) HYDRAULIC PIPING (STEERING LINE) (2/4) HYDRAULIC PIPING (STEERING LINE) (3/4) HYDRAULIC PIPING (STEERING LINE) (3/4) HYDRAULIC PIPING (STEERING LINE) (4/4) HYDRAULIC PIPING (STEERING LINE) (4/4) HYDRAULIC PIPING (STEERING LINE) (4/4) HYDRAULIC PIPING (TRANSMISSION OIL COOLER LINE) HYDRAULIC PIPING (BRAKE LINE) HYDRAULIC PIPING (SHOVEL LIFTING CYLINDER) HYDRAULIC PIPING (SHOVEL TIPPING CYLINDER) HYDRAULIC PIPING (SERVOCONTROL LINE) (BUCKET 4 IN 1 LINE) HYDRAULIC PIPING (BUCKET 4 IN 1 CYLINDER LINE) (1/3) HYDRAULIC PIPING (BUCKET 4 IN 1 CYLINDER LINE) (2/3) HYDRAULIC PIPING (BUCKET 4 IN 1 CYLINDER LINE) (3/3) HYDRAULIC PIPING (BOOM SWING CYLINDER LINE) HYDRAULIC PIPING (SERVOCONTROL LINE) (BOOM SWING CYLINDER LINE) HYDRAULIC PIPING (SLIDING PLATE LOCKING LINE) HYDRAULIC PIPING (BOOM LOCKING LINE) HYDRAULIC PIPING (BOOM CYLINDER LINE) HYDRAULIC PIPING (SERVOCONTROL LINE) (BOOM CYLINDER LINE) HYDRAULIC PIPING (ARM LINE) HYDRAULIC PIPING (SERVOCONTROL LINE) (ARM LINE) HYDRAULIC PIPING (BUCKET LINE) (WITH TELESCOPIC ARM) (1/2) HYDRAULIC PIPING (BUCKET LINE) (WITH TELESCOPIC ARM) (2/2) HYDRAULIC PIPING (SERVOCONTROL LINE) (BUCKET LINE) HYDRAULIC PIPING (TELESCOPIC ARM LINE) HYDRAULIC PIPING (SERVOCONTROL LINE) (TELESCOPIC ARM LINE) HYDRAULIC PIPING (HAMMER LINE) (WITH TELESCOPIC ARM) (1/2) HYDRAULIC PIPING (HAMMER LINE) (WITH TELESCOPIC ARM) (2/2) HYDRAULIC PIPING (SERVOCONTROL LINE) (HAMMER LINE) (WITH TELESCOPIC ARM) HYDRAULIC PIPING (OUTRIGGER CYLINDER LINE) SHOVEL ARM SHOVEL ARM LIFTING CYLINDER SHOVEL BUCKET PIN SHOVEL BUCKET TIPPING CYLINDER (L.H.) SHOVEL BUCKET TIPPING CYLINDER (R.H.) BUCKET LEVELLING RETURN TO DIG BUCKET 4 IN 1 BUCKET 4 IN 1 CYLINDER OUTRIGGER (1/2) OUTRIGGER (2/2) OUTRIGGER FOOT (FOR 28'' WHEELS) OUTRIGGER CYLINDER BACKFRAME (1/2) BACKFRAME (2/2) SLIDING PLATE LOCK CYLINDER SWING BRACKET BOOM LOCK SYSTEM BOOM LOCK CYLINDER BOOM SWING CYLINDER BOOM BOOM CYLINDER ARM CYLINDER BUCKET LINK (1/2) BUCKET LINK (2/2) BUCKET PIN (O 45 mm) BUCKET (L=600 mm) BUCKET CYLINDER TELESCOPIC ARM (1/2) TELESCOPIC ARM (2/2) TELESCOPIC ARM CYLINDER MARK PLATE (1/3) MARK PLATE (2/3) MARK PLATE (3/3) MARK PLATE (BACKHOE) (ISO SCHEME) TOOLS EQUIPMENT (FOR ROAD CIRCULATION) (1/2) EQUIPMENT (FOR ROAD CIRCULATION) (2/2)

1

2

3

4

5

6

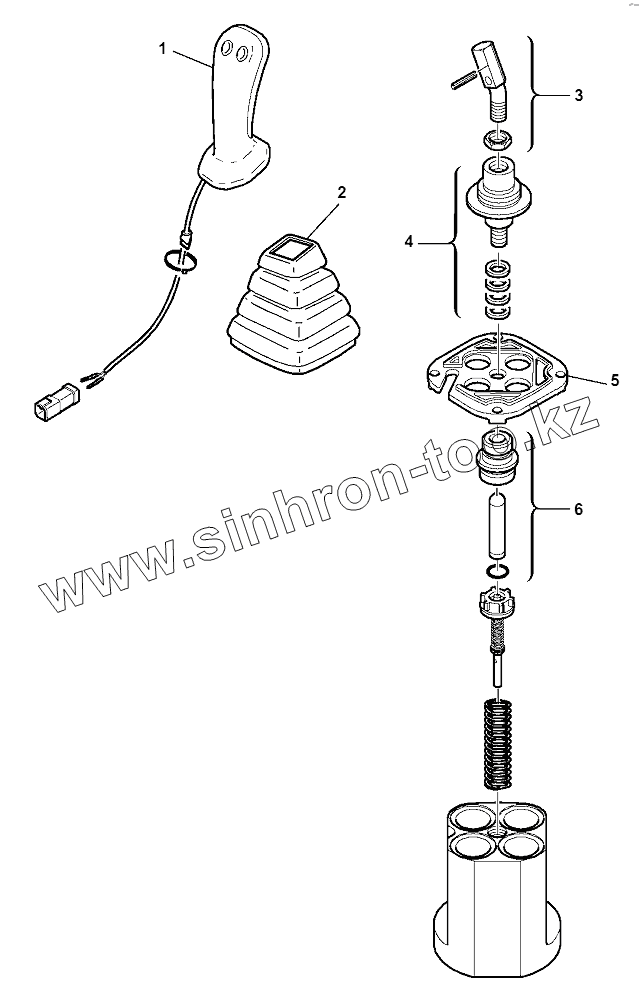

Позиция на иллюстрации	Заводской номер детали		Название детали
42N-64-11251	42N-64-11251		Ppc valve, r.h.
1	RE08206199		Kit, handle
2	22E-60-13110		Boot
3	22E-60-12950		Kit, lever
4	22E-60-12960		Joint, assembly
5	22E-60-13120		Retainer plate
6	42N-64-11820		Kit, plunger

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
