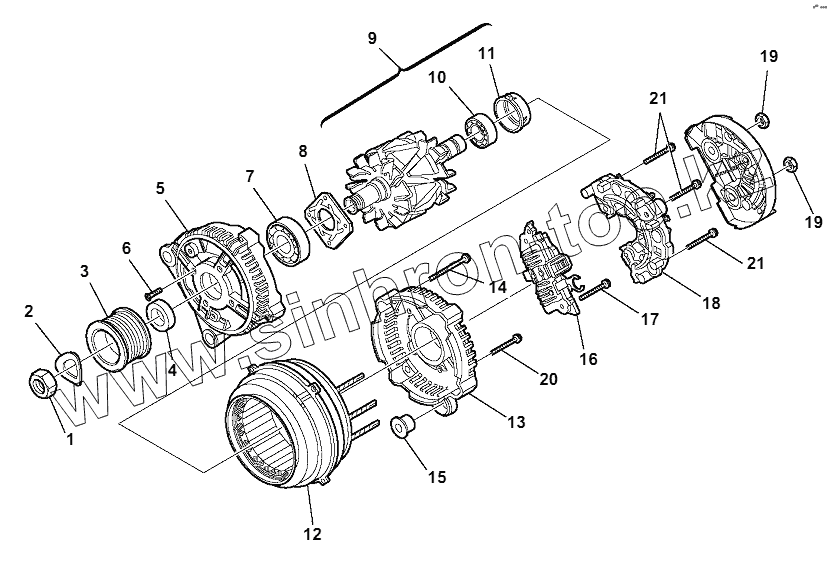

Позиция на иллюстрации
Заводской номер детали
Название детали
ЕА504225815
ЕА504225815
GENERATOR, ASSEMBLY
1
ЕА1113178
NUT
2
ЕА42531183
SPRING WASHER
3
ЕА42535631
PULLEY
4
ЕА42533805
SPACER
5
ЕА42537056
BRACKET, GENERATOR
6
ЕА42537058
SCREW
7
ЕА2991636
BEARING
8
ЕА42537057
PLATE
9
ЕА42471433
GENERATOR, ROTOR
10
ЕА2991637
BEARING
11
ЕА42471431
RING
12
ЕА42471434
STATOR, GENERATOR
13
ЕА42537670
BRACKET, GENERATOR
14
ЕА42533819
SCREW
15
ЕА42471432
BUSHING
16
ЕА42534878
VOLTAGE REGULATOR
17
ЕА42536304
SCREW
18
ЕА8094568
RECTIFIER BRIDGE
19
ЕА42533817
NUT
20
ЕА42536305
SCREW
21
ЕА42537878
SCREW
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
