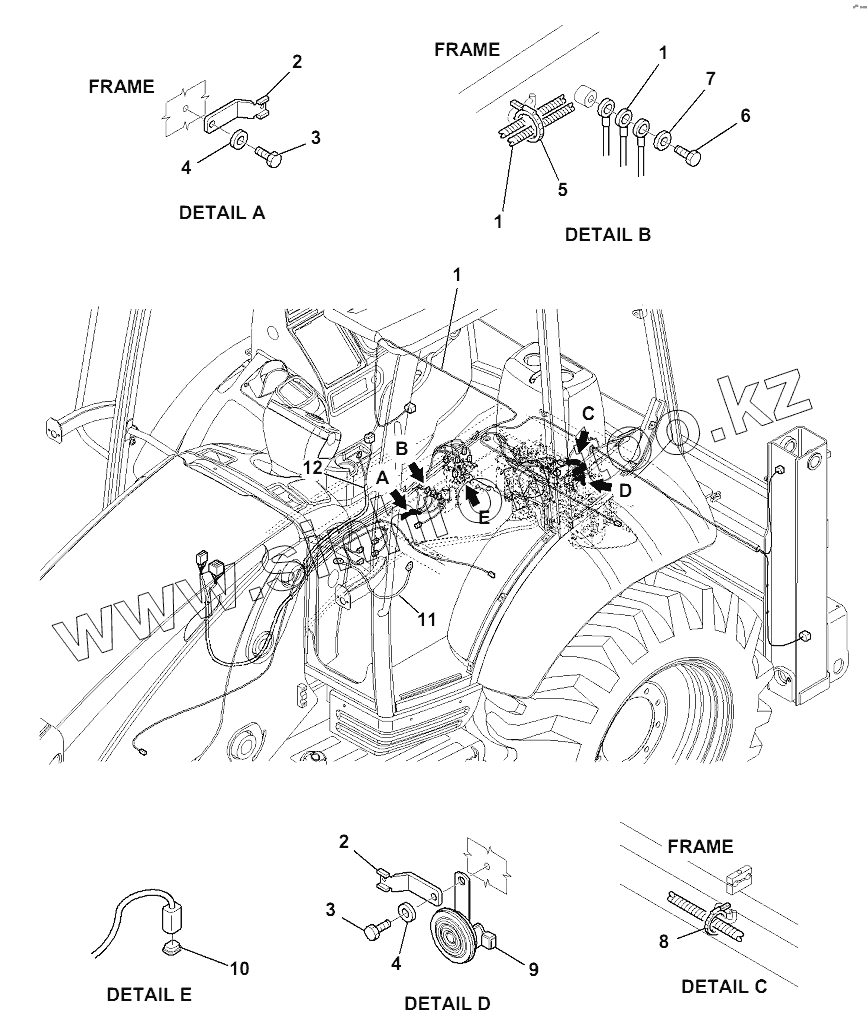

ELECTRICAL SYSTEM (FRAME LINE) (1/2)
Каталог запасных частей к технике: Komatsu WB93S-5E0. ELECTRICAL SYSTEM (FRAME LINE) (1/2)
