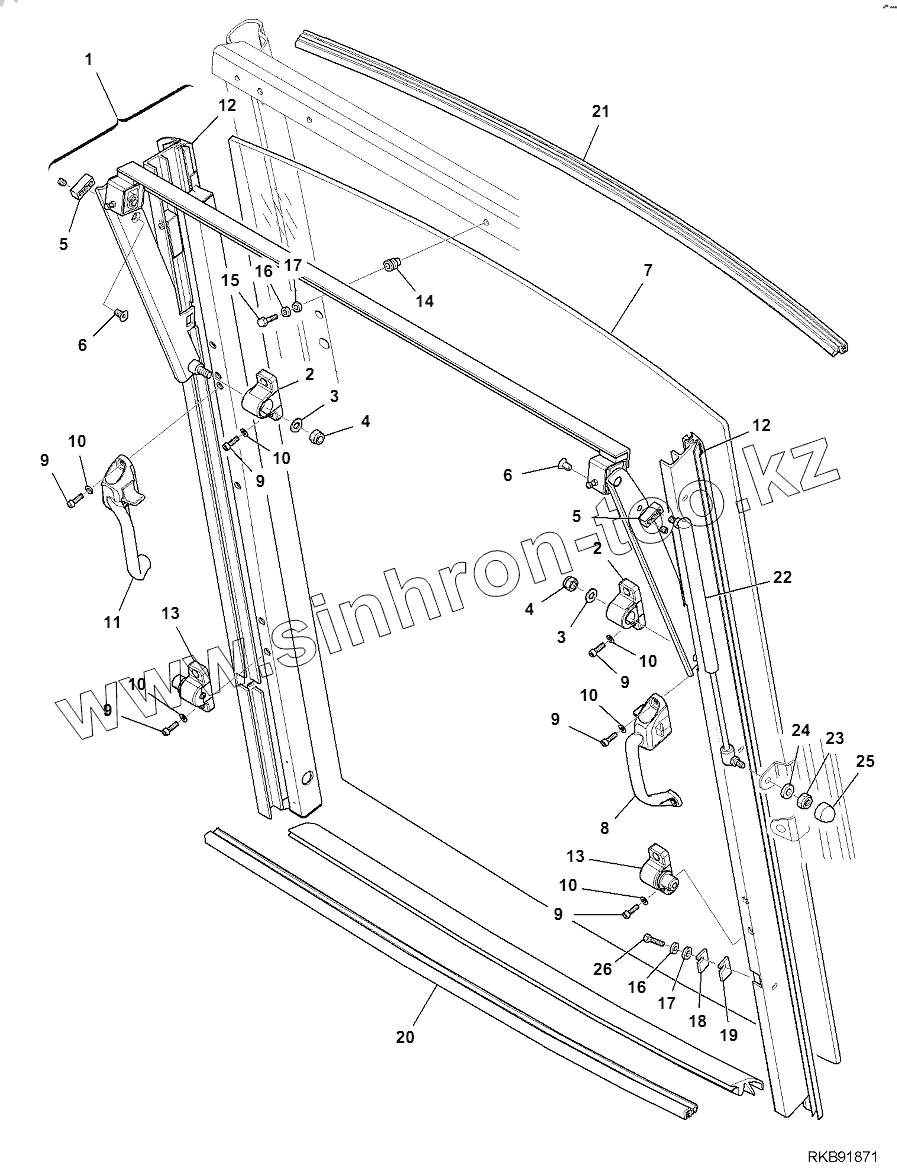

Позиция на иллюстрации
Заводской номер детали
Название детали
1
42N-54-15210
REAR WINDOW
2
42N-56-12340
SUPPORT
3
395-56-14310
WASHER
4
01598-00809
NUT
5
42N-56-12370
SUPPORT
6
42N-56-12760
SCREW
7
42N-54-15220
GLASS, REAR WINDOW
8
42N-56-11582
HANDLE
9
42N-56-14140
BOLT
10
42N-56-13290
WASHER
11
42N-56-11592
HANDLE
12
42N-56-12810
GASKET
13
42N-56-11630
SUPPORT
14
395-56-13460
INSERT
15
42N-54-15830
BOLT
16
01602-30619
WASHER
17
42N-56-11910
WASHER
18
42N-54-19530
PLATE
19
42N-54-19540
PLATE
20
42N-56-12870
SEAL
21
42N-54-17621
SEAL
22
42N-54-15230
GAS SPRING
23
22Е-09-13330
NUT
24
01640-20816
WASHER
25
42N-56-13420
CAP
26
42N-56-13640
SCREW
