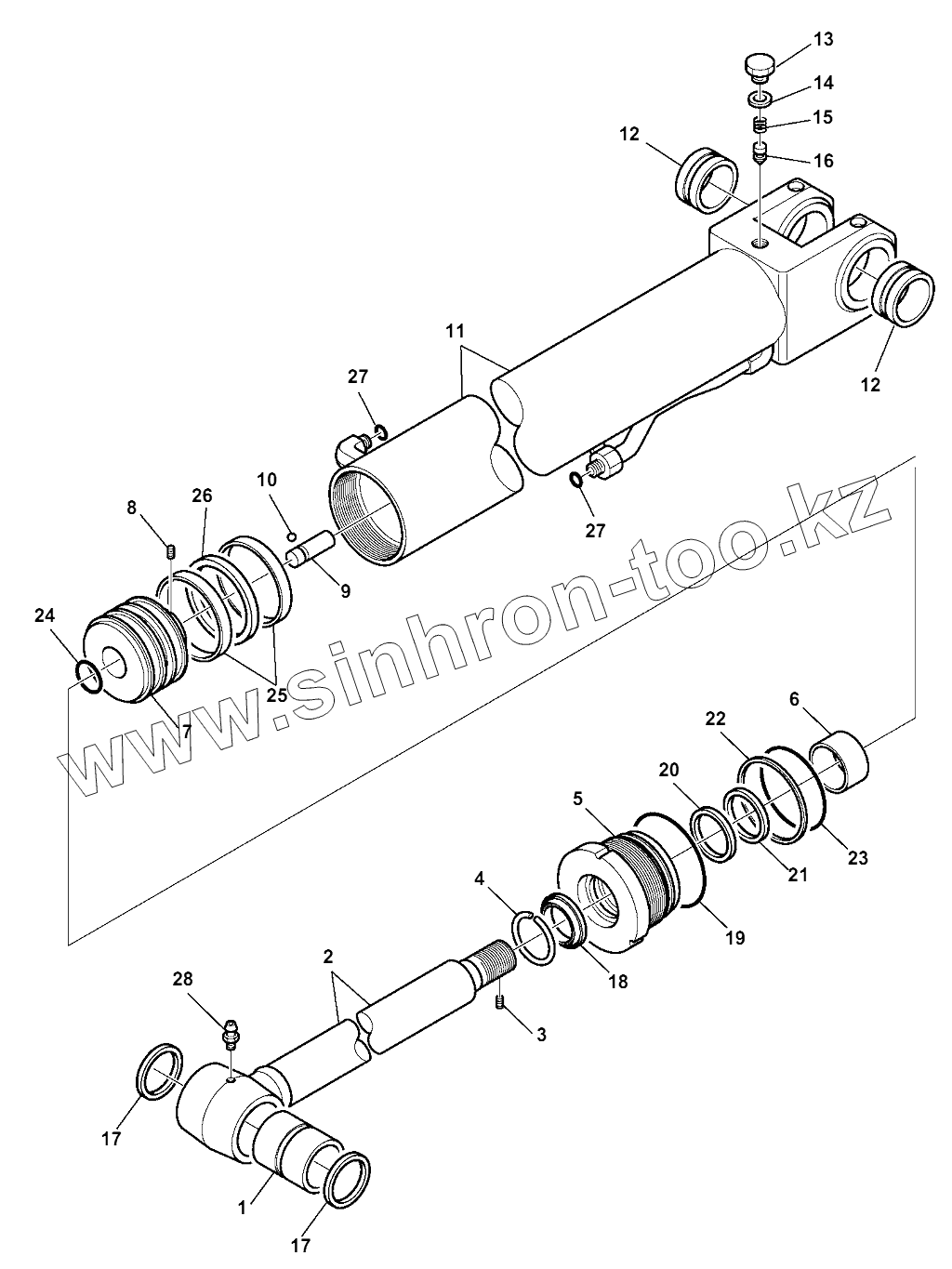

Позиция на иллюстрации
Заводской номер детали
Название детали
707-99-41270
707-99-41270
KIT, GASKET
707-00-0Y942
707-00-0Y942
CYLINDER, ASSEMBLY
1
707-76-60750
BUSHING
2
721-58-60580
ROD, PISTON
3
707-71-91280
DOWEL
4
07179-12074
RING, BACK-UP
5
707-29-12500
HEAD, CYLINDER
6
707-52-90350
BUSHING
7
707-36-12630
PISTON
8
01314-20812
DOWEL
9
707-71-60190
PLUNGER
10
04260-00635
BALL
11
721-11-12932
CYLINDER
12
707-76-60740
BUSHING
13
707-87-25390
PLUG
14
707-88-36770
GASKET
15
707-80-13020
SPRING
16
707-83-13040
VALVE
17
07145-00060
SEAL, DUST
18
141-63-93270
GASKET
19
07000-12120
O-RING (KIT)
20
707-51-60030
GASKET
21
707-51-60640
GASKET
22
07146-02116
RING,BACK-UP (KIT)
23
07000-12115
O-RING
24
07000-13042
O-RING
25
07156-01215
RING, WEAR
26
707-44-12180
RING,PISTON (KIT)
27
02896-11018
O-RING
28
21D-09-89140
FITTING, GREASE
