Каталог запасных частей к технике: Komatsu WB93R-5E0. TRANSMISSION

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано D155C-1 (2010) D155C-1 (спец.) (2010) D155C-1D (2010) D155C-1P (2010) D355C-3 (2010) D355C-3 (2010) D85A-21 (2010) D85A-21 (2010) D85A-21B (2010) D85C-21A (2010) PC200, 210(LC)-7 (2004) PC200-6 (2010) PC200-7 (2010) PC200-7-AA (2010) PC200-8MO (2010) PC200LC-7 (2010) PC200LC-8M0 (2010) PC210-6 (2010) PC210LC-6 (2010) PC220-7 (2010) PC220-8MO (2010) PC220LC-8MO (2010) PC300-7 (2010) PC300-8MO (2010) PC300LC-7 (2010) PC300LC-8MO (2010) PC35MR-3 (2010) PC400-7 (2010) PC400-7EO (2010) PC400LC-7 (2010) PC55MR-3 (2010) WB93R-5E0 (2018) WB93S-5E0 (2018) WB97S-5E0 (2018) Погрузчик SK820 (2015)

Схема > Не выбрано CYLINDER HEAD CYLINDER HEAD CYLINDER HEAD COVERS CYLINDER HEAD AIR INTAKE MANIFOLD EXHAUST MANIFOLD EXHAUST MANIFOLD EXHAUST MANIFOLD CYLINDER BLOCK GEAR HOUSING FRONT COVER LUBRICATING OIL SUMP FLYWHEEL HOUSING CAMSHAFT AND DRIVING GEAR CRANKSHAFT PISTON LUBRICATING OIL PUMP LUBRICATING OIL PIPING OIL-WATER EXCHANGER FUEL LINE FUEL INJECTION LINE FUEL INJECTION NOZZLE FUEL INJECTION PUMP FUEL INJECTION PUMP FEED PUMP FUEL FILTER WATER PUMP WATER PUMP COOLING WATER SYSTEM TEMPERATURE REGULATOR GENERATOR GENERATOR STARTER MOTOR STARTER MOTOR ENGINE MOUNTING PARTS ENGINE FAN AIR CLEANER AND MOUNTING AIR CLEANER MUFFLER MUFFLER RADIATOR RADIATOR RADIATOR FAN GUARD (WITH HEATING) FUEL TANK FUEL PIPING BATTERY (185 Ah) ELECTRICAL SYSTEM (BATTERY DISCONNECTING SWITCH) ELECTRICAL SYSTEM (ENGINE LINE) ELECTRICAL SYSTEM (ENGINE LINE) ELECTRICAL SYSTEM (FRAME LINE) ELECTRICAL SYSTEM (FRAME LINE) ELECTRICAL SYSTEM (TRANSMISSION LINE) ELECTRICAL SYSTEM (CAB) ELECTRICAL SYSTEM (CAB) ELECTRICAL SYSTEM (CAB) ELECTRICAL SYSTEM (CAB) ELECTRICAL SYSTEM (CAB) ELECTRICAL SYSTEM (CAB EQUIPMENT) ELECTRICAL SYSTEM (FRONT LIGHT) ELECTRICAL SYSTEM (WORK LIGHT) REVERSE TRAVEL ALARM ELECTRICAL SYSTEM (COLD WEATHER) FRAME FRAME EQUIPMENT HOSES BACKHOE PROTECTION FRONT CARDAN SHAFT REAR CARDAN SHAFT FRONT AXLE FIXING REAR AXLE FIXING TRANSMISSION FIXING TRANSMISSION TRANSMISSION TRANSMISSION TRANSMISSION TRANSMISSION TRANSMISSION TRANSMISSION TRANSMISSION TRANSMISSION TRANSMISSION TRANSMISSION FRONT AXLE FRONT AXLE FRONT AXLE FRONT AXLE FRONT AXLE FRONT AXLE FRONT AXLE REAR AXLE REAR AXLE REAR AXLE REAR AXLE REAR AXLE REAR AXLE REAR AXLE REAR AXLE REAR AXLE FRONT WHEELS (12.5X80 R18 14PR) REAR WHEEL (16.9X28 12PR) FRONT MUDGUARD FUEL CONTROL LEVER FUEL CONTROL LEVER STEERING COLUMN AND WHEEL BRAKING CONTROL PEDAL PARKING BRAKE PARKING BRAKE SHOVEL CONTROL LEVER PPC VALVE, OUTRIGGER TRANSMISSION CONTROL LEVER VALVE SUPPORT (WITH MECHANICAL CONTROL) LOCK LEVER BACKHOE CONTROL (WITH MECHANICAL CONTROL) BACKHOE CONTROL LEVERS TELESCOPIC ARM CONTROL PEDAL HAMMER CONTROL PEDAL ENGINE HOOD ENGINE HOOD BATTERY HOUSING CAB FIXING CAB CAB CAB CAB CAB CAB CAB CAB CAB CAB CAB CAB CAB CAB WINDSCREEN WIPER SYSTEM WINDSCREEN WIPER SYSTEM R.H. VIEW MIRROR OPERATOR'S SEAT OPERATOR'S SEAT HEATING SYSTEM HEATING SYSTEM HEATING SYSTEM HEATING SYSTEM HYDRAULIC TANK HYDRAULIC OIL TANK FIXING HYDRAULIC PUMP (FIXING PARTS) HYDRAULIC PUMP (CONNECTING PARTS) HYDRAULIC PUMP HYDRAULIC PUMP HYDRAULIC PUMP HYDRAULIC PUMP HYDRAULIC PUMP 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS 10-SPOOL CONTROL VALVE MECHANICAL CONTROLS HAMMER ELEMENT SHOVEL PPC VALVE (FLOAT + RETURN TO DIG) BRAKE PUMP SERVOCONTROL FEED UNIT (MECHANICAL CONTROL WITH BUCKET 4 IN 1) (CONNECTING PARTS) SERVOCONTROL FEED UNIT (MECHANICAL CONTROL WITH BUCKET 4 IN 1) 10-SPOOL CONTROL VALVE (MECHANICAL CONTROL) (CONNECTING PARTS) 10-SPOOL CONTROL VALVE (MECHANICAL CONTROL) (CONNECTING PARTS) 10-SPOOL CONTROL VALVE (MECHANICAL CONTROL) (CONNECTING PARTS) CONTROL VALVE FIXING HYDRAULIC PIPING (SUCTION LINE) HYDRAULIC PIPING (DELIVERY LINE) HYDRAULIC PIPING (DELIVERY LINE) HYDRAULIC PIPING (RETURN LINE) HYDRAULIC PIPING (RETURN LINE) HYDRAULIC PIPING (RETURN LINE) HYDRAULIC PIPING (RETURN LINE) HYDRAULIC PIPING (RETURN LINE) HYDRAULIC PIPING (SERVOCONTROL FEED LINE) HYDRAULIC PIPING (SERVOCONTROL RETURN LINE) HYDRAULIC PIPING (SERVOCONTROL RETURN LINE) HYDRAULIC PIPING (SERVOCONTROL RETURN LINE) (MECHANICAL CONTROL) HYDRAULIC PIPING (SERVOCONTROL LINE) (SHOVEL) HYDRAULIC PIPING (POWER MODE) HYDRAULIC PIPING (LOAD SENSING) HYDRAULIC PIPING (LOAD SENSING) HYDRAULIC PIPING (SHOVEL) HYDRAULIC PIPING (SERVOCONTROL LINE) (OUTRIGGERS) HYDRAULIC PIPING (OUTRIGGER CYLINDER LINE) HYDRAULIC PIPING (STEERING LINE) HYDRAULIC PIPING (STEERING LINE) HYDRAULIC PIPING (STEERING LINE) HYDRAULIC PIPING (DIFFERENTIAL AXLE LOCKING CONTROL) HYDRAULIC PIPING (TRANSMISSION OIL COOLER LINE) HYDRAULIC PIPING (BRAKE LINE) HYDRAULIC PIPING (SHOVEL LIFTING CYLINDER LINE) HYDRAULIC PIPING (SHOVEL TIPPING CYLINDER) HYDRAULIC PIPING (BUCKET 4 IN 1 LINE) HYDRAULIC PIPING (BUCKET 4 IN 1 CYLINDER LINE) HYDRAULIC PIPING (BUCKET 4 IN 1 CYLINDER LINE) HYDRAULIC PIPING (BUCKET 4 IN 1 CYLINDER LINE) HYDRAULIC PIPING (BOOM SWING CYLINDER LINE) HYDRAULIC PIPING (SLIDING PLATE LOCKING LINE) HYDRAULIC PIPING (BOOM LOCKING LINE) HYDRAULIC PIPING (BOOM CYLINDER LINE) HYDRAULIC PIPING (ARM LINE) HYDRAULIC PIPING (BUCKET CYLINDER LINE) (WITH TELESCOPIC ARM) HYDRAULIC PIPING (BUCKET CYLINDER LINE) (WITH TELESCOPIC ARM) HYDRAULIC PIPING (TELESCOPIC ARM LINE) HYDRAULIC PIPING (HAMMER LINE) (WITH TELESCOPIC ARM) HYDRAULIC PIPING (HAMMER LINE) (WITH TELESCOPIC ARM) HYDRAULIC PIPING (OUTRIGGER LINE) (WITH 10-SPOOL CONTROL VALVE) SHOVEL ARM SHOVEL LIFTING CYLINDER BUCKET PIN SHOVEL BUCKET TIPPING CYLINDER (L.H.) SHOVEL BUCKET TIPPING CYLINDER (R.H.) BUCKET LEVELLING RETURN TO DIG BUCKET 4 IN 1 BUCKET 4 IN 1 CYLINDER OUTRIGGER OUTRIGGER OUTRIGGER FOOT OUTRIGGER CYLINDER BACKFRAME BACKFRAME SLIDING PLATE LOCK CYLINDER SWING BRACKET BOOM LOCK SYSTEM BOOM LOCK CYLINDER BOOM SWING CYLINDER BOOM BOOM CYLINDER (WITH SIDE DIGGING BOOM) ARM CYLINDER BUCKET LINK BUCKET LINK BUCKET PIN (diam. 45 mm) BUCKET CYLINDER TELESCOPIC ARM TELESCOPIC ARM TELESCOPIC ARM CYLINDER MARK PLATE MARK PLATE MARK PLATE MARK PLATE (BACKHOE) MECHANICAL CONTROL TOOLS EQUIPMENT (FOR ROAD CIRCULATION) EQUIPMENT (FOR ROAD CIRCULATION)

1

2

3

4

5

6

7

8

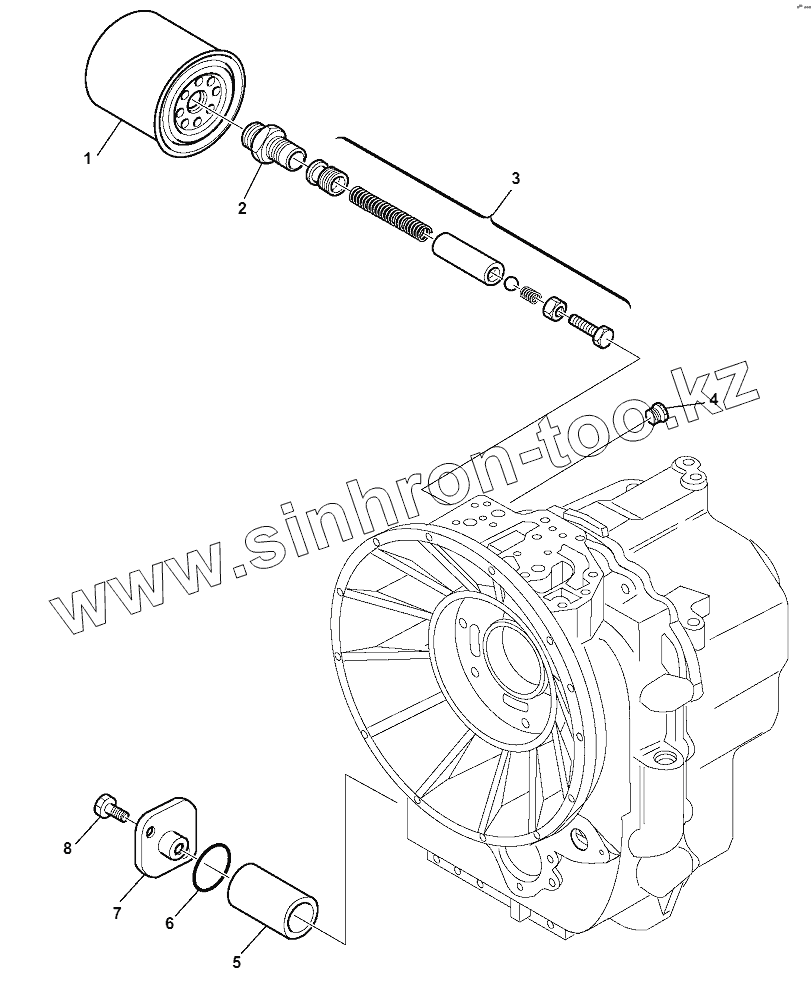

Позиция на иллюстрации	Заводской номер детали		Название детали
42N-15-12200	42N-15-12200		TRANSMISSION , ASSEMBLY
1	CA0040952		OIL FILTER
2	CA0131217		UNION
3	CA0133070		VALVE ASSEMBLY
4	CA0030720		PLUG
5	CA0135859		OIL FILTER
6	CA0028131		O-RING
7	CA0131368		COVER
8	CA0020777		BOLT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
