Каталог запасных частей к технике: Komatsu Погрузчик SK820. H0311-001001 HYDRAULIC PIPING, SUCTION LINE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано D155C-1 (2010) D155C-1 (спец.) (2010) D155C-1D (2010) D155C-1P (2010) D355C-3 (2010) D355C-3 (2010) D85A-21 (2010) D85A-21 (2010) D85A-21B (2010) D85C-21A (2010) PC200, 210(LC)-7 (2004) PC200-6 (2010) PC200-7 (2010) PC200-7-AA (2010) PC200-8MO (2010) PC200LC-7 (2010) PC200LC-8M0 (2010) PC210-6 (2010) PC210LC-6 (2010) PC220-7 (2010) PC220-8MO (2010) PC220LC-8MO (2010) PC300-7 (2010) PC300-8MO (2010) PC300LC-7 (2010) PC300LC-8MO (2010) PC35MR-3 (2010) PC400-7 (2010) PC400-7EO (2010) PC400LC-7 (2010) PC55MR-3 (2010) WB93R-5E0 (2018) WB93S-5E0 (2018) WB97S-5E0 (2018) Погрузчик SK820 (2015)

Схема > Не выбрано A0000-001001 CYLINDER BLOCK A0000-001002 GEAR HOUSING A0000-001003 FLYWHEEL - LUBRICATING OIL SUMP A0000-001004 CYLINDER HEAD AND BONNET A0000-001005 SUCTION MANIFOLD AND AIR CLEANER A0000-001006 EXHAUST MANIFOLD AND SILENCER A0000-001007 CAMSHAFT AND DRIVING GEAR A0000-001008 TURBINE A0000-001009 CRANKSHAFT AND PISTON A0000-001010 LUBRICATING OIL SYSTEM A0000-001011 LUBRICATING OIL LINE A0000-001012 COOLING WATER SYSTEM A0000-001013 FUEL INJECTION PUMP A0000-001014 GOVERNOR A0000-001015 FUEL INJECTION VALVE A0000-001016 FUEL LINE A0000-001017 STARTING MOTOR A0000-001018 GENERATOR A0000-001019 GASKET SET A0000-001020 ENGINE, CONNECTING PARTS A1470-001001 AIR CLEANER PREFILTER A6510-001001 COLD START DEVICE B0100-001001 ENGINE MOUNTS, BRACKET B0100-001002 ENGINE MOUNTS, EXHAUST MUFFLER RELATED PARTS B0100-001003 ENGINE MOUNTS, RELATED PARTS (1/2) B0100-001004 ENGINE MOUNTS, RELATED PARTS (2/2) B0600-001001 ENGINE UNIT, DAMPER C0100-001001 COOLING SYSTEM, PIPING C0100-001002 COOLING SYSTEM, COVER C0100-001003 COOLING SYSTEM, MOUNTS C0100-001004 COOLING SYSTEM, HYDRAULIC DRAIN LINE D0100-001001 FUEL TANK, TANK RELATED PART D0100-001002 FUEL TANK, PIPING E0100-001001 ELECTRIC PARTS E0200-001001 ELECTRIC WIRING, WIRE HARNESS, ENGINE (1/2) E0200-001002 ELECTRIC WIRING, WIRE HARNESS, ENGINE (2/2) E0200-001003 ELECTRIC WIRING, WIRE HARNESS, ENGINE, BATTERY CABLE E0200-002001 ELECTRIC WIRING, BATTERY CABLE, BATTERY DISCONNNECTING SWITCH E0201-001001 ELECTRIC WIRING, WIRE HARNESS, FRAME LINE E0201-002001 ELECTRIC WIRING, WIRE HARNESS, FRAME LINE, WITH HIGH FLOW OR ROAD HOMOLOGATION E0270-001001 ELECTRIC WIRING, ITALY OR SPAIN ROAD HOMOLOGATION (1/2) E0270-001002 ELECTRIC WIRING, ITALY OR SPAIN ROAD HOMOLOGATION (2/2) E0270-002001 ELECTRIC WIRING, GERMANY ROAD HOMOLOGATION (1/3) E0270-002002 ELECTRIC WIRING, GERMANY ROAD HOMOLOGATION (2/3) E0270-002003 ELECTRIC WIRING, GERMANY ROAD HOMOLOGATION (3/3) E0270-005001 ELECTRIC WIRING, ROAD HOMOLOGATION, REVERSE ALARM SENSOR E0300-001001 FRONT WORK LIGHTS E0320-001001 REAR WORK LIGHT E0320-002001 REAR WORK LIGHT, WITH ROAD HOMOLOGATION E0340-001001 ROTARY BEAM E0420-001001 ELECTRIC WIRING, REVERSE ALARM F4600-001001 TRANSMISSION F4600-001002 FRONT DRIVE SHAFT F4600-001003 REAR DRIVE SHAFT H0110-001001 HYDRAULIC OIL TANK H0110-001002 HYDRAULIC OIL TANK, DRAIN LINE H0120-001001 CONTROL VALVE, STANDARD (1/11) H0120-001002 CONTROL VALVE, STANDARD (2/11) H0120-001003 CONTROL VALVE, STANDARD (3/11) H0120-001004 CONTROL VALVE, STANDARD (4/11) H0120-001005 CONTROL VALVE, STANDARD (5/11) H0120-001006 CONTROL VALVE, STANDARD (6/11) H0120-001007 CONTROL VALVE, STANDARD (7/11) H0120-001008 CONTROL VALVE, STANDARD (8/11) H0120-001009 CONTROL VALVE, STANDARD (9/11) H0120-001010 CONTROL VALVE, STANDARD (10/11) H0120-001011 CONTROL VALVE, STANDARD (11/11) H0120-001012 CONTROL VALVE, STANDARD, CONNECTING PARTS (1/2) H0120-001013 CONTROL VALVE, STANDARD, CONNECTING PARTS (2/2) H0120-002001 CONTROL VALVE, FLOAT (1/11) H0120-002002 CONTROL VALVE, FLOAT (2/11) H0120-002003 CONTROL VALVE, FLOAT (3/11) H0120-002004 CONTROL VALVE, FLOAT (4/11) H0120-002005 CONTROL VALVE, FLOAT (5/11) H0120-002006 CONTROL VALVE, FLOAT (6/11) H0120-002007 CONTROL VALVE, FLOAT (7/11) H0120-002008 CONTROL VALVE, FLOAT (8/11) H0120-002009 CONTROL VALVE, FLOAT (9/11) H0120-002010 CONTROL VALVE, FLOAT (10/11) H0120-002011 CONTROL VALVE, FLOAT (11/11) H0120-002012 CONTROL VALVE, FLOAT, CONNECTING PARTS (1/2) H0120-002013 CONTROL VALVE, FLOAT, CONNECTING PARTS (2/2) H0120-003001 CONTROL VALVE, HIGH-FLOW (1/11) H0120-003002 CONTROL VALVE, HIGH-FLOW (2/11) H0120-003003 CONTROL VALVE, HIGH-FLOW (3/11) H0120-003004 CONTROL VALVE, HIGH-FLOW (4/11) H0120-003005 CONTROL VALVE, HIGH-FLOW (5/11) H0120-003006 CONTROL VALVE, HIGH-FLOW (6/11) H0120-003007 CONTROL VALVE, HIGH-FLOW (7/11) H0120-003008 CONTROL VALVE, HIGH-FLOW (8/11) H0120-003009 CONTROL VALVE, HIGH-FLOW (9/11) H0120-003010 CONTROL VALVE, HIGH-FLOW (10/11) H0120-003011 CONTROL VALVE, HIGH-FLOW (11/11) H0120-003012 CONTROL VALVE, HIGH-FLOW, CONNECTING PARTS (1/2) H0120-003013 CONTROL VALVE, HIGH-FLOW, CONNECTING PARTS (2/2) H0210-001001 HYDRAULIC PUMP, STANDARD, MOUNTS H0210-001002 HYDRAULIC PUMP, STANDARD (1/13) H0210-001003 HYDRAULIC PUMP, STANDARD (2/13) H0210-001004 HYDRAULIC PUMP, STANDARD (3/13) H0210-001005 HYDRAULIC PUMP, STANDARD (4/13) H0210-001006 HYDRAULIC PUMP, STANDARD (5/13) H0210-001007 HYDRAULIC PUMP, STANDARD (6/13) H0210-001008 HYDRAULIC PUMP, STANDARD (7/13) H0210-001009 HYDRAULIC PUMP, STANDARD (8/13) H0210-001010 HYDRAULIC PUMP, STANDARD (9/13) H0210-001011 HYDRAULIC PUMP, STANDARD (10/13) H0210-001012 HYDRAULIC PUMP, STANDARD (11/13) H0210-001013 HYDRAULIC PUMP, STANDARD (12/13) H0210-001014 HYDRAULIC PUMP, STANDARD (13/13) H0210-001015 HYDRAULIC PUMP, STANDARD, CONNECTING PARTS H0210-002001 HYDRAULIC PUMP, HIGH-FLOW, MOUNTS H0210-002002 HYDRAULIC PUMP, HIGH-FLOW (1/13) H0210-002003 HYDRAULIC PUMP, HIGH-FLOW (2/13) H0210-002004 HYDRAULIC PUMP, HIGH-FLOW (3/13) H0210-002005 HYDRAULIC PUMP, HIGH-FLOW (4/13) H0210-002006 HYDRAULIC PUMP, HIGH-FLOW (5/13) H0210-002007 HYDRAULIC PUMP, HIGH-FLOW (6/13) H0210-002008 HYDRAULIC PUMP, HIGH-FLOW (7/13) H0210-002009 HYDRAULIC PUMP, HIGH-FLOW (8/13) H0210-002010 HYDRAULIC PUMP, HIGH-FLOW (9/13) H0210-002011 HYDRAULIC PUMP, HIGH-FLOW (10/13) H0210-002012 HYDRAULIC PUMP, HIGH-FLOW (11/13) H0210-002013 HYDRAULIC PUMP, HIGH-FLOW (12/13) H0210-002014 HYDRAULIC PUMP, HIGH-FLOW (13/13) H0210-002015HYDRAULIC PUMP, HIGH-FLOW, CONNECTING PARTS H0311-001001 HYDRAULIC PIPING, SUCTION LINE H0311-002001 HYDRAULIC PIPING, SUCTION LINE, WITH HIGH-FLOW H0312-001001 HYDRAULIC PIPING, DELIVERY LINE H0312-002001 HYDRAULIC PIPING, DELIVERY LINE, WITH HIGH-FLOW H0330-001001 HYDRAULIC PIPING, RETURN LINE H0340-001001 HYDRAULIC PIPING, DRAIN LINE, WITH STANDARD FLOW AND BREAKER H1100-001001 HYDRAULIC PIPING, ARM CYLINDER CIRCUIT H1270-001001 HYDRAULIC PIPING, ATTACHMENT LINE (1/3) H1270-001002 HYDRAULIC PIPING, ATTACHMENT LINE (2/3) H1270-001003 HYDRAULIC PIPING, ATTACHMENT LINE (3/3) H1270-002001 HYDRAULIC PIPING, ATTACHMENT LINE (1/3), WITH HIGH-FLOWH H1270-002002 HYDRAULIC PIPING, ATTACHMENT LINE (2/3), WITH HIGH-FLOW H1270-002003 HYDRAULIC PIPING, ATTACHMENT LINE (3/3), WITH HIGH-FLOW H1310-001001 HYDRAULIC PIPING, TRAVEL LINE H1840-001001 HYDRAULIC PIPING, SERVOCONTROL LINE (1/2) H1840-001002 HYDRAULIC PIPING, SERVOCONTROL LINE (2/2) H1840-001003 HYDRAULIC PIPING, L.H. SERVOCONTROL H1840-001004 HYDRAULIC PIPING, R.H. SERVOCONTROL H1840-002001 HYDRAULIC PIPING, SERVOCONTROL LINE (1/2), WITH ROAD HOMOLOGATION H1840-002002 HYDRAULIC PIPING, SERVOCONTROL LINE (2/2), WITH ROAD HOMOLOGATION H1840-002003 HYDRAULIC PIPING, L.H. SERVOCONTROL, WITH ROAD HOMOLOGATION H1840-002004 HYDRAULIC PIPING, R.H. SERVOCONTROL, WITH ROAD HOMOLOGATION H6250-001001 HYDRAULIC PIPING, RIDE CONTROL H6250-001002 ELECTRICAL SYSTEM, RIDE CONTROL H6260-001001 HYDRAULIC PIPING, OVERRIDE CONTROL H6260-001002 ELECTRICAL SYSTEM, OVERRIDE CONTROL J3100-001001 FRAME (1/2) J3100-001002 FRAME (2/2) J3100-002001 FRAME, SOUND-PROOFING K0110-001001 OPERATOR'S SEAT K0110-002001 OPERATOR'S SEAT, WITH RETRACTABLE SEAT BELT K0110-003001 OPERATOR'S SEAT, SUSPENSION TYPE K0210-001001 OPERATOR'S CAB SOUND-PROOFING K0210-002001 FRONT DOOR (1/3) K0210-002002 FRONT DOOR (2/3) K0210-002003 FRONT DOOR (3/3) K0215-001001 LATERAL SLIDING WINDOW (1/2) K0215-001002 LATERAL SLIDING WINDOW (2/2) K0215-002001 CAB, GERMANY VERSION ACCESSORIES K0410-001001 CAB, CAB IN PARTS K0410-001002 CAB, CAB MOUNTS K0410-001003 CAB, SAFETY BARS K0410-001004 CAB, CAB IN PARTS, COVERS AND ACCESSORY (1/2) K0410-001005 CAB, CAB IN PARTS, COVERS AND ACCESSORY (2/2) K0410-002001 EMERGENCY ARM LOWERING K0410-003001 SOUND-PROOFING (1/2) K0410-004001 SOUND-PROOFING (2/2) K0410-005001 AUXILIARY LIFTING CAB K0410-006001 AUXILIARY LIFTING CAB (WITH FRONT DOOR) K0600-001001 CANOPY GUARD K0700-001001 HEATING SYSTEM K0700-002001 AIR CONDITIONING SYSTEM (1/6) K0700-002002 AIR CONDITIONING SYSTEM (2/6) K0700-002003 AIR CONDITIONING SYSTEM (3/6) K0700-002004 AIR CONDITIONING SYSTEM (4/6) K0700-002005 AIR CONDITIONING SYSTEM (5/6) K0700-002006 AIR CONDITIONING SYSTEM (6/6) K0700-003001 AIR CONDITIONING SYSTEM, ENGINE (1/4) K0700-003002 AIR CONDITIONING SYSTEM, ENGINE (2/4) K0700-003003 AIR CONDITIONING SYSTEM, ENGINE (3/4) K0700-003004 AIR CONDITIONING SYSTEM, ENGINE (4/4) K1130-001001 FLOOR COVER, STANDARD K1130-002001 FLOOR COVER, HIGH-FLOW K1230-001001 MONITOR PANEL K1261-001001 COMPONENTS WIRING CAB, STANDARD K1262-001001 COMPONENTS WIRING CAB, HIGH-FLOW K1410-001001 SOUND-PROOFING (PPC) K1410-002001 HYDRAULIC PIPING, L.H. PPC VALVE SUPPORT K1410-002002 HYDRAULIC PIPING, L.H. PPC VALVE FIXING PART K1410-002003 HYDRAULIC PIPING, L.H. PPC VALVE, INNER PARTS K1410-002004 HYDRAULIC PIPING, L.H. PPC VALVE CIRCUIT K1410-003001 HYDRAULIC PIPING, L.H. PPC VALVE SUPPORT, WITH HIGH-FLOW K1410-003002 HYDRAULIC PIPING, L.H. PPC VALVE FIXING PART, WITH HIGH-FLOW K1410-003003 HYDRAULIC PIPING, L.H. PPC VALVE, INNER PARTS, WITH HIGH-FLOW K1410-003004 HYDRAULIC PIPING, L.H. PPC VALVE CIRCUIT, WITH HIGH-FLOW K1411-001001 HYDRAULIC PIPING, SLOW SPEED CONTROL, L.H. PPC VALVE SUPPORT K1411-001002 HYDRAULIC PIPING, SLOW SPEED CONTROL, L.H. PPC VALVE FIXING PART K1411-001003 HYDRAULIC PIPING, SLOW SPEED CONTROL, L.H. PPC VALVE, INNER PARTS K1411-001004 HYDRAULIC PIPING, SLOW SPEED CONTROL, L.H. PPC VALVE CIRCUIT K1411-001005 HYDRAULIC PIPING, SLOW SPEED CONTROL (1/4) K1411-001006 HYDRAULIC PIPING, SLOW SPEED CONTROL (2/4) K1411-001007 HYDRAULIC PIPING, SLOW SPEED CONTROL (3/4) K1411-001008 HYDRAULIC PIPING, SLOW SPEED CONTROL (4/4) K1411-001009 HYDRAULIC PIPING, SLOW SPEED CONTROL, ELECTRICAL COMPONENTS K1510-001001 HYDRAULIC PIPING, R.H. PPC VALVE SUPPORT K1510-001002 HYDRAULIC PIPING, R.H. PPC VALVE FIXING PART K1510-001003 HYDRAULIC PIPING, R.H. PPC VALVE, INNER PARTS K1510-001004 HYDRAULIC PIPING, R.H. PPC VALVE CIRCUIT K1510-002001 HYDRAULIC PIPING, R.H. PPC VALVE SUPPORT, WITH FLOATING ARM K1510-002002 HYDRAULIC PIPING, R.H. PPC VALVE FIXING PART, WITH FLOATING ARM K1510-002003 HYDRAULIC PIPING, R.H. PPC VALVE, INNER PARTS, WITH FLOATING ARM K1510-002004 HYDRAULIC PIPING, R.H. PPC VALVE CIRCUIT, WITH FLOATING ARM K1530-001001 HYDRAULIC PIPING, ATTACHMENT LINE PPC VALVE FIXING PART K1530-001002 HYDRAULIC PIPING, ATTACHMENT LINE PPC VALVE, INNER PARTS K1530-001003 HYDRAULIC PIPING, ATTACHMENT LINE PPC VALVE CIRCUIT K1530-001004 ATTACHMENT CONTROL PEDAL, FRAME K1530-002001 ATTACHMENT PEDAL LOCKING SYSTEM K1531-001001 ATTACHMENT CONTROL JOYSTICK, STANDARD (1/4) K1531-001002 ATTACHMENT CONTROL JOYSTICK, STANDARD (2/4) K1531-001003 ATTACHMENT CONTROL JOYSTICK, STANDARD (3/4) K1531-001004 ATTACHMENT CONTROL JOYSTICK, STANDARD (4/4) K1532-001001 ATTACHMENT CONTROL JOYSTICK, HIGH-FLOW (1/4) K1532-001002 ATTACHMENT CONTROL JOYSTICK, HIGH-FLOW (2/4) K1532-001003 ATTACHMENT CONTROL JOYSTICK, HIGH-FLOW (3/4) K1532-001004 ATTACHMENT CONTROL JOYSTICK, HIGH-FLOW (4/4) K4208-001001 KOMTRAX CONTROLLER AND WIRING, ANTENNA K4290-001001 CAB, ELECTRICAL SYSTEM, WIRING HARNESS K4290-001002 CAB, ELECTRICAL SYSTEM, ELECTRIC PARTS K4290-001003 CAB, ELECTRICAL SYSTEM, WIRING HARNESS K4290-001004 CAB, ELECTRICAL SYSTEM, HORN K4290-002001 CAB, ELECTRICAL SYSTEM, WIRING HARNESS, WITH HIGH-FLOW OR ROAD HOMOLOGATION K4290-002002 CAB, ELECTRICAL SYSTEM, ELECTRIC PARTS, WITH HIGH-FLOW OR ROAD HOMOLOGATION K4290-002003 CAB, ELECTRICAL SYSTEM, PLUGS, WITH HIGH-FLOW OR ROAD HOMOLOGATION K4290-002004 CAB, ELECTRICAL SYSTEM, HORN, WITH HIGH-FLOW OR ROAD HOMOLOGATION K4290-003001 CAB, 12V ELECTRICAL SOCKET INSIDE CAB K4290-004001 ANTITHEFT DEVICE, SMD K4290-005001 ANTITHEFT DEVICE, GTEL K4291-001001 CAB, ELECTRICAL SYSTEM, ROOF HARNESS, WITH FOR ROAD HOMOLOGATION (1/2) K4291-001002 CAB, ELECTRICAL SYSTEM, ROOF HARNESS, WITH FOR ROAD HOMOLOGATION (2/2) K4292-001001 CAB, ELECTRICAL SYSTEM, ROOF HARNESS K4410-001001 FUEL CONTROL LEVER K4411-001001 FUEL CONTROL PEDAL M1110-001001 ENGINE HOOD M1510-001001 REAR DOOR M2410-001001 REAR VIEW MIRROR, LEFT SIDE M4200-001001 MUDGUARD M4520-001001 COUNTER WEIGHT P1210-001001 TRAVEL MOTOR, FIXING PARTS P1210-001002 TRAVEL MOTOR (1/4) P1210-001003 TRAVEL MOTOR (2/4) P1210-001004 TRAVEL MOTOR (3/4) P1210-001005 TRAVEL MOTOR (4/4) P1210-001006 TRAVEL MOTOR, CONNECTING PARTS S0100-001001 WHEELS (10X16.5PR) S0100-002001 WHEELS (10X16.5PR) (NARROW TREAD) S0100-003001 WHEELS (31X15.5 15) S0100-004001 WHEELS (7.00X15) S0100-006001 WHEELS (10X16.5PR - AIR BOSS TYPE) S0100-007001 WHEELS (10X16.5 PR14 - HEAVY DUTY) T1115-001001 EXCAVATOR CONNECTION FRAME T1115-001002 EXCAVATOR CONNECTION FRAME, FUEL CONTROL PEDAL SPACER T1270-001001 ARM, ATTACHMENT LINE CIRCUIT T1270-002001 ARM, ATTACHMENT LINE CIRCUIT, WITH HIGH-FLOW T4110-001001 ARM, ARM AND PIN T4110-001002 ARM, BUCKET CYLINDER LINE CIRCUIT T4120-001001 BUCKET, L=1550 MM T4120-002001 BUCKET, L=1730 MM T4120-003001 BUCKET, L=1800 MM T4120-004001 BUCKET PROTECTION, FOR ROAD HOMOLOGATION T4120-005001 BUCKET RETAINER, FOR ROAD HOMOLOGATION T4120-006001 BUCKET, L=1550 MM WITH TEETH T4120-007001 BUCKET, L=1730 MM WITH TEETH T4120-008001 BUCKET, L=1800 MM WITH TEETH T4120-009001 FORK T4121-001001 EQUIPMENT CARRIER T4130-001001 BLADE UNDER TEETH, FOR BUCKET L=1550 MM T4130-002001 BLADE UNDER TEETH, FOR BUCKET L=1730 MM T4130-003001 BLADE UNDER TEETH, FOR BUCKET L=1800 MM T4130-004001 BLADE INSTEAD OF TEETH, FOR BUCKET L=1550 MM T4130-005001 BLADE INSTEAD OF TEETH, FOR BUCKET L=1730 MM T4130-006001 BLADE INSTEAD OF TEETH, FOR BUCKET L=1800 MM T4140-001001 ARM CYLINDER, INNER PARTS T4140-001002 ARM, ARM CYLINDER PIN T4150-001001 ARM, L.H. BUCKET CYLINDER, INNER PARTS T4150-001002 ARM, R.H. BUCKET CYLINDER, INNER PARTS T4150-001003 ARM, BUCKET CYLINDER, CONNECTING PARTS T4150-001004 ARM, BUCKET CYLINDER PIN U0100-001001 MARKS AND PLATES (1/2) U0100-001002 MARKS AND PLATES (2/2) U0100-002001 MARKS AND PLATES, ITALY, WITH ROAD HOMOLOGATION (1/2) U0100-002002 MARKS AND PLATES, ITALY, WITH ROAD HOMOLOGATION (2/2) U0100-003001 MARKS AND PLATES, SPAIN, WITH ROAD HOMOLOGATION (1/2) U0100-003002 MARKS AND PLATES, SPAIN, WITH ROAD HOMOLOGATION (2/2) U0100-004001 MARKS AND PLATES, GERMANY, WITH ROAD HOMOLOGATION (1/2) U0100-004002 MARKS AND PLATES, GERMANY, WITH ROAD HOMOLOGATION (2/2) U0101-001001 MARKS AND PLATES, TURBO U0101-002001 MARKS AND PLATES, SUPER FLOW V0300-001001 TOOLS V0301-001001 MACHINE LIFTING HOOKS

1

2

3

4

5

6

7

8

9

10

10

11

11

12

12

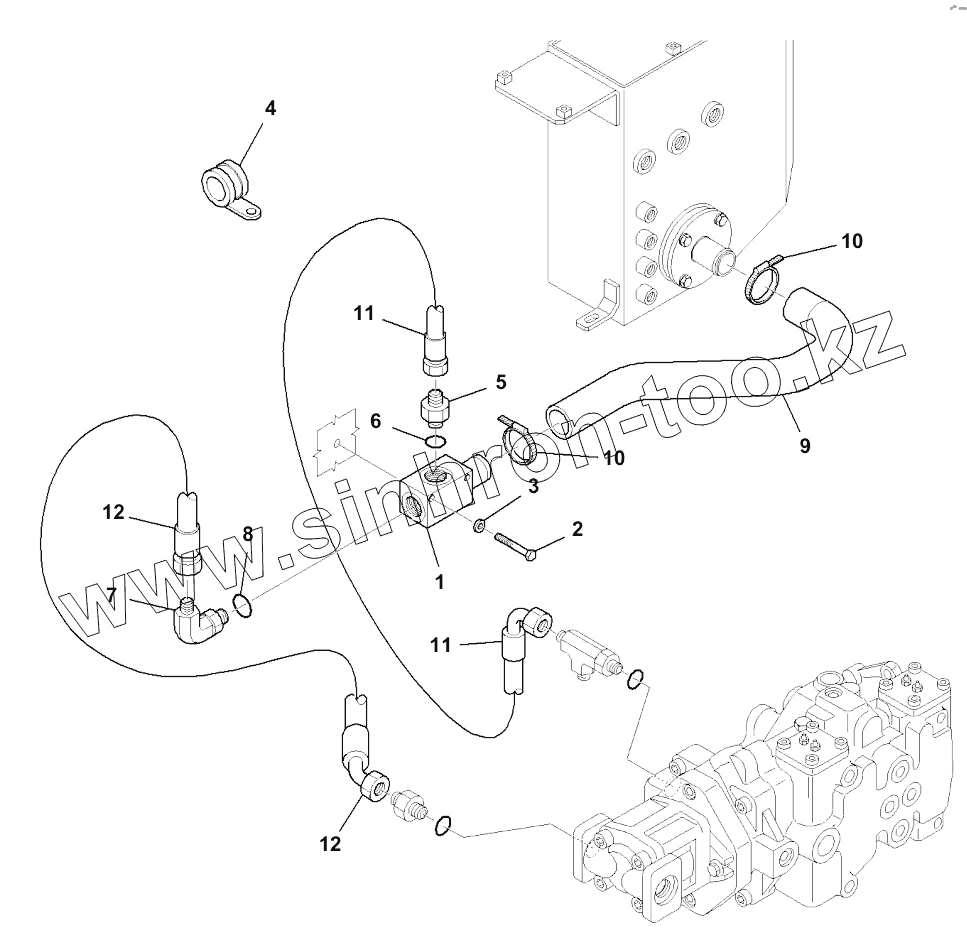

Позиция на иллюстрации	Заводской номер детали		Название детали
1	37В-62-12160		Block
2	01010-81075		BOLT
3	01643-11032		WASHER
4	37A-09-5N505		CLAMP
5	21D-09-51390		Union
6	37В-09-15217		O-RING
7	21D-09-51830		Elbow
8	37В-09-15217		O-RING
9	ЗА6-62-11130		Hose
10	07281-00609		CLAMP
11	37А-62-12113		Hose
12	37А-62-12152		Hose

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
