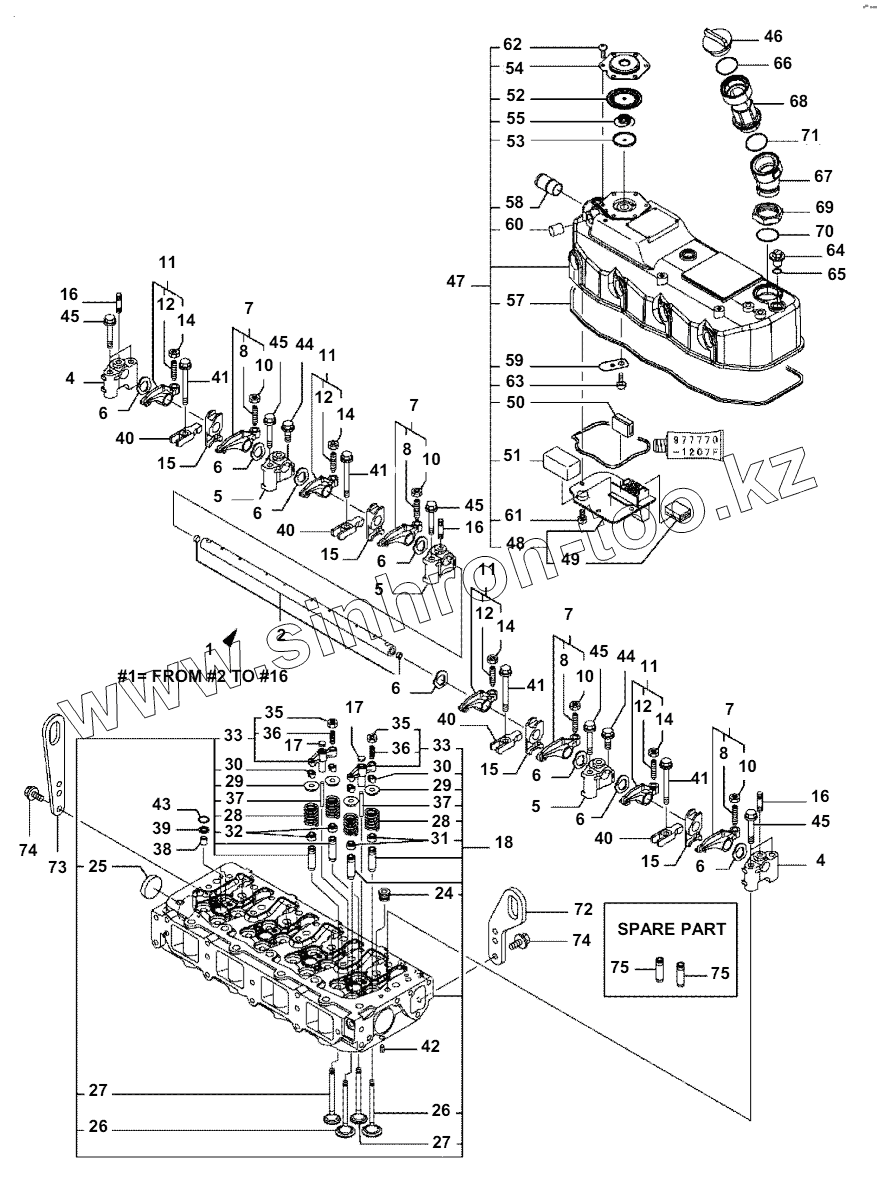

Каталог запасных частей к технике: Komatsu Погрузчик SK820. A0000-001004 CYLINDER HEAD AND BONNET

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
4
4
5
5
5
6
6
6
6
6
6
6
6
7
7
7
7
8
8
8
8
10
10
10
10
11
11
11
11
12
12
12
12
14
14
14
14
15
15
15
15
16
16
16
17
17
18
24
25
26
26
27
27
28
28
29
29
30
30
31
32
33
33
35
35
36
36
37
37
38
39
40
40
40
40
41
41
41
41
42
43
44
44
45
45
45
45
45
46
47
48
49
50
51
52
53
54
55
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
74
75
75
Позиция на иллюстрации Заводской номер детали Название детали
37B-01-11600 37B-01-11600 Engine, assembly
1 YM129508-11241 Rocker shaft, assembly
2 YM129508-11250 Shaft
4 YM129508-11260 Support
5 YM129508-11270 Support
6 YM129508-11280 Washer
7 YM129508-11650 Rocker arm, assembly
8 YM129150-11230 SCREW, VALVE
10 YM129150-11750 NUT
11 YM129508-11660 Rocker arm, assembly
12 YM129150-11230 SCREW, VALVE
14 YM129150-11750 NUT
15 YM129508-11920 Retainer
16 YM26226-080352 Stud
17 YM123907-11550 Cap, valve
18 YM129509-11700 Head assembly, cylinder
24 YM23876-020000 PLUG, TAPERED
25 YM27241-400000 PLUG
26 YM129508-11100 Valve, suction
27 YM129508-11110 Valve, exhaust
28 YM129508-11130 Spring
29 YM129508-11180 Retainer, spring
30 YM119717-11190 Cotter, assembly
31 YM119717-11340 Seal, valve stem
32 YM119717-11350 Seal, valve stem
33 YM129672-11510 Bridge, assembly
35 YM129150-11750 NUT
36 YM123907-11830 Screw
37 YM129508-11820 Guide, valve
38 YM119802-11870 PROTECTOR, NOZZLE
39 YM119625-11880 SEAT, NOZZLE
40 YM129508-11900 Retainer
41 YM129907-11950 Bolt
42 YM22351-060012 PIN, SPRING
43 YM24311-000120 O-RING
44 YM26106-080252 BOLT, FLANGED
45 YM26106-080502 BOLT, FLANGED
46 YM124160-01751 COVER, FILLER
47 YM129584-11350 Bonnet, assembly
48 YM129508-03010 Plate
49 YM119802-03070 Splash-guard
50 YM129150-03070 BAFFLE
51 YM129907-03070 Baffle
52 YM123907-03100 Diaphragm
53 YM123907-03110 Plate
54 YM123907-03120 Plate
55 YM123907-03140 Spring
57 YM129508-11310 Gasket
58 YM129001-11340 Pipe
59 YM129009-11340 Spring
60 YM119640-61400 Plug
61 YM22857-500100 SCREW
62 YM22857-500100 SCREW
63 YM22857-500100 SCREW
64 YM124160-11360 KNOB
65 YM24311-000120 O-RING
66 YM24311-000320 O-RING
67 YM119225-11740 Adaptor, oil filler
68 YM171031-11741 PIPE
69 YM119225-11750 Nut, oil filler
70 YM24311-000300 O-ring
71 YM24311-000320 O-RING
72 YM129486-07901 BRACKET
73 YM129900-07900 LIFTER
74 YM26106-080162 BOLT, FLANGED
75 YM119717-11800 Guide, valve
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
