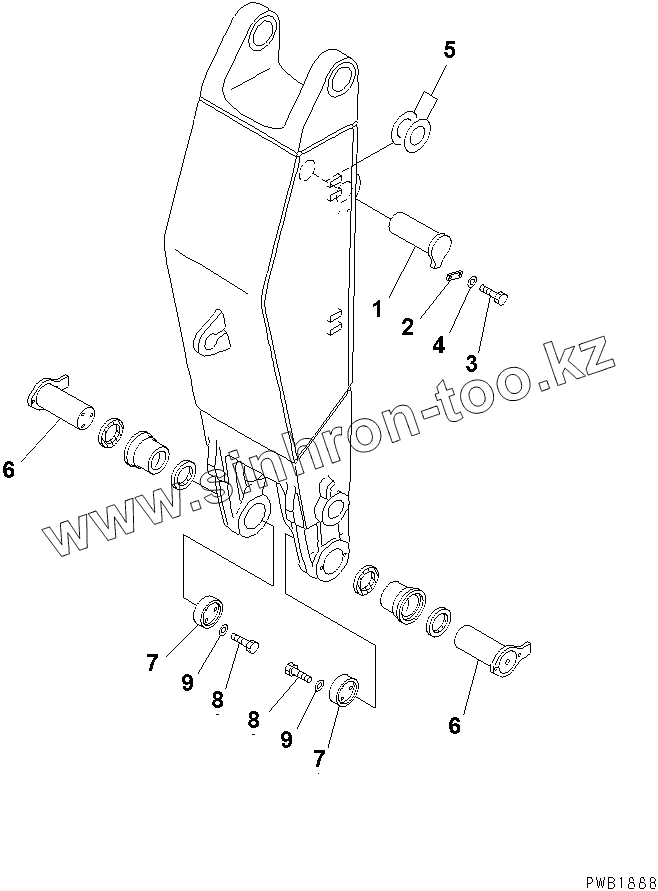

Каталог запасных частей к технике: Komatsu PC400-7EO. ARM (ARM PIN) (FOR LOADER)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано D155C-1 (2010) D155C-1 (спец.) (2010) D155C-1D (2010) D155C-1P (2010) D355C-3 (2010) D355C-3 (2010) D85A-21 (2010) D85A-21 (2010) D85A-21B (2010) D85C-21A (2010) PC200, 210(LC)-7 (2004) PC200-6 (2010) PC200-7 (2010) PC200-7-AA (2010) PC200-8MO (2010) PC200LC-7 (2010) PC200LC-8M0 (2010) PC210-6 (2010) PC210LC-6 (2010) PC220-7 (2010) PC220-8MO (2010) PC220LC-8MO (2010) PC300-7 (2010) PC300-8MO (2010) PC300LC-7 (2010) PC300LC-8MO (2010) PC35MR-3 (2010) PC400-7 (2010) PC400-7EO (2010) PC400LC-7 (2010) PC55MR-3 (2010) WB93R-5E0 (2018) WB93S-5E0 (2018) WB97S-5E0 (2018) Погрузчик SK820 (2015)

Схема > Не выбрано DUMPER AND PUMP ENGINE MOUNTING AIR CLEANER CONNECTION (WITH PRE-CLEANER) AIR CLEANER CONNECTION (WITH FUEL SELF SUPPLY PUMP) (WITH PRE-CLEANER) CORROSION RESISTER COOLING (RADIATOR AND FRAME)(#60001-65364) COOLING (RADIATOR AND FRAME)(#65365-) COOLING (OIL COOLER AND SHROUD) COOLING (AFTER COOLER AND CONDENSER)(#60001-60052) COOLING (AFTER COOLER AND CONDENSER)(#60053-) COOLING (AFTER COOLER PIPING)(#60001-65364) COOLING (AFTER COOLER PIPING)(#65365-) COOLING (COVER)(#60001-65364) COOLING (COVER)(#65365-) COOLING (RADIATOR PIPING) COOLING (SHEET) FAN GUARD FUEL TANK(#60001-60065) FUEL TANK(#60066-) FUEL TANK (FOR FUEL REFILL PUMP)(#60001-60065) FUEL TANK (FOR FUEL REFILL PUMP)(#60066-) FUEL LINE (1/2) FUEL LINE (2/2) BATTERY BATTERY (LARGE CAPACITY) BATTERY LESS WIRING (STARTING HARNESS) (HARNESS AND CLIP) WIRING (STARTING HARNESS) (CLIP) WIRING (MAIN HARNESS) WIRING (MAIN HARNESS) (FOR LOADER) WIRING (MAIN HARNESS) (CLIP) (1/3) WIRING (MAIN HARNESS) (CLIP) (2/3) WIRING (MAIN HARNESS) (CLIP) (3/3) WIRING (BATTERY CASE) WIRING (WORKING LAMP FRONT) ADDITIONAL WORK LAMP ADDITIONAL WORK LAMP (FOR LEVEL-1 GUARD) REAR WORK LAMP BEACON HORN(#60001-65364) HORN(#65365-) TRAVEL ALARM(#60001-65224) TRAVEL ALARM(#65225-) HYDRAULIC TANK(#60001-60065) HYDRAULIC TANK(#60066-) HYDRAULIC TANK (FOR BURST VALVE)(#60001-60065) HYDRAULIC TANK (FOR BURST VALVE)(#60066-) MAIN VALVE (CONNECTING PARTS) (1/2) MAIN VALVE (CONNECTING PARTS) (1/2) (1 ACTUATOR) MAIN VALVE (CONNECTING PARTS) (1/2) (2 ACTUATOR) MAIN VALVE (CONNECTING PARTS) (1/2) (FOR LOADER) MAIN VALVE (CONNECTING PARTS) (1/2) (1 ACTUATOR) (FOR LOADER) MAIN VALVE (CONNECTING PARTS) (2/2) MAIN VALVE (CONNECTING PARTS) (2/2) (1 ACTUATOR) MAIN VALVE (CONNECTING PARTS) (2/2) (2 ACTUATOR) MAIN VALVE (VALVE BRACKET)(#60001-60082) MAIN VALVE (VALVE BRACKET)(#60083-60089) MAIN VALVE (VALVE BRACKET)(#60090-) MAIN VALVE (SERVICE VALVE PLUG) (1 ACTUATOR) (WITH DRIFT PREVENTIVE) (PIPING LESS) MAIN PUMP (CONNECTING PARTS) SUCTION LINE(#60001-65364) SUCTION LINE(#65365-) DELIVERY LINE DELIVERY LINE (WITH FILTER) OIL COOLER LINE RETURN LINE RETURN LINE (1 ACTUATOR) DRAIN LINE BOOM LINE (1/2) BOOM LINE (1/2) (FOR BURST VALVE) BOOM LINE (2/2) ARM AND BUCKET LINE ARM AND BUCKET LINES (WITH DRIFT PREVENTIVE) DRIFT PREVENTIVE (ARM) BURST VALVE LINE (BOOM CYLINDER SIDE) BURST VALVE LINE (BOOM) (CHASSIS SIDE) BURST VALVE LINE (BOOM BURST VALVE) ATTACHMENT LINES (MAIN L.H.) (1 ACTUATOR) RELIEF VALVE (250 KG/CM2) (FOR SERVICE VALVE) ATTACHMENT LINES (MAIN R.H.) (1 ACTUATOR) ATTACHMENT LINES (RETURN) (1 ACTUATOR) ATTACHMENT LINES (ACCUMULATOR LOWER) (1 ACTUATOR) ATTACHMENT ADDITIONAL LINES (2 ACTUATOR) ATTACHMENT ADDITIONAL LINES (FOR LOADER) ATTACHMENT ADDITIONAL LINES (1 ACTUATOR) (FOR LOADER) TRAVEL LINE SWING LINE LS LINE SOLENOID VALVE (VALVE) SOLENOID VALVE (VALVE) (1 ACTUATOR) SOLENOID VALVE (HOSE AND BRACKET) SOLENOID VALVE (HOSE AND BRACKET) (1 ACTUATOR) SOLENOID VALVE (FOR LOADER) SOLENOID VALVE (PRESSURE SWITCH) (FOR LOADER) PRESSURE SWITCH PPC MAIN LINE (HOSE) PPC MAIN LINE (BLOCK) (1 ACTUATOR) PPC MAIN LINE (BLOCK) (2 ACTUATOR) REVOLVING FRAME (1/2) REVOLVING FRAME (WITH DECK GUARD) (1/2) REVOLVING FRAME (2/2) BOOM FOOT PIN BOOM FOOT PIN (50 HOURS LUBRICATING) OPERATOR'S SEAT (SUSPENSION) OPERATOR'S SEAT (LEATHER) OPERATOR'S SEAT (FABRIC) SEAT BELT (48MM WIDE) SEAT BELT (78MM WIDE) SEAT REAR COVER SEAT REAR COVER (12V POWER SOURCE) SEAT REAR COVER (WITH BIG WIND AIR CONDITIONER) (1/2) SEAT REAR COVER (WITH BIG WIND AIR CONDITIONER) (2/2)(#60001-65223) SEAT REAR COVER (WITH BIG WIND AIR CONDITIONER) (2/2)(#65224-) LUGGAGE BOX NET FLOOR FRAME COVER TOP GUARD FRONT GUARD (HALF) FRONT GUARD (FULL) (LEVEL-1) FRONT GUARD (FULL) (LEVEL-2) FLOOR MAT FLOOR MAT (1 ACTUATOR) FLOOR MAT (2 ACTUATOR) RAIN VISOR SUN VISOR WINDOW WASHER AIR CONDITIONER AND HEATER LESS AIR CONDITIONER (UNIT)(#60001-65364) AIR CONDITIONER (UNIT)(#65365-) AIR CONDITIONER (PIPING) EXTINGUISHER (ENGLISH) EXTINGUISHER (RUSSIAN) EXTINGUISHER (SPANISH) FIRST AID BOX THERMOS BOTTLE FLOOR FRAME (OPERATOR'S CAB) (CAB) (FOR VANDALISM PROTECTION) FLOOR FRAME (OPERATOR'S CAB) (CAB) (KOMTRAX LESS) FLOOR FRAME (OPERATOR'S CAB) (CAB) (FOR VANDALISM PROTECTION) (WITH BIG WIND AIR CONDITIONER) FLOOR FRAME (OPERATOR'S CAB) (FRONT WINDOW) FLOOR FRAME (OPERATOR'S CAB) (FRONT WINDOW) FLOOR FRAME (OPERATOR'S CAB) (FRONT LOWER WINDOW) FLOOR FRAME (OPERATOR'S CAB) (ROOF WINDOW) FLOOR FRAME (OPERATOR'S CAB) (DOOR) (FOR U.S.A.) FLOOR FRAME (OPERATOR'S CAB) (DOOR) FLOOR FRAME (OPERATOR'S CAB) (DOOR LOCK) FLOOR FRAME (OPERATOR'S CAB) (OPEN LOCK) FLOOR FRAME (OPERATOR'S CAB) (ELECTRICAL) (WIPER AND ROOM LAMP) FLOOR FRAME (OPERATOR'S CAB) (ELECTRICAL) (RADIO HARNESS AND WINDOW WASHER) FLOOR FRAME (OPERATOR'S CAB) (ACCESSORIES) FLOOR FRAME (OPERATOR'S CAB) (PLUG BOLT AND ANTENNA) (WITH KOMTRAX) FLOOR FRAME (OPERATOR'S CAB) (PLUG BOLT AND ANTENNA) FLOOR FRAME (OPERATOR'S CAB) (CLAMP AND PLATE) FLOOR FRAME (OPERATOR'S CAB) (MONITOR SYSTEM) (WITH MULTI MONITOR) (FOR NORTH AMERICA) FLOOR FRAME (OPERATOR'S CAB) (MONITOR SYSTEM) (WITH MULTI MONITOR) FLOOR FRAME (OPERATOR'S CAB) (PLATE AND DUCT) FLOOR FRAME (OPERATOR'S CAB) (PLATE AND DUCT) (WITH BIG WIND AIR CONDITIONER)(#60001-65223) FLOOR FRAME (OPERATOR'S CAB) (PLATE AND DUCT) (WITH BIG WIND AIR CONDITIONER)(#65224-) FLOOR FRAME (OPERATOR'S CAB) (PARTITION AND FOOT DUCT) FLOOR FRAME (OPERATOR'S CAB) (SUB PANEL)(#60001-65364) FLOOR FRAME (OPERATOR'S CAB) (SUB PANEL)(#65365-) FLOOR FRAME (OPERATOR'S CAB) (KOMTRAX) FLOOR FRAME (OPERATOR'S CAB) (KOMTRAX) FLOOR FRAME (OPERATOR'S CAB) (CLAMP AND BOLT) FLOOR FRAME (OPERATOR'S CAB) (CLAMP AND BOLT) (WITH 12V CONVERTER) FLOOR FRAME (OPERATOR'S CAB) (FLOOR FRAME) FLOOR FRAME (OPERATOR'S CAB) (FLOOR FRAME) FLOOR FRAME (OPERATOR'S CAB) (TRAVEL CONTROL) FLOOR FRAME (OPERATOR'S CAB) (FOOT REST) (L.H.) FLOOR FRAME (OPERATOR'S CAB) (ATTACHMENT CONTROL) (2 ACTUATOR) FLOOR FRAME (OPERATOR'S CAB) (FOOT REST) (R.H.) FLOOR FRAME (OPERATOR'S CAB) (ATTACHMENT CONTROL) (1 ACTUATOR) FLOOR FRAME (OPERATOR'S CAB) (BASE) FLOOR FRAME (OPERATOR'S CAB) (HARNESS) (FOR NORTH AMERICA) FLOOR FRAME (OPERATOR'S CAB) (HARNESS) FLOOR FRAME (OPERATOR'S CAB) (HARNESS) (FOR LOADER) FLOOR FRAME (OPERATOR'S CAB) (WINDOW WASHER) FLOOR FRAME (OPERATOR'S CAB) (LEVER AND VALVE) (L.H.) (FOR NORTH AMERICA) FLOOR FRAME (OPERATOR'S CAB) (LEVER AND VALVE) (L.H.) FLOOR FRAME (OPERATOR'S CAB) (LEVER AND VALVE) (L.H.) (FOR LOADER) FLOOR FRAME (OPERATOR'S CAB) (CONSOLE L.H.) (UPPER) (WITH AIR CONDITIONER AND RADIO) (FOR U.S.A.) FLOOR FRAME (OPERATOR'S CAB) (CONSOLE L.H.) (UPPER) (WITH AIR CONDITIONER AND RADIO) (FOR ASIA) FLOOR FRAME (OPERATOR'S CAB) (CONSOLE L.H.) (UPPER) (WITH BIG WIND AIR CONDITIONER AND RADIO) FLOOR FRAME (OPERATOR'S CAB) (CONSOLE L.H.) (UPPER) (WITH AIR CONDITIONER) (WITHOUT RADIO) FLOOR FRAME (OPERATOR'S CAB) (CONSOLE L.H.) (LOWER) FLOOR FRAME (OPERATOR'S CAB) (LEVER AND VALVE) (R.H.) (FOR NORTH AMERICA) FLOOR FRAME (OPERATOR'S CAB) (LEVER AND VALVE) (R.H.) FLOOR FRAME (OPERATOR'S CAB) (LEVER AND VALVE) (R.H.) (FE LOADER) FLOOR FRAME (OPERATOR'S CAB) (CONSOL R.H.) FLOOR FRAME (OPERATOR'S CAB) (AIR CONDITIONER AND FOOT COVER) FLOOR FRAME (OPERATOR'S CAB) (AIR CONDITIONER HOSE) FLOOR FRAME (OPERATOR'S CAB) (HEATER HOSE AND CLAMP) (WITH AIR CONDITIONER) FLOOR FRAME (OPERATOR'S CAB) (PPC HOSE) (1/2) FLOOR FRAME (OPERATOR'S CAB) (PPC HOSE) (1/2) (FOR LOADER) FLOOR FRAME (OPERATOR'S CAB (PPC HOSE) (2/2) FLOOR FRAME (OPERATOR'S CAB) (PPC CLAMP) FLOOR FRAME (OPERATOR'S CAB) (PT BLOCK AND SEAL) FLOOR FRAME (OPERATOR'S CAB) (P T BLOCK AND SEAL) (1 ACTUATOR) FLOOR FRAME (OPERATOR'S CAB) (PT BLOCK AND SEAL) (2 ACTUATOR) FLOOR MOUNT PPC WORK LINE CLAMP PPC WORK LINE CLAMP (1 ACTUATOR) SWITCH (MODEL SELECTION CONNECTOR) HOOD (1/4) HOOD (2/4)(#60001-60046) HOOD (2/4)(#60047-) HOOD (3/4)(#60001-60046) HOOD (3/4)(#60047-) HOOD (4/4) FRAME (MACHINE CAB) LEFT SIDE DOOR (MACHINE CAB) RIGHT SIDE DOOR (MACHINE CAB) (1/3) RIGHT SIDE DOOR (MACHINE CAB) (2/3) RIGHT SIDE DOOR (MACHINE CAB) (3/3) PARTITION (MACHINE CAB) (1/2) PARTITION (MACHINE CAB) (2/2) COVER (MACHINE CAB)(#60001-60089) COVER (MACHINE CAB)(#60090-65364) COVER (MACHINE CAB)(#65365-) COVER (MACHINE CAB) (WITH PRE-CLEANER)(#60001-60089) COVER (MACHINE CAB) (WITH PRE-CLEANER)(#60090-65364) COVER (MACHINE CAB) (WITH PRE-CLEANER)(#65365-) BATTERY CASE(#60001-60065) BATTERY CASE(#60066-) HANDRAIL(#60001-65314) HANDRAIL(#65315-) REAR VIEW MIRROR L.H. (SINGLE) REAR VIEW MIRROR R.H. (EXCEPT JAPAN) REAR VIEW MIRROR COUNTERWEIGHT (9220KG)(#60001-60065) COUNTERWEIGHT (9220KG)(#60066-) COUNTERWEIGHT MOUNTING UNDER COVER (REVOLVING FRAME) (L.H.) UNDER COVER (HEAVY DUTY) (REVOLVING FRAME) (L.H.) UNDER COVER (REVOLVING FRAME) (R.H. AND CENTER) UNDER COVER (HEAVY DUTY) (REVOLVING FRAME) (R.H. AND CENTER) UNDER COVER (REVOLVING FRAME) (R.H. AND CENTER) (FUEL SELF SUPPLY PUMP) UNDER COVER (HEAVY DUTY) (REVOLVING FRAME) (R.H. AND CENTER) (FUEL SELF SUPPLY PUMP) SWING CIRCLE SWING MACHINERY SWING MOTOR (CONNECTING PARTS) SWIVEL JOINT (CONNECTING PARTS) TRAVEL PIPING TRAVEL PIPING (FOR VARIABLE GAUGE) FINAL DRIVE FRONT IDLER IDLER CUSHION IDLER CUSHION (IMPROVE OF RUST PREVENTION) CARRIER ROLLER TRACK SHOE (TRIPLE GROUSER WITH HOLE) (600MM WIDE) TRACK SHOE (TRIPLE GROUSER WITH HOLE) (700MM WIDE) TRACK SHOE (TRIPLE GROUSER WITH HOLE) (800MM WIDE) TRACK SHOE (SINGLE GROUSER) (660MM WIDE) TRACK FRAME (FRAME) TRACK FRAME (VARIABLE GAUGE) (FRAME) TRACK FRAME (FRAME) (WITH UNDER COVER) TRACK FRAME (VARIABLE GAUGE) (FRAME) (WITH UNDER COVER) TRACK FRAME (TRACK ROLLER) TRACK FRAME (CENTER GUARD) TRACK FRAME (VARIABLE GAUGE) (CENTER GUARD) TRACK FRAME (CENTER GUARD) TRACK FRAME (VARIABLE GAUGE) (FULL ROLLER GUARD) TRACK FRAME (GREASE BATH AND STEP) TRACK FRAME (VARIABLE GAUGE) (GREASE BATH AND STEP) UNDER COVER (FOR TRACK FRAME) TRAVEL PIPING GUARD (FOR VARIABLE GAUGE) TRACK ROLLER GUARD FULL ROLLER GUARDD BOOM (7.0M BOOM) (500 HOURS GREASING TYPE) BOOM (7.0M BOOM) (HEAVY DUTY) (500 HOURS GREASING TYPE) BOOM (7.0M BOOM) (100 HOURS GREASING TYPE) BOOM (7.0M BOOM) (HEAVY DUTY) (100 HOURS GREASING TYPE) BOOM (FOR LOADER) BOOM (500 HOURS GREASING TYPE) (TOP PIN AND BOTTOM PIN) BOOM (ARM CYLINDER LINE) (FOR LOADER) BOOM (BUCKET CYLINDER LINE) BOOM (BUCKET CYLINDER HEAD LINE) (1/2) (FOR LOADER) BOOM (ARM CYLINDER LINE) BOOM (ARM CYLINDER LINE) (FOR HEAVY DUTY BOOM) BOOM (BUCKET CYLINDER HEAD LINE) (2/2) (FOR LOADER) BOOM (BLIND PARTS) BOOM (BUCKET CYLINDER BOTTOM LINE) (FOR LOADER) BOOM (LUBRICATING LINE) BOOM (LUBRICATING LINE) (FOR HEAVY DUTY BOOM) BOOM (LUBRICATING LINE) (FOR LOADER) BOOM (500 HOURS GREASING TYPE) (WORKING LAMP AND SPACER)(#60001-65364) BOOM (500 HOURS GREASING TYPE) (WORKING LAMP AND SPACER)(#65365-) BOOM (100 HOURS GREASING TYPE) (WORKING LAMP AND SPACER)(#60001-65364) BOOM (100 HOURS GREASING TYPE) (WORKING LAMP AND SPACER)(#65365-) BOOM (WORKING LAMP HARNESS) (FOR LOADER) BOOM (ADDITIONAL LINE) (FOR ADDITIONAL PIPING) BOOM (PIN) (FOR LOADER) BOOM (ADDITIONAL LINE) (CLAMP) (FOR ADDITIONAL PIPING) BOOM (BUCKET CYLINDER LINE) (HOSE) (FOR LOADER) (LOOSE-SUPPLY IT EM) BOOM (BLIND PARTS) (FOR ADDITIONAL PIPING) BOOM (LUBRICATING LINE) (HOSE) (FOR LOADER) (LOOSE-SUPPLY ITEM) BOOM (WORKING LAMP AND SEAL) (FOR LOADER) (LOOSE-SUPPLY ITEM) B00M CYLINDER (500 HOURS GREASING BOOM TYPE) BOOM CYLINDER (100 HOURS GREASING BOOM TYPE) BOOM CYLINDER (FOR BURST VALVE) (500 HOURS GREASING BOOM TYPE) B00M CYLINDER (FOR LOADER) B00M CYLINDER TOP PIN (100 HOURS GREASING BOOM TYPE) B00M CYLINDER TOP PIN (500 HOURS GREASING BOOM TYPE) ARM CYLINDER (500 HOURS GREASING BOOM TYPE) (EXCEPT 2.4M ARM) ARM CYLINDER (FOR HEAVY DUTY BOOM) (500 HOURS GREASING BOOM TYPE) ARM CYLINDER (500 HOURS GREASING BOOM TYPE) (FOR 2.4M ARM) ARM CYLINDER (100 HOURS GREASING BOOM TYPE) (EXCEPT 2.4M ARM) ARM CYLINDER (FOR LOADER) ARM (3.4M ARM) (500 HOURS GREASING TYPE) ARM (3.4M ARM) (HEAVY DUTY) (500 HOURS GREASING TYPE) ARM (3.4M ARM) (100 HOURS GREASING TYPE) ARM (3.4M ARM) (100 HOURS GREASING TYPE) (FOR ADDITIONAL PIPING) ARM (4.0M ARM) (500 HOURS GREASING TYPE) ARM (3.4M ARM) (HEAVY DUTY) (500 HOURS GREASING TYPE) (FOR ADDITIONAL PIPING) ARM (3.4M ARM) (500 HOURS GREASING TYPE) (FOR ADDITIONAL PIPING) ARM (2.9M ARM) (500 HOURS GREASING TYPE) ARM (2.4M ARM) (500 HOURS GREASING TYPE) ARM (2.9M ARM) (500 HOURS GREASING TYPE) (FOR ADDITIONAL PIPING) ARM (4.8M ARM) (500 HOURS GREASING TYPE) ARM (3.4M ARM) (HEAVY DUTY) (100 HOURS GREASING TYPE) ARM (3.4M ARM) (HEAVY DUTY) (100 HOURS GREASING TYPE) (FOR ADDITIONAL PIPING) ARM (FOR LOADER) ARM (500 HOURS GREASING TYPE) (BUCKET CYLINDER) ARM (100 HOURS GREASING TYPE) (BUCKET CYLINDER) ARM (BOTTOM DUMP CYLINDER LINE) (FOR LOADER) ARM (BUCKET LINK) ARM (LUBRICATING LINE) (FOR LOADER) ARM (3.4M) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) ARM (3.4M) (HEAVY DUTY) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) ARM (3.4M) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) (FOR ADDITIONAL PIPING) ARM (4.0M) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) ARM (3.4M) (HEAVY DUTY) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) (FOR ADDITIONAL PIPING) ARM (2.9M) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) ARM (2.4M) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) ARM (2.9M) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) (FOR ADDITIONAL PIPING) ARM (4.8M) (BUCKET CYLINDER HOSE AND LUBRICATING LINE) ARM (ARM PIN) (FOR LOADER) ARM (3.4M) (ADDITIONAL PIPING) ARM (2.9M) (ADDITIONAL PIPING) ARM (BUCKET LINK) (FOR LOADER) ARM (VALVE AND SPACER) (FOR ADDITIONAL PIPING) ARM (LUBRICATING LINE) (FOR BUCKET CYLINDER) (FOR LOADER) ARM (BUCKET CYLINDER) (FOR LOADER) BOTTOM DUMP CYLINDER LINE (BOTTOM DUMP CYLINDER) (FOR LOADER) BOTTOM DUMP CYLINDER LINE (HOSE) (FOR LOADER) BUCKET 1.9M3 1475MM (VERTICAL PIN TYPE) (WITH ADJUSTING) BUCKET 1.9M3 1440MM (HEAVY DUTY) (HORIZONTAL PIN TYPE) (WITH ADJUSTING) BUCKET 1.6M3 1270MM (HORIZONTAL PIN TYPE) BUCKET 2.2M3 1715MM (HORIZONTAL PIN TYPE) (WITH ADJUSTING) BUCKET 2.6M3 (FOR BOTTOM DUMP LOADER) BUCKET 1.3M3 1120MM (VERTICAL PIN TYPE) BUCKET 1.6M3 1270MM (VERTICAL PIN TYPE) BUCKET 2.1M3 1565MM (VERTICAL PIN TYPE) (WITH ADJUSTING) BUCKET 2.2M3 1715MM (VERTICAL PIN TYPE) (WITH ADJUSTING) RIPPER BUCKET 1.1M3 1250MM SINGLE SHANK RIPPER BUCKET 1.9M3 1475MM (HORIZONTAL PIN TYPE) (WITH ADJUSTING) BUCKET 2.1M3 1560MM (HEAVY DUTY) (HORIZONTAL PIN TYPE) (WITH ADJUSTING) BUCKET 2.1M3 1565MM (HORIZONTAL PIN TYPE) SIDE CUTTER SIDE SHROUD (FOR HEAVY DUTY BUCKET) HOOK (FOR BUCKET) (EXCEPT 1.9M3 TYPE) HOOK (FOR BUCKET) (FOR 1.9M3 BUCKET) SPACER BREAKER ADAPTER (FOR FURUKAWA) BREAKER ADAPTER (FOR KRUPP) BREAKER ADAPTER (FOR MONTABERT)(#60001-65326) BREAKER ADAPTER (FOR MONTABERT)(#65327-) BREAKER ADAPTER (FOR NIPPON PNEUMATIC)(#60001-65326) BREAKER ADAPTER (FOR NIPPON PNEUMATIC)(#65327-) BREAKER ADAPTER (FOR OKADA) BREAKER ADAPTER (FOR MATSUDA) DECAL AND PLATE (ENGLISH) DECAL AND PLATE (ENGLISH) (LETTERING TYPE) (FOR U.S.A.) DECAL AND PLATE (TURKISH) DECAL AND PLATE (SPANISH) (LETTERING TYPE) PLATE (LUBRICATION STANDARD CHART) (WORK EQUIPMENT GREASE 500H) PLATE (LUBRICATION STANDARD CHART) (WORK EQUIPMENT GREASE 100H) PLATE (FOR WINDOW) (ENGLISH) (LETTERING TYPE) PLATE (FOR WINDOW) (RUSSIAN) PLATE (FOR WINDOW) (TURKISH) PLATE (FOR WINDOW) (ENGLISH) PLATE (FOR WINDOW) (SPANISH) (LETTERING TYPE) LOGO (2 SET) LOGO (3 SET) LOGO (1 SET) PLATE (LOAD RATING CHART) (ENGLISH) (FIXED GAUGE) PLATE (LOAD RATING CHART) (ENGLISH) (VARIABLE GAUGE) PLATE (LOAD RATING CHART) (SPANISH) (FIXED GAUGE) BATTERY CAUTION (SPANISH)(#65312-) BATTERY CAUTION (FOR U.S.A. AND PUERTO RICO)(#65312-) CAUTION PLATE (BATTERY) (TURKISH) MARKS AND PLATES (SIFT PATTERNISO) (ENGLISH) (FOR LOADER) DECAL (ENGLISH) CAUTION PLATE (TOP GUARD) (FOR LV2 GUARD) (ENGLISH) CAUTION PLATE (FRONT GUARD) (FOR LV2 GUARD) (ENGLISH) CAUTION PLATE (FRONT GUARD AND TOP GUARD) (FOR LV2 GUARD) (ENGLISH) CAUTION PLATE (FOR QUARRY) PLATE (AIR CLEANER DOUBLE ELEMENT) (ENGLISH) PLATE (AIR CLEANER DOUBLE ELEMENT) (SPANISH) PLATE (AIR CLEANER DOUBLE ELEMENT) (TURKISH) PLATE (AIR CLEANER DOUBLE ELEMENT) (ARABIC) PLATE (AIR CLEANER DOUBLE ELEMENT) (PERSIAN) PLATE (AIR CLEANER DOUBLE ELEMENT) (RUSSIAN) PLATE (WITH ACCUMULATOR) PLATE (WITH 2 ACCUMULATOR) PLATE (WITH ACCUMULATOR) (ENGLISH) (LETTERING TYPE) PLATE (WITH 2 ACCUMULATOR) (ENGLISH) (LETTERING TYPE) PLATE (WITH ACCUMULATOR) (SPANISH) (LETTERING TYPE) PLATE (WITH 2 ACCUMULATOR) (SPANISH) (LETTERING TYPE) PLATE (12V POWER SOURCE) (ENGLISH) PLATE (FOR BREAKER KIT)(#65358-) PLATE (12V POWER SOURCE)(#65358-) SPARE PARTS CAP AND OVERALL TOOL PREVENTIVE MAINTENANCE CLINIC PARTS FUEL SELF SUPPLY PUMP GREASE PUMP (ELECTRICAL TYPE) BLIND PARTS (BODY)(#60001-65242) BLIND PARTS (BODY)(#65243-65364) BLIND PARTS (BODY)(#65365-) BLIND PARTS (BODY) (1 ACTUATOR)(#60001-65242) BLIND PARTS (BODY) (1 ACTUATOR)(#65243-65364) BLIND PARTS (BODY) (1 ACTUATOR)(#65365-) BLIND PARTS (FOR BURST VALVE) EXPORT TOOL ENGINE DRAIN HOSE SWING MACHINERY ASS'Y (SUPPLY PARTS) FINAL DRIVE ASS'Y (SUPPLY PARTS) SHOE BOLT AND NUT SERVICE KIT TRACK LINK (SUPPLY PARTS) (92 SET) AIR CLEANER (INNER PART) PRE-CLEANER (INNER PART) RUBBER ANTENNA(#60001-65364) RUBBER ANTENNA(#65365-) OPERATOR'S SEAT ASS'Y (SUSPENSION) OPERATOR'S SEAT ASS'Y (LEATHER SEAT) OPERATOR'S SEAT ASS'Y (FABRIC SEAT) MAIN PUMP (1/11)(#60001-65364) MAIN PUMP (1/12)(#65365-) MAIN PUMP (2/11)(#60001-65364) MAIN PUMP (2/12)(#65365-) MAIN PUMP (3/11)(#60001-65364) MAIN PUMP (3/12)(#65365-) MAIN PUMP (4/11)(#60001-65364) MAIN PUMP (4/12)(#65365-) MAIN PUMP (5/11)(#60001-65364) MAIN PUMP (5/12)(#65365-) MAIN PUMP (6/11)(#60001-65364) MAIN PUMP (6/12)(#65365-) MAIN PUMP (7/11)(#60001-65364) MAIN PUMP (7/12)(#65365-) MAIN PUMP (8/11)(#60001-65364) MAIN PUMP (8/12)(#65365-) MAIN PUMP (9/11)(#60001-65364) MAIN PUMP (9/12)(#65365-) MAIN PUMP (10/11)(#60001-65364) MAIN PUMP (10/12)(#65365-) MAIN PUMP (11/11)(#60001-65364) MAIN PUMP (11/12)(#65365-) MAIN PUMP (12/12)(#65365-) B00M CYLINDER B00M CYLINDER (FOR 100 HOURS LUBRICATING) B00M CYLINDER (FOR BURST VALVE) B00M CYLINDER (FOR LOADER) ARM CYLINDER ARM CYLINDER (FOR HEAVY DUTY BOOM) ARM CYLINDER (FOR 2.4M ARM) ARM CYLINDER (FOR 100 HOURS LUBRICATING) ARM CYLINDER (FOR LOADER) BUCKET CYLINDER BUCKET CYLINDER (100 HOURS LUBRICATING) BUCKET CYLINDER (FOR LOADER) BOTTOM DUMP CYLINDER (FOR LOADER) SWIVEL JOINT(#60001-65266) SWIVEL JOINT(#65267-) SWING MOTOR (1/3) SWING MOTOR (2/3) SWING MOTOR (3/3) TRAVEL MOTOR (1/3) TRAVEL MOTOR (2/3) TRAVEL MOTOR (3/3) MAIN VALVE (1/20)(#60001-60072) MAIN VALVE (1/20)(#60073-) MAIN VALVE (2/20) MAIN VALVE (3/20) MAIN VALVE (4/20) MAIN VALVE (5/20) MAIN VALVE (6/20) MAIN VALVE (7/20) MAIN VALVE (8/20) MAIN VALVE (9/20) MAIN VALVE (10/20) MAIN VALVE (11/20) MAIN VALVE (12/20) MAIN VALVE (13/20) MAIN VALVE (14/20) MAIN VALVE (15/20) MAIN VALVE (16/20) MAIN VALVE (17/20) MAIN VALVE (18/20)(#60001-65364) MAIN VALVE (18/20)(#65365-) MAIN VALVE (19/20) MAIN VALVE (20/20) MAIN VALVE (1-ACTUATOR) (1/23)(#60001-60072) MAIN VALVE (1-ACTUATOR) (1/23)(#60073-) MAIN VALVE (1-ACTUATOR) (2/23) MAIN VALVE (1-ACTUATOR) (3/23) MAIN VALVE (1-ACTUATOR) (4/23) MAIN VALVE (1-ACTUATOR) (5/23) MAIN VALVE (1-ACTUATOR) (6/23) MAIN VALVE (1-ACTUATOR) (7/23) MAIN VALVE (1-ACTUATOR) (8/23) MAIN VALVE (1-ACTUATOR) (9/23) MAIN VALVE (1-ACTUATOR) (10/23) MAIN VALVE (1-ACTUATOR) (11/23) MAIN VALVE (1-ACTUATOR) (12/23) MAIN VALVE (1-ACTUATOR) (13/23) MAIN VALVE (1-ACTUATOR) (14/23) MAIN VALVE (1-ACTUATOR) (15/23) MAIN VALVE (1-ACTUATOR) (16/23) MAIN VALVE (1-ACTUATOR) (17/23) MAIN VALVE (1-ACTUATOR) (18/23) MAIN VALVE (1-ACTUATOR) (18/23)(#65365-) MAIN VALVE (1-ACTUATOR) (19/23) MAIN VALVE (1-ACTUATOR) (20/23) MAIN VALVE (1-ACTUATOR) (21/23) MAIN VALVE (1-ACTUATOR) (22/23) MAIN VALVE (1-ACTUATOR) (23/23) MAIN VALVE (1-ACTUATOR) (1/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (2/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (3/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (4/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (5/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (6/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (7/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (8/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (9/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (10/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (11/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (12/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (13/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (14/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (15/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (16/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (17/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (18/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (19/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (20/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (21/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (22/23) (FOR LOADER) MAIN VALVE (1-ACTUATOR) (23/23) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (1/25)(#60001-60072) MAIN VALVE (2-ACTUATOR) (1/25)(#60073-) MAIN VALVE (2-ACTUATOR) (2/25) MAIN VALVE (2-ACTUATOR) (3/25) MAIN VALVE (2-ACTUATOR) (4/25) MAIN VALVE (2-ACTUATOR) (5/25) MAIN VALVE (2-ACTUATOR) (6/25) MAIN VALVE (2-ACTUATOR) (7/25) MAIN VALVE (2-ACTUATOR) (8/25) MAIN VALVE (2-ACTUATOR) (9/25) MAIN VALVE (2-ACTUATOR) (10/25) MAIN VALVE (2-ACTUATOR) (11/25) MAIN VALVE (2-ACTUATOR) (12/25) MAIN VALVE (2-ACTUATOR) (13/25) MAIN VALVE (2-ACTUATOR) (14/25) MAIN VALVE (2-ACTUATOR) (15/25) MAIN VALVE (2-ACTUATOR) (16/25) MAIN VALVE (2-ACTUATOR) (17/25) MAIN VALVE (2-ACTUATOR) (18/25)(#60001-65364) MAIN VALVE (2-ACTUATOR) (18/25)(#65365-) MAIN VALVE (2-ACTUATOR) (19/25) MAIN VALVE (2-ACTUATOR) (20/25) MAIN VALVE (2-ACTUATOR) (21/25) MAIN VALVE (2-ACTUATOR) (22/25) MAIN VALVE (2-ACTUATOR) (23/25) MAIN VALVE (2-ACTUATOR) (24/25) MAIN VALVE (2-ACTUATOR) (25/25) MAIN VALVE (2-ACTUATOR) (1/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (2/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (3/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (4/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (5/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (6/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (7/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (8/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (9/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (10/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (11/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (12/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (13/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (14/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (15/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (16/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (17/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (18/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (19/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (20/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (21/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (22/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (23/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (24/25) (FOR LOADER) MAIN VALVE (2-ACTUATOR) (25/25) (FOR LOADER) PPC VALVE (FOR TRAVEL) (1/2) PPC VALVE (FOR TRAVEL) (2/2) PPC VALVE (FOR WORK EQUIPMENT) WORK EQUIPMENT LEVER (1/2) (L.H.) (FOR LOADER) WORK EQUIPMENT LEVER (1/2) (R.H.) (FOR LOADER) WORK EQUIPMENT LEVER (2/2) (L.H.) (FOR LOADER) WORK EQUIPMENT LEVER (2/2) (R.H.) (FOR LOADER) PPC VALVE (FOR ATTACHMENT) EPC VALVE SAFETY VALVE LOCK VALVE (ARM) SELECTOR VALVE BURST VALVE (FOR BOOM CYLINDER) ACCUMULATOR (AL300-1) RETURN FILTER SOLENOID VALVE (INNER PARTS) SOLENOID VALVE (INNER PARTS) SOLENOID VALVE (INNER PARTS) BREATHER (FOR HYDRAULIC TANK) VALVE (FOR ACCUMULATOR)(#60001-65326) VALVE (FOR ACCUMULATOR)(#65327-) COMPRESSOR ASS'Y (FOR AIR CONDITIONER) UNIT ASS'Y (FOR AIR CONDITIONER) GREASE PUMP ASS'Y (ELECTRICAL TYPE)

1

2

3

4

5

6

7

7

8

8

9

9

Позиция на иллюстрации	Заводской номер детали		Название детали
1	208-70-31190		PIN
2	205-70-66580		PLATE
3	01010-81235		BOLT
4	01643-31232		WASHER
5	207-70-11360		SPACER, 1.0MM
6	208-72-52150		PIN
7	208-72-52160		HOLDER
8	01010-81645		BOLT
9	01643-31645		WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
