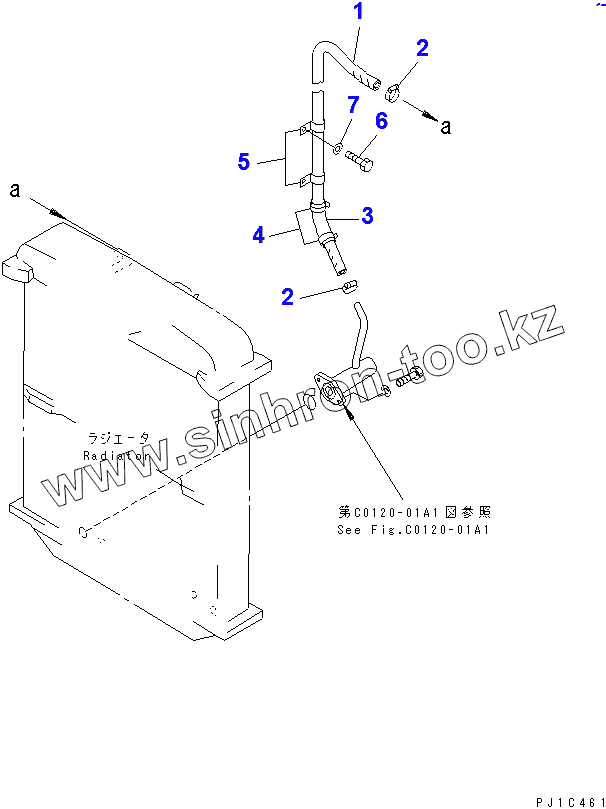

Каталог запасных частей к технике: Komatsu D85C-21A. RADIATOR PIPING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано D155C-1 (2010) D155C-1 (спец.) (2010) D155C-1D (2010) D155C-1P (2010) D355C-3 (2010) D355C-3 (2010) D85A-21 (2010) D85A-21 (2010) D85A-21B (2010) D85C-21A (2010) PC200, 210(LC)-7 (2004) PC200-6 (2010) PC200-7 (2010) PC200-7-AA (2010) PC200-8MO (2010) PC200LC-7 (2010) PC200LC-8M0 (2010) PC210-6 (2010) PC210LC-6 (2010) PC220-7 (2010) PC220-8MO (2010) PC220LC-8MO (2010) PC300-7 (2010) PC300-8MO (2010) PC300LC-7 (2010) PC300LC-8MO (2010) PC35MR-3 (2010) PC400-7 (2010) PC400-7EO (2010) PC400LC-7 (2010) PC55MR-3 (2010) WB93R-5E0 (2018) WB93S-5E0 (2018) WB97S-5E0 (2018) Погрузчик SK820 (2015)

Схема > Не выбрано ENGINE MOUNT MUFFLER RADIATOR PIPING V-BELT (RADIATOR FAN PULLEY) FUEL TANK FUEL PIPING FUEL PIPING (WITH WATER SEPARATOR)(37613-) ENGINE ROOM CABLE REAR CABLE REAR CABLE (WITH WINCH SAFETY DEVICE)(37613-) WIRE CONNECTION SAFETY WIRING RELAY (WITH WINCH SAFETY DEVICE)(37613-) POWER TAKE OFF (1/3) POWER TAKE OFF (2/3) POWER TAKE OFF (3/3) UNIVERSAL JOINT TORQUE CONVERTER UNIT TORQUE CONVERTER (BARE AND OUTPUT AND DRIVE CASE) (1/4) TORQUE CONVERTER (REAR HOUSE) (2/4) TORQUE CONVERTER (SCAVENGING PUMP) (3/4) TORQUE CONVERTER (VALVE) (4/4) TRANSMISSION (BARE) (1/6) TRANSMISSION (HOUSING) (2/6) TRANSMISSION (CARRIER) (3/6) TRANSMISSION (CASE) (4/6) TRANSMISSION (TRANSFER) (5/6) TRANSMISSION (INPUT AND OUTPUT) (6/6) TRANSMISSION CONTROL VALVE (1/3) TRANSMISSION CONTROL VALVE (2/3) TRANSMISSION CONTROL VALVE (3/3) TRANSMISSION LUBRICATION VALVE BEVEL GEAR AND SHAFT STEERING CLUTCH STEERING CASE COVER STEERING CASE COVER (WITH WINCH SAFETY DEVICE)(37613-) BRAKE BAND AND LINKAGE FINAL DRIVE (GEAR) FINAL DRIVE (GEAR AND SHAFT) FINAL DRIVE (SPROCKET AND CASE) STEERING CONTROL VALVE STEERING CONTROL VALVE PLATE STEERING PUMP TRANSMISSION PUMP POWER LINE PIPING (SUCTION LINE) POWER LINE PIPING (TRANSMISSION LINE) POWER LINE PIPING (TRANSMISSION LINE) (WITH WINCH SAFETY DEVICE)(37613-) TORQUE CONVERTER AND STEERING RELIEF VALVE POWER LINE PIPING (STEERING LINE) POWER LINE PIPING (LUBRICATE LINE) TRANSMISSION RELIEF VALVE TORQUE CONVERTER AND OIL COOLER PIPING PRESSURE CHECK SAFETY PIPING (WITH WINCH SAFETY DEVICE)(37613-) SOLENOID VALVE RELATED (WITH WINCH SAFETY DEVICE)(37613-) POWER LINE STRAINER AND FILTER COUNTER WEIGHT TANK RELATED PARTS COUNTER WEIGHT PUMP STEERING CASE FRAME STEERING CASE REAR COVER LEVEL GAUGE LEVEL GAUGE (WITH WINCH SAFETY DEVICE)(37613-) SUSPENSION OPERATOR'S SEAT OPERATOR'S SEAT ASSEMBLY SEAT BELT CAB (BODY AND COVER) CAB (COVER) CAB (COVER) (WITH VENTILATOR)(37613-) CAB (DOOR AND WINDOW) CAB (DOOR AND WINDOW) (WITH WINCH SAFETY DEVICE)(37613-) CAB (INTERIOR)(36551-37779) CAB (INTERIOR)(37780-) CAB (INTERIOR) (WITH VENTILATOR)(37613-37779) CAB (INTERIOR) (WITH VENTILATOR)(37780-) CAB (ELECTRICAL PARTS) CAB (REAR WORK LAMP AND WIPER)(36551-37779) CAB (REAR WORK LAMP AND WIPER)(37780-) CAB (VENTILATOR¤REAR WORK LAMP AND WIPER)(37613-37779) CAB (VENTILATOR¤REAR WORK LAMP AND WIPER)(37780-) CAB (HEATER RELATED PARTS) CAB (HOT AIR PIPING AND AIR CONDITIONER RELATED PARTS)(36551-37779) CAB (HEATER RELATED PARTS) (FOR AIR CONDITIONER)(37780-) CAB (DUCT RELATED PARTS) CAB (HEATER PIPING) CAB (COOLER PIPING) (FOR AIR CONDITIONER) CAB (BLANK PARTS)(37780-) CAB (WORK LAMP)(37780-) CAB (WORK LAMP) (WITH VENTILATOR)(37780-) CAB (FOG LAMP)(37780-) CAB (REAR VIEW MIRROR)(37780-) CAB (WINCH LAMP)(37780-) CAB (SUNVISOR) HEATER ASS'Y AIR CONDITIONER UNIT GRILL ASS'Y GRILL ASS'Y (FOR AIR CONDITIONER) CONDENSER ASS'Y (FOR AIR CONDITIONER) CAB MOUNT FLOOR MAT SUNVISOR(36551-37779) HEATER PIPING COOLER PIPING COOLER PIPING (FOR AIR CONDITIONER) (FOR SAND AND DUSTY) COMPRESSOR RELATED PARTS AIR COMPRESSOR(36551-37842) AIR COMPRESSOR(37843-) AIR COMPRESSOR (FOR SAND AND DUSTY)(36551-37842) AIR COMPRESSOR (FOR SAND AND DUSTY)(37843-) CIGA LIGHTER AND ASHTRAY EXTINGUISHER FIRST AID BOX THERMOS BOTTLE THERMOS BOTTLE (BELT)(37778-) FLOOR FRAME FLOOR FRAME (WITH WINCH SAFETY DEVICE)(37613-) FLOOR FRAME (WITH COMBUSTIBLE HEATER) (WITH WINCH SAFETY DEVICE)(37613-) FLOOR FRAME (WITH WINCH SAFETY DEVICE)(37806-) FLOOR FRAME (WITH OVER WIND ALARM)(37757-) DECELERATOR PEDAL SHUTTER CONTROL LEVER(37613-) ENGINE CONTROL LEVER (1/3) ENGINE CONTROL LEVER (2/3) ENGINE CONTROL LEVER (3/3) PARKING LEVER TRANSMISSION CONTROL LEVER (1/2) TRANSMISSION CONTROL LEVER (2/2) WINCH CONTROL LEVER WINCH CONTROL LEVER (WITH WINCH SAFETY DEVICE)(37613-) HOOK AND HI-LOW LEVER LINKAGE WINCH CONTROL LEVER LINKAGE BOOM CONTROL LEVER BOOM CONTROL LEVER (WITH WINCH SAFETY DEVICE)(37613-) BOOM CONTROL LEVER (WITH WINCH SAFETY DEVICE)(37806-) HOOK AND HI-LOW LEVER COUNTER WEIGHT CONTROL COUNTER WEIGHT CONTROL (WITH WINCH SAFETY DEVICE)(37613-) BOOM KICOUT CONTROL REAR CABLE REAR CABLE (WITH WINCH SAFETY DEVICE)(37613-) CAB DOOR LOCK (WITH VENTILATOR)(37613-) CIGA LIGHTER AND ASHTRAY BLANK CAP(38013-) CIGA LIGHTER AND ASHTRAY (WITH COMBUSTIBLE HEATER) (WITH WINCH SAFETY DEVICE)(37613-) INSTRUMENT PANEL INSTRUMENT PANEL (WITH WINCH SAFETY DEVICE)(37613-) DASH BOARD BRAKE PEDAL (1/3) BRAKE PEDAL (2/3) BRAKE PEDAL (3/3) FUEL LEVER PARKING LEVER LINKAGE BRAKE CONTROL LINKAGE INSPECTION LAMP CABLE BLANK CAP(38013-) OVERWIND ALARM WIRING OVERWIND ALARM WIRING (WITH WINCH SAFETY DEVICE)(37613-) WIRING (CAB SOURCE) (OVER WIND ALARM LESS)(38013-) SAFETY DEVICE RELATED(37613-) MIKUNI COMBUSTIBLE HEATER (WITH WINCH SAFETY DEVICE)(37613-) MIKUNI COMBUSTIBLE HEATER RELATED PARTS (WITH WINCH SAFETY DEVICE)(37613-) FLOOR FRAME COVER ENGINE CONTROL LINKAGE ENGINE CONTROL LEVER LINKAGE TRANSMISSION CONTROL LINKAGE KNOB SHUTTER CONTROL LINKAGE (1/2) SHUTTER CONTROL LINKAGE (2/2) RADIATOR RADIATOR MOUNTING RADIATOR PIPING RADIATOR FAN PULLEY RADIATOR FAN PULLEY (REVERSIBLE FAN) RADIATOR FAN GUARD AND WIND BRAKE CORE GRID ENGINE ROOM CABLE SIDE LAMP(36551-37779) SIDE LAMP(37780-) RADIATOR GUARD RADIATOR GUARD (WITH SHUTTER) RADIATOR SHUTTER RADIATOR FAN NET RADIATOR MASK RADIATOR GUARD RELATED PARTS RADIATOR MASK (MARK) ENGINE HOOD (OPEN) (WITH HAND RAIL) (FOR SAND DUSTY SPEC.)(37842-) ENGINE HOOD (CLOSE) (FOR SAND DUSTY SPEC.) ENGINE HOOD (OPEN) (FOR SAND DUSTY SPEC.) ENGINE SIDE COVER (CLOSE) ENGINE SIDE COVER (WITHOUT SIDE COVER) ENGINE SIDE COVER AND HOOD COVER (CLOSE) PRECLEANER UNIT (SAND DUSTY SPEC.) FENDER FENDER (WITH COMBUSTIBLE HEATER) (WITH WINCH SAFETY DEVICE)(37613-) ENGINE CONTROL LEVER SUPPORT REAR SUPPORT REAR SUPPORT (WITH WINCH SAFETY DEVICE)(37613-) FLOOR FRAME MOUNT BATTERY COVER BATTERY COVER (WITH WINCH SAFETY DEVICE)(37613-) FENDER CABLE FENDER CABLE (WITH WINCH SAFETY DEVICE)(37613-) TRANSMISSION CONTROL LEVER BATTERY (C200¤ WET) BATTERY (NS200¤ WET)(36511-) BATTERY CABLE COUNTER WEIGHT TANK AND VALVE COUNTER WEIGHT TANK AND VALVE (WITH WINCH SAFETY DEVICE)(37613-) SHUTTER CONTROL LEVER LINKAGE(37613-) REAR COVER COUNTER WEIGHT PIPING (1/2) COUNTER WEIGHT PIPING (2/2) COUNTER WEIGHT CONTROL WINCH CONTROL LEVER MIKUNI COMBUSTIBLE HEATER RELATED PARTS (WITH WINCH SAFETY DEVICE)(37613-) BACK UP ALARM FENDER RELATED PARTS FENDER RELATED PARTS (WITH WINCH SAFETY DEVICE)(37613-) FENDER RELATED PARTS (WITH COMBUSTIBLE HEATER) (WITH WINCH SAFETY DEVICE)(37613-) FENDER RELATED PARTS (STD) FENDER RELATED PARTS (FOR TURKMENISTAN)(37842-) REAR COVER UNDER GUARD (WITH HINGE) TRACK SHOE (610MM WIDE) TRACK SHOE (660MM WIDE) TRACK SHOE (710MM WIDE) RECOIL SPRING (L.H.) TRACK FRAME (L.H.) RECOIL SPRING CYLINDER (L.H.) FRONT IDLER TRACK ROLLER (SINGLE FLANGE) TRACK ROLLER (DOUBLE FLANGE) CARRIER ROLLER TRACK ROLLER GUARD (CENTER) RECOIL SPRING (R.H.) TRACK FRAME (R.H.) RECOIL SPRING CYLINDER (R.H.) TRACK FRAME COVER COUNTER WEIGHT COUNTER WEIGHT PIPING (1/2) COUNTER WEIGHT PIPING (2/2) COUNTER WEIGHT CONTROL LINKAGE COUNTER WEIGHT CYLINDER BOOM (5.5M) BOOM (6.2M) BOOM (7.3M) HOOK BLOCK SHEAVE BLOCK SHEAVE BLOCK (WITH WINCH SAFETY DEVICE)(37613-) MOMENT LIMITER (7.3M BOOM)(37613-37726) MOMENT LIMITER (7.3M BOOM)(37727-) MOMENT LIMITER (5.5M BOOM)(37613-37726) MOMENT LIMITER (5.5M BOOM)(37727-) ANGLE GAUGE (7.3M) ANGLE GAUGE (5.5M) ANGLE GAUGE (7.3M) (WITH WINCH SAFETY DEVICE)(37613-) ANGLE GAUGE (5.5M) (WITH WINCH SAFETY DEVICE)(37613-) ANGLE GAUGE (6.2M) (WITH WINCH SAFETY DEVICE)(37613-) OVERWIND ALARM (5.5M) OVERWIND ALARM (6.2M) OVERWIND ALARM (7.3M) OVERWIND RELAY SWITCH (WITH WINCH SAFETY DEVICE)(37613-) HOOK WIRE LOCK FRAME CENTER FRAME CENTER FRAME (STD) FRAME COVER FRAME COVER (STD) WINCH (CASE) WINCH (UNIVERSAL JOINT) WINCH (2ND¤ 3RD AND 4TH SHAFT) WINCH (5TH AND 6TH SHAFT) WINCH (7TH SHAFT) WINCH (VALVE SEAT) (1/3) WINCH (VALVE SEAT) (2/3) WINCH (VALVE SEAT) (3/3) WINCH (COVER AND TUBE) WINCH CLUTCH (BOOM AND HOOK) WINCH CLUTCH (HIGHT) WINCH CLUTCH (LOW) WINCH BRAKE (BOOM AND HOOK) FLOW DIVIDER WINCH OIL STRAINER WINCH OIL FILTER WINCH PUMP WINCH CONTROL BOX WINCH CASE RELATED WIRE ROPE (7.3M) WIRE ROPE (5.5M) DRUM ROLLER(37613-) WINCH CONTROL LEVER WINCH CONTROL LINKAGE WINCH CONTROL KNOB BOOM KICOUT CONTROL OIL COOLER PIPING DRAWBAR (FIX) MARK (RUSSIAN) MARK (RUSSIAN) (WITH WINCH SAFETY DEVICE)(37613-) MARK (ENGLISH) MARK AND PLATE (CENTER OFF GRAVITY) MARK (AIR CLEANER) MARK AND PLATE (ENGLISH) (SEAT BELT) MARK AND PLATE (RUSSIAN) (SEAT BELT)(37842-) SPARE PARTS CAP AND OVERALL TOOL TOOL (RUSSIAN)(37778-) INSPEC LAMP VANDALISM PROTECTION VANDALISM PROTECTION (STD) ELECTRICAL ENGINE HEATER(37757-) KIT SHOE BOLT AND NUT SERVICE KIT TRANSMISSION PUMP STEERING PUMP COUNTER WEIGHT PUMP COUNTER WEIGHT CYLINDER COUNTER WEIGHT CONTROL VALVE (1/2) COUNTER WEIGHT CONTROL VALVE (2/2) PPC VALVE (FOR WINCH) HIGH-LOW SELECT VALVE (FOR WINCH)

2

2

3

4

5

6

7

Позиция на иллюстрации	Заводской номер детали		Название детали
1	154-03-31361		HOSE
2	07281-00419		CLAMP
3	205-62-53780		COVER
4	08034-00823		BAND
5	581-04-22290		CLIP
6	01010-81220		BOLT
7	01643-31232		WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
