RIPPER CYLINDER(35001-)

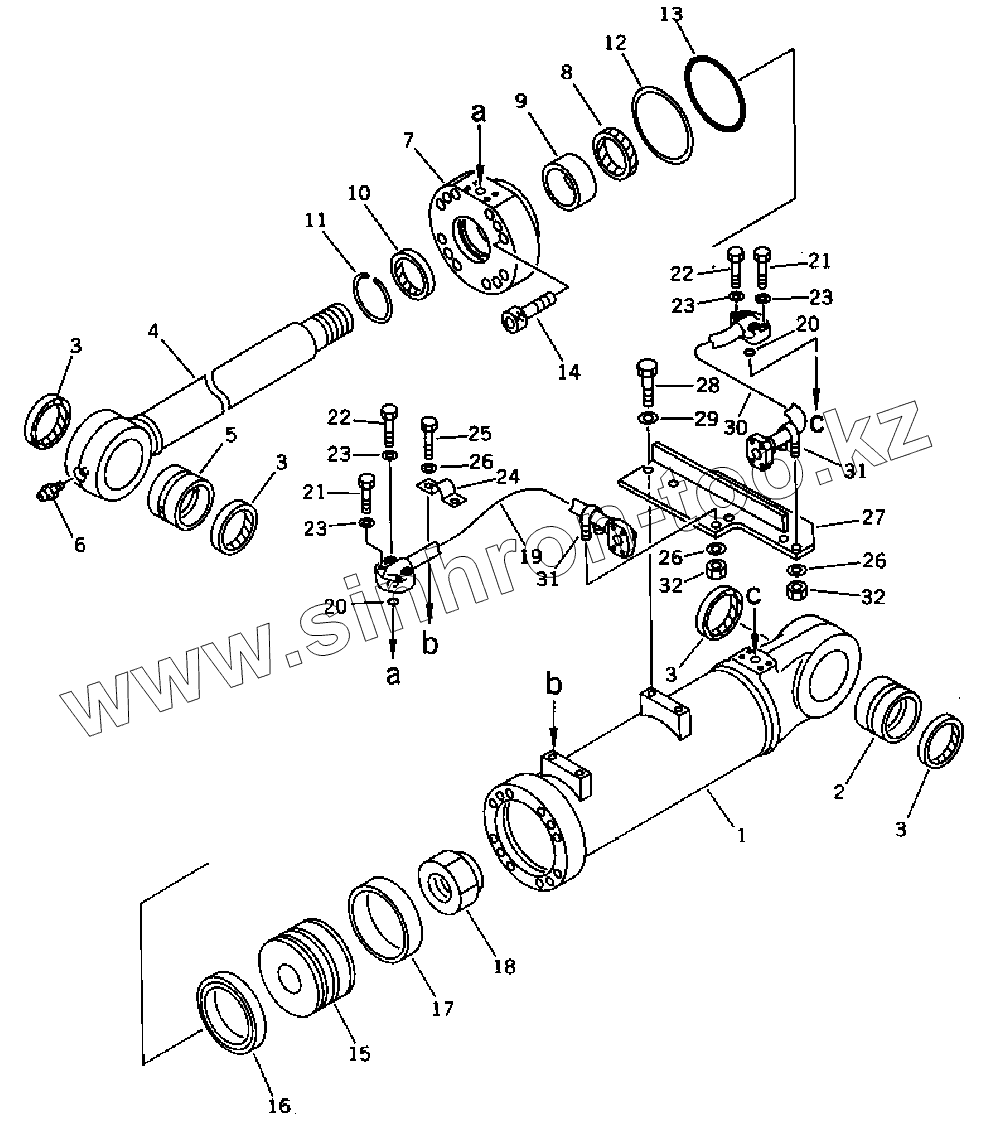

Каталог запасных частей к технике: Komatsu D85A-21B. RIPPER CYLINDER(35001-)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
D155C-1 (2010)
D155C-1 (спец.) (2010)
D155C-1D (2010)
D155C-1P (2010)
D355C-3 (2010)
D355C-3 (2010)
D85A-21 (2010)
D85A-21 (2010)
D85A-21B (2010)
D85C-21A (2010)
PC200, 210(LC)-7 (2004)
PC200-6 (2010)
PC200-7 (2010)
PC200-7-AA (2010)
PC200-8MO (2010)
PC200LC-7 (2010)
PC200LC-8M0 (2010)
PC210-6 (2010)
PC210LC-6 (2010)
PC220-7 (2010)
PC220-8MO (2010)
PC220LC-8MO (2010)
PC300-7 (2010)
PC300-8MO (2010)
PC300LC-7 (2010)
PC300LC-8MO (2010)
PC35MR-3 (2010)
PC400-7 (2010)
PC400-7EO (2010)
PC400LC-7 (2010)
PC55MR-3 (2010)
WB93R-5E0 (2018)
WB93S-5E0 (2018)
WB97S-5E0 (2018)
Погрузчик SK820 (2015)
Схема
>
Не выбрано
ENGINE NOUNT(35001-)
POWER TAKE OFF(35001-)
RADIATOR(35001-)
RADIATOR PIPING AND WIND BREAKER(35001-)
RADIATOR PIPING AND WIND BREAKER (FOR SLAG HANDLING)(35001-)
RADIATOR FAN GUARD(35001-35476)
RADIATOR FAN GUARD(35477-)
RADIATOR FAN PULLEY(35001-)
RADIATOR MOUNTING(35001-)
FUEL TANK(35001-)
FUEL TANK (FOR QUICK CHARGE)(35001-)
FUEL PIPING(35001-)
BATTERY AND RELAY SWITCH(35001-)
INSTRUMENT PANEL(35001-)
ELECTRICAL SYSTEM (1/3)(35001-)
ELECTRICAL SYSTEM (2/3)(35001-)
ELECTRICAL SYSTEM (3/3)(35001-)
BACK-UP ALARM(35001-)
BACK-UP ALARM (TRIMMING)(36441-)
UNIVERSAL JOINT(35001-)
TORQUE CONVERTER (1/2)(35001-)
TORQUE CONVERTER (2/2)(35001-)
TRANSMISSION - CASE (1/5)(35001-)
TRANSMISSION - GEAR AND SHAFT (1/3) (2/5)(35001-)
TRANSMISSION - GEAR AND SHAFT (2/3) (3/5)(35001-)
TRANSMISSION - GEAR AND SHAFT (3/3) (4/5)(35001-)
TRANSMISSION¤TRANSFER (5/5)(35001-)
TRANSMISSION VALVE (1/2)(35001-)
TRANSMISSION VALVE (2/2)(35001-)
TRANSMISSION VALVE COVER AND LEVER(35001-)
STEERING CASE AND MAIN FRAME(35001-)
BEVEL GEAR AND SHAFT(35001-)
STEERING CLUTCH(35001-)
BRAKE BAND AND LINKAGE(35001-)
STEERING CASE COVER(35001-)
BRAKE BOOSTER(35001-)
FINAL DRIVE CASE AND GEAR (1/2)(35001-)
FINAL DRIVE CASE AND GEAR (2/2)(35001-)
SPROCKET AND SHAFT(35001-)
TRACK FRAME(35001-)
TRACK FRAME (TRIMMING)(36441-)
RECOIL SPRING(35001-)
TRACK FRAME COVER(35001-)
IDLER(35001-)
TRACK ROLLER(35001-)
TRACK ROLLER GUARD(35001-)
TRACK ROLLER GUARD (MINI SKIRT)(35001-)
CARRIER ROLLER(35001-)
TRACK SHOE (MASTER PIN TYPE) (SINGLE GROUSER)(35001-)
TRACK SHOE (MASTER PIN TYPE) (SINGLE GROUSER) (HEAVY DUTY)(35001-)
TRACK SHOE (MASTER PIN TYPE) (TRIPLE GROUSER)(35001-)
TRACK SHOE (MASTER PIN TYPE) (ON-ROCKBED)(35001-36326)
TRACK SHOE (LUBRICATE TYPE) (SINGLE GROUSER)(35001-36326)
TRACK SHOE (LUBRICATE TYPE) (SINGLE GROUSER)(36327-)
TRACK SHOE (LUBRICATE TYPE) (SINGLE GROUSER) (HEAVY DUTY)(35001-36326)
TRACK SHOE (LUBRICATE TYPE) (SINGLE GROUSER) (HEAVY DUTY)(36327-)
TRACK SHOE (LUBRICATE TYPE) (SINGLE GROUSER) (C.T.S.)(35001-)
TRACK SHOE (LUBRICATE TYPE) (SINGLE GROUSER) (C.T.S.) (HV)(35001-)
TRACK SHOE (LUBRICATE TYPE) (ON-ROCKBED)(35001-36326)
TRACK SHOE (LUBRICATE TYPE) (ON-ROCKBED) (COLD TERRAIN SPEC)(35001-)
FUEL CONTROL LEVER(35001-)
FUEL CONTROL LINKAGE(35001-)
DECELERATOR PEDAL(35001-)
TRANSMISSION CONTROL LEVER(35001-)
TRANSMISSION CONTROL LINKAGE (1/2)(35001-)
TRANSMISSION CONTROL LINKAGE (2/2)(35001-)
STEERING CONTROL LEVER(35001-)
STEERING AND BRAKE LINKAGE (1/2)(35001-)
STEERING AND BRAKE LINKAGE (2/2)(35001-)
BRAKE PEDAL(35001-)
BRAKE PEDAL LINKAGE(35001-)
PARKING BRAKE LEVER(35001-)
STEERING CONTROL VALVE(35001-)
MAIN RELIEF VALVE(35001-)
TRANSMISSION OIL FILTER(35001-)
OIL STRAINER(35001-)
STEERING PIPING (1/3)(35001-)
STEERING PIPING (2/3)(35001-)
STEERING PIPING (3/3)(35001-)
TRANSMISSION PUMP(35001-35320)
TRANSMISSION PUMP(35321-)
STEERING PUMP(35001-)
TORQUE CONVERTER AND OIL COOLER PIPING(35001-)
TORQFLOW TRANSMISSION PIPING(35001-35320)
TORQFLOW TRANSMISSION PIPING(35321-)
BRAKE PIPING(35001-)
CONCENTRATED PIPING(35001-)
RADIATOR GUARD(35001-)
ENGINE HOOD AND DASHBOAD(35001-)
ENGINE HOOD AND DASHBOAD (COLD TERRAIN SPEC.)(35001-)
FENDER(35001-)
SUPPORT AND REAR COVER(35001-)
FLOOR PLATE(35001-)
BOTTOM GUARD(35001-)
RADIATOR GUARD (TRIMMING)(36441-)
SUPPORT AND REAR COVER (TRIMMING)(36441-)
ROLL OVER PROTECTIVE STRUCTURE(35001-)
ROLL OVER PROTECTIVE STRUCTURE BRACKET(35001-)
CAB GUARD (WOODY TERRAIN SPEC.)(35001-)
CAB GUARD SWEEPER (WOODY TERRAIN SPEC.)(35001-)
BOTTOM GUARD AND SHORT EXHAUST PIPE (WOODY TERRAIN SPEC.)(35001-)
OPERATOR'S SEAT(35001-36320)
OPERATOR'S SEAT(36321-36480)
OPERATOR'S SEAT (KAB)(36481-)
EQUALIZER BAR(35001-)
DRAWBAR(35001-)
ROPS CAB TYPE 1(BODY) (1/7)(35001-)
ROPS CAB TYPE 1 (FRONT AND REAR WINDOW) (2/7)(35001-)
ROPS CAB TYPE 1 (SIDE WINDOW) (3/7)(35001-)
ROPS CAB¤ TYPE 1¤ (ELECTRICAL PARTS) (1/2) (4/7)(35001-)
ROPS CAB¤ TYPE 1¤ (ELECTRICAL PARTS) (2/2) (5/7)(35001-)
ROPS CAB¤ TYPE 1¤ (INNER TOP COVER) (1/2) (6/7)(35001-)
ROPS CAB¤ TYPE 1¤ (INNER TOP COVER) (2/2) (7/7)(35001-)
RELATED PARTS (FOR ROPS CAB¤ TYPE 1)(35001-)
ACCESSORIES (FOR ROPS CAB¤TYPE 1)(35001-)
ROPS CAB¤ TYPE 2¤ (BODY¤ FRONT AND REAR WINDOW) (1/5)(35001-)
ROPS CAB¤ TYPE 2¤ (SIDE WINDOW) (2/5)(35001-)
ROPS CAB¤ TYPE 2¤ (ELECTRICAL PARTS) (2/1) (3/5)(35001-)
ROPS CAB¤ TYPE 2¤ (ELECTRICAL PARTS) (2/2) (4/5)(35001-)
ROPS CAB¤ TYPE 2¤ (INNER TOP COVER) (5/5)(35001-)
RELATED PARTS (FOR ROPS CAB¤ TYPE 2)(35001-)
MUFFLER AND PRECLEANER EXTENTION (SANDY AND DUSTY TERRAIN SPEC.)(35001-)
COMPRESSOR RELATED PARTS(36441-)
COOLING PIPING (1/2)(36441-)
COOLING PIPING (2/2)(36441-)
HEATING PIPING(36441-)
HOT AIR PIPING AND AIR CONDITIONER RELATED PARTS(36441-)
HOT AIR PIPING AND HEATER RELATED PARTS(36441-)
CONDENSER ASS'Y (FOR AIRCONDENSER)(36441-)
GRILLE ASS'Y(FOR AIRCONDITIONER)(36441-)
WORK EQUIPMENT VALVE MOUNT (WITH RIPPER)(35001-)
HYDRAULIC TANK(35001-)
CYLINDER STAY(35001-)
WORK EQUIPMENT PUMP (1/2)(35001-)
WORK EQUIPMENT PUMP (2/2)(35001-)
BLADE CONTROL VALVE (1/5)(35001-)
BLADE CONTROL VALVE (2/5)(35001-)
BLADE CONTROL VALVE (3/5)(35001-)
BLADE CONTROL VALVE (4/5)(35001-)
BLADE CONTROL VALVE (5/5)(35001-)
RIPPER CONTROL VALVE (1/2)(35001-)
RIPPER CONTROL VALVE (2/2)(35001-)
BLADE LIFT CYLINDER (1/2)(35001-)
BLADE LIFT CYLINDER (2/2)(35001-)
BLADE LIFT CYLINDER (2/2) (TRIMMING)(36441-)
BLADE TRIMMING CYLINDER(36441-)
HYDRAULIC PIPING (TANK TO PUMP)(35001-)
HYDRAULIC PIPING (TANK TO PUMP) (TRIMMING)(36441-)
HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (1/2)(35001-)
HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (2/2)(35001-)
HYDRAULIC PIPING (TANK TO TILT CYLINDER)(35001-)
HYDRAULIC PIPING (TANK TO TRIMMING CYLINDER)(36441-)
HYDRAULIC PIPING (TANK TO RIPPER CYLINDER)(35001-)
BLADE CONTROL LEVER (FOR STRAIGHT TILT DOZER)(35001-)
BLADE CONTROL LEVER BRACKET (FOR STRAIGHT TILT DOZER)(35001-)
BLADE CONTROL LINKAGE (FOR STRAIGHT TILT DOZER)(35001-)
TILT CONTROL LINKAGE (FOR STRAIGHT TILT DOZER)(35001-)
TILT CONTROL LINKAGE (FOR TRIMMING DOZER)(36441-)
RIPPER CONTROL LEVER(35001-)
RIPPER CONTROL LINKAGE(35001-)
TOWING WINCH CONTROL LEVER AND LINKAGE(35001-)
STRAIGHT TILT BLADE(35001-)
STRAIGHT TILT FRAME(35001-)
BLADE TILT CYLINDER(35001-)
BLADE TILT CYLINDER PIPING(35001-)
BLADE TRIMMING CYLINDER PIPING (1/2)(36441-)
BLADE TRIMMING CYLINDER PIPING (2/2)(36441-)
STRAIGHT RAKE BLADE(35001-)
ANGLE BLADE(35001-)
C-FRAME(35001-)
STRAIGHT TILT U-BLADE(35001-)
MECHANICAL ANGLE POWER TILT BLADE(35001-)
MECHANICAL ANGLE POWER TILT FRAME(35001-)
MECHANICAL ANGLE POWER TILT CYLINDER(35001-)
MECHANICAL ANGLE POWER TILT CYLINDER PIPING (1/2)(35001-)
MECHANICAL ANGLE POWER TILT CYLINDER PIPING (2/2)(35001-)
TRIMMING BLADE(36441-)
TRIMMING FRAME(36441-)
RIPPER SHANK¤ BEAM AND LINK(35001-)
RIPPER CYLINDER(35001-)
RIPPER CYLINDER PIPING(35001-)
TOWING WINCH CASE (1/2)(35001-)
TOWING WINCH CASE (2/2)(35001-)
INPUT SHAFT AND BEVEL GEAR (FOR TOWING WINCH)(35001-)
BRAKE DRUM (FOR TOWING WINCH)(35001-)
CABLE DRUM (FOR TOWING WINCH)(35001-)
CLUTCH DRUM (FOR TOWING WINCH)(35001-)
BRAKE DRUM (FOR TOWING WINCH)(35001-)
CABLE (FOR TOWING WINCH)(35001-)
DRAWBAR (FOR TOWING WINCH)(35001-)
BRAKE CYLINDER (FOR TOWING WINCH)(35001-)
HYDRAULIC PUMP MOUNT (FOR TOWING WINCH)(35001-)
HYDRAULIC PIPING (FOR TOWING WINCH)(35001-)
WINCH PIPING (FOR TOWING WINCH)(35001-)
CONTROL VALVE (FOR TOWING WINCH)(35001-)
HYDRAULIC PUMP (FOR TOWING WINCH)(35001-)
FAIR LEAD (FOR TOWING WINCH)(35001-)
LOGGING ARM (FOR TOWING WINCH)(35001-)
REAR COVER (FOR TOWING WINCH)(35001-)
VANDALISM PROTECTION(35001-)
MARKS AND PLATES (ENGLISH)(35001-)
MARKS AND PLATES (ARABIC)(35001-)
MARKS AND PLATES (INDONESIAN)(35063-)
MARKS AND PLATES (SPANISH)(35001-)
MARKS AND PLATES (CHINESE)(35001-)
MARKS AND PLATES (FRENCH)(35063-)
MARKS AND PLATES (PERSIAN)(35001-)
MARKS AND PLATES (ENGLISH¤TRIMMING)(36441-)
TOOL(35001-)
KIT(35001-)
G-1
G-1
1
2
3
3
3
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
20
21
21
22
22
23
23
23
23
24
25
26
26
26
27
27
28
29
30
30
31
31
32
32
Позиция на иллюстрации
Заводской номер детали
Название детали
G-1
154-63-X2081
CYLINDER GROUP, RIPPER LIFT, L.H
G-1
154-63-X2091
CYLINDER GROUP, RIPPER LIFT, R.H
154-63-02081
154-63-02081
CYLINDER ASSY, RIPPER LIFT
1
154-63-44141
CYLINDER
2
154-63-42320
BUSHING
3
07145-00075
SEAL
4
154-63-44121
ROD
5
154-63-42420
BUSHING
6
07020-00000
FITTING, GREASE
7
707-27-14030
HEAD, CYLINDER
8
707-51-70211
PACKING
9
07177-07030
BUSHING
10
144-63-95170
SEAL, DUST
11
07179-12084
RING
11
07179-00093
RING, SNAP
12
07146-02136
RING, BACK-UP
13
07000-12135
O-RING
14
01252-31675
BOLT
15
707-36-14220
PISTON
16
707-44-14080
RING
17
07155-01435
RING, WEAR
18
07165-15252
NUT
19
154-78-42161
TUBE, L.H.
19
154-78-42171
TUBE, R.H.
20
07000-13025
O-RING
21
01010-50840
BOLT
22
01010-50845
BOLT
23
01643-30823
WASHER
24
07282-12288
CLAMP
25
01010-51020
BOLT
26
01643-31032
WASHER
27
707-88-11421
BRACKET, L.H.
27
707-88-11431
BRACKET, R.H.
28
01010-51230
BOLT
29
01643-31232
WASHER
30
154-78-42141
TUBE, L.H.
30
154-78-42151
TUBE, R.H.
31
07283-22236
CLIP
32
01599-01011
NUT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/180.gif)
