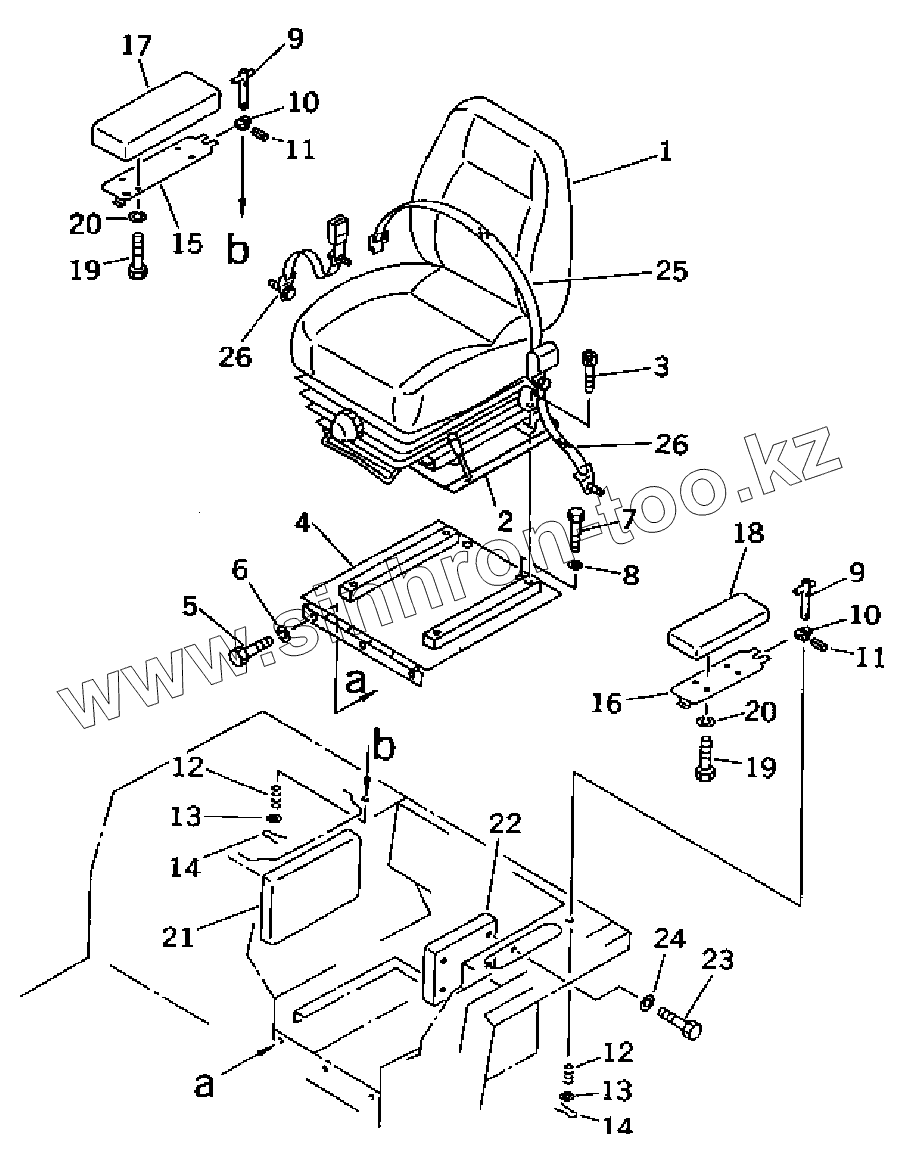

Позиция на иллюстрации
Заводской номер детали
Название детали
17A-57-22110
17A-57-22110
SEAT ASSY
1
17A-57-22120
SEAT ASSY, LEATHER
2
17A-57-21130
TURN TABLE ASSY
3
01252-40816
BOLT
4
154-57-12151
SEAT
5
01010-51225
BOLT
6
01602-21236
WASHER, SPRING
7
01010-51225
BOLT
8
01643-31232
WASHER
9
154-57-12131
PIN
10
154-57-12140
WASHER
11
04025-00520
PIN, SPRING
12
124-960-2160
SPRING
13
01640-21016
WASHER
14
04050-13015
PIN, COTTER
15
154-57-12111
COVER
16
154-57-13220
COVER
17
154-57-12121
REST, ARM
18
154-57-13210
REST, ARM
19
01010-50825
BOLT
20
01602-20825
WASHER, SPRING
21
195-57-11292
CUSHION, SIDE
22
154-57-13230
CUSHION
23
01010-50825
BOLT
24
01643-30823
WASHER
25
17A-57-21200
BELT, LAP
26
17A-57-21220
BELT, TETHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/104.gif)
