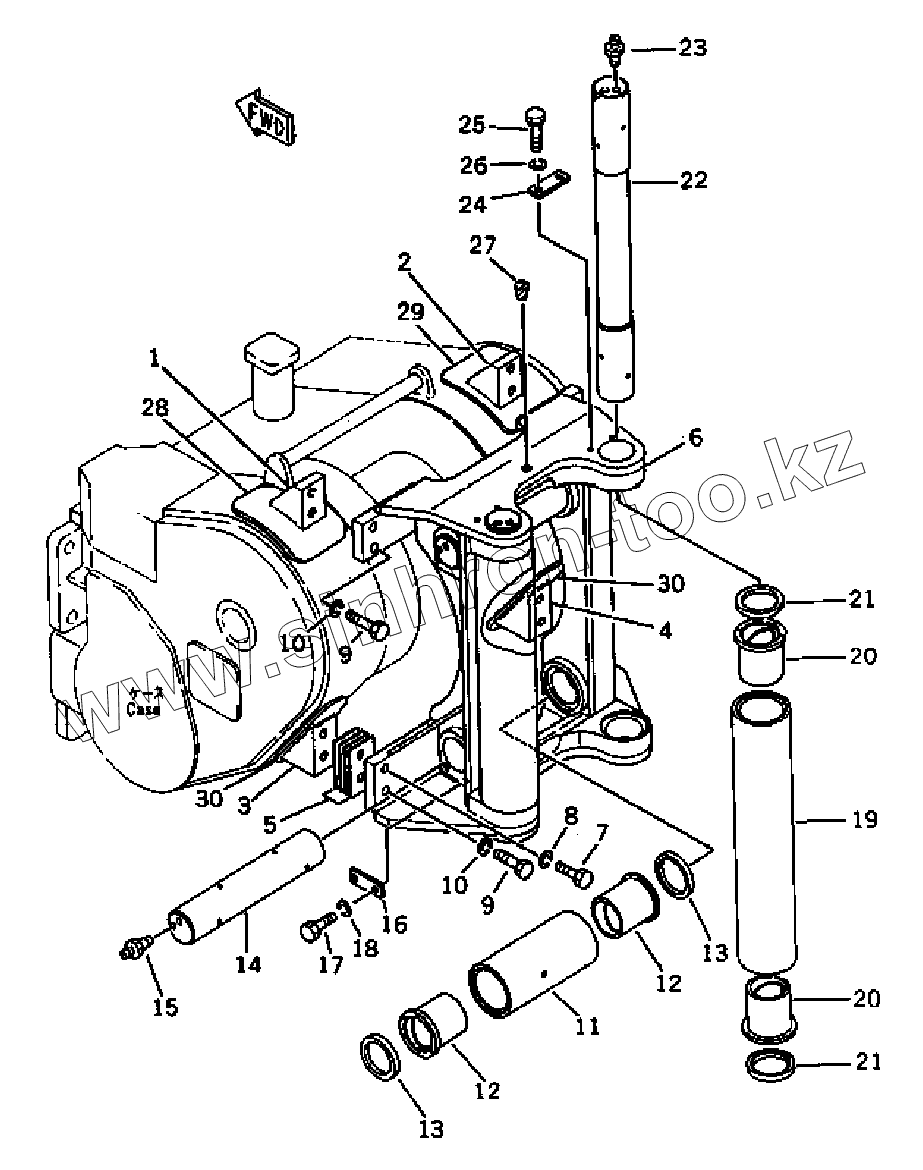

FAIR LEAD (FOR TOWING WINCH)(35001-)
LOGGING ARM (FOR TOWING WINCH)(35001-)
REAR COVER (FOR TOWING WINCH)(35001-)
VANDALISM PROTECTION(35001-)
MARKS AND PLATES (ENGLISH)(35001-)
MARKS AND PLATES (ARABIC)(35001-)
MARKS AND PLATES (INDONESIAN)(35063-)
MARKS AND PLATES (SPANISH)(35001-)
MARKS AND PLATES (CHINESE)(35001-)
MARKS AND PLATES (FRENCH)(35063-)
MARKS AND PLATES (PERSIAN)(35001-)
MARKS AND PLATES (ENGLISH¤TRIMMING)(36441-)
TOOL(35001-)
KIT(35001-)
G-1
1
2
3
4
5
6
7
8
9
9
10
10
11
12
12
13
13
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
27
28
29
30
30
Позиция на иллюстрации
Заводской номер детали
Название детали
G-1
154-916-X210
TOWING WINCH GROUP
175-962-0010
175-962-0010
FAIR LEAD ASSY
1
175-962-1250
BRACKET, UPPER, L.H.
2
175-962-1260
BRACKET, UPPER, R.H.
3
175-962-1230
BRACKET, LOWER, L.H.
4
175-962-1240
BRACKET, LOWER, R.H.
5
175-962-0020
SHIM ASSY
5
SHIM
SHIM
5
SHIM
SHIM
5
SHIM
SHIM
5
SHIM
SHIM
6
175-962-1110
FRAME
7
01010-32475
BOLT
8
01602-02472
WASHER, SPRING
9
01010-32480
BOLT
10
01602-02470
WASHER, SPRING
11
175-962-1130
ROLLER
12
175-962-1160
BUSHING
13
175-962-1170
WASHER
14
175-962-1150
SHAFT
15
07020-00000
FITTING, GREASE
16
04082-00609
LOCK
17
01010-31635
BOLT
18
01602-01648
WASHER, SPRING
19
175-962-1120
ROLLER
20
175-962-1160
BUSHING
21
175-962-1170
WASHER
22
175-962-1140
SHAFT
23
07020-00000
FITTING, GREASE
24
04082-00609
LOCK
25
01010-31635
BOLT
26
01602-01648
WASHER, SPRING
27
07049-03038
PLUG, BLIND
28
175-962-1280
PLATE, UPPER, L.H.
29
175-962-1290
PLATE, UPPER, R.H.
30
175-962-1270
PLATE, LOWER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/197.gif)
