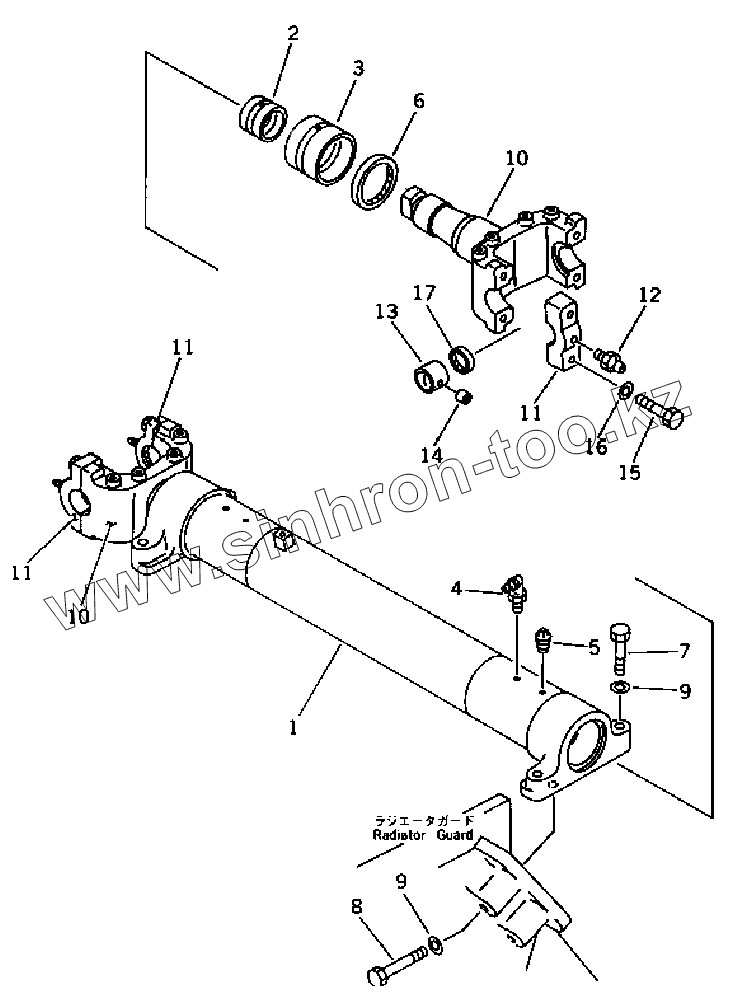

154-61-00080
1
2
3
4
5
6
7
8
9
9
10
10
10
11
11
11
12
13
14
15
16
17
Позиция на иллюстрации
Заводской номер детали
Название детали
154-61-00080
154-61-00080
CYLINDER STAY ASSY
1
STAY.CYLINDER
STAY.CYLINDER
2
154-61-13130
BUSHING
3
154-61-13141
BUSHING
4
07020-00900
FITTING, GREASE
5
07042-00108
PLUG
6
154-61-13150
SEAL, DUST
7
01010-52295
BOLT
8
01011-52245
BOLT
9
01643-32260
WASHER
10
154-61-00015
YOKE ASSY
10
Y0KE
YOKE
11
CAP
CAP
12
07020-00000
FITTING, GREASE
13
154-61-13246
BUSHING
14
170-70-15190
PIN
15
01010-51885
BOLT
16
01643-31845
WASHER
17
07145-00075
SEAL
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/133.gif)
