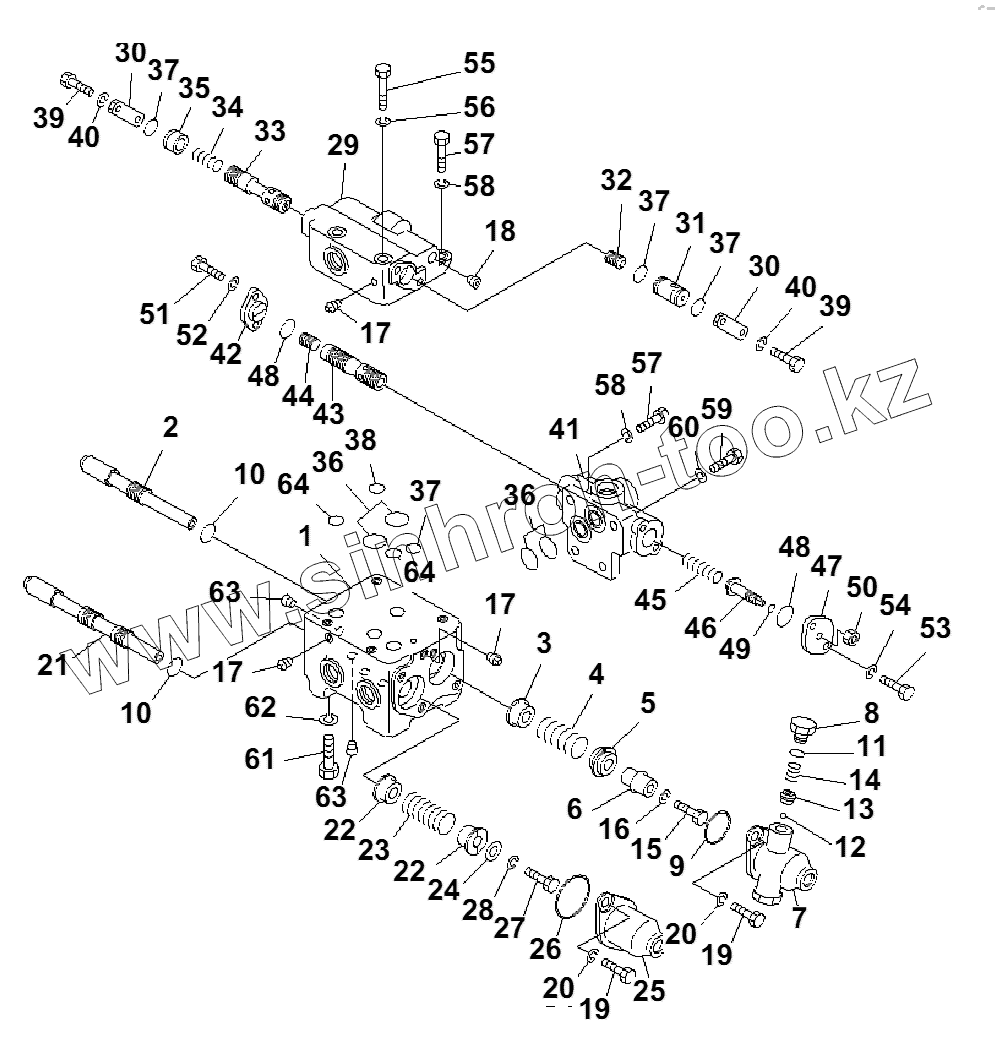

Каталог запасных частей к технике: Komatsu D85A-21B. CONTROL VALVE (FOR TOWING WINCH)(35001-)
/195.gif)
G-1
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
17
17
18
19
19
20
20
21
22
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
36
37
37
37
37
38
39
39
40
40
41
42
43
44
45
46
47
48
48
49
50
51
52
53
54
55
56
57
57
58
58
59
60
61
62
63
63
64
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| G-1 | 154-916-X210 | TOWING WINCH GROUP | |
| 144-916-0210 | 144-916-0210 | CONTROL VALVE ASSY | |
| 1 | BODY | BODY, VALVE | |
| 2 | 175-916-4120 | SPOOL | |
| 3 | 175-916-4130 | COLLAR | |
| 4 | 175-916-4140 | SPRING | |
| 5 | 175-916-4150 | STOPPER | |
| 6 | 175-916-4160 | STOPPER | |
| 7 | 175-916-4170 | COVER | |
| 8 | 175-916-4180 | PLUG | |
| 9 | 07000-03035 | O-RING | |
| 10 | 07000-02020 | O-RING | |
| 11 | 07000-02015 | O-RING | |
| 12 | 130-60-42380 | BALL | |
| 13 | 130-60-42390 | GUIDE | |
| 14 | 140-60-12310 | SPRING | |
| 15 | 01010-30825 | BOLT | |
| 16 | 01602-00825 | WASHER, SPRING | |
| 17 | 07042-00108 | PLUG | |
| 18 | 07043-00415 | PLUG | |
| 19 | 01010-31025 | BOLT | |
| 20 | 01602-01030 | WASHER, SPRING | |
| 21 | 175-916-4190 | SPOOL | |
| 22 | 175-916-4210 | COLLAR | |
| 23 | 175-916-4220 | SPRING | |
| 24 | 175-916-4230 | WASHER | |
| 25 | 175-916-4240 | COVER | |
| 26 | 07000-03048 | O-RING | |
| 27 | 01010-30816 | BOLT | |
| 28 | 01602-00825 | WASHER, SPRING | |
| 29 | 144-916-5220 | BODY, VALVE | |
| 30 | 175-916-4320 | PLATE | |
| 31 | 175-916-4330 | STOPPER | |
| 32 | 175-916-4340 | PISTON | |
| 33 | 175-916-4350 | VALVE | |
| 34 | 175-916-4360 | SPRING | |
| 35 | 175-916-4370 | STOPPER | |
| 36 | 07000-03025 | O-RING | |
| 37 | 07000-02018 | O-RING | |
| 38 | 07000-02012 | O-RING | |
| 39 | 01010-30820 | BOLT | |
| 40 | 01602-00825 | WASHER, SPRING | |
| 41 | 144-916-5230 | BODY, VALVE | |
| 42 | 175-916-4420 | STOPPER | |
| 43 | 175-916-4430 | VALVE | |
| 44 | 175-916-4440 | PISTON | |
| 45 | 175-916-4450 | SPRING | |
| 46 | 175-916-4460 | BOLT | |
| 47 | 175-916-4470 | STOPPER | |
| 48 | 07000-02020 | O-RING | |
| 49 | 07000-02010 | O-RING | |
| 50 | 01580-00806 | NUT | |
| 51 | 01010-30820 | BOLT | |
| 52 | 01602-00825 | WASHER, SPRING | |
| 53 | 01010-30830 | BOLT | |
| 54 | 01602-00825 | WASHER, SPRING | |
| 55 | 01010-31075 | BOLT | |
| 56 | 01602-01030 | WASHER, SPRING | |
| 57 | 01010-31030 | BOLT | |
| 58 | 01602-11030 | WASHER, SPRING | |
| 59 | 01010-31040 | BOLT | |
| 60 | 01602-01030 | WASHER, SPRING | |
| 61 | 01010-31245 | BOLT | |
| 62 | 01602-01236 | WASHER, SPRING | |
| 63 | 07043-00312 | PLUG | |
| 64 | 07000-02018 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
