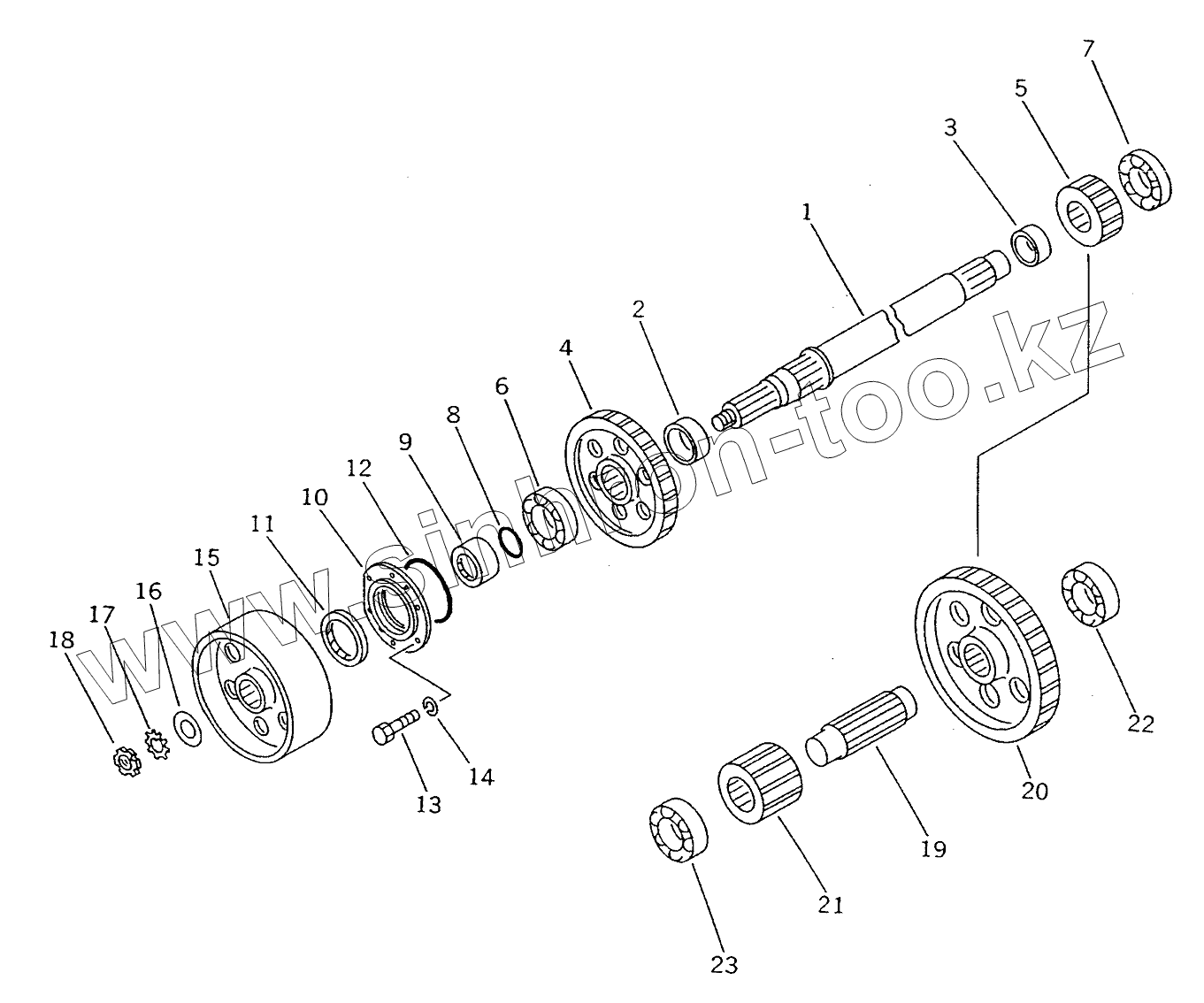

G-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Позиция на иллюстрации
Заводской номер детали
Название детали
G-1
0154-916-X210
TOWING WINCH GROUP
1
175-916-1370
SHAFT
2
175-916-1360
COLLAR
3
175-916-1380
COLLAR
4
175-916-1350
GEAR
5
175-916-1390
GEAR
6
06000-30316
BEARING
7
06000-32314
BEARING
8
07000-03078
O-RING
9
175-916-1340
COLLAR
10
175-916-1320
RETAINER
11
150-09-11170
SEAL, OIL
12
07000-05160
O-RING
13
01040-31235
BOLT
14
01602-01236
WASHER, SPRING
15
175-916-1310
DRUM
16
175-916-1290
WASHER
17
01656-04823
LOCK
18
01530-04812
NUT
19
175-916-1520
SHAFT
20
175-916-1490
GEAR
21
175-916-1510
GEAR
22
06000-30316
BEARING
23
06000-32316
BEARING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/185.gif)
