5. ENGINE HOOD (PERFOLATED)(37376-)

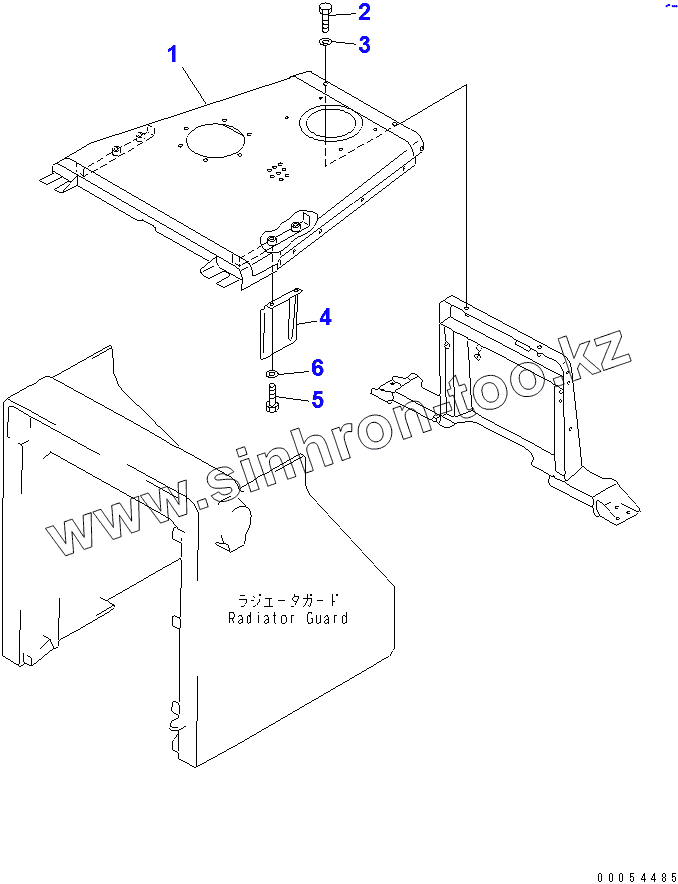

Каталог запасных частей к технике: Komatsu D85A-21. ENGINE HOOD (PERFOLATED)(37376-)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано D155C-1 (2010) D155C-1 (спец.) (2010) D155C-1D (2010) D155C-1P (2010) D355C-3 (2010) D355C-3 (2010) D85A-21 (2010) D85A-21 (2010) D85A-21B (2010) D85C-21A (2010) PC200, 210(LC)-7 (2004) PC200-6 (2010) PC200-7 (2010) PC200-7-AA (2010) PC200-8MO (2010) PC200LC-7 (2010) PC200LC-8M0 (2010) PC210-6 (2010) PC210LC-6 (2010) PC220-7 (2010) PC220-8MO (2010) PC220LC-8MO (2010) PC300-7 (2010) PC300-8MO (2010) PC300LC-7 (2010) PC300LC-8MO (2010) PC35MR-3 (2010) PC400-7 (2010) PC400-7EO (2010) PC400LC-7 (2010) PC55MR-3 (2010) WB93R-5E0 (2018) WB93S-5E0 (2018) WB97S-5E0 (2018) Погрузчик SK820 (2015)

Схема > Не выбрано ENGINE MOUNT (36534-37646) ENGINE MOUNT (37647-) MUFFLER MUFFLER (WITH EXTENTION PIPE) MUFFLER (SHORT PIPE) MUFFLER (FOR EU) (WITH EXTENTION) MUFFLER (FOR EU) (SHORT) PRECLEANER EXTENTION (SANDY AND DUSTY TERRAIN SPEC.) RADIATOR RADIATOR MOUNTING RADIATOR PIPING AND WIND BREAKER (36534-37821) RADIATOR PIPING (37822-) RADIATOR FAN PULLEY (36534-37821) RADIATOR FAN PULLEY (HIGH SPEED FAN)(37822-) FAN (SPEED)(37822-) RADIATOR FAN PULLEY RADIATOR FAN GUARD FUEL TANK FUEL TANK (TRIMMING FOR CHINA) (37673-) FUEL PIPING FUEL TANK RELATED FUEL PIPING (FOR WATER SEPARATOR) FUEL PIPING WATER SEPARATOR LINE BATTERY AND RELAY SWITCH ELECTRICAL SYSTEM (1/3) ELECTRICAL SYSTEM (2/3) ADDITIONAL HEAD LAMP (TRIMMING) (37673-) ELECTRICAL SYSTEM (3/3) BATTERY CABLE AND MOUNT (37334-) VEHICLE WIRING (REAR) (37334-) REAR LAMP (TRIMMING FOR CHINA) (37673-) VEHCLE WIRING (REAR) (FOR DUST INDICATOR) (37719-) TRANSMISSION SWITCH (37334-) REAR LAMP (WITH ROPS) REAR LAMP REAR LAMP BACK-UP ALARM POWER TAKE OFF POWER TAKE OFF PIPING UNIVERSAL JOINT (36534-37422) UNIVERSAL JOINT (37423-) TORQUE CONVERTER (1/2) TORQUE CONVERTER (2/2) TRANSMISSION CASE (1/5) TRANSMISSION GEAR AND SHAFT (1/3) (2/5) TRANSMISSION GEAR AND SHAFT (2/3) (3/5) TRANSMISSION GEAR AND SHAFT (3/3) (4/5) TRANSMISSIONTRANSFER (5/5) TRANSMISSION VALVE (1/2) TRANSMISSION VALVE (2/2) TRANSMISSION VALVE COVER AND LEVER BEVEL GEAR AND SHAFT STEERING CLUTCH BRAKE BAND AND LINKAGE (36534-37821) BRAKE BAND AND LINKAGE (WITH SCRAPER FOR 10M3) STEERING CASE COVER AND BRAKE BOOSTER (L.H.) (37822-) STEERING CASE COVER (36534-37821) BRAKE BAND AND STEERING CLUCH (L.H.)(37822-) BRAKE BOOSTER (36534-37821) BRAKE LINKAGE (R.H.) (37822-) STEERING CASE COVER AND BRAKE BOOSTER (R.H.)(37822-) BRAKE BAND AND STEERING CLUCH (R.H.)(37822-) BRAKE LINKAGE (L.H.)(37822-) FINAL DRIVE CASE AND GEAR (1/2)(36534-37821) FINAL DRIVE CASE AND GEAR (37822-) FINAL DRIVE CASE AND GEAR (2/2)(36534-37821) SPROCKET AND SHAFT (37822-) SPROCKET AND SHAFT (36534-37821) SPROCKET HUB AND SUPPORT (37822-) FINAL DRIVE CASE (L.H.)(37822-) FINAL DRIVE CASE (L.H.) (SALTY RESISTANT SPEC.) FINAL DRIVE CASE (R.H.)(37822-) FINAL DRIVE CASE (R.H.) (SALTY RESISTANT SPEC.) STEERING CONTROL VALVE STEERING CONTROL VALVE PLATE (37822-) STEERING PUMP (37822-) TRANSMISSION PUMP (37822-) MAIN RELIEF VALVE (36534-37821) POWER LINE PIPING (SUCTION LINE)(37822-) STEERING PIPING (1/3)(36534-37821) TORQFLOW TRANSMISSION PIPING(37822-) STEERING PIPING (2/3)(36534-37821) MAIN RELIEF VALVE (37822-) STEERING PIPING (3/3)(36534-37821) STEERING PIPING (1/3)(37822-) TORQUE CONVERTER AND OIL COOLER PIPING (36534-37821) STEERING PIPING (2/3)(37822-) TORQFLOW TRANSMISSION PIPING (36534-37821) TORQUE CONVERTER AND OIL COOLER PIPING (37822-) BRAKE PIPING (36534-37821) STEERING PIPING (3/3)(37822-) BRAKE PIPING (37822-) TRANSMISSION OIL FILTER OIL STRAINER HYDRAULIC TANK WORK EQUIPMENT VALVE MOUNT WORK EQUIPMENT VALVE MOUNT (WITH RIPPER) WORK EQUIPMENT VALVE MOUNT (WITH SCRAPER) W0RK EQUIPMENT PUMP HYDRAULIC PIPING (TANK TO PUMP) (36534-37532) HYDRAULIC PIPING (TANK TO PUMP) (37533-) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (1/2) HYDRAULIC PIPING (TANK TO LIFE CYLINDER) (1/2)(37822-) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (2/2) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (2/2)(37822-) HYDRAULIC PIPING (TANK TO TILT CYLINDER) (D85A)(36534-37821) HYDRAULIC PIPING (TANK TO TILT CYLINDER) (D85A)(37822-) HYDRAULIC PIPING (TANK TO TILT CYLINDER) (FOR TRIMMING) STEERING CASE AND MAIN FRAME (36534-37821) STEERING CASE AND MAIN FRAME (37822-) STEERING CASE REAR COVER LEVEL GAUGE (37822-) EQUALIZER BAR OPERATOR'S SEAT OPERATOR'S SEAT (FOR EUROPIAN SPEC.) OPERATOR'S SEAT (TURN AND RECLINING TYPE) (FABRIC SEAT) (KAB831K) (37673-) OPERATOR'S SEAT (TURN AND RECLINING TYPE) (LEATHER SEAT) (36637-) SEAT BEL T (37822-) STEEL CAB (BODY) (FOR USA) (WITH RADIO) STEEL CAB (BODY) (TRIMMING FOR CHINA)(37722-) STEEL CAB (DOOR) STEEL CAB (DOOR) (TRIMMING FOR CHINA) STEEL CAB (FRONT AND SIDE WINDOW) STEEL CAB (REAR WINDOW) STEEL CAB (FURNITURE IN CAB REAR)(37657-) STEEL CAB (FUNITURE IN CAB) (TRIMMING FOR CHINA)(37657-) STEEL CAB (INNER TOP) STEEL CAB (INNER TOP) (TRIMMING FOR CHINA) STEEL CAB (ELECTRICAL PARTS FRONT) STEEL CAB (ELECTRICAL PARTS REAR) STEEL CAB (WINDOW WASHER) STEEL CAB (SAN VISOR) AIR CONDITIONER DUCT AND NOZZLE CONTROL PANEL (FOR AIR CONDITIONER) PLUG COVER (WITHOUT RADIO) CONTROL PANEL (FOR HEATER) RADIO (FOR USA) RADIO (FOR EUROPEASIA AND OCEANIA)(37722-) CAB (WINDOW WASHER NOZZLE PROTECTOR) (TRIMMING FOR CHINA)(37856-) FIRST AID BOX COVER(37787-) THERMOS BOTTLE (37787-) STEEL CAB (MOUNT) STEEL CAB (BODY AND FRONT WINDOW) (1/9) (COLD TERRAIN SPEC.) MODIFIED CHASSIS PARTS (FOR REAR P.C.U.) STEEL CAB (DOOR AND SIDE WINDOW)(36534-37721) STEEL CAB (DOOR AND SIDE WINDOW) (2/9) (COLD TERRAIN SPEC.) STEEL CAB (REAR WINDOW)(36534-37721) STEEL CAB (REAR WINDOW ) (3/9) (COLD TERRAIN SPEC.) STEEL CAB (FURNITURE IN CAB FRONT)(36534-37721) STEEL CAB (FURNITURE IN CAB FRONT) (4/9) (COLD TERRAIN SPEC.) STEEL CAB (FURNITURE IN CAB REAR) STEEL CAB (FURNUITURE IN CAB REAR) (5/9) (COLD TERRAIN SPEC.) STEEL CAB (INNER TOP AND CAB MOUNT)(36534-37721) STEEL CAB (INNER TOP AND CAB MOUNT) (6/9) (COLD TERRAIN SPEC.) STEEL CAB (ELECTRICAL PARTS FRONT)(36534-37721) STEEL CAB (ELECTRICAL PARTS FRONT) (7/9) (COLD TERRAIN SPEC.) STEEL CAB (ELECTRICAL PARTS REAR)(36534-37721) STEEL CAB (ELECTRICAL PARTS REAR) (8/9) (COLD TERRAIN SPEC.) STEEL CAB (WINDOW WASHER)(36534-37721) STEEL CAB (WINDOW WASHER) (9/9) (COLD TERRAIN SPEC.) FLOOR MAT ROLL OVER PROTECTIVE STRUCTURE(36534-37821) ROLL OVER PROTECTIVE STRUCTURE(37822-) CANOPY HEAD GUARD HEAD GUARD AIR CONDITIONER DUCT AND CABLE HEATER DUCT AIR CON OR HEATER LESS COOLING PIPING HEATER PIPING COOLING PIPING (FOR SANDY AND DUSTY TERRAIN SPEC.)(37673-) AIR CONDITIONER DUCT AND NOZZLE CONTROL PANEL (FOR AIR CONDITIONER) CONTROL PANEL (FOR HEATER) HEATING PIPING (FOR AIR CONDITIONER) DISTRIBUTOR (1/2) (36534-37532) AIR COMPRESSOR RELATED PARTS DISTRIBUTOR (2/2) (36534-37532) AIR COMPRESSOR (36534-37842) AIR COMPRESSOR(37843-) AIR COMPRESSOR (FOR SANDY AND DUSTY TERRAIN SPEC.)(37673-37842) AIR COMPRESSOR (FOR SANDY AND DUSTY TERRAIN SPEC.)(37843-) HEATER UNIT (1/2) HEATER UNIT (2/2) ACCESSORIES (FOR STEEL CAB) EXTINGUISHER (TRIMMING FOR CHINA)(37722-) EXTINGUISHER (FOR RUUSIAN) FIRST AID BOX (EUROPEAN SPEC.)(36534-37646) FIRST AID BOX THERMOS BOTTLE (36534-37763) THERMOS BOTTLE (37764-) FLOOR FRAME FLOOR FRAME (WITH CAB) (WITH AIR CONDITIONER) FLOOR FRAME (TRIMMING FOR CHINA)(37673-) FLOOR FRAME (WITHOUT CAB FOR TOWING WINCH) FLOOR FRAME (SALTY RESISTANT SPEC) FLOOR FRAMA (FOR TOWING WINCH) FLOOR FRAME (FOR R.P.C.U.) FLOOR FRAME (WITHOUT CAB FOR R.P.C.U.) BRAKE AND DECELERATER PEDAL PARKING BRAKE AND STEERING CONTROL LEVER TRANSMISSION CONTROL LEVER FUEL CONTROL LEVER FUEL CONTROL LEVER (FOR EUROPEAN SPEC.) PARKING BRAKE AND DECELERATOR LINKAGE FUEL CONTROL LINKAGE FLOOR FRAME WIRING FLOOR FRAME WIRING (FOR DUST INDICATOR)(37719-) FLOOR FRAME (FLOOR FRAME WIRING) (HEATER AND DEFROSTER) FLOOR FRAME NOISE REDUCTION AIR CONDITIONER DUCT DISTRIBUTOR (L.H.) DISTRIBUTOR (R.H.) AIR CONDITIONER UNIT (1/2) AIR CONDITIONER UNIT AIR CONDITIONER UNIT (2/2) AIR CONDITIONER BRACKET AIR CONDITIONER BRACKET AIR COMPRESSOR PIPING AIR CON HEATER PIPING AIR CONDITIONER HEATER PIPING INSTRUMENT PANEL (WITHOUT CAB) INSTRUMENT PANEL (WITH CAB) FLOOR FRAME (WITHOUT CAB) (INSTRUMENNT PANEL LOCK COVER) BLADE CONTROL LEVER (ANGLE CONTROL) BLADE CONTROL LEVER BLADE CONTROL LEVER (FOR TRIMMING) BLADE CONTROL LINKAGE BLADE CONTROL LINKAGE (TRIMMING FOR CHINA)(37673-) RIPPER CONTROL LEVER RIPPER CONTROL LINKAGE AIR CONDITIONER WIRING TOWING WINCH CONTROL LINKAGE TOWING WINCH CONTROL LEVER SCRAPER CONTROL LEVER SCRAPER CONTROL LINKAGE MONITOR PANEL SUPPORT(36534-37821) SUPPORT(37822-) FLOOR FRAME COVER (FOR STEEL CAB) FLOOR FRAME COVER (FOR STEEL CAB) (WITH AIR CONDITIONER) FLOOR FRAME COVER (EUROPEAN SPEC.) FLOOR INSTALLATION (KAB831K) (TRIMMING FOR CHINA)(37673-) FLOOR INSTALLATION (37822-) INSTRUMENT PANEL (1/2)(36534-37327) INSTRUMENT PANEL (2/2)(36534-37327) MONITOR PANEL (36534-37327) FUEL CONTROL LEVER STEERING AND BRAKE LINKAGE (37423-) FUEL CONTROL LINKAGE TRANSMISSION CONTROL LINKAGE (37423-) DECELERATOR PEDAL FUEL CONTROL LINKAG E(37423-) FUEL CONTROL LINKAGE (TRIMMING FOR CHINA)(37856-) TRANSMISSION CONTROL LEVER VEHICLE CONTROL KNOB (37423-) TRANSMISSION CONTROL LINKAGE (1/3) TRANSMISSION CONTROL LINKAGE (2/3) TRANSMISSION CONTROL LINKAGE (3/3) STEERING CONTROL LEVER STEERING AND BRAKE LINKAGE (1/2) STEERING AND BRAKE LINKAGE (2/2) BRAKE PEDAL PARKING BRAKE LEVER CONCENTRATED PIPING BLADE CONTROL LEVER (36534-37532) ANGLE BLADE CONTROL LEVER (36534-37532) BLADE CONTROL LINKAGE (36534-37532) BLADE CONTROL LINKAGE (37533-) ANGEL BLADE CONTROL LINKAGE (36534-37532) ANGLE CONTROL LINKAGE (37533-) RIPPER CONTROL LEVER (36534-37532) RIPPER CONTROL LESS RIPPER CONTROL LINKAGE (36534-37532) RIPPER CONTROL AND PIPING (TANK TO RIPPER CYLINDER)(37533-) HYDRAULIC PIPING (TANK TO RIPPER CYLINDER)(36534-37532) RIPPER CONTROL LEVER (37533-) WINDOW WASHER TANK RADIATOR GUARD (WIRING) RADIATOR GUARD (DYNAMIC NOISE SUPPRESSION SPEC. FOR EC) (1/2)(37143-37333) ENGINE ROOM CABLE (FRONT) (TRIMMING FOR CHINA)(37673-) RADIATOR GUARD (RADIATOR) RADIATOR GUARD (DYNAMIC NOISE SUPPRESSION SPEC. FOR EC) (2/2)(37143-) RADIATOR MOUNTING RADIATOR FAN PULLEY RADIATOR FAN PULLEY (HIGH SPEED FAN) RADIATOR GUARD RADIATOR GUARD (TRIMMING)(37673-37830) RADIATOR GUARD (TRIMMING) (FOR REINFORCED TYPE)(37831-) CYLINDER STAY RADIATOR FAN GUARD AND WIND BREAKER RADIATOR FAN GUARD AND WIND BREAK (WITH CORE GRID) (TRIMMING FOR CHINA)(37673-) FAN NET AND CONDENSER(36354-) RADIATOR MASK AND CYLINDER STAY YOKE (DOUBLE PERFORATED)(37647-) RADIATOR MASK (TRIMMING)(37673-) RADIATOR MASK AND CYLINDER STAY YOKE (FOR SHUTTER)(37647-) CYLINDER STAY CYLINDER YOKE RELATED PARTS(37822-) CYLINDER STAY COVER (BUSHY TERRAIN SPEC.) RADIATOR GUARD RELATED RADIATOR GUARD RELATED (RADIATOR CAP PROTECTOR)(37647-) RADIATOR GUARD RELATED (TRIMMING FOR CHINA)(37673-) RADIATOR SHUTTER SLIT COVER AND REAR COVER (WOODY TERRAIN SPEC.)(36534-37646) RADIATOR MASK ENGINE HOOD AND DASHBOAD ENGINE HOOD (CLOSE TYPE) ENGINE HOOD (PRFOLATED AND SALTY SPEC.)(37376-) ENGINE HOOD (WITH EXTENTION PIPE) ENGINE HOOD (SOLID TYPE) (TRIMMING)(37673-) ENGINE HOOD (ENGINAIRE 660)(37677-) ENGINE HOOD (PERFORATED TYPE) (FOR TURBO 2)(37719-) ENGINE HOOD (CLOSE TYPE) (FOR TURBO 2 )(37719-) ENGINE HOOD (PERFORATED AND SOLID TYPE) (FOR TURBO 2 )(37719-) ENGINE HOOD (PERFOLATED)(37376-) ENGINE SIDE COVER (CLOSE TYPE)(37647-) ENGINE SIDE COVER (SALTY RESISTANT SPEC.) ENGINE SIDE COVER (PERFOLATED TYPE)(37647-) ENGINE SIDE COVER (TRIMMING FOR CHINA)(37673-) ENGINE SIDE COVER (WITHOUT SIDE COVER)(37822-) PRE CLEANER COVER (TRIMMING)(37673-) PRECLEANER COVER (FOR TURBO 2 )(37719-) PRECLEANER BONNET MOUNT (FOR TURBO 2 )(37719-) PRECLEANER COVER (WOODY TERRAIN SPEC.)(37647-) PRECLEANER CLEARANCE COVER BATTERY CABLE AND RELAY SWITCH BATTERY CABLE AND RELAY SWITCH (TRIMMING FOR CHINA)(37673-) BATTERY CABLE AND RELAY SWITCH (FOR DUST INDICATOR)(37719-) BATTERY CABLE AND RELAY SWITCH (FOR SWEEPER)(37647-) STEERING AND BRAKE LINKAGE TRANSMISSION CONTROL LINKAGE AND CONCENTRTED PIPING FENDER FENDER (WITH ROPS) FENDER (TRIMMING FOR CHINA)(37673-) FENDER (FOR SWEEPER)(37647-) FENDER (DAINAMIC NOISE SUPPRESSION SPEC. FOR EU) BATTERY HOLDER BATTERY HOLDER (FOR C200 WET)(37719-) BATTERY HOLDER (FOR SWEEPER)(37647-) HYDRAULIC TANK (WITH RELIEF VALVE) WORK EQUIPMENT VALVE MOUNT AND PIPING WORK EQUIPMENT VALVE MOUNT AND PIPING (WITH RIPPER) WORK EQUIPMENT VALVE MOUNT (TRIMMING FOR CHINA)(37673-) HYDRAULIC PIPING (FROM TANK TO PUMP) (TRIMMING FOR CHINA)(37673-) HYDRAULIC PIPING (FROM VALVE TO CYLINDER) HYDRAULIC PIPING (FROM VALVE TO CYLINDER) (TRIMMING FOR CHINA)(37673-) HANDLE BLADE CONTROL LINKAGE HYDRAULIC TANK COVER HYDRAULIC TANK COVER (WITH RIPPER) HYDRAULIC TANK COVER (FOR SWEEPER)(37647-) FLOOR PLATE (EUROPEAN SPEC.) FENDER COVER (37822-) FENDER COVER (WITH HANDLE) FENDER RELATED PARTS(37822-) REAR COVER (TRIMMING)(36534-37821) REAR COVER (FOR SWEEPER)(37647-) REAR COVER LESS (TRIMMING)(37673-) REAR COVER (WITH ROPS)(37822-) REAR COVER (37822-) REAR COVER (ROPS LESS) (WITH SCRAPER)(37822-) REAR COVER (WITH ROPS) (WITH SCRAPER)(37822-) REAR COVER (FOR TRIMMING)(37856-) AIR CONDITIONER AND BATTERY COVER AIR CONDITIONER AND BATTERY COVER (SALTY RESISTANT SPEC.)(37376-) AIR CONDITIONER AND BATTERY COVER (FOR SAND DUSTY SPEC.)(37719-) AIR CONDITIONER AND BATTERY COVER (FOR TRIMMING CHINA)(37852-) HYDRAULIC TANK COVER HYDRAULIC TANK COVER (FOR EXTINGUISHER) HYDRAULIC TANK COVER (FOR HEATER AND EXTINGUISHER) ROLL OVER PROTECTIVE STRUCTURE BRACKET (36534-37821) ROLL OVER PROTECTIVE STRUCTURE BRACKET (37822-) ROPS BRACKET (WOODY TERRAIN SPEC.)(36534-37821) ROPS BRACKET (WOODY TERRAIN SPEC.)(37822-) BOTTOM GUARD BOTTOM GUARD AND SHORT EXHAUST PIPE (WOODY TERRAIN SPEC.) BOTTOM GUARD (DYNAMIC NOISE SUPPRESSION SPEC. FOR EC)(37143-) UNDER GUARD (WITH HINGE) (LIGHT TYPE) (TRIMMING FOR CHINA)(37852-) BOTTOM GUARD (HINGED WITH FRONT HOOK)(36537-) BOTTOM GUARD (WITH HINGE) (DRAWBAR SWING TYPE)(36537-) BOTTOM GUARD (WITH HINGE)(37822-) TRACK SHOE (MASTER PIN TYPE) (TRIPLE GROUSER) (D85A) TRACK SHOE (LUBRICATE TYPE) (560MM WIDE) (MASTER LINK 2 PLACE TYPE) (D85E)(37361-) TRACK SHOE (LUBRICATE TYPE) (610MM WIDE) (MASTER LINK 2 PLACE TYPE) (D85E)(37361-) TRACK SHOE (LUBRICATE TYPE) (660MM WIDE) (MASTER LINK 2 PLACE TYPE) (D85E)(37361-) TRACK SHOE (LUBRICATE TYPE) (TRIPLE GROUSER WITH ROUND HOLE) (560MM WIDE) (TRIMMING FOR CHINA)(37673-) TRACK SHOE (MASTER PIN TYPE) (610MM WIDE) TRACK SHOE (MASTER PIN TYPE) (660MM WIDE) TRACK SHOE (MASTER PIN TYPE) (560MM WIDE) (HEAVY-DUTY) TRACK SHOE (MASTER PIN TYPE) (560MM WIDE) (ROCK) TRACK SHOE (MASTER PIN TYPE) (610MM WIDE) (HEAVY-DUTY) TRACK SHOE (MASTER PIN TYPE) (660MM WIDE) (HEAVY-DUTY) TRACK SHOE (MASTER PIN TYPE) (SNOW TYPE) (D85A) TRACK SHOE (LUBRICATE TYPE) (560MM WIDE) (MASTER LINK 2 PLACE TYPE) (HEAVY-DUTY) (D85E)(37361-) TRACK SHOE (LUBRICATE TYPE) (610MM WIDE) (MASTER LINK 2 PLACE TYPE) (HEAVY-DUTY) (D85E)(37361-) TRACK SHOE (LUBRICATE TYPE) (660MM WIDE) (MASTER LINK 2 PLACE TYPE) (HEAVY-DUTY) (D85E)(37361-) TRACK SHOE (LUBRICATE TYPE) (MASTER LINK 4 PLACE TYPE) (D85A)(36534-37360) TRACK SHOE (LUBRICATE TYPE) (560MM WIDE) (MASTER LINK 2 PLACE TYPE) (D85A)(37361-) TRACK SHOE (LUBRICATE TYPE) (610MM WIDE) (MASTER LINK 2 PLACE TYPE) (D85A)(37361-) TRACK SHOE (LUBRICATE TYPE) (660MM WIDE) (MASTER LINK 2 PLACE TYPE) (D85A)(37361-) TRACK SHOE (MASTER PIN TYPE) (560MM WIDE) (D85A) TRACK SHOE (LUBRICATE TYPE) (MASTER LINK 4 PLACE TYPE) (HEAVY DUTY) (D85A)(36534-37360) TRACK SHOE (LUBRICATE TYPE) (560MM WIDE) (MASTER LINK 2 PLACE TYPE) (HEAVY-DUTY) (D85A)(37361-) TRACK SHOE (LUBRICATE TYPE) (610MM WIDE) (MASTER LINK 2 PLACE TYPE) (HEAVY-DUTY) (D85A)(37361-) TRACK SHOE (LUBRICATE TYPE) (660MM WIDE) (MASTER LINK 2 PLACE TYPE) (HEAVY-DUTY) (D85A)(37361-) TRACK SHOE (LUBRICATE TYPE) (MASTER LINK 4 PLACE TYPE) (COLD WEATHER A SPEC.) (D85A)(36534-37360) TRACK SHOE (LUBRICATE TYPE) (660MM WIDE) (MASTER LINK 2 PLACE TYPE) (COLD WEATHER A SPEC.) (D85A)(37361-) TRACK SHOE (LUBRICATE TYPE) (TRIPLE GROUSER) (MASTER LINK 4 PLACE TYPE) (D85A)(36534-37360) TRACK SHOE (LUBRICATE TYPE) (TRIPLE GROUSER) (560MM WIDE) (MASTER LINK 2 PLACE TYPE) (D85A)(37361-) RECOIL SPRING (D85A)(36534-37821) RECOIL SPRING (D85A) (TRIMMING FOR CHINA)(37673-37821) RECOIL SPRING (D85A) (L.H.)(37822-) TRACK FRAME (D85A)(36534-37821) TRACK FRAME (D85A) (TRIMMING FOR CHINA)(37673-37821) TRACK FRAME (D85A) (FULL ROLLER GUARD) (TRIMMING) (-50)(36534-37821) TRACK FRAME (D85A) (L.H.)(37822-) TRACK FRAME (D85A) (COLD WEATHER (A) SPEC.) (TRIMMING) (L.H.) TRACK FRAME COVER (D85A)(36534-37821) TRACK FRAME COVER (D85A) (TRIMMING FOR CHINA)(37673-37821) TRACK FRAME COVER (D85A) (L.H.)(37822-) FRONT IDLER(36534-37821) FRONT IDLER (FULL ROLLER GUARD) (-50)(36534-37821) FRONT IDLER (L.H.)(37822-) FRONT IDLER (COLD WEATHER (A) SPEC.) (L.H.) TRACK ROLLER(36534-37821) TRACK ROLLER (FULL ROLLER GUARD) (-50)(36534-37821) TRACK ROLLER (FULL ROLLER GUARD) (TRIMMING) (-50)(36534-37821) TRACK ROLLER (SINGLE) (L.H.)(37822-) TRACK ROLLER (SINGLE) (COLD WEATHER (A) SPEC)(L.H.) TRACK ROLLER (SINGLE) (COLD WEATHER (A) SPEC) (TRIMMING) (L.H.) CARRIER ROLLER(36534-37821) CARRIER ROLLER (FULL ROLLER GUARD) (-50)(36534-37821) TRACK ROLLER (DOUBLE) (L.H.)(37822-) TRACK ROLLER (DOUBLE) (COLD WEATHER (A) SPEC.) (L.H.) TRACK ROLLER (DOUBLE) (COLD WEATHER (A) SPEC.) (TRIMMING) (L.H.) TRACK ROLLER GUARD (D85A)(36534-37821) TRACK ROLLER GUARD (D85A) (LIGHT TYPE) (TRIMMING FOR CHINA)(37673-37821) TRACK ROLLER GUARD (CENTER & END ROLLER GUARD) (-50)(36534-37821) CARRIER ROLLER (L.H.)(37822-) CARRIER ROLLER (COLD WEATHER (A) SPEC) (L.H.) TRACK FRAME COVER (REAR)(36534-37821) TRACK ROLLER GUARD (D85A) (L.H.)(37822-) TRACK ROLLER GUARD (MINI SKIRT) (COLD WEATHER (A) SPEC) (L.H.) SUSPENSION (L.H.) (EQUALIZER BAR)(37822-) RECOIL SPRING (D85A) (R.H.)(37822-) TRACK FRAME (D85A) (R.H.)(37822-) TRACK FRAME (D85A) (COLD WEATHER (A) SPEC.) (TRIMMING) (R.H.) TRACK FRAME COVER (D85A) (R.H.)(37822-) FRONT IDLER (R.H.)(37822-) FRONT IDLER (COLD WEATHER (A) SPEC) (R.H.) TRACK ROLLER (SINGLE) (R.H.)(37822-) TRACK ROLLER (SINGRE) (COLD WEATHER (A) SPEC) (R.H.) TRACK ROLLER (SINGLE) (COLD WEATHER (A) SPEC) (TRIMMING) (R.H.) TRACK ROLLER (DOUBLE) (R.H.)(37822-) TRACK ROLLER (DOUBLE) (COLD WEATHER (A) SPEC) (R.H.) TRACK ROLLER (DOUBLE) (COLD WEATHER (A) SPEC) (TRIMMING) (R.H.) CARRIER ROLLER (R.H.)(37822-) CARRIER ROLLER (COLD WEATHER (A) SPEC) (R.H.) TRACK ROLLER GUARD (D85A) (R.H.)(37822-) TRACK ROLLER GUARD (MINI SKIRT) (COLD WEATHER (A) SPEC) (R.H.) SUSPENSION (R.H.) (EQUALIZER BAR)(37822-) TRACK FRAME COVER (REAR)(37822-) TRACK ROLLER GUARD (MINI SKIRT) TRIMMING FRAME (35 DEGREE PITCH) STRAIGHT TILT FRAME (36534-37821) STRAIGHT TILT FRAME (REINFORCED TYPE) STRAIGHT FRAME (FOR COAL DOZER) (D85A)(37288-) MECHANICAL ANGLE POWER TILT FRAME STRAIGHT TILT FRAME (EUROPEAN SPEC.) TRIMMING FRAME (35 DEGREE PITCH)(37673-) TRIMMING FRAME(36738-) STRAIGHT TILT FRAME (37822-) STRAIGHT TILT FRAME (37822-) STRAIGHT BLADE (36534-37821) STRAIGHT BLADE (37822-) STRAIGHT TILT BLADE (36534-37821) STRAIGHT TILT BLADE (37822-) STRAIGHT TILT U-BLADE (36534-37821) STRAIGHT TILT U-BLADE (37822-) STRAIGHT TILT SEMI U-BLADE STRAIGHT TILT BLADE (REINFORCED TYPE)(36534-37821) STRAIGHT TILT BLADE (REINFORCED TYPE)(37822-) ANGLE BLADE (36534-37821) ANGLE BLADE (37822-) STRAIGHT RAKE BLADE (36534-37821) STRAIGHT RAKE BLADE (37822-) U-BLADE (FOR COAL DOZER) (D85A)(36534-37821) U-BLADE (FOR COAL DOZER) (D85A)(37822-) U-BLADE (FOR COAL DOZER) (WITH TILT) (D85A)(36534-37821) U-BLADE (FOR COAL DOZER) (WITH TILT) (D85A)(37822-) MECHANICAL ANGLE POWER TILT BLADE (36534-37821) MECHANICAL ANGLE POWER TILT BLADE (37822-) TRIMMING BLADE (LIGHT TYPE) (FOR CHINA)(37842-) TRIMMING BLADE (36738-) BLADE LIFT CYLINDER (D85A)(37822-) BLADE LIFT CYLINDER (FOR SALTY RESISTANT SPEC.)(36738-) BLADE TILT CYLINDER(37822-) MECANICAL ANGLE POWER TILT CYLINDER (37667-) MECHANICAL ANGLE POWER TILT CYLINDER PIPING (1/2) TRIMMING CYLINDER PIPING (1/2)(36738-) BLADE TRIMMING CYLINDER PIPING (35 DEGREE PITCH)(37667-) MECHANICAL ANGLE POWER TILT CYLINDER PIPING (2/2) TRIMMING CYLINDER PIPING (2/2)(36738-) BLADE TRIMMING CYLINDER PIPING COVER (35 DEGREE PITCH)(37667-) CYLINDER COVER RIPPER BEAM AND LINK (37822-) SHANK (37822-) POINT (37822-) RIPPER LIFT CYLINDER(37822-) RIPPER SHANK BEAM AND LINK RIPPER CYLINDER PIPING (36534-37821) TOWING WINCH CASE (1/2) TOWING WINCH CASE (2/2) INPUT SHAFT AND BEVEL GEAR (FOR TOWING WINCH) BRAKE DRUM (FOR TOWING WINCH) CABLE DRUM (FOR TOWING WINCH) CLUTCH DRUM (FOR TOWING WINCH) BRAKE DRUM (FOR TOWING WINCH) CABLE (FOR TOWING WINCH) DRAWBAR (FOR TOWING WINCH) HYDRAULIC PUMP MOUNT (FOR TOWING WINCH) HYDRAULIC PIPING (FOR TOWING WINCH) WINCH PIPING (FOR TOWING WINCH) CONTROL VALVE (FOR TOWING WINCH) TOWING WINCH CONTROL LEVER TOWING WINCH CONTROL LINKAGE FAIR LEAD (FOR TOWING WINCH) LOGGING ARM (FOR TOWING WINCH) MODIFIED PARTS (FOR TOWING WINCH) POWER TAKE OFF SHAFT (FOR REAR P.C.U.) INPUT SHAFT AND HYDRAULIC PUMP (FOR REAR P.C.U.) MAIN SHAFT (FOR REAR P.C.U.) CLUTCH AND DRUM (FOR REAR P.C.U.) BRAKE BAND (FOR REAR P.C.U.) CASE AND CVER (FOR REAR P.C.U.) SHEAVE (FOR REAR P.C.U.) CONTROL VALVE (FOR REAR P.C.U.) REAR P.C.U. CONTROL LEVER REAR P.C.U. CONTROL LINKAGE (1/2) REAR P.C.U. CONTROL LINKAGE (2/2) HYDRAULIC PUMP (FOR REAR P.C.U.) HYDRAULIC PUMP (FOR REAR P.C.U.) MODIFIED CHASSIS PARTS (FOR REAR P.C.U.) (1/2) DRAWBAR SWING DRAWBAR DRAWBAR (LIGHT TYPE) (TRIMMING FOR CHINA)(37673-) MARKS AND PLATES (ENGLISH) (D85A)(36534-37306) MARKS AND STRIPES (D85A)(37307-) MARKS AND PLATES (ARABIC) (D85A)(36534-37306) MARKS AND PLATES (ITALIAN) (D85A)(36534-37306) MARKS AND PLATES (INDONESIAN) (D85A)(36534-37306) MARKS AND PLATES (SPANISH) (D85A)(36534-37306) MARKS AND PLATES (CHINESE) (D85A)(36534-37306) MARKS AND PLATES (GERMAN) (D85A)(36534-37306) MARKS AND PLATES (FRENCH) (D85A)(36534-37306) MARKS AND PLATES (PERSIAN) (D85A)(36534-37306) MARKS AND PLATES (RUSSIAN) (D85A)(36534-37306) MARKS AND PLATES (ENGLISH) (FOR EU) (D85A)(36534-37306) MARKS AND PLATES (ITALIAN) (FOR EU) (D85A)(36534-37306) MARKS AND PLATES (SPANISH) (FOR EU) (D85A)(36534-37306) MARKS AND PLATES (GERMAN) (FOR EU) (D85A)(36534-37306) MARKS AND PLATES (FRENCH) (FOR EU) (D85A)(36534-37306) MARKS AND PLATES (ENGLISH)(37307-) MARKS AND PLATES (ARABIC)(37307-) MARKS AND PLATES (ITALIAN)(37307-) MARKS AND PLATES (INDONESIAN)(37307-) MARKS AND PLATES (SPANISH)(37307-) MARKS AND PLATES (CHINESE)(37307-) MARKS AND PLATES (GERMAN)(37307-) MARKS AND PLATES (FRENCH)(37307-) MARKS AND PLATES (PERSIAN)(37307-) MARKS AND PLATES (RUSSIAN)(37307-) MARKS AND PLATES (ENGLISH) (FOR EU)(37307-) MARKS AND PLATES (ITALIAN) (FOR EU)(37307-) MARKS AND PLATES (SPANISH) (FOR EU)(37307-) MARKS AND PLATES (GERMAN) (FOR EU)(37307-) MARKS AND PLATES (FRENCH) (FOR EU)(37307-) MARKS AND PLATES (ENGLISH) (EXCEPT U.S.A.)(37321-) MARKS AND PLATES (RUSSIAN AND ENGLISH)(37677-) MARKS AND PLATES (SPAINSH) (PICTORIAL) (2/2) MARK PLATE (DYNAMIC NOISE SUPPRESSION FOR EU)(37193-) EXAMINATION NO.PLATES (FOR EU) CENTER GRAVITY MARK (EXCEPT JAPAN AND EU) NAME PLATE (EXCEPT JAPAN) (LIMITED SUPPLY) (R.O.P.S) PLATE (AIR CLEANER) CAUTION PLATE (EXCEPT JAPAN) (SEAT BELT) PLATE (BLADE)(37852-) PLATE (RIPPER)(37852-) PLATE (TOWING WINCH)(37852-) SPARE PARTS (COLD TERRAIN SPEC.) (1/2)(36537-) SPARE PARTS (36537-) SPARE PARTS (COLD TERRAIN SPEC.) (2/2)(36537-) CAP AND OVERALL TOOL (36537-) VANDALISM PROTECTION VANDALISM PROTECTION (TRIMMING FOR CHINA)(37722-) CAB GUARD (WOODY TERRAIN SPEC.) CAB GUARD SWEEPER (WOODY TERRAIN SPEC.) SCRAPER CONTROL LEVER (1/2) SCRAPER CONTROL LEVER (2/2) SCRAPER CONTROL LINKAGE (1/2) SCRAPER CONTROL LINKAGE (2/2) HYDRAULIC PIPING (WITH BLADE-SCRAPER SELECT VALVE) HYDRAULIC PIPING (TANK TO SCRAPER LINE) PRE-HEATER PRE-HEATER PIPING KIT SHOE BOLT AND NUT SERVICE KIT TRACK LINK (LUBRICATE TYPE) (MASTER LINK 2 PLACE TYPE) (SUPPLY PARTS) (D85A) TRACK LINK (LUBRICATE TYPE) (MASTER LINK 2 PLACE TYPE) (COLD WEATHER (A) SPEC.) (SUPPLY PARTS)(37361-) TRACK LINK (LUBRICATE TYPE) (TRIMMING FOR CHINA) (SUPPLY PARTS)(37673-) TRANSMISSION PUMP STEERING PUMP WORK EQUIPMENT PUMP (1/2) WORK EQUIPMENT PUMP (2/2) HYDRAULIC PUMP (FOR TOWING WINCH) BLADE LIFT CYLINDER (1/2) (D85A) BLADE LIFT CYLINDER (2/2) (D85A) BLADE TRIMMING LIFT CYLINDER (1/2)(36738-) BLADE TRIMMING LIFT CYLINDER (2/2)(36738-) MECANICAL ANGLE POWER TILT CYLINDER BLADE TILT CYLINDER BLADE TRIMMING CYLINDER (35 DEGREE PITCH)(37673-) BLADE TRIMMING CYLINDER(36738-) RIPPER CYLINDER BRAKE CYLINDER (FOR TOWING WINCH) BLADE CONTROL VALVE (1/5) BLADE CONTROL VALVE (2/5) BLADE CONTROL VALVE (3/5) BLADE CONTROL VALVE (4/5) BLADE CONTROL VALVE (5/5) BLADE CONTROL VALVE (1/5) (WITH SCRAPER) BLADE CONTROL VALVE (2/5) (WITH SCRAPER) BLADE CONTROL VALVE (3/5) (WITH SCRAPER) BLADE CONTROL VALVE (4/5) (WITH SCRAPER) BLADE CONTROL VALVE (5/5) (WITH SCRAPER) SCRAPER CONTROL VALVE (1/2) SCRAPER CONTROL VALVE (2/2) RIPPER CONTROL VALVE (1/2) RIPPER CONTROL VALVE (2/2)

1

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	154-54-47690		HOOD
2	01010-81230		BOLT
3	01643-31232		WASHER
4	15A-61-21110		COVER
5	01010-81225		BOLT
6	01643-31232		WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
