Каталог запасных частей к технике: Komatsu D85A-21. MARKS AND PLATES (PERSIAN) (35001-36191)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
8
9
10
11
11
11
11
12
12
12
12
13
13
13
13
14
14
14
14
15
15
15
15
16
17
17
17
17
17
17
17
17
17
18
19
20
21
22
22
23
24
25
26
27
28
29
29
29
29
30
30
30
30
30
30
30
30
30
31
31
31
31
31
31
31
31
31
32
32
32
32
33
33
33
33
34
34
34
34
35
35
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
56

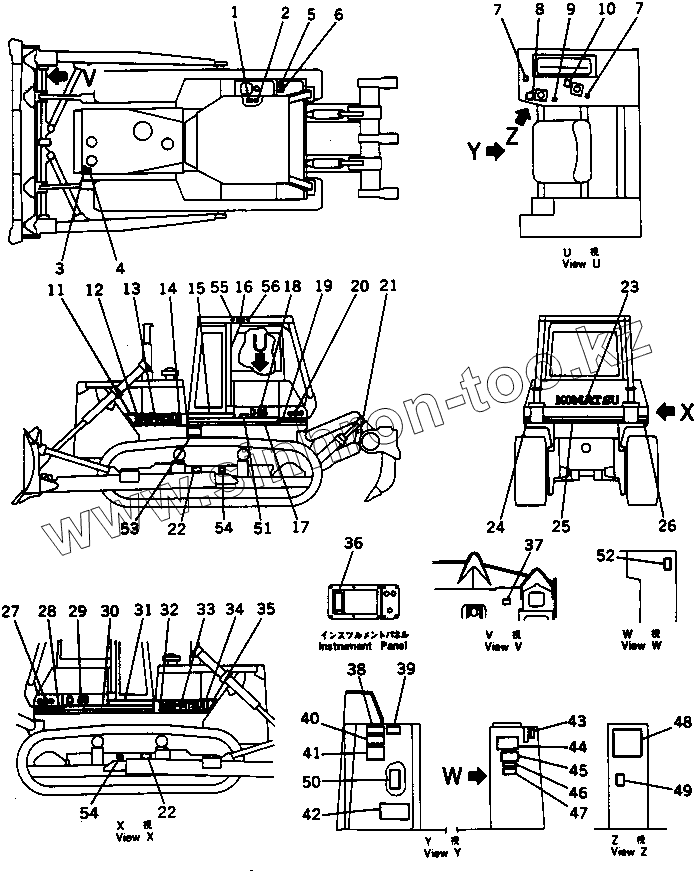

Позиция на иллюстрации Заводской номер детали Название детали
04418-13060 04418-13060 SCREW
04418-13060 04418-13060 SCREW
01220-60408 01220-60408 SCREW
154-98-35481 154-98-35481 STRIPE,(WITHOUT R.O.P.S)
04418-13060 04418-13060 SCREW
154-98-35481 154-98-35481 STRIPE,(WITHOUT R.O.P.S)
1 09655-04120 PLATE, INSTRUCTIONAL FILTER
2 09653-00400 PLATE, SAFETY, HYDRAULIC OIL TANK
3 09650-04101 PLATE, INSTRUCTION, RADIATOR WATER LEVEL
4 09668-00400 PLATE, SAFETY, RADIATOR CAP
5 09652-04100 PLATE, CAUTION,FUEL TANK
6 09656-04080 PLATE, INSTRUCTION, FUEL TANK STRAINER
7 17M-98-21520 PLATE, OPERATING,BLADE LOCK LEVER
8 195-98-21140 PLATE, OPERATING,BLADE CONTROL LEVER
9 195-98-21190 PLATE, OPERATING,HORN SWITCH
10 154-98-35560 PLATE, OPERATING,LOCK LEVER
11 154-98-35292 STRIPE,L.H.
11 154-98-35291 STRIPE,L.H.
12 154-98-35282 STRIPE,L.H.
12 154-98-35281 STRIPE,L.H.
13 154-98-35321 STRIPE,L.H.
13 154-98-35322 STRIPE,L.H.
14 154-98-35262 STRIPE,L.H.
14 154-98-35261 STRIPE
15 154-98-35252 STRIPE
15 154-98-35251 STRIPE,L.H.
16 09620-04200 PLATE, NAME
17 154-98-35153 STRIPE
17 154-98-35151 STRIPE
17 154-98-35152 STRIPE
18 154-98-35181 PLATE, MARK,L.H.
19 154-98-35141 STRIPE,(WITH R.O.P.S)
20 154-98-35130 PLATE
21 09601-00835 PLATE, NAME
22 09657-04000 PLATE, SAFETY,TRACK ADJUSTING
23 154-98-35120 PLATE
24 154-98-35331 STRIPE,L.H.
25 154-98-35371 STRIPE
26 154-98-35410 STRIPE,R.H.
27 154-98-35130 PLATE
28 154-98-35141 STRIPE,(WITH R.O.P.S)
29 154-98-35192 PLATE,MARK R.H.
29 154-98-35191 PLATE,MARK R.H.
30 154-98-35151 STRIPE
30 154-98-35152 STRIPE
30 154-98-35153 STRIPE
31 154-98-35271 STRIPE,R.H.
31 154-98-35272 STRIPE,R.H.
31 154-98-35252 STRIPE
32 154-98-35262 STRIPE,L.H.
32 154-98-35261 STRIPE
33 154-98-35322 STRIPE,L.H.
33 154-98-35321 STRIPE,L.H.
34 154-98-35282 STRIPE,L.H.
34 154-98-35281 STRIPE,L.H.
35 154-98-35312 STRIPE,R.H.
35 154-98-35311 STRIPE,R.H.
36 154-98-36730 PLATE
37 09601-00835 PLATE, NAME
38 09666-00400 PLATE, SAFETY, FIRE PREVENTION
39 09173-00400 PLATE, SAFETY
40 09649-00401 PLATE, INSTRUCTION
41 195-98-14620 PLATE, CAUTION, SEAT BELT
42 09602-04643 PLATE, NAME, MACHINE
43 09685-00002 PLATE, OPERATING, LOCK LEVER
44 195-98-14610 PLATE, NAME, TRAVELING ON SLOPE
45 09654-00400 PLATE, SAFETY
46 09667-00400 PLATE, SAFETY, ENGINE SIDE COVER
47 09651-00400 PLATE, SAFETY, BEFORE OPERATING
48 154-98-36720 CHART,LUBRICATION
49 09685-00001 PLATE, OPERATING, RIPPER LOCK LEVER
50 154-98-36740 PLATE
51 09696-00113 PLATE,NOISE SUPPRESSION SPEC.
52 09696-10083 PLATE,NOISE SUPPRESSION SPEC.
53 195-98-23370 PLATE, OPERATING
54 09960-61012 PLATE, MARK
55 09628-90190 PLATE, MARK,ROPS
56 09629-90210 PLATE, MARK,FOPS
