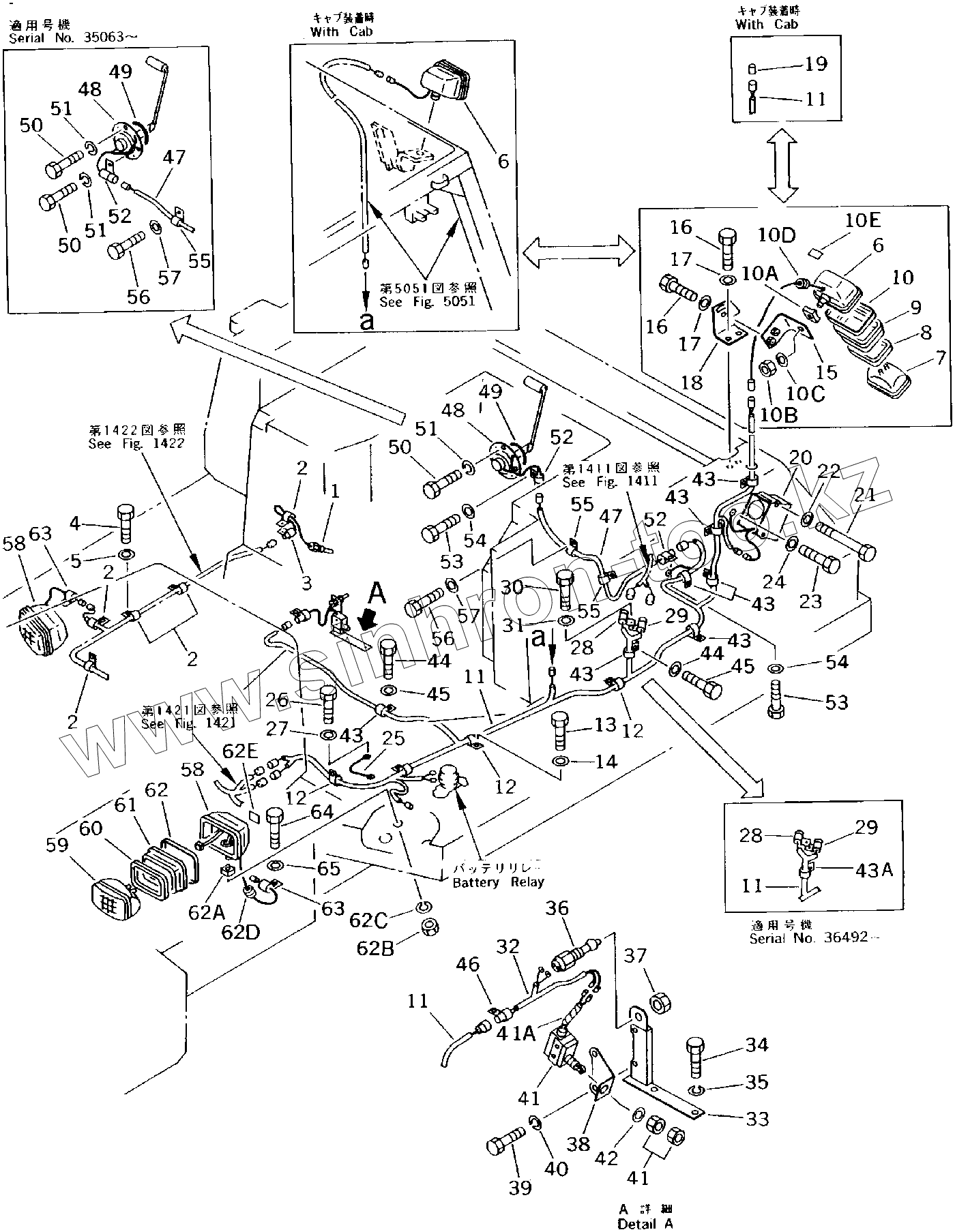

  5. ELECTRICAL SYSTEM (3/3) (35001-)

Каталог запасных частей к технике: Komatsu D85A-21. ELECTRICAL SYSTEM (3/3) (35001-)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
2
2
2
2
3
4
5
6
6
6
6
6
6
7
8
8
8
8
9
10
10
10
10
10A
10B
10C
10D
10E
11
11
11
11
11
11
11
11
11
11
12
12
12
13
14
15
16
16
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
41
41A
42
43
43
43
43
43
43
43
43
43
43
43
43
43
43
43A
44
44
45
45
46
47
47
48
48
49
50
50
50
51
51
51
52
52
52
53
53
53
53
53
53
54
54
54
54
54
54
55
55
55
56
56
56
56
56
56
57
57
57
57
57
57
58
58
58
58
58
58
59
60
60
60
60
61
62
62
62
62
62A
62B
62C
62D
62E
63
63
64
65
Позиция на иллюстрации Заводской номер детали Название детали
1 7861-91-3440 SENSOR,HYDRAULIC OIL TEMPERATURE
1 7861-99-3400 SENSOR,HYDRAULIC OIL TEMPERATURE
2 08036-11214 CLIP
3 195-06-41810 CLIP
4 01010-51220 BOLT
5 01643-31232 WASHER
23S-05-28210 23S-05-28210 LAMP ASS'Y
22W-06-12381 22W-06-12381 LAMP ASSY
6 203-06-56160 HOUSING
6 22W-06-12280 HOUSING
7 22W-06-12170 BULB
8 203-06-56180 RING
8 22W-06-12120 RING
9 22W-06-12290 CUSHION
10 203-06-56190 RING
10 22W-06-12130 RING
10A 22W-06-12160 SEAT
10B 01582-11411 NUT
10C 01602-21442 WASHER, SPRING
10D 08037-01008 GROMMET
10E 23S-05-28220 PLATE, NAME
11 154-06-41171 WIRING HARNESS
11 154-06-41170 WIRING HARNESS
12 08036-01814 CLIP
13 01010-51220 BOLT
14 01643-31232 WASHER
15 154-06-41350 BRACKET
16 01010-51235 BOLT
17 01643-31232 WASHER
18 154-06-41340 BRACKET
19 195-06-41740 PLUG
20 08164-00000 BUZZER
21 01010-50895 BOLT
21 6132-11-6460 BOLT
22 01643-30823 WASHER
23 01010-51020 BOLT
24 01643-31032 WASHER
25 08028-15011 WIRE
26 01010-51016 BOLT
27 01643-31032 WASHER
28 195-06-41830 CLIP
29 195-06-41840 CLIP
30 01010-51220 BOLT
31 01643-31232 WASHER
32 154-06-41220 WIRING HARNESS
G-1 154-06-X1140 BACK-UP LAMP GROUP
33 175-06-38561 BRACKET
34 01010-51035 BOLT
35 01643-31032 WASHER
36 08074-70000 SWITCH, BACK-UP ALARM
37 01583-11811 NUT
38 175-06-38810 BRACKET
39 01010-50820 BOLT
40 01602-20825 WASHER, SPRING
41 195-06-26260 SWITCH
41A 175-895-4251 TAPE
42 01643-31445 WASHER
43 08036-01014 CLIP
43 08036-11214 CLIP
43A 08036-01814 CLIP
44 01010-51220 BOLT
45 01643-31232 WASHER
46 195-06-41820 CLIP
47 154-06-41210 WIRING HARNESS
48 21T-06-25670 SENSOR,FUEL
49 07000-02085 O-RING
50 01010-51025 BOLT
51 01602-21030 WASHER, SPRING
52 195-06-41820 CLIP
53 01010-51220 BOLT
53 01010-51220 BOLT
54 01643-31232 WASHER
54 01643-31232 WASHER
55 175-06-36130 CLAMP
08036-11214 08036-11214 CLIP
56 01010-51220 BOLT
56 01010-51016 BOLT
57 01643-31232 WASHER
57 01643-31032 WASHER
23S-05-28210 23S-05-28210 LAMP ASS'Y
22W-06-12381 22W-06-12381 LAMP ASSY
58 203-06-56160 HOUSING
58 22W-06-12280 HOUSING
59 22W-06-12170 BULB
60 203-06-56180 RING
60 22W-06-12120 RING
61 22W-06-12290 CUSHION
62 203-06-56190 RING
62 22W-06-12130 RING
62A 22W-06-12160 SEAT
62B 01582-11411 NUT
62C 01602-21442 WASHER, SPRING
62D 08037-01008 GROMMET
62E 23S-05-28220 PLATE, NAME
63 08036-11214 CLIP
64 01010-51220 BOLT
65 01643-31232 WASHER
