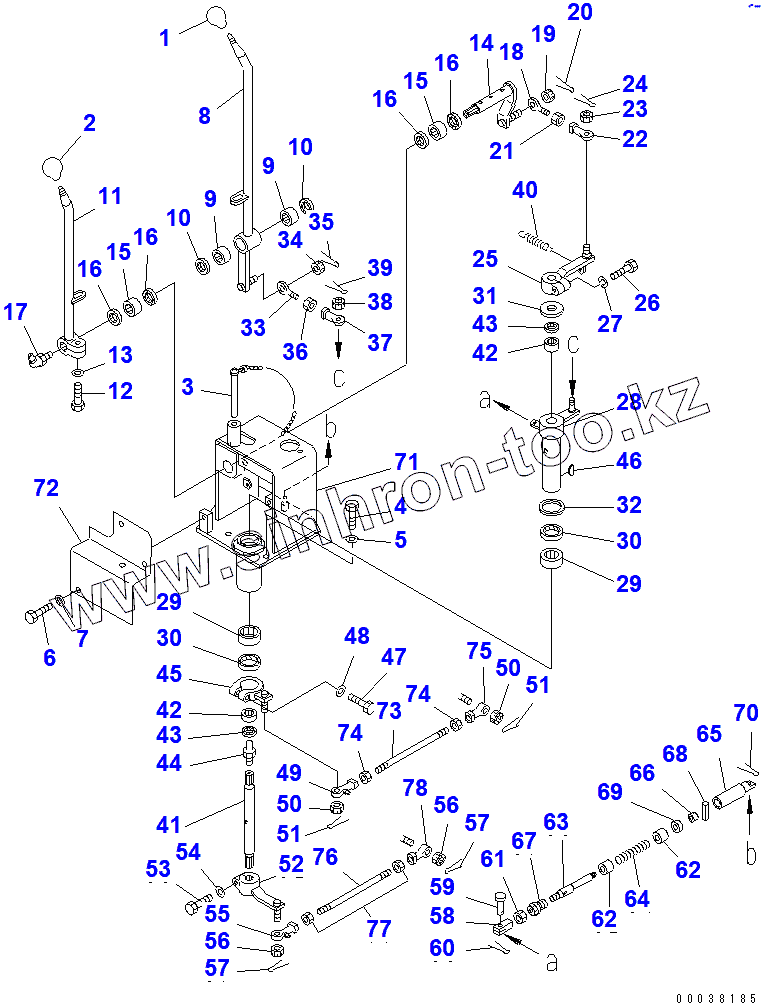

Каталог запасных частей к технике: Komatsu D355C-3. TOWING WINCH CONTROL LEVER (1/2)
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
15
16
16
16
16
18
19
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
42
43
43
44
45
46
47
48
49
50
50
51
51
52
53
54
55
56
56
57
57
58
59
60
61
62
62
63
64
65
66
67
68
69
70
71
72
73
74
74
75
76
77
78
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 09304-01250 | KNOB | |
| 2 | 09304-01250 | KNOB | |
| 3 | 196-916-1411 | PIN | |
| 4 | 01010-81230 | BOLT | |
| 5 | 01643-31232 | WASHER | |
| 6 | 01010-81225 | BOLT | |
| 7 | 01643-31232 | WASHER | |
| 8 | 196-916-1630 | LEVER | |
| 9 | 06120-02520 | BEARING | |
| 10 | 06122-12504 | SEAL | |
| 11 | 196-916-1710 | LEVER | |
| 12 | 01010-81245 | BOLT | |
| 13 | 01643-31232 | WASHER | |
| 14 | 196-916-1720 | LEVER | |
| 15 | 06120-02520 | BEARING | |
| 16 | 06122-12504 | SEAL | |
| 17 | 07020-00900 | FITTING, GREASE | |
| 18 | 04252-01269 | END | |
| 19 | 01593-11210 | NUT | |
| 20 | 04050-13020 | PIN, COTTER | |
| 21 | 01582-11210 | NUT | |
| 22 | 04250-41265 | END | |
| 23 | 01593-11210 | NUT | |
| 24 | 04050-13020 | PIN, COTTER | |
| 25 | 196-916-1730 | LEVER | |
| 26 | 01010-81245 | BOLT | |
| 27 | 01643-31232 | WASHER | |
| 28 | 196-916-1850 | LEVER | |
| 29 | 06120-04520 | BEARING | |
| 30 | 06122-14504 | SEAL | |
| 31 | 01643-32460 | WASHER | |
| 32 | 176-43-54481 | WASHER | |
| 33 | 04252-01269 | END | |
| 34 | 01593-11210 | NUT | |
| 35 | 04050-13020 | PIN, COTTER | |
| 36 | 01582-11210 | NUT | |
| 37 | 04250-41265 | END | |
| 38 | 01593-11210 | NUT | |
| 39 | 04050-13020 | PIN, COTTER | |
| 40 | 170-33-12360 | SPRING | |
| 41 | 196-916-1740 | SHAFT | |
| 42 | 06120-02016 | BEARING | |
| 43 | 06122-12004 | SEAL,BEARING (-50 DEG. SPEC.) | |
| 44 | 07020-00000 | FITTING, GREASE | |
| 45 | 196-916-1650 | LEVER | |
| 46 | 04010-00519 | KEY | |
| 47 | 01010-80855 | BOLT | |
| 48 | 01643-30823 | WASHER | |
| 49 | 04250-41265 | END | |
| 50 | 01593-11210 | NUT | |
| 51 | 04050-13020 | PIN, COTTER | |
| 52 | 196-916-1750 | LEVER | |
| 53 | 01010-81245 | BOLT | |
| 54 | 01643-31232 | WASHER | |
| 55 | 04250-41265 | END | |
| 56 | 01593-11210 | NUT | |
| 57 | 04050-13020 | PIN, COTTER | |
| 58 | 04210-20832 | YOKE | |
| 59 | 04205-10822 | PIN | |
| 60 | 04050-12012 | PIN, COTTER | |
| 61 | 01580-10806 | NUT | |
| 62 | 198-43-12250 | RETAINER | |
| 63 | 198-43-12260 | ROD | |
| 64 | 198-43-12270 | SPRING | |
| 65 | 198-43-12280 | CASE | |
| 66 | 198-43-12290 | RING | |
| 67 | 150-43-14931 | COVER | |
| 68 | 04025-00312 | PIN | |
| 69 | 01640-20816 | WASHER | |
| 70 | 04050-12012 | PIN, COTTER | |
| 71 | 196-916-1840 | BRACKET | |
| 72 | 196-916-1810 | COVER | |
| 73 | 04245-51230 | ROD | |
| 74 | 01582-11210 | NUT | |
| 75 | 04250-41265 | END | |
| 76 | 04245-41231 | ROD | |
| 77 | 01582-11210 | NUT | |
| 78 | 04250-41265 | END |
