5. INPUT SHAFT (FOR TOWING WINCH)

Каталог запасных частей к технике: Komatsu D355C-3. INPUT SHAFT (FOR TOWING WINCH)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано D155C-1 (2010) D155C-1 (спец.) (2010) D155C-1D (2010) D155C-1P (2010) D355C-3 (2010) D355C-3 (2010) D85A-21 (2010) D85A-21 (2010) D85A-21B (2010) D85C-21A (2010) PC200, 210(LC)-7 (2004) PC200-6 (2010) PC200-7 (2010) PC200-7-AA (2010) PC200-8MO (2010) PC200LC-7 (2010) PC200LC-8M0 (2010) PC210-6 (2010) PC210LC-6 (2010) PC220-7 (2010) PC220-8MO (2010) PC220LC-8MO (2010) PC300-7 (2010) PC300-8MO (2010) PC300LC-7 (2010) PC300LC-8MO (2010) PC35MR-3 (2010) PC400-7 (2010) PC400-7EO (2010) PC400LC-7 (2010) PC55MR-3 (2010) WB93R-5E0 (2018) WB93S-5E0 (2018) WB97S-5E0 (2018) Погрузчик SK820 (2015)

Схема > Не выбрано ENGINE MOUNTING MUFFLER RADIATOR FAN NET(14263-14429) RADIATOR PIPING RADIATOR FAN BELT OIL COOLER FUEL TANK FUEL PIPING WIRING HARNESS (WITH SAFETY DEVICE) (1/3)(14413-) WIRING HARNESS (WITH SAFETY DEVICE) (2/3)(14413-15309) WIRING HARNESS (WITH SAFETY DEVICE) (2/3)(15310-) WIRING HARNESS (1/3) WIRING HARNESS (WITH SAFETY DEVICE) (3/3)(14413-) WIRING HARNESS (2/3) WIRING HARNESS (3/3) (WITH AIR CONDITIONER) BACK-UP ALARM (COLD WEATHER (B) SPEC.)(14608-) POWER TAKE OFF (1/2) POWER TAKE OFF (WITH TOWING WINCH)(14592-) POWER TAKE OFF (2/2) UNIVERSAL JOINT TORQUE CONVERTER BARE TORQUE CONVERTER OUTPUT TORQUE CONVERTER CASE TORQUE CONVERTER HOUSING TORQUE CONVERTER PUMP TORQUE CONVERTER RELIEF VALVE TORQUE CONVERTER REGULATOR VALVE TRANSMISSION BARE (1/2) TRANSMISSION BARE (2/2) TRANSMISSION CARRIER (1/3) TRANSMISSION CARRIER (2/3) TRANSMISSION CARRIER (3/3) TRANSMISSION CASE TRANSFER TRANSMISSION INPUT AND OUTPUT CONTROL VALVE (LOWER) CONTROL VALVE (UPPER) LUBRICATION VALVE CONTROL VALVE COVER (1/2) CONTROL VALVE COVER (2/2) BEVEL GEAR AND SHAFT STEERING CLUTCH BRAKE BAND BRAKE LINKAGE BRAKE BOOSTER FINAL DRIVE CASE FINAL DRIVE GEAR AND SHAFT (1/2) FINAL DRIVE GEAR AND SHAFT (2/2) STEERING CONTROL VALVE RELIEF VALVE SAFETY VALVE POWER TRAIN PUMP TORQUE CONVERTER PIPING TORQUE FLOW TRANSMISSION PIPING TORQUE FLOW TRANSMISSION PIPING (WITH SAFETY DEVICE)(14430-) STEERING PIPING (1/3) STEERING PIPING (1/3) (WITH SAFETY DEVICE)(14430-) STEERING PIPING (2/3) STEERING PIPING (2/3) (WITH SAFETY DEVICE)(14430-) STEERING PIPING (3/3) STEERING PIPING (3/3) (WITH SAFETY DEVICE)(14430-) BRAKE PIPING CONCENTRATED PIPING SAFETY DEVICE PIPNG(14413-) TRANSMISSION OIL FILTER STEERING OIL FILTER STEERING STRAINER COUNTERWEIGHT PUMP HYDRAULIC PUMP (FOR TOWING WINCH) HYDRAULIC PUMP (WITHOUT TOWING WINCH)(14592-) HYDRAULIC PUMP (FOR TOWING WINCH)(14592-) STEERING CASE FRAME STEERING CASE REAR COVER FILLER AND GAUGE SUSPENSION OPERATOR'S SEAT SEAT BELT CAB (BODY)(14404-) CAB (BODY AND COVER)(14520-) CAB (BODY) (WITH BEACON)(14608-) CAB (COVER) (WITH VENTILATOR)(14404-) CAB (SIDE WINDOW)(14520-) CAB (COVER) (WITH BEACON)(14608-) CAB (DOOR AND REAR WINDOW) (WITH SAFETY DEVICE)(14413-) CAB (DOOR AND REAR WINDOW) (COLD WEATHER (A) SPEC.)(14404-) CAB (DOOR AND REAR WINDOW)(14520-) CAB (INTERIOR) (WITH SAFETY DEVICE)(14404-) CAB (INTERIOR)(14520-) CAB (WIRING HARNESS) (WITH SAFETY DEVICE)(14404-) CAB (WIRING HARNESS)(14520-) CAB (WIRING HARNESS) (WITH BEACON)(14608-) CAB (WIRING HARNESS) (WITH SAFETY DEVICE)(15336-) CAB (VENTILATOR¤ REAR LAMP AND WIPER) (WITH SAFETY DEVICE)(14404-) CAB (VENTILATOR¤ REAR LAMP AND WIPER)(14520-) CAB (VENTILATOR¤ REAR LAMP AND WIPER) (WITH SAFETY DEVICE)(15336-) CAB (HEATER RELATED PARTS)(14520-) CAB (DUCT)(14404-) CAB (DUCT RELATED PARTS)(14520-) CAB (HEATER PIPING) (WITH SAFETY DEVICE)(14404-) CAB (HEATER PIPING)(14520-) CAB (COOLER PIPING)(14404-) CAB (COOLER PIPING) (WITH SAFETY DEVICE)(15336-) CAB (WORKING LAMP) CAB (WIRING HARNESS) (FOR WORKING LAMP)(15336-) CAB (FOG LAMP) CAB (WIRING HARNESS) (FOR FOG LAMP)(15336-) CAB (REARVIEW MIRROR)(14404-) CAB (REARVIEW MIRROR BRACKET)(15336-) CAB (WINCH LAMP) CAB (WINCH LAMP BRACKET)(15336-) CAB (SUNVISOR) CAB (REAR LAMP AND HEAD LAMP)(15336-) CAB (BODY AND COVER)(14263-14519) CAB (SIDE WINDOW)(14263-14519) CAB (DOOR AND REAR WINDOW)(14263-14519) CAB (INTERIOR)(14263-14519) CAB (WIRING HARNESS)(14263-14519) CAB (VENTILATOR¤ REAR LAMP AND WIPER)(14263-14519) CAB MOUNTING(14263-14519) CAB MOUNTING FLOOR MAT REARVIEW MIRROR (WHITE) HEATER RELATED PARTS(14263-14519) DUCT RELATED PARTS(14263-14519) HEATER PIPING HEATER PIPING (FOR AIR CONDITIONER) (1/2)(14413-) CAB HEATER PIPING(14263-14519) HEATER PIPING (FOR AIR CONDITIONER) (2/2)(14413-) CIGARETTE LIGHTER AND ASHTRAY EXTINGUISHER FIRST AID BOX THERMOS BOTTLE THERMOS BOTTLE (WITH BAND) FLOOR FRAME FLOOR FRAME (WITH SAFETY DEVICE)(14430-) DECELERATOR PEDAL DECELERATOR PEDAL (WITH TOWING WINCH)(14592-) SHUTTER CONTROL LEVER FUEL CONTROL LEVER FUEL CONTROL LEVER PARKING BRAKE LEVER GEAR SHIFT LEVER (1/2) GEAR SHIFT LEVER (2/2) WINCH CONTROL LEVER LINKAGE WINCH CONTROL LEVER LINKAGE (WITH SAFETY DEVICE)(14413-) HOOK AND HIGH-LOW CONTROL LEVER BOOM CONTROL LEVER BOOM CONTROL LEVER (WITH SAFETY DEVICE)(14413-) HOOK AND HIGH-LOW CONTROL LOCK LEVER COUNTERWEIGHT CONTROL LEVER BOOM KICK-OUT CONTROL LEVER WIRING HARNESS WIRING HARNESS (WITH SAFETY DEVICE)(14413-) CAB DOOR LOCK(14520-) CIGARETTE LIGHTER AND CASE(14592-) INSTRUMENT PANEL (WITH SAFETY DEVICE)(14413-) INSTRUMENT PANEL(14413-) DASH BOARD FUEL LEVER(14413-) STEERING AND BRAKE CONTROL LINKAGE(14413-) BRAKE PEDAL STEERING CONTROL LEVER STEERING CONTROL LEVER LINKAGE CONTROL LEVER KNOB INSPECTION LAMP CABLE OVER WIND ALARM OVER WIND ALARM TOWING WINCH CONTROL LEVER (1/2) SAFETY DEVICE FLOOR FRAME MOUNTING FLOOR FRAME COVER GEAR SHIFT LEVER KNOB GEAR SHIFT LINKAGE STEERING CONTROL LEVER LINKAGE BRAKE PEDAL LINKAGE(1/2) BRAKE PEDAL LINKAGE (1/2)(14430-) BRAKE PEDAL LINKAGE (2/2) PARKING BRAKE LEVER SHUTTER CONTROL LINKAGE RADIATOR RADIATOR PIPING RADIATOR FAN DRIVE FAN GUARD CORE GRID (20 GRID) CORE GRID (10 GRID) HEAD LAMP AND WORKING LAMP HEAD LAMP AND WORKING LAMP (WITH SAFETY DEVICE)(14413-14498) HEAD LAMP AND WORKING LAMP (WITH SAFETY DEVICE)(14499-) RADIATOR GUARD RADIATOR SHUTTER CONTROL RADIATOR MASK RADIATOR FAN NET RADIATOR GUARD RELATED RADIATOR MASK ENGINE HOOD ENGINE HOOD (WITH SAFETY DEVICE)(14413-) ENGINE SIDE COVER (CLOSE) FENDER FLOOR FRAME MOUNTING BATTERY MOUNTING STARTING CABLE FENDER CABLE (COLD WEATHER (A) SPEC.) (WITH BACK UP ALARM)(14449-) STARTING CABLE (COLD WEATHER (B) SPEC.) (WITH TOWING WINCH)(14592-) GEAR SHIFT LINKAGE AND LOCK LEVER PIPING BRACKET AND BATTERY PIPING BRACKET AND BATTERY (WITH TOWING WINCH) BACK UP ALARM LAMP(14608-) HYDRAULIC TANK AND CONTROL VALVE COUNTERWEIGHT FILTER SHUTTER CONTROL LINKAGE COUNTERWEIGHT PIPING COUNTERWEIGHT CONTROL LEVER TOWING WINCH CONTROL LEVER TOWING WINCH PIPING FENDER PLATE COOLANT HEATER AND DUCT (1/2) COOLANT HEATER AND DUCT (2/2) COOLANT HEATER PIPING MIKUNI PREHEATER (1/2) MIKUNI PREHEATER (2/2) REAR COVER UNDER GUARD (WITH HINGE) FRONT IDLER TRACK ROLLER CARRIER ROLLER TRACK SHOE (860MM) (HEAVY DUTY SINGLE GROUSER) (GREASE TYPE) (84 SET) TRACK SHOE (960MM) (HEAVY DUTY SINGLE GROUSER) (GREASE TYPE) (84 SET) TRACK SHOE (1010MM) (HEAVY DUTY SINGLE GROUSER) (GREASE TYPE) (84 SET) TRACK FRAME RECOIL SPRING TRACK FRAME COVER TRACK ROLLER GUARD COUNTERWEIGHT(14413-) COUNTERWEIGHT PIPING (1/2) COUNTERWEIGHT PIPING (2/2) COUNTERWEIGHT CYLINDER(14413-) BOOM (8.5M) BOOM (9.2M) HOOK AND BLOCK SHEAVE BLOCK MOMENT LIMITER (FOR 7.3M) MOMENT LIMITER (FOR 8.5M) MOMENT LIMITER (FOR 9.2M)(14553-) LORD INDICATOR (8.5M)(14413-) LORD INDICATOR (9.2M) LOAD INDICATOTR (9.2M) (SAFTY DEVICE) AUTOMATIC OVER WIND ALARM (7.3M) AUTOMATIC OVER WIND ALARM (8.5M) AUTOMATIC OVER WIND ALARM (9.2M) OVER WIND RELAY SWITCH HOOK WIRE LOCK FRAME (1/2) FRAME (1/2) (WITH AIR CONDITIONER) FRAME (1/2) (WITH AIR CONDITIONER¤ SAFETY DEVICE) FRAME (2/2) FRAME (2/2) (WITH AIR CONDITIONER) WINCH (1/9) WINCH (2/9) WINCH (3/9) WINCH (4/9) WINCH (5/9) WINCH (6/9) WINCH (7/9) WINCH (8/9) WINCH (9/9) WINCH CLUTCH(1/3) WINCH CLUTCH (2/3) WINCH CLUTCH (3/3) WINCH BRAKE WINCH FLOW DIVIDER WINCH STRAINER WINCH FILTER WINCH CONTROL BOX WIRE ROPE (8.5M) WIRE ROPE (9.2M) DRUM ROLLER WINCH CONTROL LEVER LINKAGE (1/3) WINCH CONTROL LEVER LINKAGE (2/3) WINCH CONTROL LEVER LINKAGE (3/3) WINCH CONTROL LEVER KNOB BOOM KICK-OUT CONTROL LEVER WINCH COLLER PIPING WITHOUT TOWING WINCH NOUNTING CLUTCH DRUM L.H. (FOR TOWING WINCH) WITHOUT TOWING WINCH PIPING CLUTCH DRUM R.H. (FOR TOWING WINCH) BRAKE DRUM (FOR TOWING WINCH) CONTROL VALVE (FOR TOWING WINCH) BRAKE CYLINDER (FOR TOWING WINCH) TOWING WINCH CASE (1/2) TOWING WINCH CASE (2/2) BEVEL GEAR (FOR TOWING WINCH) BRAKE DRAUM (FOR TOWING WINCH) CABLE DRUM (FOR TOWING WINCH) CABLE (FOR TOWING WINCH) WINCH PIPING (FOR TOWING WINCH) INPUT SHAFT (FOR TOWING WINCH) DRAWBAR (FOR TOWING WINCH) TOWING WINCH MOUNTING WIRE ROPE (FOR TOWING WINCH) CONTROL LEVER LINKAGE (FOR TOWING WINCH) PIPING (FOR TOWING WINCH) FUEL DRAIN DRAWBAR DECAL AND PLATE(14263-14519) DECAL AND PLATE (RUSSIAN)(14520-) DECAL AND PLATE (RUSSIAN) (FOR GOST ARRANGE)(14413-) DECAL AND PLATES (PERSIAN) MARK PLATE (CENTER OF GRAVITY) PLATE (AIR CLEANER) (FOR 140 ENGINE)(14520-) MARK AND PLATE (SEAT BELT)(14413-) SPARE PARTS CAP AND OVERALL(14549-) TOOL INSPECTION LAMP VANDALISM PROTECTION WIRING HARNESS (ENGINE HEATER)(14263-14285) WIRING HARNESS (ENGINE HEATER)(14286-) QUILTING SERVICE KIT SHOE BOLT AND NUT SERVICE KIT TRACK LINK (GREASE TYPE) (84 SET) (SUPPLY PARTS) TRANSMISSION PUMP STEERING PUMP WINCH PUMP COUNTER WEIGHT PUMP COUNTER WEIGHT CYLINDER(14263-14412) COUNTER WEIGHT CYLINDER(14413-) HYDRAULIC TANK AND CONTROL VALVE PPC VALVE SLOW RETURN VALVE HIGH-LOW SELECT VALVE COMPRESSOR(14413-14648) COMPRESSOR(14649-)

3

4

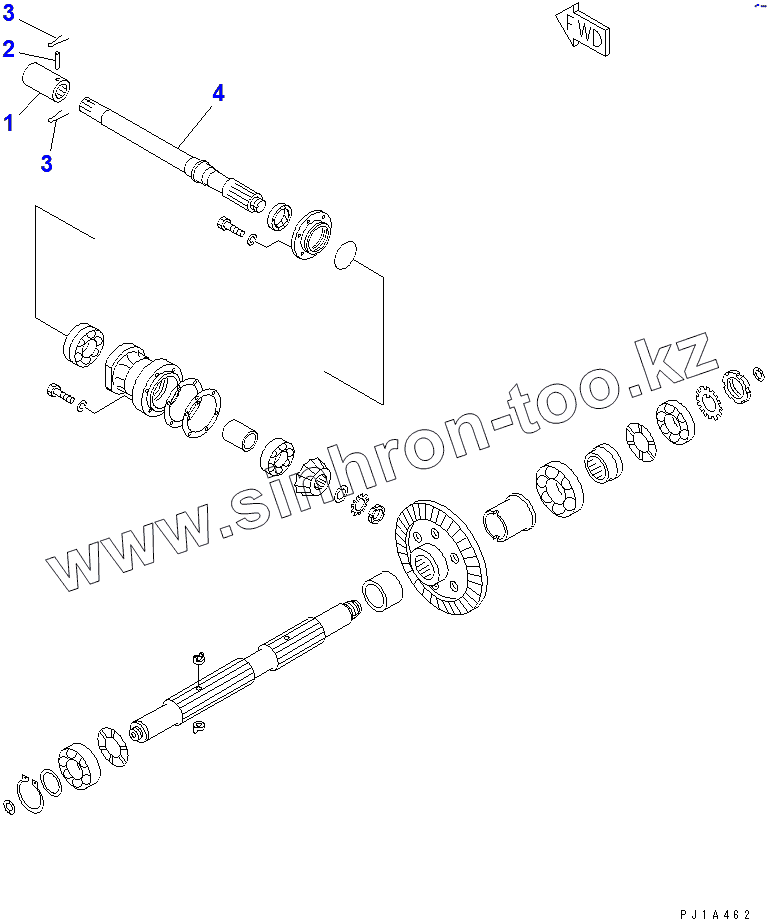

Позиция на иллюстрации	Заводской номер детали		Название детали
1	175-916-1840		COUPLING
2	175-916-1820		PIN
3	04050-13015		PIN, COTTER
4	175-916-8530		SHAFT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
