Каталог запасных частей к технике: Komatsu D155C-1P. WINCH CONTROL LEVER LINKAGE (1/3)
/267.gif)
1
2
3
4
4
4
4
4
4
5
5
5
6
6
6
7
7
7
8
9
10
10
10
10
11
12
12
12
12
13
13
14
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
36
37
37
38
38
39
39
40
41
42
42
43
43
44
44
45
45
45
45
45
45
45
45
46
47
48
50
51
52
53
54
54
55
56
57
57
58
59
60
61
61
61
61
61
61
61
61

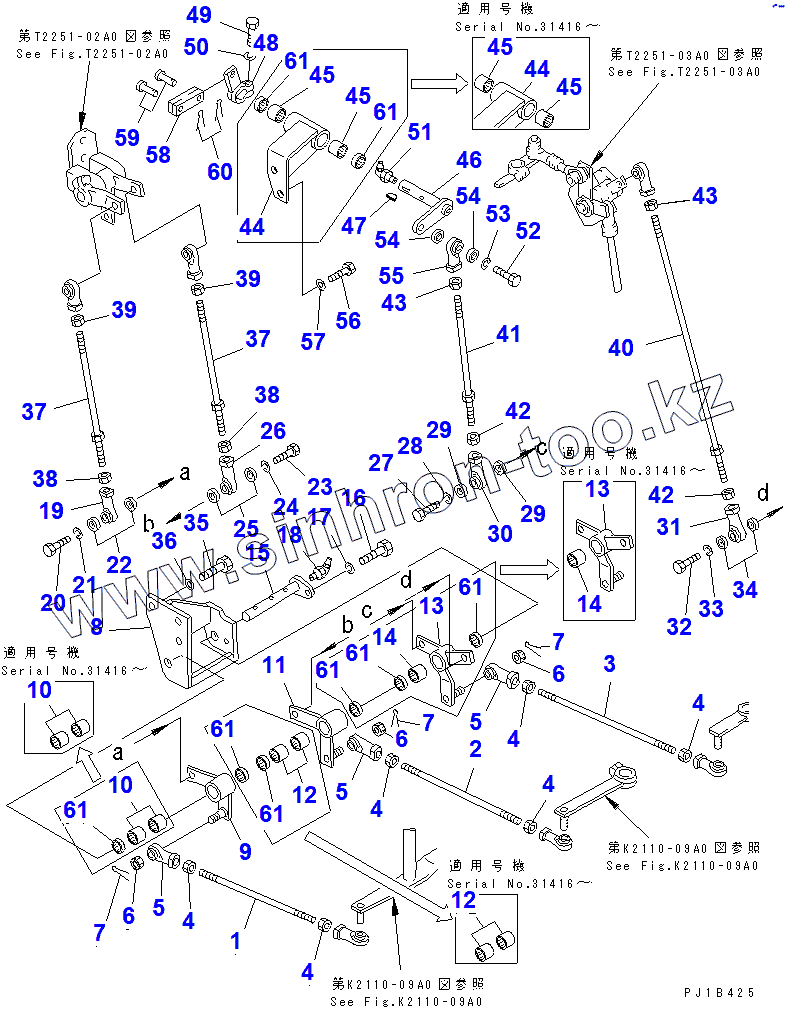

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 04245-41228 | ROD | |
| 2 | 04245-41232 | ROD | |
| 3 | 04245-41234 | ROD | |
| 4 | 01582-11210 | NUT | |
| 5 | 04250-81265 | END, ROD | |
| 6 | 01593-31210 | NUT | |
| 7 | 04050-13020 | PIN, COTTER | |
| 8 | 176-76-27351 | BRACKET | |
| 9 | 176-76-27361 | LEVER | |
| 10 | 06123-02018 | BEARING | |
| 10 | 06120-02016 | BEARING | |
| 11 | 176-76-27381 | LEVER | |
| 12 | 06123-02018 | BEARING | |
| 12 | 06120-02016 | BEARING | |
| 13 | 176-76-27372 | LEVER | |
| 14 | 06123-02018 | BEARING | |
| 14 | 06120-02016 | BEARING | |
| 15 | 176-76-27391 | PIN | |
| 16 | 01010-80816 | BOLT | |
| 17 | 01602-20825 | WASHER, SPRING | |
| 18 | 07020-00675 | FITTING, GREASE | |
| 19 | 04250-81265 | END, ROD | |
| 20 | 01010-81235 | BOLT | |
| 21 | 01602-21236 | WASHER, SPRING | |
| 22 | 04254-11232 | SPACER | |
| 23 | 01010-81235 | BOLT | |
| 24 | 01602-21236 | WASHER, SPRING | |
| 25 | 04254-11232 | SPACER | |
| 26 | 04250-81265 | END, ROD | |
| 27 | 01010-81235 | BOLT | |
| 28 | 01602-21236 | WASHER, SPRING | |
| 29 | 04254-11232 | SPACER | |
| 30 | 04250-81265 | END, ROD | |
| 31 | 04250-81265 | END, ROD | |
| 32 | 01010-81235 | BOLT | |
| 33 | 01602-21236 | WASHER, SPRING | |
| 34 | 04254-11232 | SPACER | |
| 35 | 01010-81235 | BOLT | |
| 36 | 01643-31232 | WASHER | |
| 36 | 01602-01236 | WASHER, SPRING | |
| 37 | 04248-31229 | ROD | |
| 38 | 01582-11210 | NUT | |
| 39 | 01508-41207 | NUT, COTTER | |
| 40 | 04248-31258 | ROD | |
| 41 | 04248-31235 | ROD | |
| 42 | 01582-11210 | NUT | |
| 43 | 01508-41207 | NUT, COTTER | |
| 44 | 176-76-27311 | BRACKET | |
| 45 | 06123-02018 | BEARING | |
| 45 | 06120-02016 | BEARING | |
| 46 | 176-76-27341 | LEVER | |
| 47 | 04010-00519 | KEY | |
| 48 | 176-76-27331 | LEVER | |
| 49 | 01010-80830 | BOLT | |
| 50 | 01602-20825 | WASHER, SPRING | |
| 51 | 07020-00900 | FITTING, GREASE | |
| 52 | 01010-81235 | BOLT | |
| 53 | 01602-21236 | WASHER, SPRING | |
| 54 | 04254-11232 | SPACER | |
| 55 | 04250-91265 | END, ROD | |
| 56 | 01010-81230 | BOLT | |
| 57 | 01643-31232 | WASHER | |
| 57 | 01602-01236 | WASHER, SPRING | |
| 58 | 176-76-27320 | YOKE | |
| 59 | 04205-10822 | PIN | |
| 60 | 04050-12012 | PIN, COTTER | |
| 61 | 06122-12004 | SEAL,BEARING (-50 DEG. SPEC.) |
