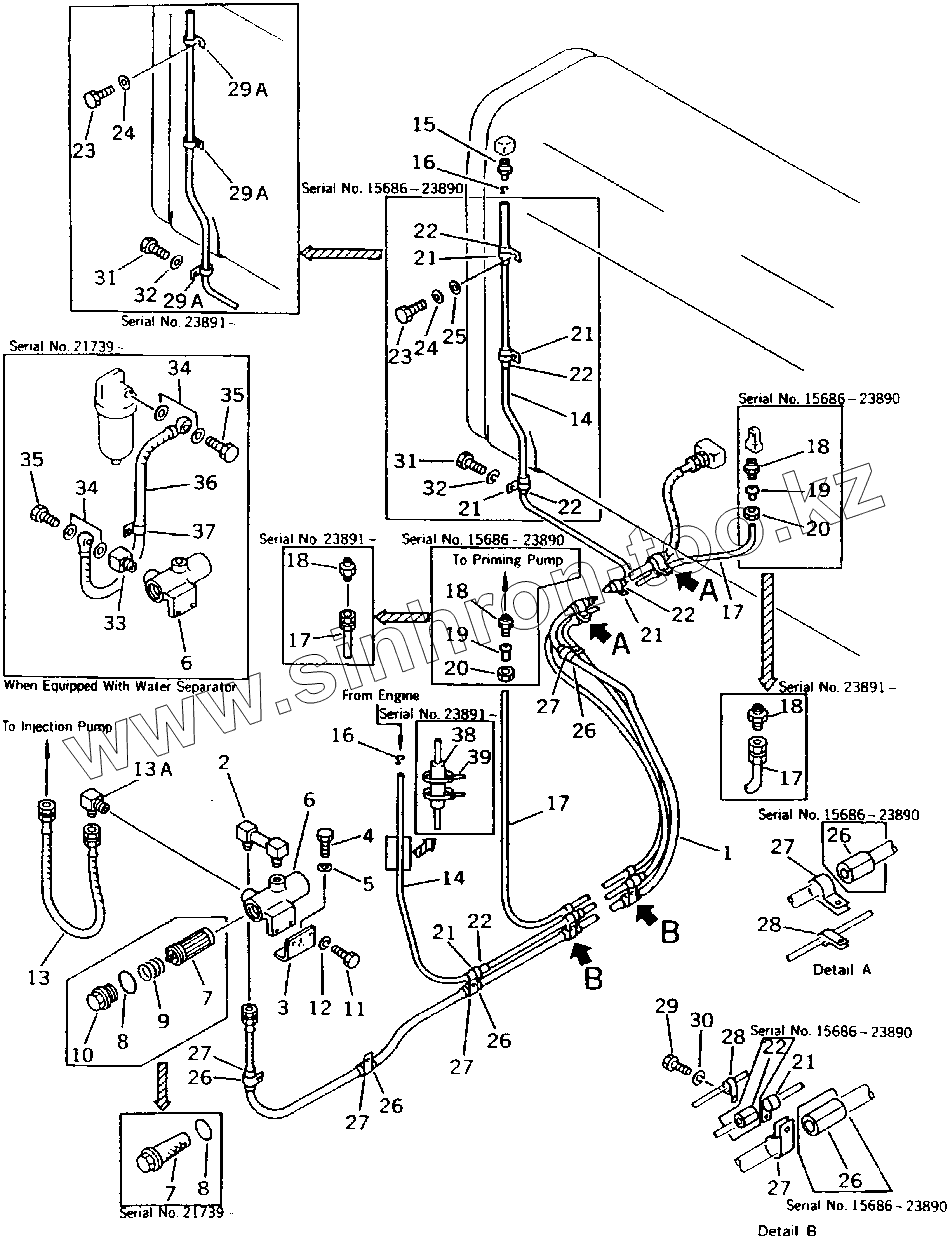

Каталог запасных частей к технике: Komatsu D155C-1P. FUEL PIPING(15686-31573)
/10.gif)
1
2
3
4
5
6
6
7
7
8
8
8
8
8
8
9
10
11
12
13
13A
14
14
14
14
14
14
15
15
16
16
17
17
17
17
18
18
18
18
19
19
20
20
21
21
21
21
21
21
21
21
21
21
21
21
21
21
22
22
22
22
22
22
22
22
22
22
22
22
22
22
23
23
24
24
25
26
26
26
26
26
26
27
27
27
27
27
27
28
28
29
29A
29A
29A
30
31
31
32
32
33
34
34
35
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07100-20448 | HOSE | |
| 2 | 196-04-21130 | TUBE | |
| 3 | 176-04-41150 | PLATE | |
| 4 | 01010-81225 | BOLT | |
| 5 | 01643-31232 | WASHER | |
| 01602-01236 | 01602-01236 | WASHER, SPRING | |
| 176-04-00022 | 176-04-00022 | STRAINER ASS'Y | |
| 6 | 175-04-25340 | CASE | |
| 7 | 07058-00010 | ELEMENT ASS'Y | |
| 07058-00002 | 07058-00002 | STRAINER | |
| 8 | 07000-03040 | O-RING | |
| 8 | 07002-04234 | O-RING | |
| 9 | 07058-00003 | SPRING | |
| 10 | 07058-00004 | PLUG | |
| 11 | 01010-80820 | BOLT | |
| 12 | 01602-20825 | WASHER, SPRING | |
| 13 | 07100-20406 | HOSE,(NOT USED WHEN WATER SEPARATE) | |
| 13A | 195-04-12280 | ELBOW | |
| 14 | 07270-40456 | TUBE | |
| 14 | 175-04-26160 | TUBE | |
| 15 | 07209-01040 | NIPPLE | |
| 15 | 195-04-12290 | NIPPLE | |
| 16 | 175-04-25180 | CLIP | |
| 17 | 07102-20237 | HOSE | |
| 07822-00440 | 07822-00440 | TUBE | |
| 18 | 195-06-17380 | ELBOW | |
| 07836-00410 | 07836-00410 | CONNECTOR | |
| 19 | 07831-00411 | SLEEVE | |
| 20 | 07832-00410 | NUT | |
| 21 | 08036-01414 | CLIP | |
| 21 | 08036-01414 | CLIP | |
| 22 | 175-04-25150 | TUBE | |
| 22 | 175-04-25150 | TUBE | |
| 23 | 01010-80816 | BOLT | |
| 24 | 01643-30823 | WASHER | |
| 25 | 01642-30810 | WASHER | |
| 26 | 150-04-12320 | TUBE | |
| 27 | 08036-02514 | CLIP | |
| 154-04-12420 | 154-04-12420 | CLAMP | |
| 28 | 08036-10814 | CLIP | |
| 29 | 01010-81020 | BOLT | |
| 29A | 08036-10810 | CLIP | |
| 30 | 01643-31032 | WASHER | |
| 31 | 01010-81016 | BOLT | |
| 32 | 01643-31032 | WASHER | |
| 33 | 175-04-21330 | NIPPLE,(FOR WATER SEPARATOR) | |
| 34 | 07005-01412 | SEAL, WASHER | |
| 35 | 07206-21014 | BOLT | |
| 36 | 07271-01495 | HOSE | |
| 37 | 08035-02510 | CLIP | |
| 38 | 195-04-13310 | CUSHION | |
| 39 | 08034-00414 | BAND |
