Каталог запасных частей к технике: Komatsu D155C-1D. RADIATOR FAN BELT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано D155C-1 (2010) D155C-1 (спец.) (2010) D155C-1D (2010) D155C-1P (2010) D355C-3 (2010) D355C-3 (2010) D85A-21 (2010) D85A-21 (2010) D85A-21B (2010) D85C-21A (2010) PC200, 210(LC)-7 (2004) PC200-6 (2010) PC200-7 (2010) PC200-7-AA (2010) PC200-8MO (2010) PC200LC-7 (2010) PC200LC-8M0 (2010) PC210-6 (2010) PC210LC-6 (2010) PC220-7 (2010) PC220-8MO (2010) PC220LC-8MO (2010) PC300-7 (2010) PC300-8MO (2010) PC300LC-7 (2010) PC300LC-8MO (2010) PC35MR-3 (2010) PC400-7 (2010) PC400-7EO (2010) PC400LC-7 (2010) PC55MR-3 (2010) WB93R-5E0 (2018) WB93S-5E0 (2018) WB97S-5E0 (2018) Погрузчик SK820 (2015)

Схема > Не выбрано ENGINE MOUNT RADIATOR PIPING RADIATOR FAN BELT RADIATOR FAN GUARD OIL COOLER FUEL TANK FUEL PIPING STARTING CABLE ENGINE ROOM CABLE(31577-) BACK-UP ALARM POWER TAKE OFF (1/2) POWER TAKE OFF (2/2) UNIVERSAL JOINT TORQUE CONVERTER BARE TORQUE CONVERTER OUTPUT TORQUE CONVERTER CASE TORQUE CONVERTER HOUSING TORQUE CONVERTER PUMP TORQUE CONVERTER RELIEF VALVE TORQUE CONVERTER REGULATOR VALVE TRANSMISSION BARE (1/2) TRANSMISSION BARE (2/2) TRANSMISSION CARRIER (1/3) TRANSMISSION CARRIER (2/3) TRANSMISSION CARRIER (3/3) TRANSMISSION CASE TRANSFER TRANSMISSION INPUT AND OUTPUT CONTROL VALVE (LOWER) CONTROL VALVE (UPPER) LUBRICATION VALVE CONTROL VALVE COVER (1/2) CONTROL VALVE COVER (2/2) BEVEL GEAR AND SHAFT BRAKE BAND AND LINKAGE BRAKE BOOSTER FINAL DRIVE CASE FINAL DRIVE GEAR AND SHAFT STEERING CONTROL VALVE MAIN RELIEF VALVE AND SAFETY VALVE STEERING CONTROL VALVE RELATED PARTS POWER LINE PUMP TORQUE CONVERTOR PIPING TORQFLOW TRANSMISSION PIPING STEERING PIPING (SUCTION LINE) STEERING PIPING STEERING PIPING (RETURN LINE) SAFETY PIPING(31577-) TRANSMISSION OIL FILTER STEERING STRAINER STEERING FILTER COUNTER WEIGHT PUMP MAIN FRAME STEERING CASE REAR COVER OIL FILTER AND LEVEL GAUGE SUSPENSION OPERATOR'S SEAT OPERATOR'S SEAT ASSEMBLY CAB (BODY AND COVER) CAB (SIDE WINDOW) CAB (DOOR AND REAR WINDOW) CAB (INTERIOR) CAB (ELECTRICAL PARTS) CAB (VENTILATOR¤REAR LAMP AND WIPER) CAB MOUNT FLOOR MAT REAR VIEW MIRROR SUNVISOR HEATER RELATED PARTS DUCT RELATED PARTS HEATER PIPING CAB HEATER PIPING HEATER ASS'Y GRILLE ASS'Y EXTINGUISHER FIRST AID BOX THERMOS BOTTLE WORK LAMP WINCH LAMP FOG LAMP FLOOR FRAME DECELERATOR PEDAL RADIATOR SHUTTER CONTROL LEVER ENGINE CONTROL LEVER (1/3) ENGINE CONTROL LEVER (2/3) ENGINE CONTROL LEVER (3/3) PARKING BRAKE LEVER TRANSMISSION CONTROL LEVER (1/2) TRANSMISSION CONTROL LEVER (2/2) WINCH CONTROL LEVER HOOK AND HI-LOW CONTROL LEVER LINKAGE WINCH CONTROL LEVER LINKAGE BOOM CONTROL LEVER HOOK AND HI-LOW CONTROL LEVER COUNTER WEIGHT CONTROL LEVER BOOM KICKOUT CONTROL HORN SWITCH CAB DOOR LOCK CIGA LIGHTER AND ASHTRAY INSTRUMENT PANEL DASH BOARD FUEL CONTROL LEVER COMPRESSION RELEASE LEVER STEERING AND BRAKE PEDAL LINKAGE BRAKE PEDAL LINKAGE STEERING CONTROL LEVER COMPRESSION RELEASE LEVER LINKAGE STEERING LEVER LINKAGE INSPECTION LAMP CABLE(10001-) SAFETY DEVICE RELATED(31578-) FLOOR FRAME COVER ARM REST FUEL CONTROL LINKAGE COMPRESSION RELEASE LEVER TRANSMISSION CONTROL AND GEARSHIFT LEVER STEERING CONTROL LINKAGE PARKING BRAKE LINKAGE KNOB SHUTTER CONTROL LINKAGE RADIATOR RADIATOR FAN GUARD RADIATOR SHUTTER RADIATOR PIPING RADIATOR FAN DRIVE HEAD AND SIDE LAMP RADIATOR GUARD RADIATOR MASK RADIATOR FAN NET ENGINE HOOD SIDE COVER FENDER FENDER MOUNT BATTERY COVER BATTERY CABLE TRANSMISSION SPEED CONTROL LEVER BATTERY (C200¤ WET) BATTERY RELATED PARTS(31577-) HYDRAULIC TANK COUNTER WEIGHT FILTER FLOOR FRAME COVER RADIATOR SHUTTER CONTROL LEVER FENDER RELATED PARTS COUNTER WEIGHT PIPING (1/2) COUNTER WEIGHT PIPING (2/2) COUNTER WEIGHT CONTROL LEVER(31577-) FENDER RELATED PARTS UNDER GUARD FRONT IDLER TRACE ROLLER CARRIER ROLLER TRACK SHOE (760MM WIDE) TRACK FRAME RECOIL SPRING TRACK FRAME COVER TRACK ROLLER CENTER GUARD COUNTER WEIGHT COUNTER WEIGHT PIPING (1/2) COUNTER WEIGHT PIPING (2/2) BOOM (7.3M) BLOCK AND HOOK SHEAVE BLOCK MOMENT LIMITTER (7.3M)(31578-) MOMENT LIMITTER (6.2M)(31578-) LOAD INDICATOR (7.3M) LOAD INDICATOR (6.2M)(31578-) AUTOMATIC OVER WIND ALARM WIRING OVER WIND RELAY SEITCH(31578-) HOOK WIRE LOCK FRAME (1/2) FRAME (2/2) WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WINCH WIRE ROPE (7.3M) DRUM ROLLER WINCH CONTROL LEVER LINKAGE (1/3) WINCH CONTROL LEVER LINKAGE (2/3) WINCH CONTROL LEVER LINKAGE (3/3) WINCH CONTROL LEVER KNOB BOOM KICK-OUT CONTROL LEVER WINCH COOLER PIPING DRAWBAR (SWING) MARKS AND PLATES MARK PLATE (CENTER OF GRAVITY) SPARE PARTS CAP AND OVERALL TOOL INSPECTION LAMP VANDALISM PROTECTION ELECTRIC ENGINE HEATER SERVICE KIT SHOE BOLT AND NUT SERVICE KIT TRACK LINK (SUPPLY PARTS) TRANSMISSION PUMP STEERING PUMP WINCH PUMP COUNTER WEIGHT PUMP COUNTER WEIGHT CYLINDER PPC VALVE SLOW RETURN VALVE HIGH-LOW SELECT VALVE COUNTER WEIGHT SLOW RETURN VALVE (1/2) COUNTER WEIGHT SLOW RETURN VALVE (2/2)

1

2

3

4

5

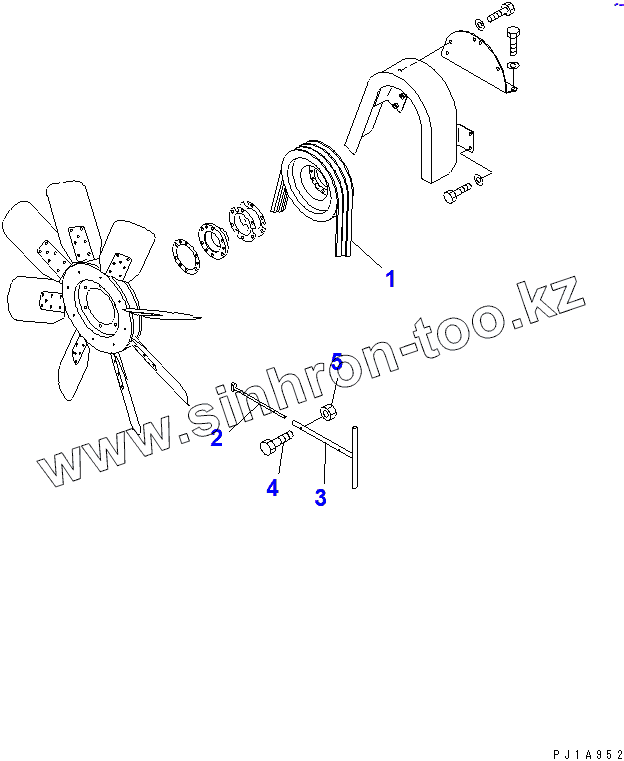

Позиция на иллюстрации	Заводской номер детали		Название детали
175-900-3910	175-900-3910		LEVER ASS'Y
1	04122-32564		V-BELT SET
2	175-900-3920		BAR
3	175-900-3930		HANDLE
4	01010-80625		BOLT
5	01580-10605		NUT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер

Дополнительная информация

×

Название:

Номер:

Примечание:
