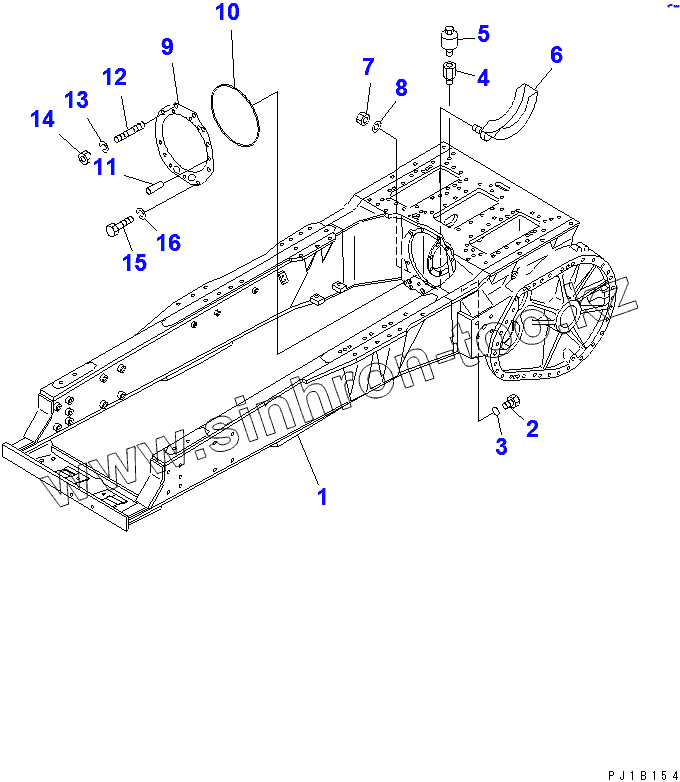

Каталог запасных частей к технике: Komatsu D155C-1D. MAIN FRAME
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
D155C-1 (2010)
D155C-1 (спец.) (2010)
D155C-1D (2010)
D155C-1P (2010)
D355C-3 (2010)
D355C-3 (2010)
D85A-21 (2010)
D85A-21 (2010)
D85A-21B (2010)
D85C-21A (2010)
PC200, 210(LC)-7 (2004)
PC200-6 (2010)
PC200-7 (2010)
PC200-7-AA (2010)
PC200-8MO (2010)
PC200LC-7 (2010)
PC200LC-8M0 (2010)
PC210-6 (2010)
PC210LC-6 (2010)
PC220-7 (2010)
PC220-8MO (2010)
PC220LC-8MO (2010)
PC300-7 (2010)
PC300-8MO (2010)
PC300LC-7 (2010)
PC300LC-8MO (2010)
PC35MR-3 (2010)
PC400-7 (2010)
PC400-7EO (2010)
PC400LC-7 (2010)
PC55MR-3 (2010)
WB93R-5E0 (2018)
WB93S-5E0 (2018)
WB97S-5E0 (2018)
Погрузчик SK820 (2015)
Схема
>
Не выбрано
ENGINE MOUNT
RADIATOR PIPING
RADIATOR FAN BELT
RADIATOR FAN GUARD
OIL COOLER
FUEL TANK
FUEL PIPING
STARTING CABLE
ENGINE ROOM CABLE(31577-)
BACK-UP ALARM
POWER TAKE OFF (1/2)
POWER TAKE OFF (2/2)
UNIVERSAL JOINT
TORQUE CONVERTER BARE
TORQUE CONVERTER OUTPUT
TORQUE CONVERTER CASE
TORQUE CONVERTER HOUSING
TORQUE CONVERTER PUMP
TORQUE CONVERTER RELIEF VALVE
TORQUE CONVERTER REGULATOR VALVE
TRANSMISSION BARE (1/2)
TRANSMISSION BARE (2/2)
TRANSMISSION CARRIER (1/3)
TRANSMISSION CARRIER (2/3)
TRANSMISSION CARRIER (3/3)
TRANSMISSION CASE
TRANSFER
TRANSMISSION INPUT AND OUTPUT
CONTROL VALVE (LOWER)
CONTROL VALVE (UPPER)
LUBRICATION VALVE
CONTROL VALVE COVER (1/2)
CONTROL VALVE COVER (2/2)
BEVEL GEAR AND SHAFT
BRAKE BAND AND LINKAGE
BRAKE BOOSTER
FINAL DRIVE CASE
FINAL DRIVE GEAR AND SHAFT
STEERING CONTROL VALVE
MAIN RELIEF VALVE AND SAFETY VALVE
STEERING CONTROL VALVE RELATED PARTS
POWER LINE PUMP
TORQUE CONVERTOR PIPING
TORQFLOW TRANSMISSION PIPING
STEERING PIPING (SUCTION LINE)
STEERING PIPING
STEERING PIPING (RETURN LINE)
SAFETY PIPING(31577-)
TRANSMISSION OIL FILTER
STEERING STRAINER
STEERING FILTER
COUNTER WEIGHT PUMP
MAIN FRAME
STEERING CASE REAR COVER
OIL FILTER AND LEVEL GAUGE
SUSPENSION
OPERATOR'S SEAT
OPERATOR'S SEAT ASSEMBLY
CAB (BODY AND COVER)
CAB (SIDE WINDOW)
CAB (DOOR AND REAR WINDOW)
CAB (INTERIOR)
CAB (ELECTRICAL PARTS)
CAB (VENTILATOR¤REAR LAMP AND WIPER)
CAB MOUNT
FLOOR MAT
REAR VIEW MIRROR
SUNVISOR
HEATER RELATED PARTS
DUCT RELATED PARTS
HEATER PIPING
CAB HEATER PIPING
HEATER ASS'Y
GRILLE ASS'Y
EXTINGUISHER
FIRST AID BOX
THERMOS BOTTLE
WORK LAMP
WINCH LAMP
FOG LAMP
FLOOR FRAME
DECELERATOR PEDAL
RADIATOR SHUTTER CONTROL LEVER
ENGINE CONTROL LEVER (1/3)
ENGINE CONTROL LEVER (2/3)
ENGINE CONTROL LEVER (3/3)
PARKING BRAKE LEVER
TRANSMISSION CONTROL LEVER (1/2)
TRANSMISSION CONTROL LEVER (2/2)
WINCH CONTROL LEVER
HOOK AND HI-LOW CONTROL LEVER LINKAGE
WINCH CONTROL LEVER LINKAGE
BOOM CONTROL LEVER
HOOK AND HI-LOW CONTROL LEVER
COUNTER WEIGHT CONTROL LEVER
BOOM KICKOUT CONTROL
HORN SWITCH
CAB DOOR LOCK
CIGA LIGHTER AND ASHTRAY
INSTRUMENT PANEL
DASH BOARD
FUEL CONTROL LEVER
COMPRESSION RELEASE LEVER
STEERING AND BRAKE PEDAL LINKAGE
BRAKE PEDAL LINKAGE
STEERING CONTROL LEVER
COMPRESSION RELEASE LEVER LINKAGE
STEERING LEVER LINKAGE
INSPECTION LAMP CABLE(10001-)
SAFETY DEVICE RELATED(31578-)
FLOOR FRAME COVER
ARM REST
FUEL CONTROL LINKAGE
COMPRESSION RELEASE LEVER
TRANSMISSION CONTROL AND GEARSHIFT LEVER
STEERING CONTROL LINKAGE
PARKING BRAKE LINKAGE
KNOB
SHUTTER CONTROL LINKAGE
RADIATOR
RADIATOR FAN GUARD
RADIATOR SHUTTER
RADIATOR PIPING
RADIATOR FAN DRIVE
HEAD AND SIDE LAMP
RADIATOR GUARD
RADIATOR MASK
RADIATOR FAN NET
ENGINE HOOD
SIDE COVER
FENDER
FENDER MOUNT
BATTERY COVER
BATTERY CABLE
TRANSMISSION SPEED CONTROL LEVER
BATTERY (C200¤ WET)
BATTERY RELATED PARTS(31577-)
HYDRAULIC TANK
COUNTER WEIGHT FILTER
FLOOR FRAME COVER
RADIATOR SHUTTER CONTROL LEVER
FENDER RELATED PARTS
COUNTER WEIGHT PIPING (1/2)
COUNTER WEIGHT PIPING (2/2)
COUNTER WEIGHT CONTROL LEVER(31577-)
FENDER RELATED PARTS
UNDER GUARD
FRONT IDLER
TRACE ROLLER
CARRIER ROLLER
TRACK SHOE (760MM WIDE)
TRACK FRAME
RECOIL SPRING
TRACK FRAME COVER
TRACK ROLLER CENTER GUARD
COUNTER WEIGHT
COUNTER WEIGHT PIPING (1/2)
COUNTER WEIGHT PIPING (2/2)
BOOM (7.3M)
BLOCK AND HOOK
SHEAVE BLOCK
MOMENT LIMITTER (7.3M)(31578-)
MOMENT LIMITTER (6.2M)(31578-)
LOAD INDICATOR (7.3M)
LOAD INDICATOR (6.2M)(31578-)
AUTOMATIC OVER WIND ALARM WIRING
OVER WIND RELAY SEITCH(31578-)
HOOK WIRE LOCK
FRAME (1/2)
FRAME (2/2)
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WINCH
WIRE ROPE (7.3M)
DRUM ROLLER
WINCH CONTROL LEVER LINKAGE (1/3)
WINCH CONTROL LEVER LINKAGE (2/3)
WINCH CONTROL LEVER LINKAGE (3/3)
WINCH CONTROL LEVER KNOB
BOOM KICK-OUT CONTROL LEVER
WINCH COOLER PIPING
DRAWBAR (SWING)
MARKS AND PLATES
MARK PLATE (CENTER OF GRAVITY)
SPARE PARTS
CAP AND OVERALL
TOOL
INSPECTION LAMP
VANDALISM PROTECTION
ELECTRIC ENGINE HEATER
SERVICE KIT
SHOE BOLT AND NUT SERVICE KIT
TRACK LINK (SUPPLY PARTS)
TRANSMISSION PUMP
STEERING PUMP
WINCH PUMP
COUNTER WEIGHT PUMP
COUNTER WEIGHT CYLINDER
PPC VALVE
SLOW RETURN VALVE
HIGH-LOW SELECT VALVE
COUNTER WEIGHT SLOW RETURN VALVE (1/2)
COUNTER WEIGHT SLOW RETURN VALVE (2/2)
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
Позиция на иллюстрации
Заводской номер детали
Название детали
1
176-21-41103
MAIN FRAME ASS'Y
2
07044-13620
PLUG
3
07002-43634
O-RING
4
07350-00215
NIPPLE
5
07030-00252
BREATHER
6
175-21-11181
COVER
7
01580-11210
NUT
8
01643-31232
WASHER
9
175-21-32185
GASKET
10
07000-45470
O-RING
11
04020-01842
PIN, DOWEL
12
01120-32050
STUD
13
01602-22060
WASHER,SPRING
14
01582-02016
NUT
15
01010-82050
BOLT
16
01602-22060
WASHER,SPRING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
